Product Overview

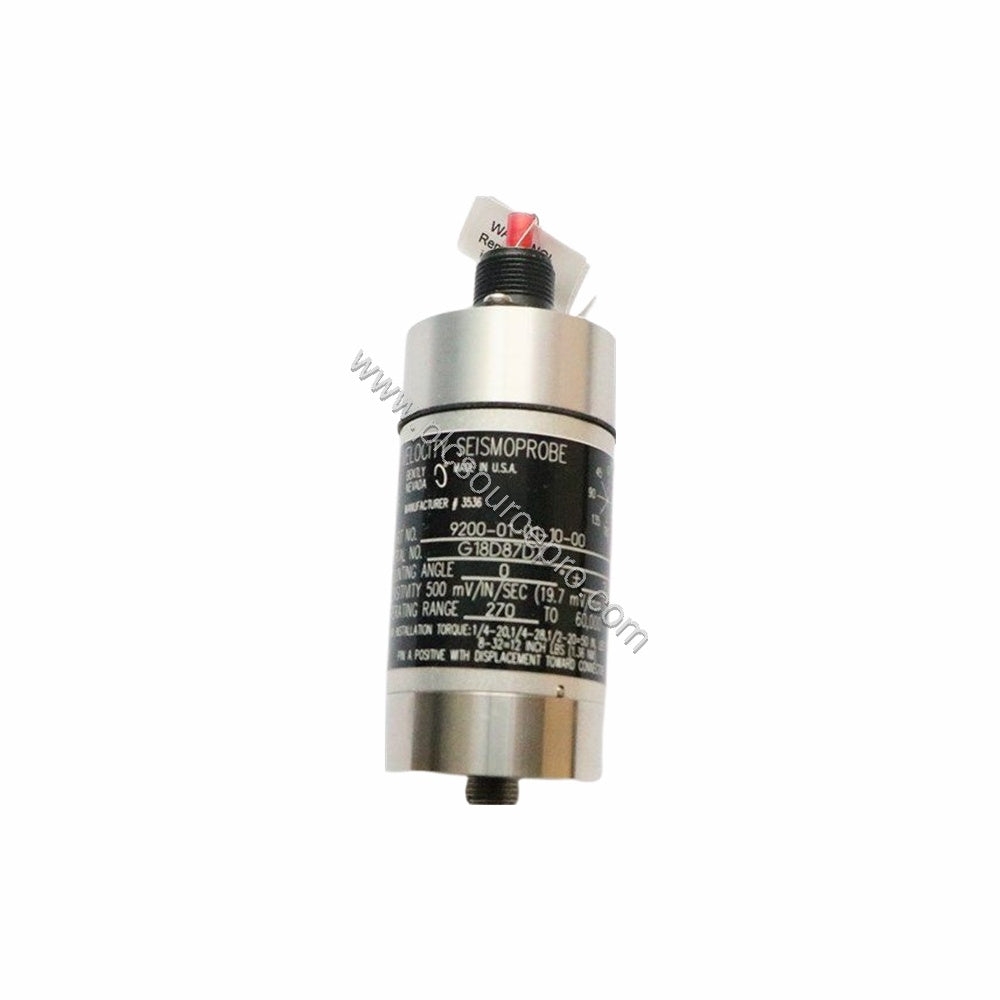

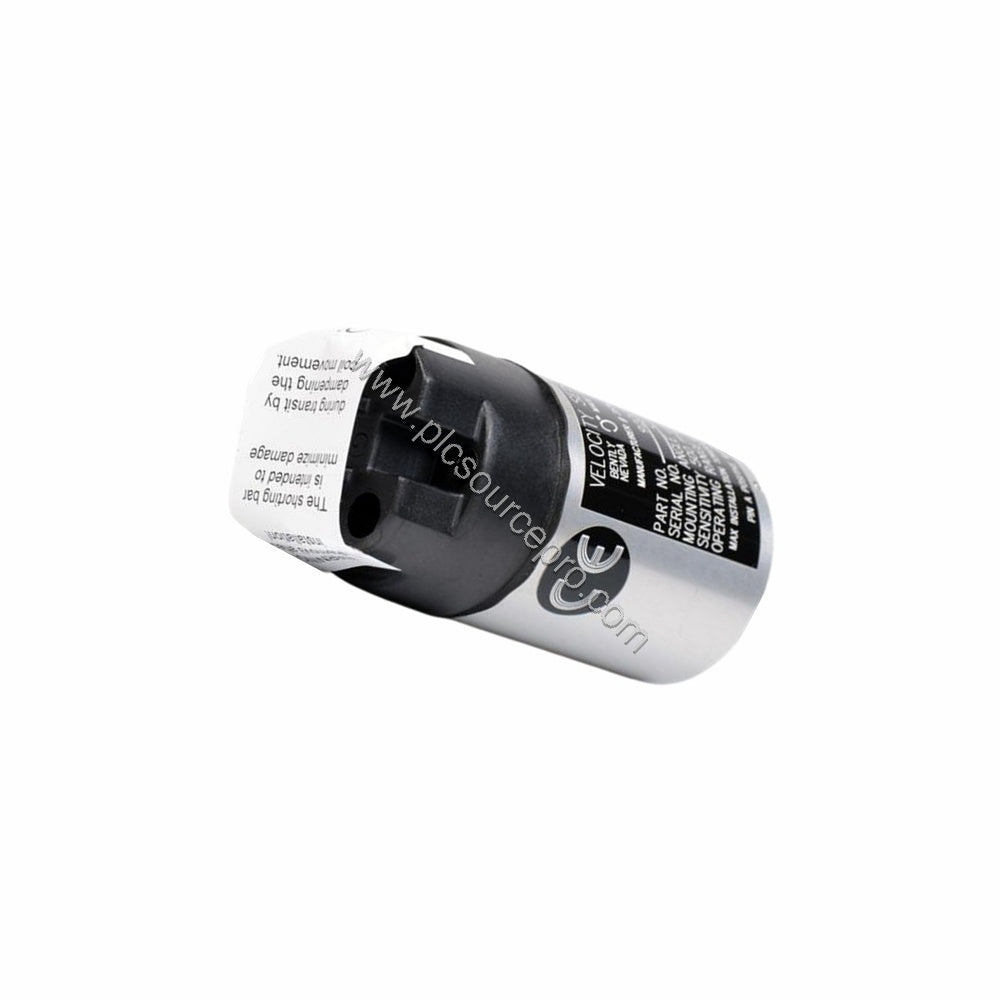

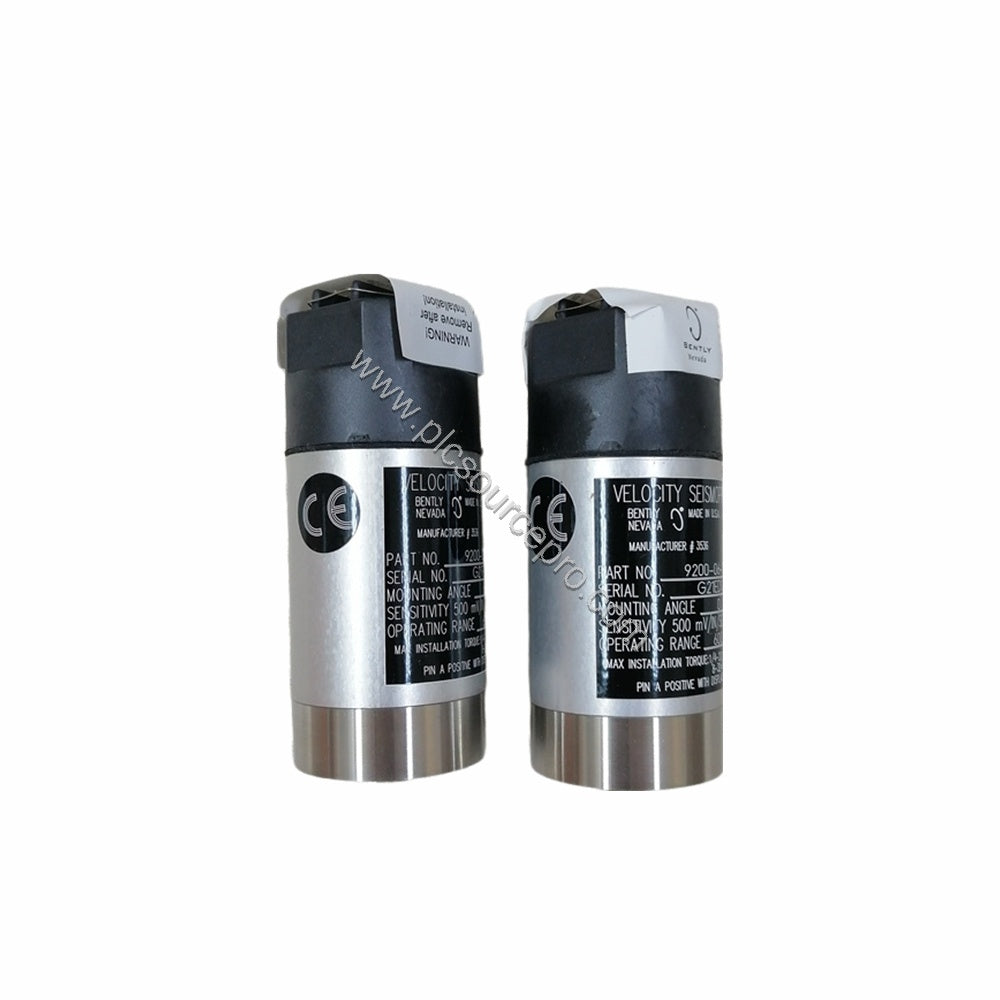

The Bently Nevada 9200-01-05-10-00 is a Two-Wire Velocity Seismoprobe Transducer designed for accurate vibration measurement in industrial rotating machinery. This sensor delivers reliable data for predictive maintenance, helping avoid unexpected downtime. The unit features a 20 mV/mm/s sensitivity (±5% when properly terminated) and operates down to 4.5 Hz (270 cpm). Encased in an anodized aluminum A204 housing, it withstands dust, moisture, and temperatures from -29°C to +121°C. The model number 9200-01-05-10-00 specifies a terminal block top mount connector (Option 05) and a circular M10X1 stud mounting base (Option 10).
Technical Specifications
Key parameters of the Bently Nevada 9200-01-05-10-00 include:
-
Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% with 10 kΩ calibration load
-
Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
-
Velocity Range: 25 mm/s (1 in/s) at +22°C, 100 Hz, 10 kΩ load
-
Coil Resistance: 1.25 kΩ ±5%
-
Locked Coil Inductance: 125 mH typical
-
Operating Temperature: -29°C to +121°C (-20°F to +250°F)
-
Relative Humidity: Up to 95% noncondensing; 100% non-submerged with integral cable
-
Weight: 300 grams (10.5 oz) typical
-
Dimensions: Height 102 mm (4 in) typical, Diameter 41 mm (1.6 in) typical
The 9200-01-05-10-00 uses a neoprene gasket for sealing and is offered with a 12-month factory warranty.
Industry Applications
This Bently Nevada 9200-01-05-10-00 transducer is essential for vibration monitoring on pumps, fans, compressors, turbines, and motors. Its low-frequency capability (4.5 Hz) makes it suitable for slow-speed machinery where bearing or structural vibrations must be detected early. By installing the 9200-01-05-10-00, plants can shift from reactive repairs to condition-based maintenance, reducing unplanned stoppages.
Installation & Setup Guidance
Mount the Bently Nevada 9200-01-05-10-00 using the M10X1 stud to a flat, clean surface with a 0° ±2.5° angle relative to the measurement axis. Use the terminal block (Option 05) for wiring; connect the output across pins A and B with a 10 kΩ load for calibration. Ensure the cable routing avoids sharp bends and high-temperature areas. The unit is dust- and moisture-resistant, but do not submerge unless using the optional integral cable.
Troubleshooting & Common Issues
Common problems with the Bently Nevada 9200-01-05-10-00 include incorrect sensitivity readings due to improper termination. Always verify the 10 kΩ load is present across terminals A-B during calibration. Check for loose mounting or excessive cable strain, which can cause false signals. The transducer’s coil resistance of 1.25 kΩ (±5%) can be measured with an ohmmeter to verify integrity. If output is erratic, inspect the connector seal and ensure humidity stays below 95% noncondensing.
Selection Guide & Purchasing Advice
When ordering the Bently Nevada 9200-01-05-10-00, confirm the mounting base (Option 10 circular M10X1) and connector (Option 05 terminal block) match your installation. For applications requiring a cable, select the appropriate integral cable option. PLC Source PRO supplies this transducer as new and original in factory packing. For further assistance, contact PLC Source PRO via the store link ubest101.myshopify.com to verify compatibility with your system.
