Product Introduction
When critical machinery monitoring demands uninterrupted signal integrity, the Bently Nevada 89477-27 Interconnect Cable delivers a robust solution. This precision-engineered cable is designed to transmit vital vibration and position data from sensors to monitoring systems, ensuring minimal signal loss even in harsh industrial environments. With a factory-fresh condition and full 12-month warranty, it provides the reliability your operation requires.

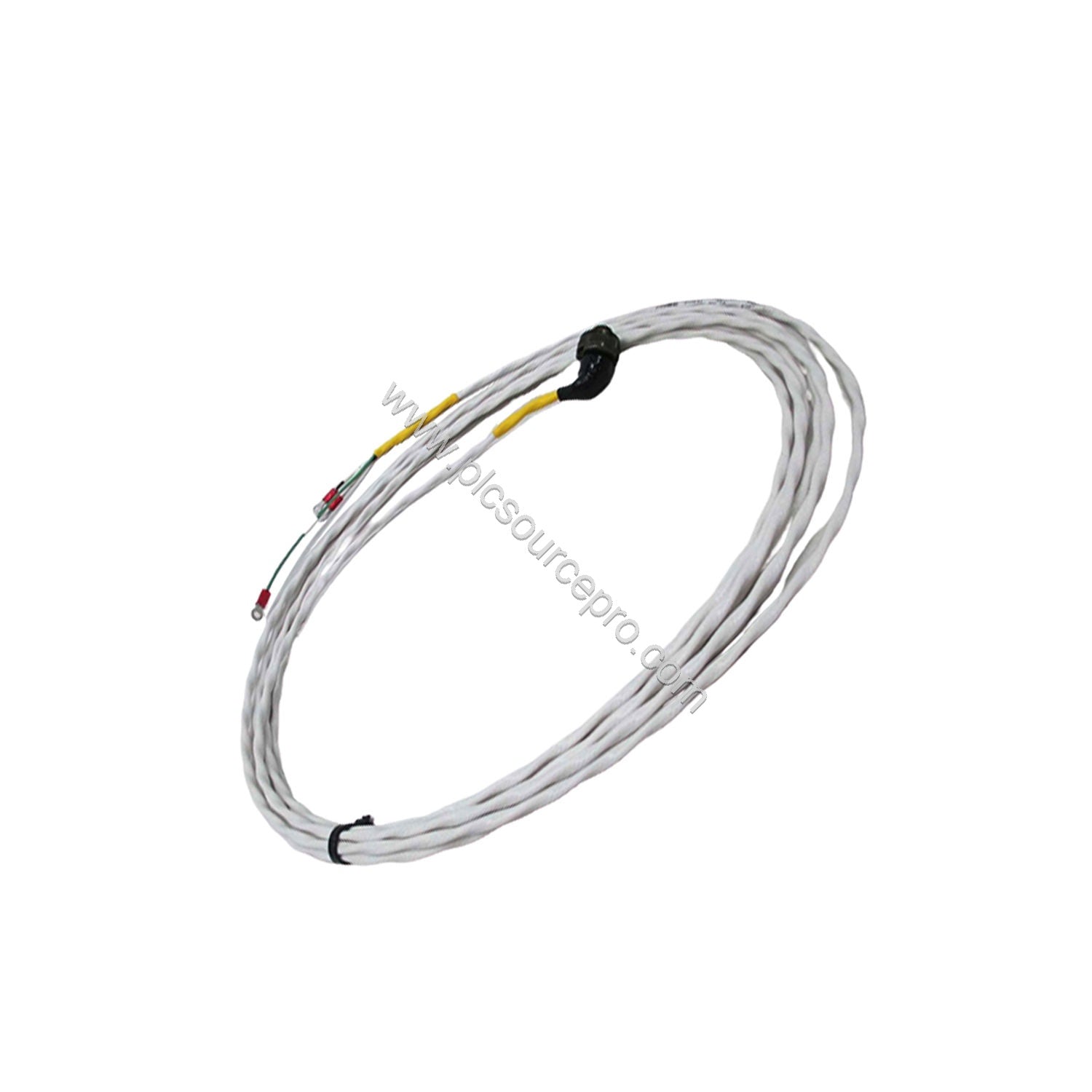

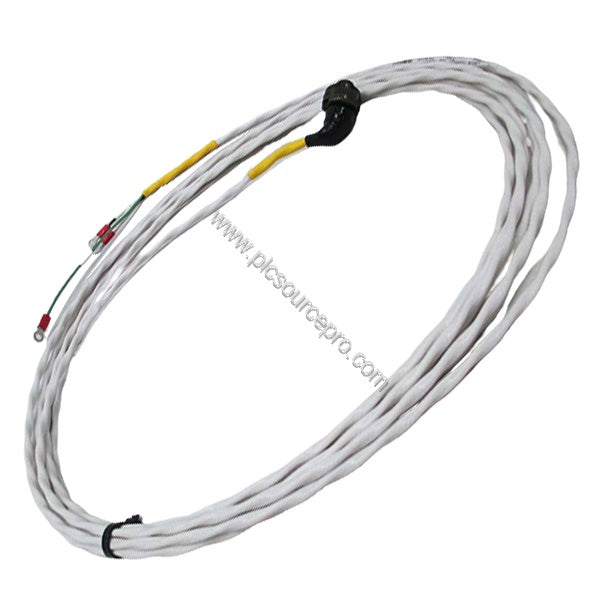

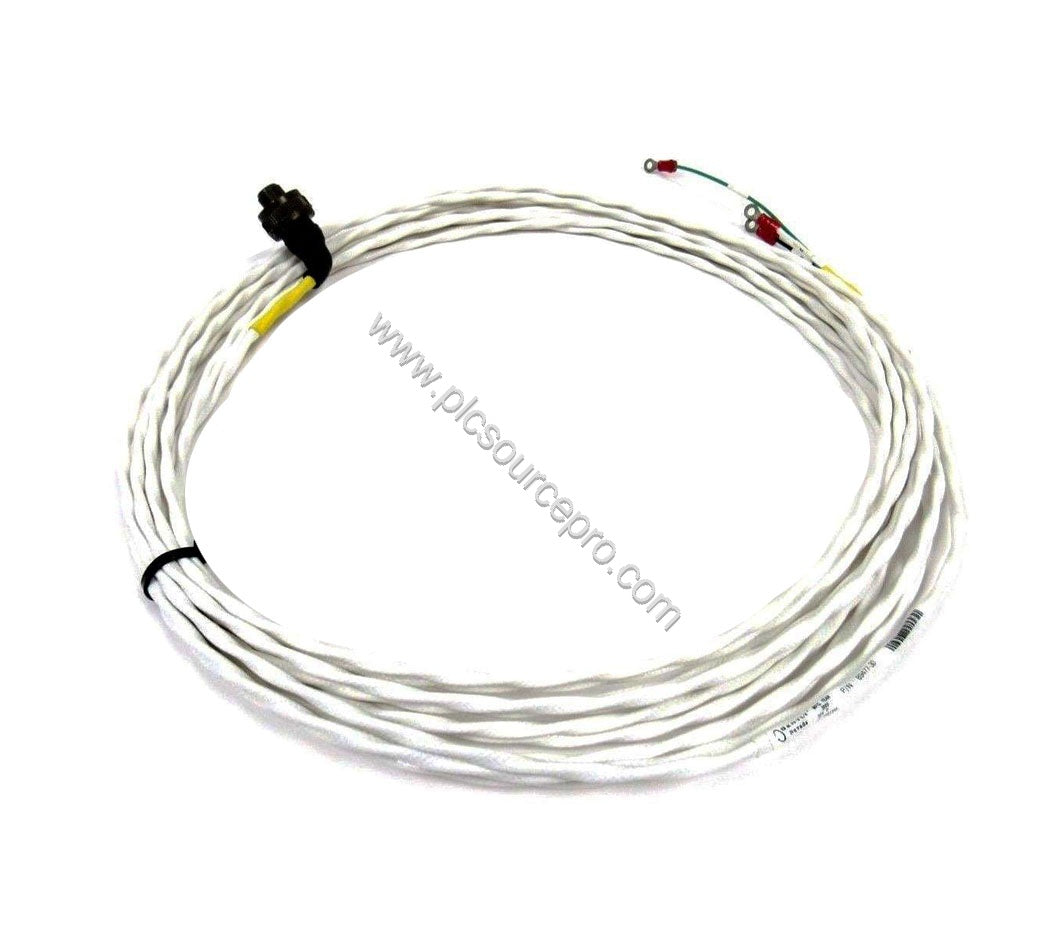

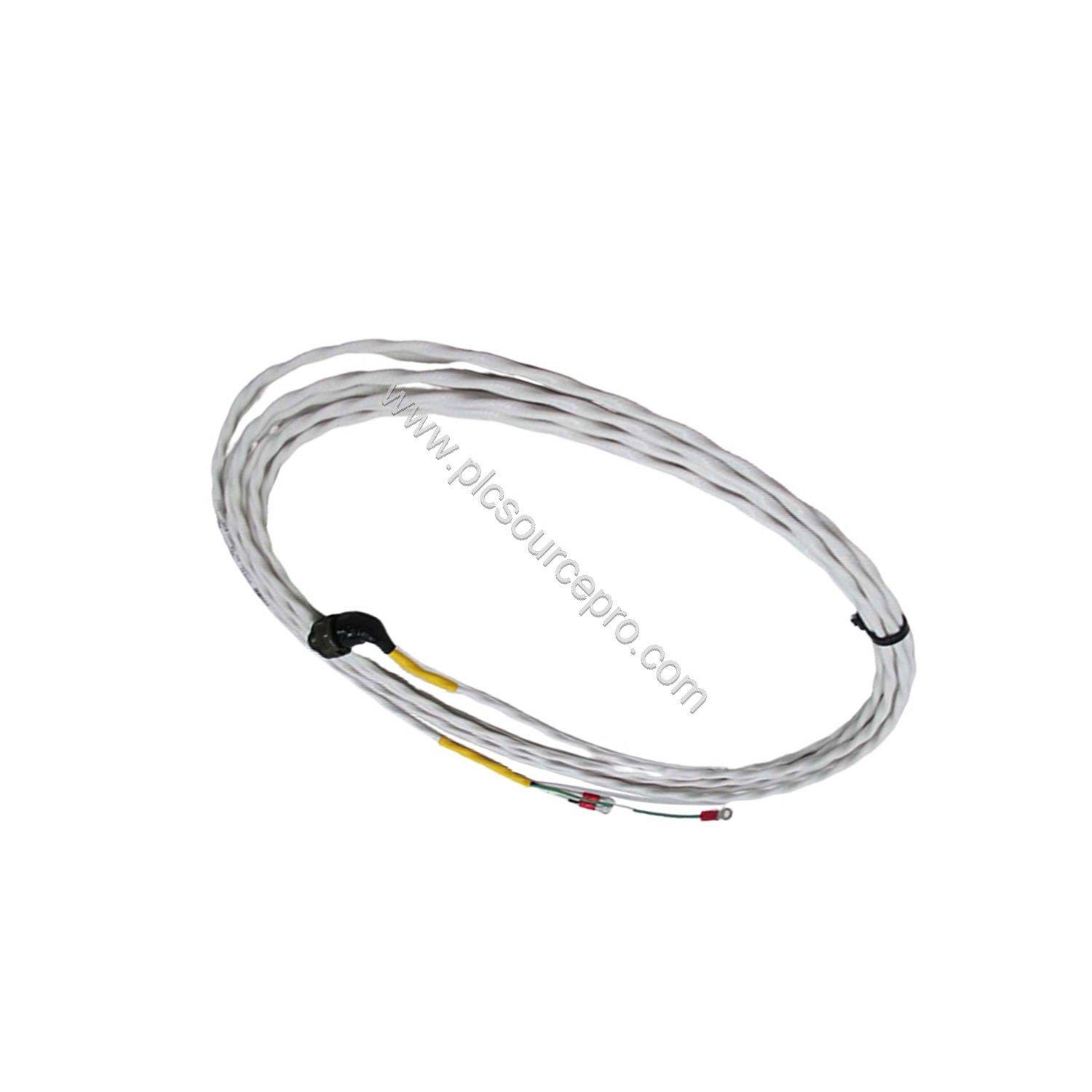

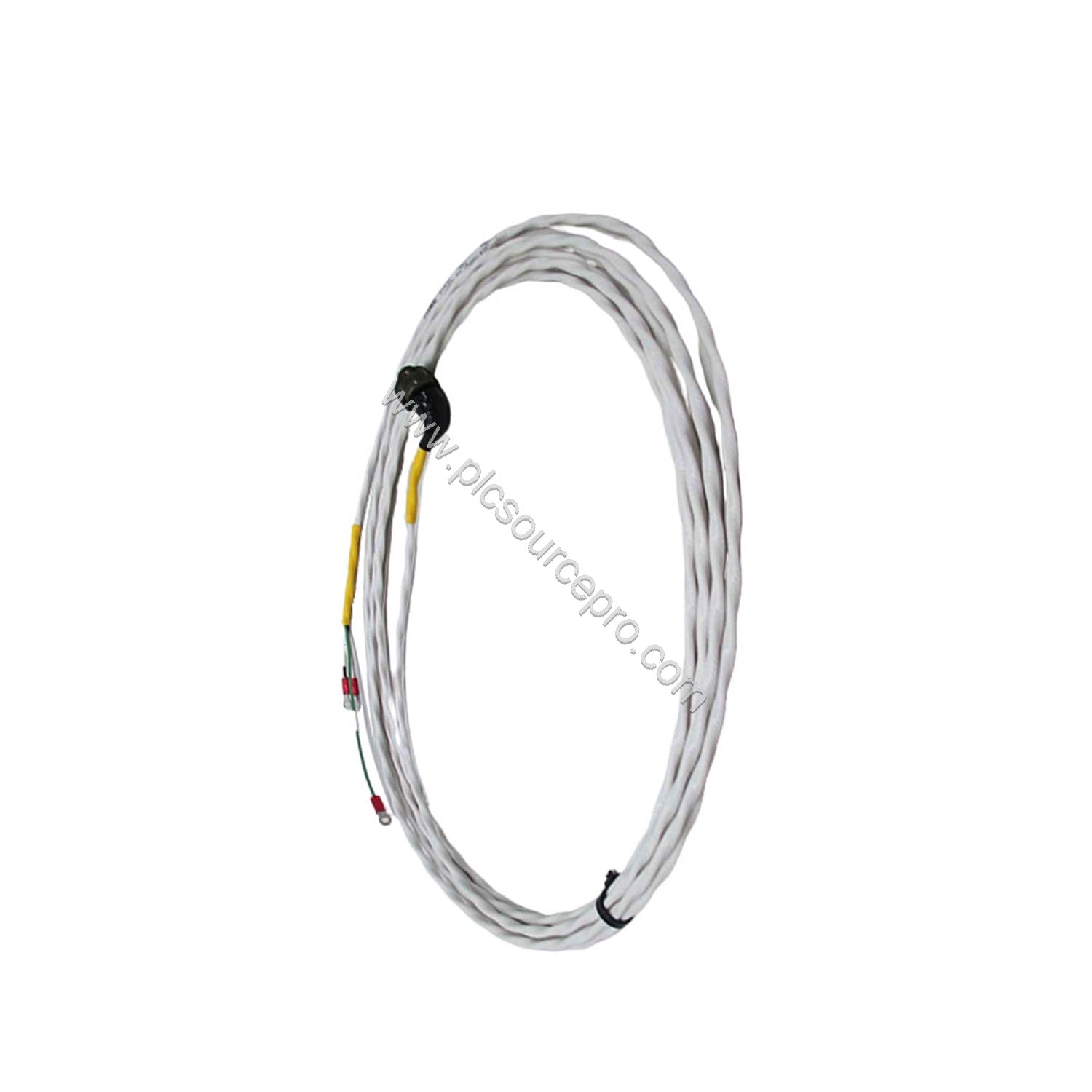

The Bently Nevada 89477-27 features a two-conductor 18 AWG twisted, shielded construction to reduce electromagnetic interference. One end terminates with a right-angle two-socket plug for easy connection to compatible modules, while the other end has terminal lugs for secure field wiring. This specific variant is 27 feet (8.2 m) long, offering flexibility in routing between equipment.
Technical Specifications
While detailed technical specifications for the Bently Nevada 89477-27 are not published in this listing, the following parameters are confirmed from the product data:
-
Model: 89477-27 (Interconnect Cable)
-
Length: 27 ft (8.2 m)
-
Conductor: Two-conductor 18 AWG twisted, shielded
-
Connector (one end): Right-angle two-socket plug
-
Other end: Terminal lugs
-
Minimum orderable length: 2.0 ft (0.6 m)
-
Maximum orderable length: 99 ft (30 m)
For complete electrical and mechanical specifications, please contact PLC Source PRO directly. Our team can provide additional data on capacitance, impedance, and temperature ratings upon request.
Industry Applications
The Bently Nevada 89477-27 Interconnect Cable is purpose-built for use in rotating machinery monitoring systems. Typical applications include:
-
Turbine Vibration Monitoring: Connect proximity probes and accelerometers to Bently Nevada 3500 series racks in steam and gas turbines.
-
Compressor Control: Relay speed and vibration signals from compressors in petrochemical and gas processing plants.
-
Pump Protection: Provide reliable connections for bearing temperature and vibration sensors on large industrial pumps.
By choosing the correct cable length like the 89477-27, you minimize signal attenuation and avoid the need for intermediate junction boxes, directly reducing installation costs and potential failure points.
Installation & Setup Guidance
Proper installation of the Bently Nevada 89477-27 ensures long-term performance. Follow these guidelines:
-
Routing: Route the cable away from high-voltage power lines and variable frequency drives to avoid induced noise. The shielded construction will reject common-mode interference, but physical separation is recommended.
-
Bend Radius: Avoid sharp bends. The cable should be laid with a minimum bend radius of 5 times the cable diameter to prevent internal conductor damage.
-
Connector Care: The right-angle plug must be inserted firmly into the mating socket. Ensure the locking mechanism is engaged. Do not pull on the cable body to disconnect; instead, grip the plug housing.
-
Terminal Lugs: At the field end, strip the insulation carefully and crimp the terminal lugs onto the conductors. Torque the terminal screws to the manufacturer’s specification (typically 0.5–0.8 Nm). Verify polarity if the application requires it.
Maintenance & Reliability
To maximize the service life of the Bently Nevada 89477-27 Interconnect Cable, implement a routine inspection schedule every 6 to 12 months:
- Visually inspect the entire cable length for cuts, abrasions, or chemical exposure.
- Check the right-angle plug for corrosion or bent pins. Replace if necessary.
- Verify that the terminal lugs are tight and free of oxidation.
- Test continuity with a multimeter to ensure no breaks or intermittent faults.
Because this cable is a critical link in your monitoring chain, selecting a high-quality original part like the 89477-27 from PLC Source PRO reduces the risk of false readings and unscheduled downtime, directly impacting your bottom line.
Selection Guide & Purchasing Advice
Before purchasing the Bently Nevada 89477-27, confirm the following:
- Your required cable length: Custom lengths from 2 ft to 99 ft are available. The -27 suffix indicates 27 ft.
- Connector compatibility: The right-angle two-socket plug mates with standard Bently Nevada modules (e.g., 3300, 3500 series). Verify the port layout in your system.
- Environmental conditions: If the cable will be exposed to extreme temperatures, oil, or moisture, consider applying a protective conduit or selecting a jacketed variant.
PLC Source PRO stocks the Bently Nevada 89477-27 in new, factory-sealed condition. Our inventory ensures fast shipping and support from experienced automation professionals. For custom lengths or bulk orders, contact ubest101 directly through the store.
