Product Introduction

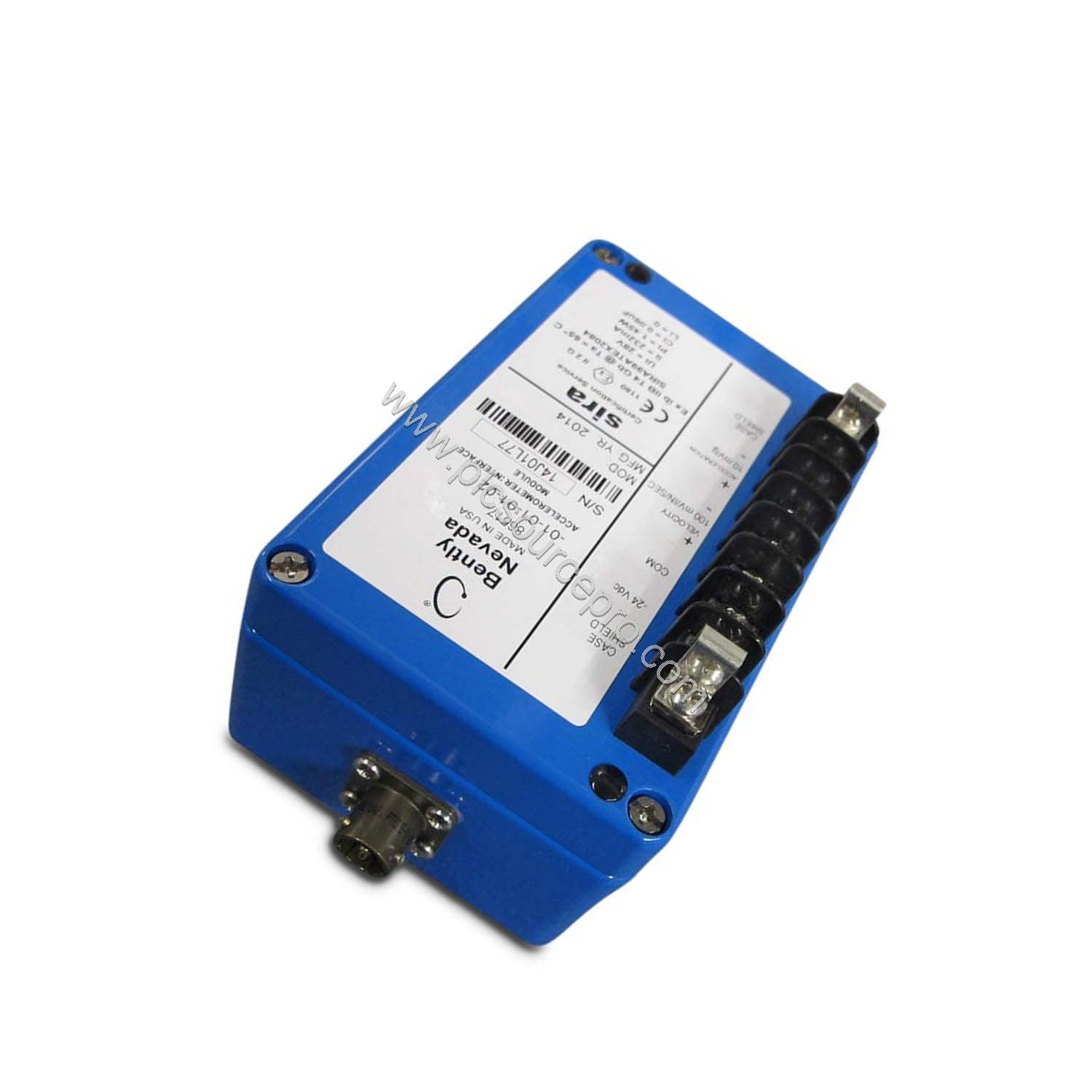

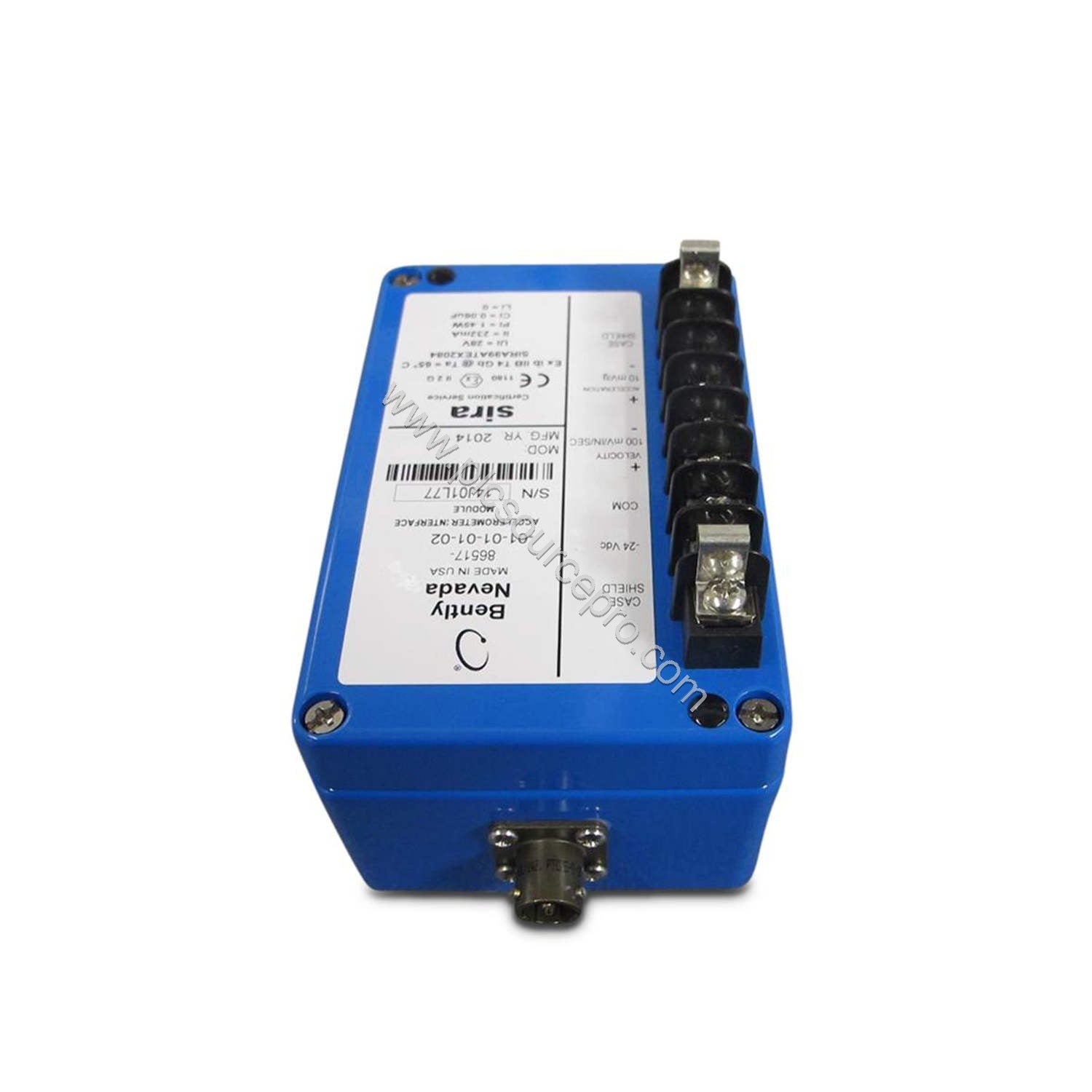

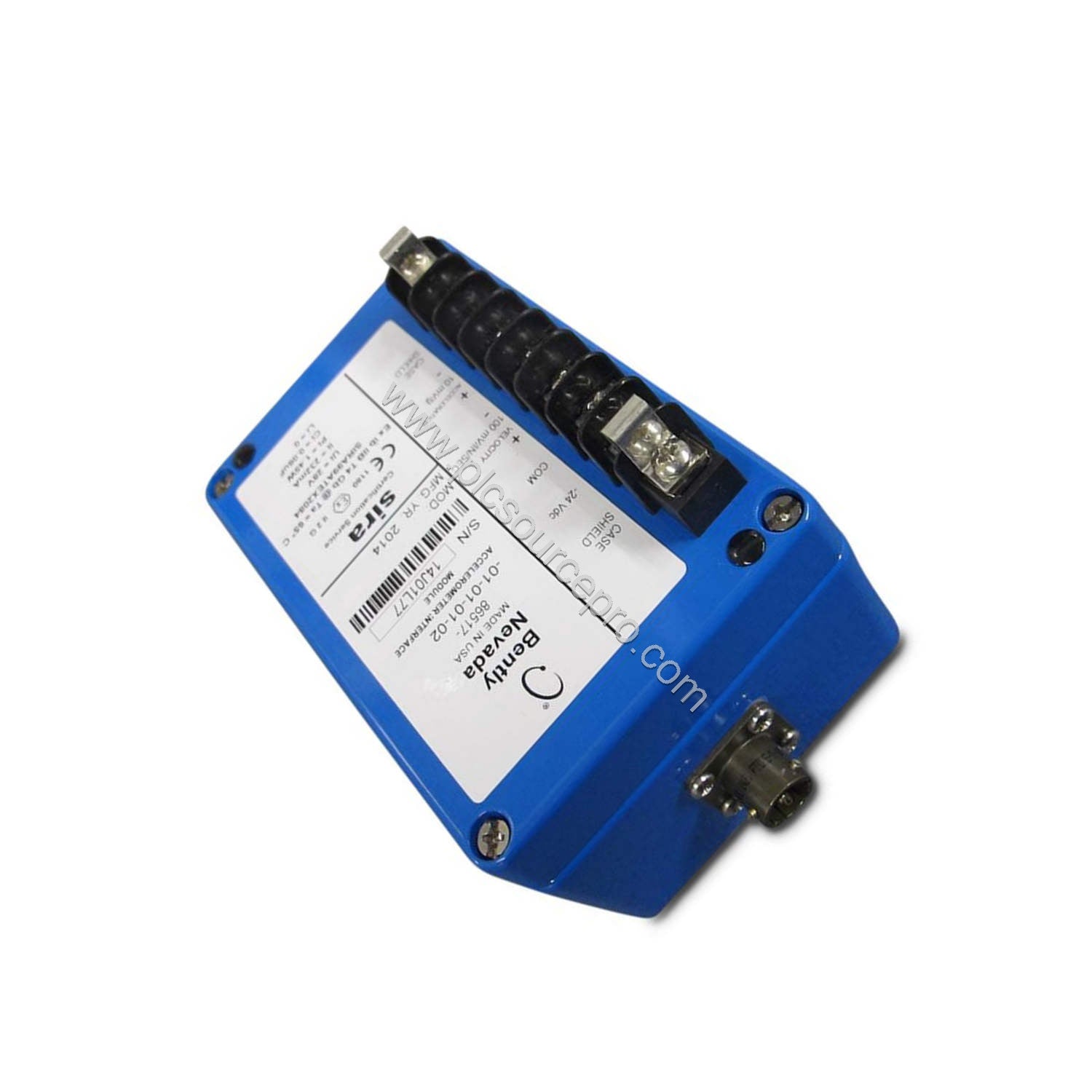

The Bently Nevada 86517-01-01-01-02 is a precision Acceleration Interface Module designed for industrial vibration monitoring. Part of the 86517 series, this unit converts charge signals from piezoelectric accelerometers into standard acceleration and velocity outputs. With a transducer charge input sensitivity option of 50 pC/g and a filter corner frequency pair of 25 Hz high pass and 350 Hz low pass, the 86517-01-01-01-02 delivers accurate vibration data for predictive maintenance and machine protection.
Technical Specifications Breakdown
| Parameter |
Value |
| Supply Voltage |
-23 Vdc to -26 Vdc |
| Current Draw |
22 mA maximum |
| Acceleration Input |
Differential from piezoelectric accelerometer; 50 pC/g or 100 pC/g sensitivity |
| Overload Capacity |
50,000 pC peak (50 pC/g) or 100,000 pC peak (100 pC/g) |
| Acceleration Output Sensitivity |
10 mV/g pk balanced, 50 ohm impedance |
| Dynamic Range |
750 gs typical without barriers; 500 gs with barriers |
| Velocity Output Accuracy |
±5.0% at 77°F (25°C) in passband |
| Filters |
6th order Butterworth, -36 dB/octave rolloff, corner at -3 dB ±0.5 dB |
| Operating Temperature |
+32°F to +158°F (0°C to 70°C) |
| Dimensions (LxWxH) |
13.97 cm x 8.26 cm x 7.62 cm |
| Connectors |
MS-3112-8-3P (input); 8 lug terminal block (power/output) |
| Agency Approval |
CENELEC (SIRA) |
The 86517-01-01-01-02 operates on a -23 to -26 Vdc supply, drawing only 22 mA. Its charge amplifier provides a low frequency -3 dB corner at 4.7 Hz and high frequency response up to 5000 Hz with typical 1000 pF accelerometer and cable capacitance.
Industry Applications
This module is ideal for upgrading older vibration monitoring systems in turbines, compressors, pumps, and motors. With the 86517-01-01-01-02, you can replace obsolete interface cards while maintaining compatibility with existing 50 pC/g accelerometers. Its CENELEC approval suits hazardous area installations requiring intrinsic safety barriers.
Installation & Setup Guidance
Mount the 86517-01-01-01-02 using two 8-32 allen head bolts at opposite corners of a 4.45 by 2.05 inch rectangle. Ensure the module is isolated from ground to prevent ground loops. Connect the accelerometer via the MS-3112-8-3P connector. Power and output signals connect to the 8-lug terminal block. Verify supply voltage between -23 and -26 Vdc before powering.
Maintenance & Reliability
Operating temperature range of 0°C to 70°C and storage from -40°C to +85°C make the 86517-01-01-01-02 suitable for harsh industrial environments. Humidity tolerance up to 95% noncondensing ensures reliable performance. No routine calibration is required beyond verifying output accuracy per the ±5% specification.
Selection Guide & Purchasing Advice
When selecting the 86517-01-01-01-02, confirm your accelerometer sensitivity matches the 50 pC/g option. The interface module does not include accelerometers or cables. For replacement applications, verify the existing wiring matches the 8-lug terminal block. For a reliable source of genuine Bently Nevada modules, consider PLC Source PRO (available at ubest101) for competitive pricing and fast shipping.
