Product Overview

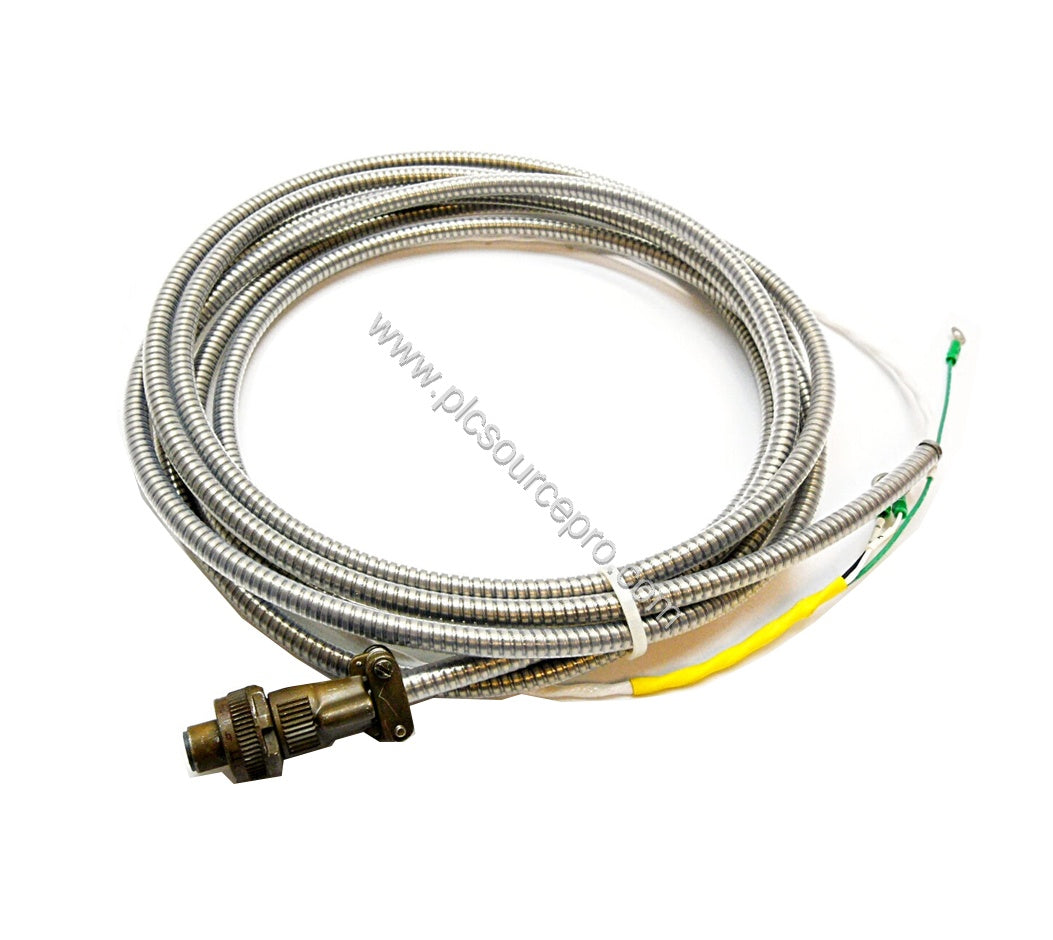

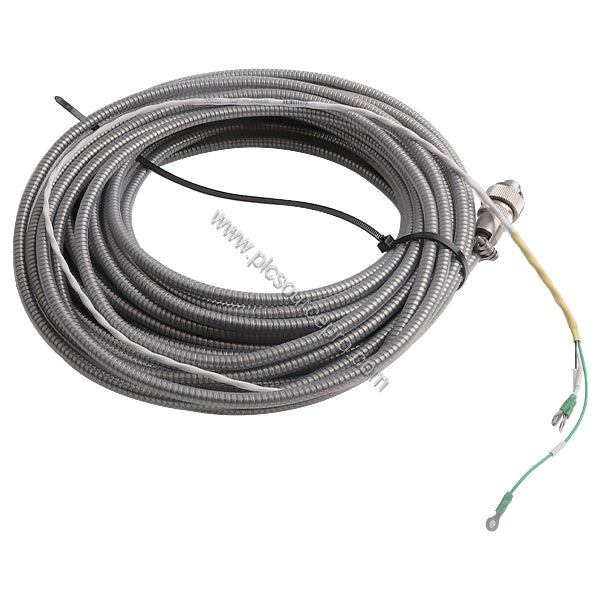

In industrial vibration monitoring applications, the Bently Nevada 84661-70 Standard Armored Interconnect Cable provides a durable and reliable signal path between HTVS sensors and monitors. Designed as a direct replacement for aging or damaged cables, this cable ensures consistent performance in harsh environments. Its stainless steel armor and moisture-resistant connector make it ideal for demanding conditions where cable integrity is critical.
Technical Specifications
| Attribute |
Value |
| Conductor Type |
Two-conductor twisted, shielded 22 AWG |
| Armor Material |
Stainless steel |
| Connector (HTVS end) |
Two-socket moisture-resistant female |
| Monitor end termination |
Ring lugs |
| Cable length (model -70) |
70 ft (21 m) |
| Temperature range |
-29 to 121 °C (-20 to 250 °F) |
| Minimum length |
3.0 ft (0.9 m) |
| Maximum length |
96 ft (29 m) |
Application Scenarios
The Bently Nevada 84661-70 cable is essential in rotating machinery monitoring systems for turbines, compressors, and pumps. When upgrading from older PVC-jacketed cables to stainless steel armored versions, this cable offers superior protection against moisture, corrosion, and physical damage. It is also an ideal replacement for cables that have suffered insulation breakdown or connector wear in continuous operation.
Installation and Setup Guidance
Before installation, confirm that the female connector matches your HTVS sensor receptacle. Route the cable with a minimum bend radius of 10 times the cable diameter to avoid internal conductor stress. Secure the armor with appropriate cable glands at entry points to maintain environmental sealing. Use the ring lugs for a secure, low-resistance connection to the monitor terminal block.
Maintenance and Reliability
Periodically inspect the stainless steel armor for dents, cuts, or corrosion, especially in areas subject to vibration or abrasive particles. Check the connector for moisture ingress or pin damage. The temperature range of -29 to 121 °C allows the cable to perform in extreme industrial environments. Regular inspection once per quarter is recommended for high-use systems.
Selection Guide and Purchasing Advice
When replacing an existing cable, verify the exact connector type and required length. The Bently Nevada 84661-70 is a direct replacement for earlier model numbers in the 84661 series. For custom lengths, note the minimum and maximum lengths supported. At PLC Source PRO (available at ubest101.myshopify.com), you can order this OEM cable with confidence in its authenticity and performance for your monitoring system.
