Product Introduction

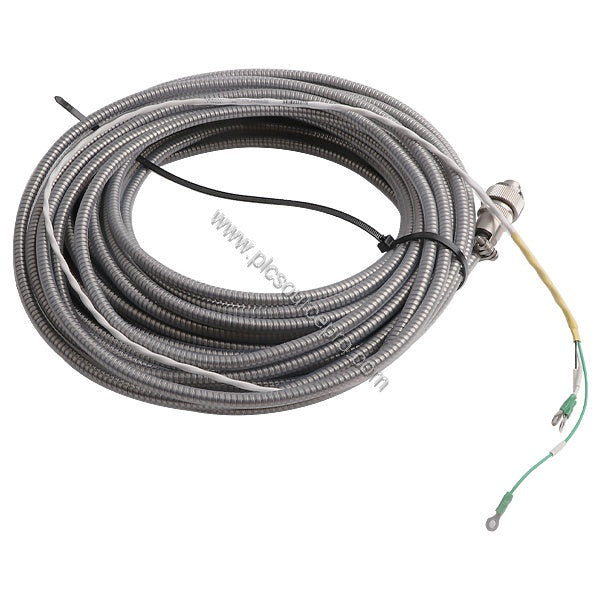

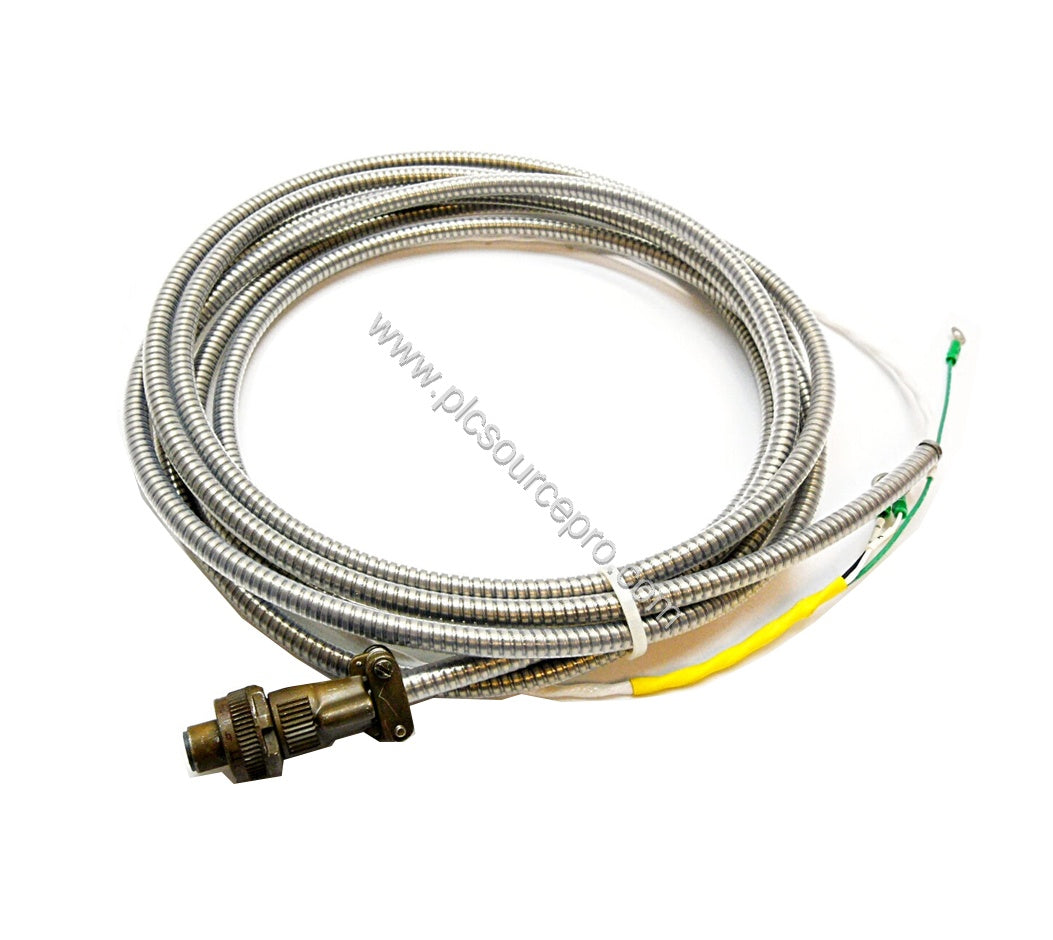

The Bently Nevada 84661-30 Industrial Automation Module is a purpose-built interconnect cable designed for critical signal transmission in industrial automation and condition monitoring applications. This 30-foot cable features two-conductor twisted, shielded 22 AWG construction with an armored jacket, terminated with a two-socket moisture-resistant female connector on one end and terminal lugs on the other. The Bently Nevada 84661-30 ensures low-noise, reliable connectivity for vibration monitoring, proximity probes, and other sensitive measurement systems.
Key Specifications:
- Length: 30 feet (standard), with configurable options from 3.0 ft (0.9 m) to 96 ft (29 m)
- Conductor: Two-conductor twisted, shielded 22 AWG
- Jacket: Armored for mechanical protection
- Connector: Two-socket moisture-resistant female connector (one end)
- Termination: Terminal lugs (other end)
Industry Applications
The Bently Nevada 84661-30 excels in harsh environments where moisture, vibration, and electromagnetic interference threaten signal integrity. Typical applications include:
-
Vibration monitoring systems – Connects proximity probes or accelerometers to monitoring modules, maintaining signal fidelity over long cable runs.
-
Turbine and compressor protection – Used in gas and steam turbine control systems where cable durability and resistance to oil, temperature, and physical stress are essential.
-
Rotating machinery diagnostics – Ideal for wiring in pulp and paper mills, refineries, and power plants where armored, moisture-resistant cabling prevents false readings and reduces downtime.
By choosing the Bently Nevada 84661-30, engineers address common failure points such as signal degradation from moisture ingress, cable abrasion, and connector corrosion, ensuring consistent performance in demanding conditions.
Installation & Setup Guidance
When installing the Bently Nevada 84661-30, follow these best practices:
-
Routing: Avoid sharp bends and abrasive surfaces. Use cable ties to secure the armored jacket without crushing it.
-
Connector handling: The moisture-resistant female connector should be mated with a clean, dry male counterpart. Apply silicone dielectric grease if the environment is particularly humid.
-
Grounding: For optimal shield effectiveness, ground the cable shield at one end only (typically at the monitoring device) to prevent ground loops.
-
Length adjustments: If you require a non-standard length, note that the cable can be terminated at intermediate lengths; however, using the factory-set length ensures consistent electrical characteristics.
For detailed termination instructions or custom length requests, contact your supplier.
Maintenance & Reliability
The Bently Nevada 84661-30 requires minimal maintenance, but periodic inspections enhance long-term reliability:
- Inspect connectors annually for moisture, corrosion, or physical damage. Replace the cable immediately if any connector pins are bent or if the jacket is cut.
- Verify shield integrity if you experience intermittent signal noise. A multimeter can check continuity between the shield and the monitoring device ground.
- In high-temperature areas (above 85°C), ensure the cable is not in direct contact with hot surfaces; use heat-resistant standoffs.
Proactive replacement based on a 5-year cycle is recommended for cables in continuous use under extreme conditions, as the cable's reliable performance directly translates to reduced unscheduled downtime.
Selection Guide & Purchasing Advice
Before purchasing the Bently Nevada 84661-30, verify the following:
-
Connector compatibility: Ensure your monitoring module accepts the two-socket female connector. Adapters are available if needed.
-
Required length: Standard is 30 ft, but the cable can be ordered in custom lengths between 3.0 ft and 96 ft. Confirm your exact routing distance.
-
Environmental conditions: The armored jacket provides robust protection, but for submersion applications, additional conduit sealing may be required.
As a dedicated automation parts supplier, PLC Source PRO (available at ubest101.myshopify.com) stocks genuine Bently Nevada 84661-30 cables. Contact our team for current inventory, pricing, or technical queries. We ensure each cable is tested for continuity and shield integrity before shipment.
Detailed specifications are available upon request. Please reach out to our sales team for full datasheets or application assistance.
