Product Overview

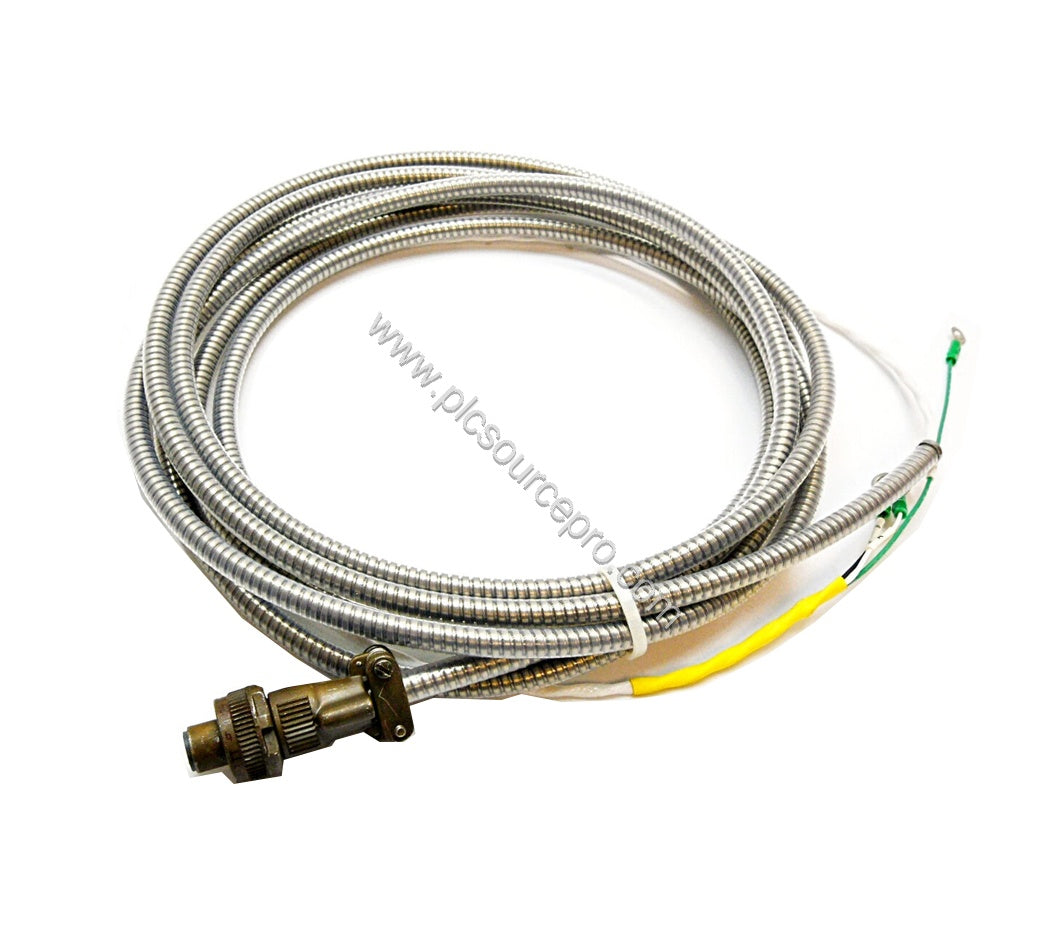

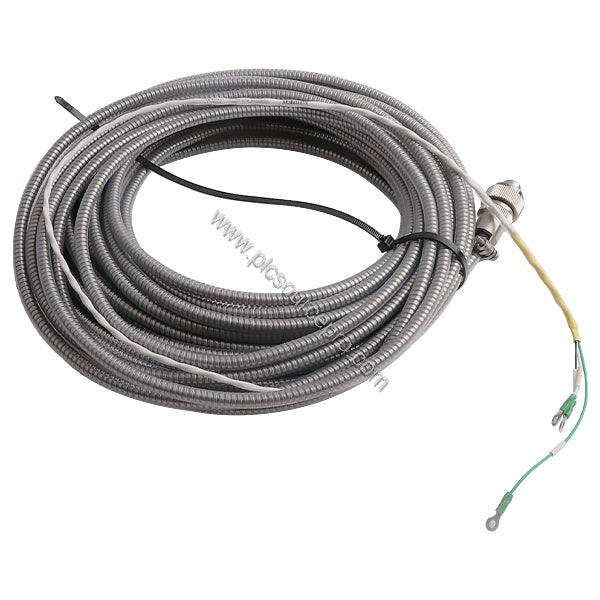

The Bently Nevada 84661-20 is a purpose-built interconnect cable designed for demanding industrial environments. This 20-foot, two-conductor twisted, shielded 22 AWG armored cable features a moisture-resistant two-socket female connector at one end and terminal lugs at the other. It provides robust signal integrity and physical protection where vibration, moisture, and mechanical stress are common.
Technical Specifications
| Parameter |
Value |
| Part Number |
84661-20 |
| Cable Type |
Two-conductor twisted, shielded, armored |
| Conductor Size |
22 AWG |
| Length |
20 ft |
| Minimum Length |
3.0 ft (0.9 m) |
| Maximum Length |
96 ft (29 m) |
| Connector (One End) |
Two-socket moisture-resistant female |
| Other End |
Terminal lugs |
Industry Applications
Typical applications for the Bently Nevada 84661-20 include connecting vibration sensors and proximity probes to monitoring systems in turbines, compressors, and pumps. Its shielded construction minimizes electromagnetic interference (EMI) in high-noise environments, while the armor jacket protects against physical damage during installation and operation.
Installation & Setup Guidance
Before installing, ensure the cable route avoids sharp edges and excessive bending. The moisture-resistant connector should be securely seated to maintain a weatherproof seal. Use the terminal lugs at the opposite end to connect to screw terminals or bus bars. For long runs, keep the total cable length to 96 ft (29 m) maximum to avoid signal degradation. Always verify polarity to prevent reversed connections.
Maintenance & Reliability
Inspect the Bently Nevada 84661-20 periodically for signs of wear, especially at connector and lug points. The armored jacket resists cuts and abrasion, but check for kinks or crushing. Replace the cable if the shield becomes exposed or if the connector shows corrosion. Routine checks reduce downtime and extend service life.
Troubleshooting Common Issues
If signal loss occurs, first verify the connector is fully mated and free of moisture or debris. For intermittent faults, flex the cable along its length to reveal internal breaks. The shield provides limited protection against high-frequency noise; ensure the cable path is not parallel to high-power lines. If the terminal lugs become loose, re-torque to manufacturer specifications.
