Product Overview

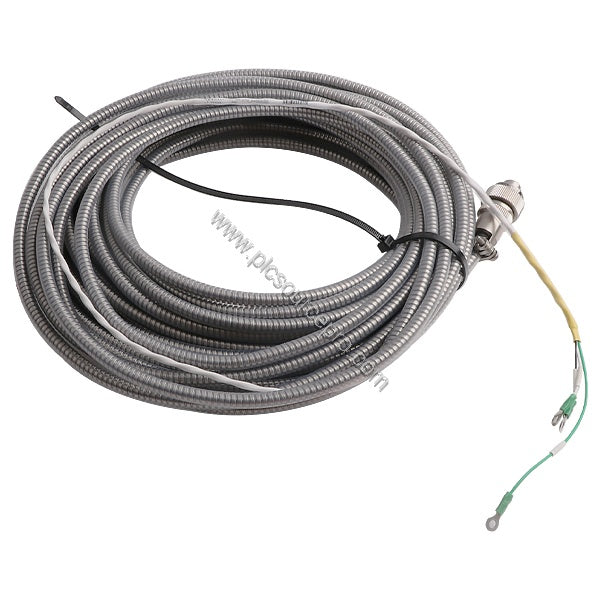

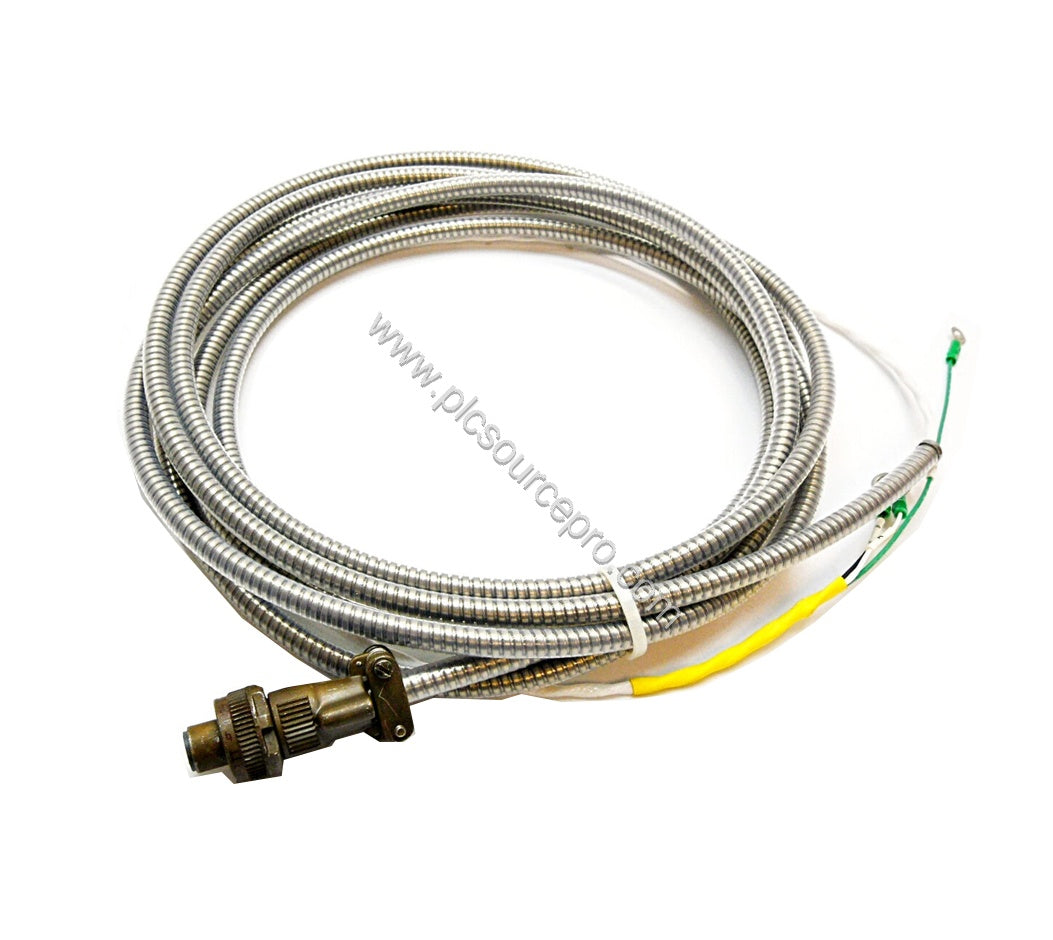

The Bently Nevada 84661-07 is a two-conductor twisted, shielded 22 AWG armored cable designed for industrial automation applications. This interconnect cable features a two-socket moisture-resistant female connector at one end and terminal lugs at the other, ensuring secure and durable connections. With a standard length of 7 feet and flexible options ranging from 3.0 ft (0.9 m) to 96 ft (29 m), the 84661-07 is ideal for extending sensor or signal lines in demanding environments.
Industry Applications
The Bently Nevada 84661-07 excels in applications where signal integrity faces threats from moisture, vibration, and electromagnetic interference. Common use cases include:
-
Vibration monitoring in rotating machinery such as turbines, compressors, and pumps, where shielded cabling prevents noise from corrupting critical data.
-
Process control systems in chemical plants or refineries, where the moisture-resistant connector protects against washdowns and corrosive atmospheres.
-
Power generation assets, including generators and exciters, where the armored jacket provides mechanical protection in high-traffic areas.
Installation Guidance
Install the Bently Nevada 84661-07 by first verifying the cable's length accommodates your routing path. The two-socket connector mates with compatible Bently Nevada proximity probe drivers or monitors. At the terminal lug end, secure each conductor to the appropriate screw terminal or barrier strip. Avoid sharp bends that could damage the armor; minimum bend radius should follow standard practice for 22 AWG shielded cable. Ground the shield at one end only to prevent ground loops.
Maintenance & Reliability
The shielded and armored construction of the 84661-07 provides excellent resistance to wear, moisture ingress, and EMI. Periodic inspections should focus on connector condition (look for corrosion or bent pins) and integrity of the armor. In high-moisture environments, the moisture-resistant connector significantly reduces the risk of intermittent faults. Following these practices extends cable life, minimizing unplanned downtime and replacement costs.
Selection Guide
When ordering the Bently Nevada 84661-07, confirm the required length. Standard is 7 ft, but custom lengths between 3.0 ft and 96 ft are available. Ensure your system's connector type matches the two-socket female connector; if not, an adapter may be needed. For reliable sourcing, PLC Source PRO (ubest101) stocks genuine Bently Nevada replacement cables with full traceability.
Troubleshooting Common Issues
Signal loss or noise in the 84661-07 often results from improper shield grounding or connector damage. Verify the shield is connected only at the monitor side. Inspect the female socket for debris or bent terminals. If the cable experiences intermittent continuity, check for crushing or kinking in the armor. A multimeter can confirm conductor continuity and shield integrity. The moisture-resistant connector greatly reduces corrosion-related failures in wet environments.
