Product Overview

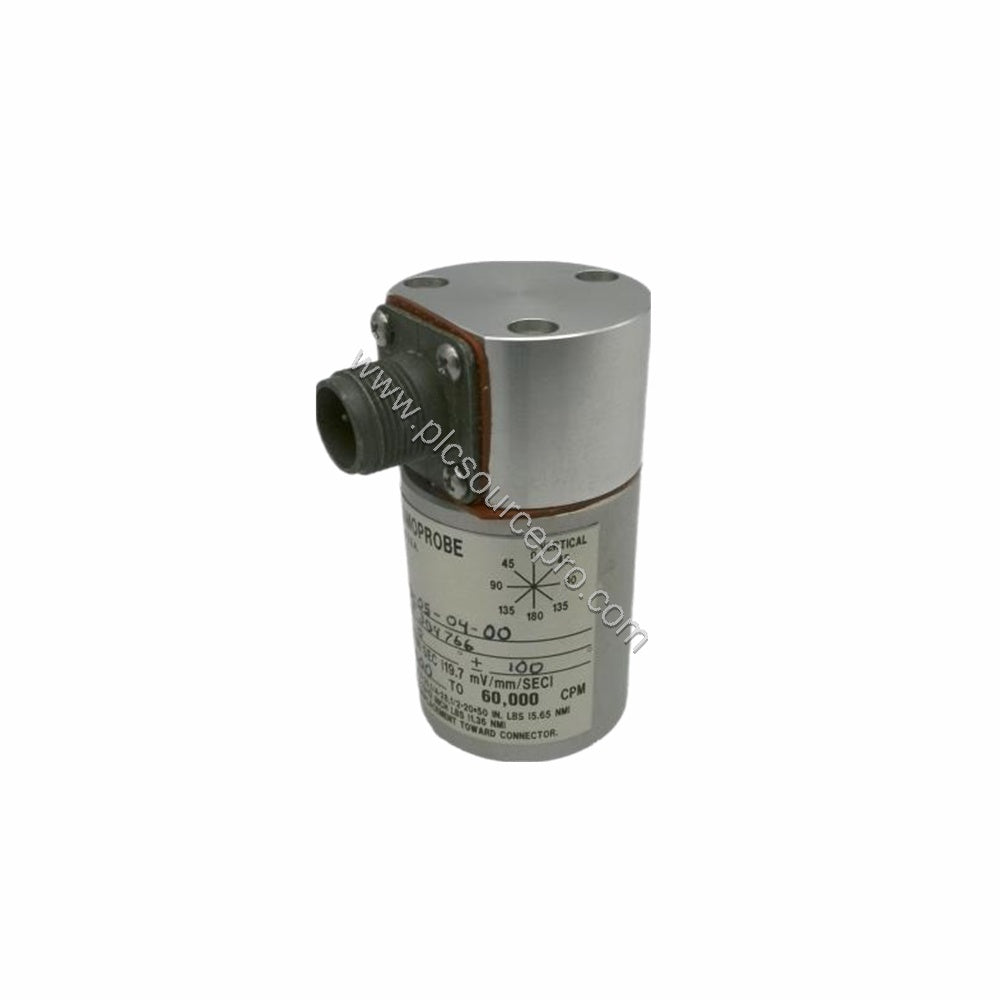

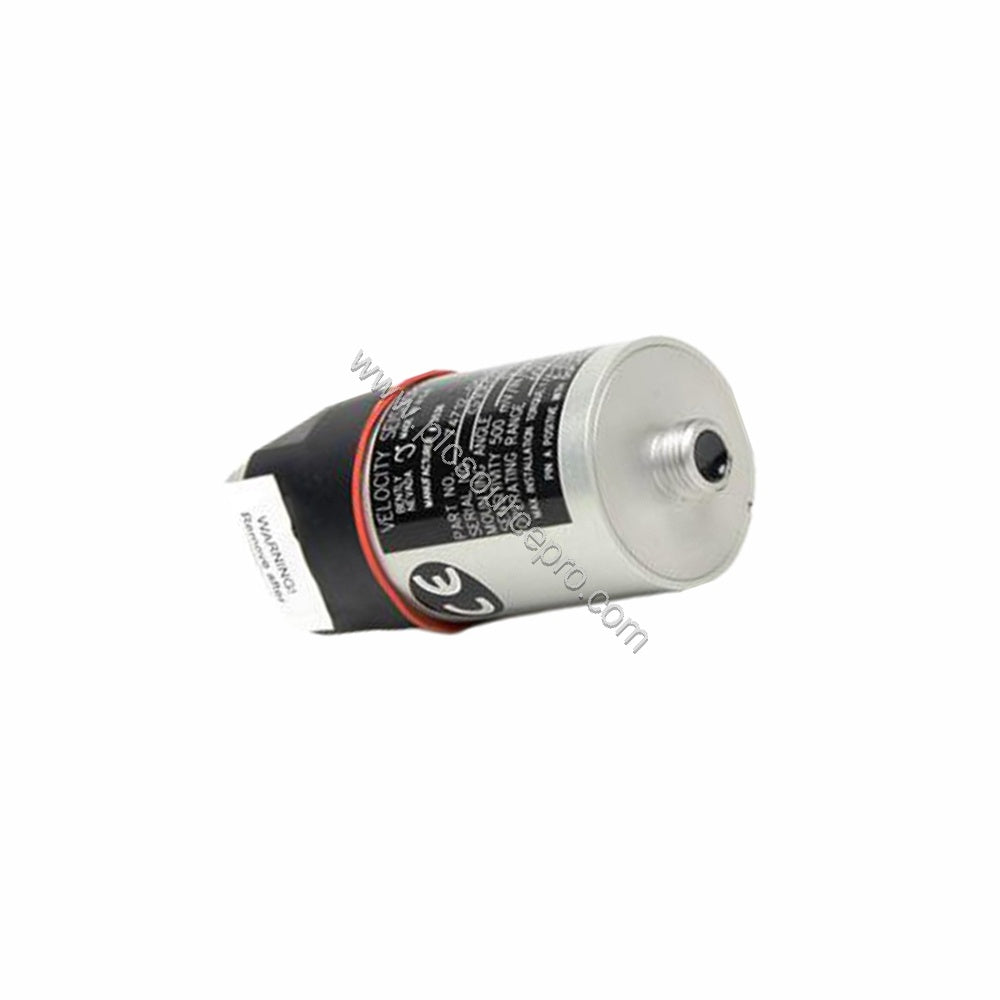

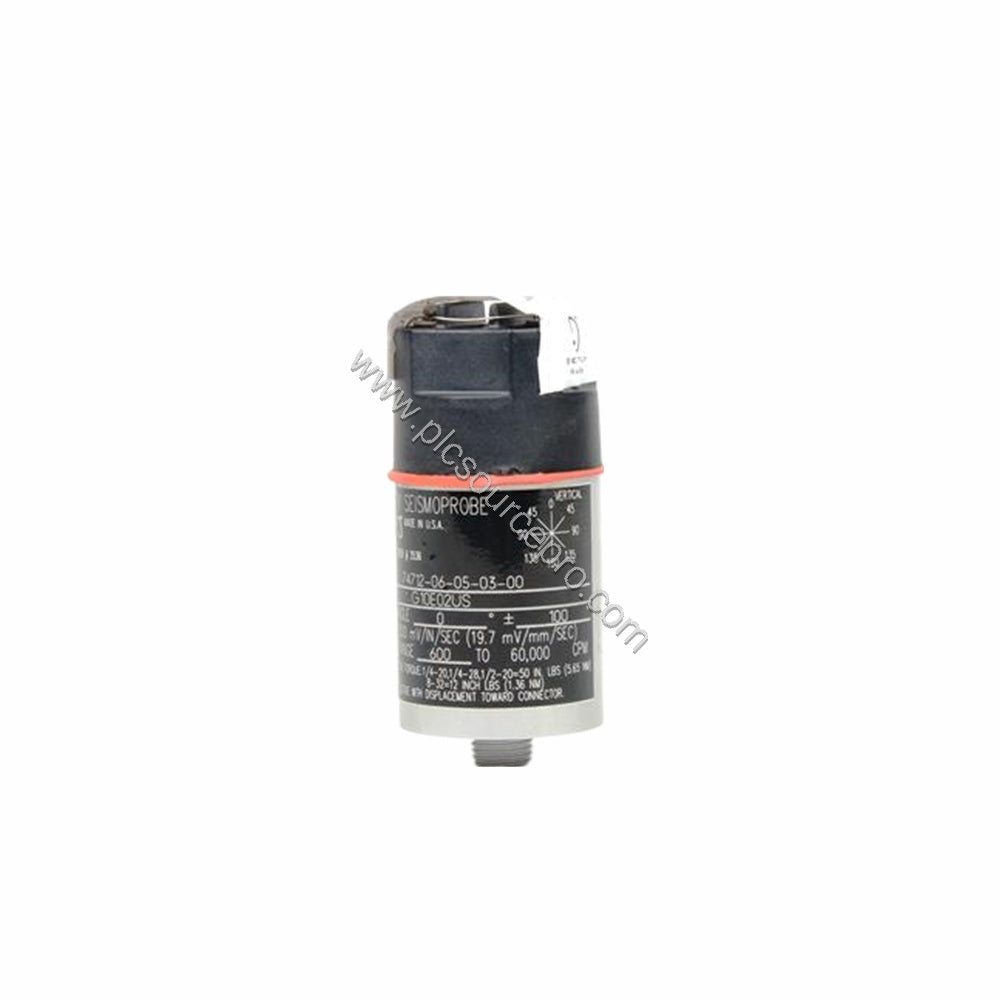

In extreme temperature environments, reliable vibration monitoring is critical. The Bently Nevada 74712-06-05-04-01 high-temperature two-wire transducer delivers accurate measurements from -29°C to +204°C, ensuring equipment protection and reduced downtime. Designed for rugged industrial applications, this transducer (part number 74712-06-05-04-01) provides a cost-effective solution for continuous vibration monitoring in gas turbines, compressors, and pumps.
Technical Specifications
The following table summarizes key performance parameters for the Bently Nevada 74712-06-05-04-01. All values are directly from the product datasheet.
| Parameter |
Value |
| Sensitivity |
20 mV/mm/s (±5%) |
| Operating Temperature Range |
-29°C to +204°C |
| Dynamic Operating Range |
2.54 mm (0.100 in) peak-to-peak max displacement |
| Velocity Range |
25 mm/s (1 in/s) at 100 Hz with 10 kΩ load |
| Coil Resistance |
1.25 kΩ ±5% |
| Locked Coil Inductance |
125 mH (typical) |
| Amplitude Linearity |
±5% from 0.01 to 5.0 in/s at 100 Hz |
| Shock Resistance |
50 g peak along non-sensitive axis |
| Transverse Sensitivity |
±10% max at 100 Hz |
| Mounting Torque (1/2-20, etc.) |
5.6 N·m (50 in·lb) |
| Hazardous Area Approvals |
cNRTLus, Class I Div 1 Groups A-D T6; Ex ia IIC T6 Ga; Ex ec IIC T6 Gc |
Industry Applications
The Bently Nevada 74712-06-05-04-01 is ideal for monitoring vibration in rotating machinery operating at high temperatures. Typical applications include:
- Gas and steam turbines in power generation plants, where ambient temperatures can exceed 150°C.
- Centrifugal compressors in oil and gas refineries, requiring reliable performance up to 204°C.
- Large industrial fans and blowers in steel mills and cement kilns.
Its high sensitivity (20 mV/mm/s) and wide dynamic range ensure early detection of bearing wear and imbalance, reducing unplanned downtime. Over the long term, the transducer’s robust design minimizes replacement costs, delivering strong ROI.
Installation & Setup Guidance
Proper mounting is critical for accurate measurements. The Bently Nevada 74712-06-05-04-01 offers a choice of mounting options: the 05 option provides a 1/2-in 20 UNF-3A stud (no base). Apply a mounting torque of 5.6 N·m (50 in·lb) for the stud. Use the side-mount connector (option 04) for convenient cable routing. For maximum lead wire length, up to 305 meters (1,000 feet) can be used between the transducer and a 3300 or 3500 monitor. Consult the manual for frequency roll-off at longer lengths.
Maintenance & Reliability
Designed for harsh environments, the 74712-06-05-04-01 operates reliably in 95% non-condensing humidity and withstands 50 g shock. The sealed construction (when ordered with integral cable) allows 100% non-submerged humidity. Regular calibration checks every 12 months are recommended. The sensitivity temperature coefficient of 0.2%/°C ensures stable output across temperature swings. This long-term stability reduces total cost of ownership.
Selection Guide & Purchasing Advice
When selecting a replacement or new installation, verify the mounting angle (0°±100°, 10 Hz minimum operating frequency as per option 06) and connector orientation. The Bently Nevada 74712-06-05-04-01 is available with CSA agency approval (option 01). For additional technical support or to order, contact PLC Source PRO (formerly ubest101). We stock genuine Bently Nevada spares and can help with compatibility questions.
