Product Introduction

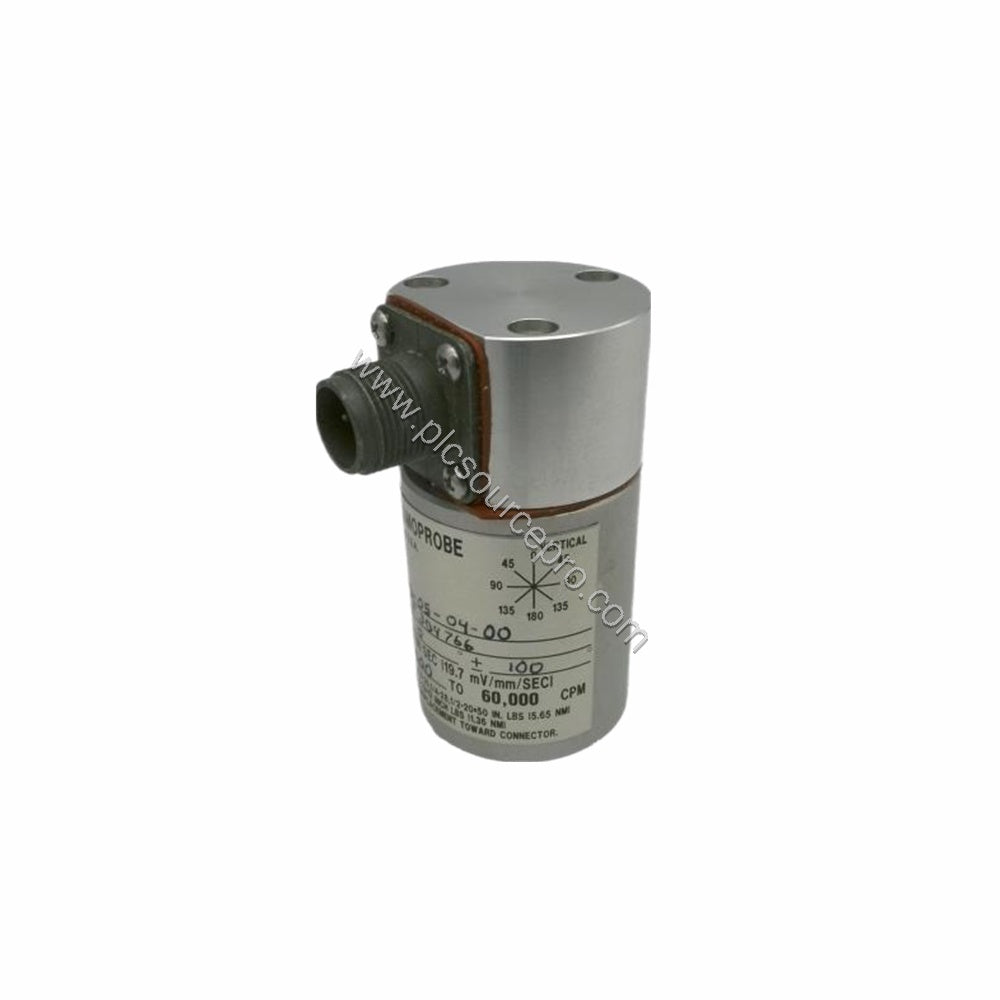

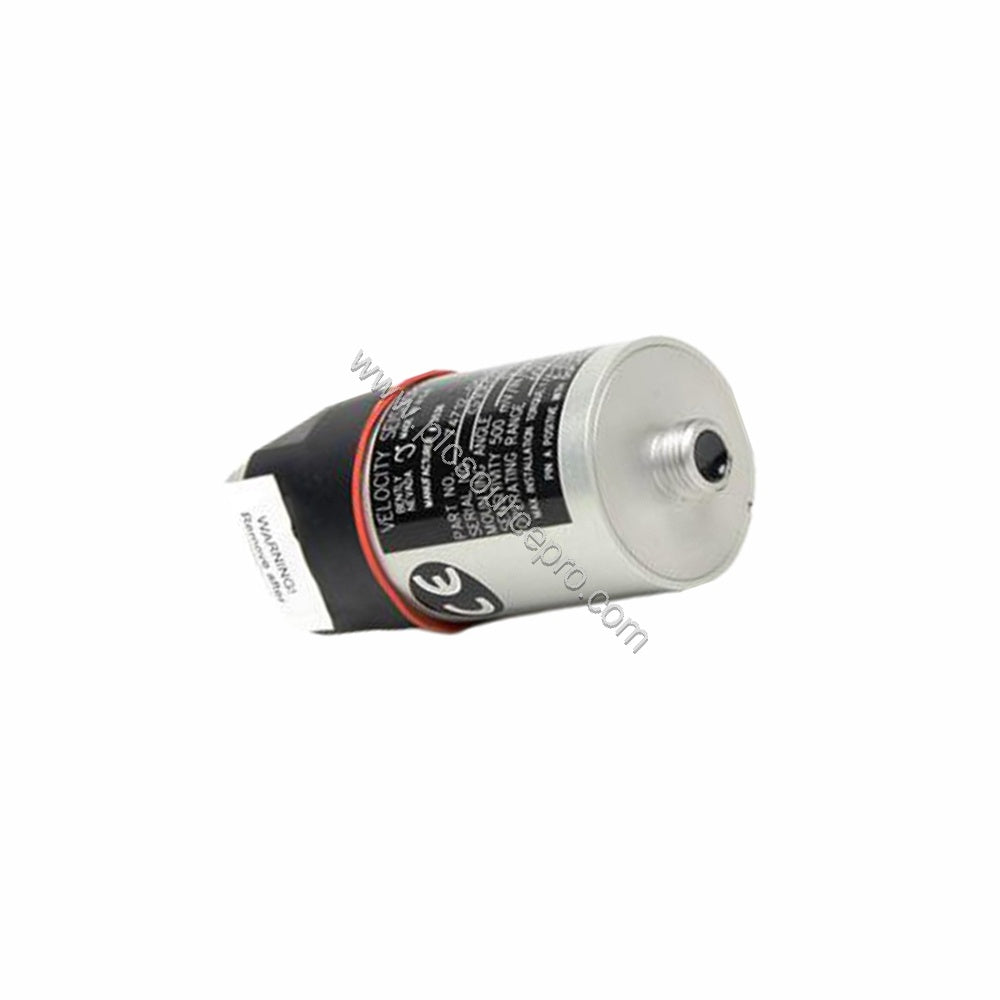

When excessive vibration threatens machinery reliability, the Bently Nevada 74712-06-05-04-00 provides precise measurement using proven moving-coil technology. This high-temperature two-wire transducer from the Seismoprobe family measures absolute vibration of bearing housings, casings, or structures. The Bently Nevada 74712-06-05-04-00 offers a voltage output directly proportional to vibration velocity, making it a trusted choice for critical rotating equipment monitoring.
Unlike solid-state velocity transducers that can be overly sensitive to impact or impulsive excitation, the moving-coil design of the 74712-06-05-04-00 delivers reliable readings in environments with sudden shocks. It requires no external power, simplifying installation for portable measurement applications.
Technical Specifications Breakdown
| Parameter |
Value |
| Sensitivity |
20 mV/mm/s (500 mV/in/s) ±5% |
| Operating & Storage Temperature |
-29°C to +204°C (-20°F to +400°F) |
| Dynamic Operating Range |
2.54 mm (0.100 in) peak-to-peak max displacement |
| Velocity Range |
25 mm/s (1 in/s) at 100Hz with 10kΩ load |
| Amplitude Linearity |
±5% from 0.01 to 5.0 in/s (0.254-127 mm/s) at 100Hz |
| Shock Resistance |
50 g peak max along non-sensitive axis |
| Coil Resistance |
1.25 kΩ ±5% |
| Locked Coil Inductance |
125 mH typical |
| Cable Length (max) |
305 m (1000 ft) to Bently Nevada 3300/3500 monitor |
| Mounting Options |
1/2-20 UNF-3A stud, or 8-32 threaded studs |
| Mounting Torque |
5.6 N·m (50 in·lb) for 1/2-20 base; 1.41 N·m (12.5 in·lb) for 8-32 studs |
| Hazardous Area Approvals |
cNRTLus: Class I Div 1 Groups A-D T6; Ex ia IIC T6 Ga; AEx ia IIC T6 Ga |
Industry Applications
The Bently Nevada 74712-06-05-04-00 excels in high-temperature environments such as steam turbines, gas compressors, and pumps. Its moving-coil design minimizes false readings from impulsive shocks—common in heavy machinery startup and shutdown. This transducer pairs well with Bently Nevada 3300 and 3500 monitoring systems for continuous vibration tracking.
For example, in a petrochemical plant, the 74712-06-05-04-00 can monitor bearing housing vibration on a high-temperature pump operating at 150°C, providing early warning of imbalance or misalignment without signal degradation from thermal effects.
Installation & Setup Guidance
Mount the Bently Nevada 74712-06-05-04-00 using the provided 1/2-in 20 UNF-3A stud and tighten to 5.6 N·m. The side-mount connector option (04) allows flexible cable routing. For best accuracy, orient the transducer at the angle selected during calibration (0° ±100, 10 Hz minimum operating frequency).
Maximum lead wire length is 305 m—consult the manual for frequency roll-off at longer runs. Ensure the output is taken across pins A and B with a 10 kΩ calibration load. For hazardous areas, comply with the specified Ex ia or Ex ec parameters (Ui=28V, Ii=16mA for Ex ia).
Maintenance & Reliability
The 74712-06-05-04-00 requires minimal maintenance due to its robust moving-coil construction. Operating temperature ranges from -29°C to +204°C, and the transducer withstands 95% relative humidity (noncondensing). Periodic inspection of the cable for abrasion or damage is recommended. The unit is designed for long service life even in harsh environments, reducing total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing the Bently Nevada 74712-06-05-04-00, verify the mounting base option (05: no base, 1/2-20 stud) and connector option (04: side mount) match your installation. This model includes CSA agency approval (option 01). Ensure compatibility with your monitoring system—designed for Bently Nevada 3300/3500 monitors. For a reliable source, consider ubest101, which offers authentic Bently Nevada parts with verified specifications.
