Product Overview

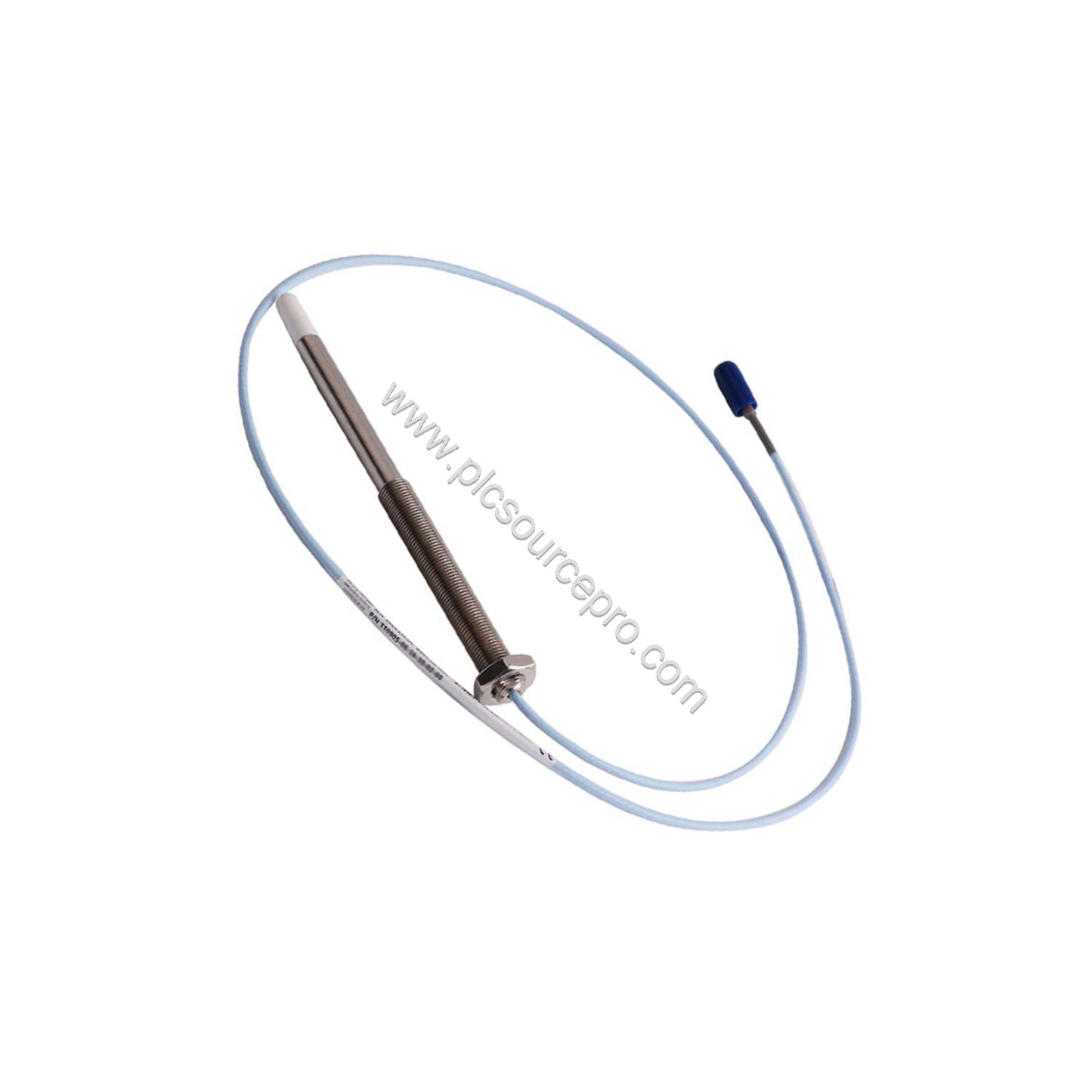

The Bently Nevada 330905-05-25-05-12-00 is a 3300 NSv proximity probe designed for precise vibration and position monitoring in critical rotating machinery. This industrial automation module delivers reliable performance in harsh environments, offering enhanced chemical resistance compared to earlier 3300 RAM probes. With a 0.5-meter total length and M10X1 thread, this probe integrates seamlessly into existing monitoring systems.
Key Specifications
| Parameter |
Value |
| Model |
3300 NSv Probe, M10X1 thread, without armor |
| Unthreaded Length |
50 mm |
| Overall Case Length |
250 mm |
| Total Length |
0.5 meter (20 in) |
| Connector |
Miniature coaxial ClickLoc connector, FluidLoc cable |
| Agency Approval |
Not required |
| Linear Range |
1.5 mm (60 mils), from 0.25 to 1.75 mm (10 to 70 mils) |
| Recommended Gap |
1.0 mm (40 mils) |
| Incremental Scale Factor |
7.87 V/mm (200 mV/mil) ±12.5%/-20% |
| Deviation from Best Fit Straight Line |
Less than ±0.06 mm (±2.3 mils) |
| Frequency Response |
0 to 10 kHz: +0, -3 dB typical |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Cable |
75 Ω coaxial, FEP insulated |
| Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Maximum Torque |
0.56 N•m (5 in•lb) recommended; 22.6 N•m (200 in•lb) max for first three threads |
Performance and Compatibility
The 330905-05-25-05-12-00 is mechanically and electrically interchangeable with previous 3300 RAM proximity probes. It offers superior side-view characteristics and increased chemical resistance, making it ideal for process compressor applications. The probe operates over a linear range of 1.5 mm with a scale factor of 7.87 V/mm, ensuring accurate displacement measurements. Field wiring supports up to 305 meters (1000 feet) between the Proximitor Sensor and monitor.
Installation Guidance
Mount the probe with finger-tight torque, then apply up to 7.5 N•m (66 in•lb) for the first three threads of the M10X1 case. Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable. Use three-conductor shielded triad cable with 0.2 to 1.5 mm² (16 to 24 AWG) conductors. For optimal linearity, set the gap to 1.0 mm (40 mils).
Maintenance and Reliability
Regularly inspect the probe tip for wear or contamination. The Viton O-ring seals differential pressure, but probes are not pressure-tested before shipment—contact our custom design department if pressure testing is required. Operating and storage temperatures range from -52°C to +177°C, ensuring reliable performance in extreme conditions.
Selection Guide
When ordering, verify the unthreaded length (50 mm), overall case length (250 mm), total length (0.5 m), and connector type (miniature coaxial ClickLoc). This part is new and original in factory packing, backed by a 12-month warranty. For bulk pricing or expedited shipping, contact PLC Source PRO.
