Product Overview

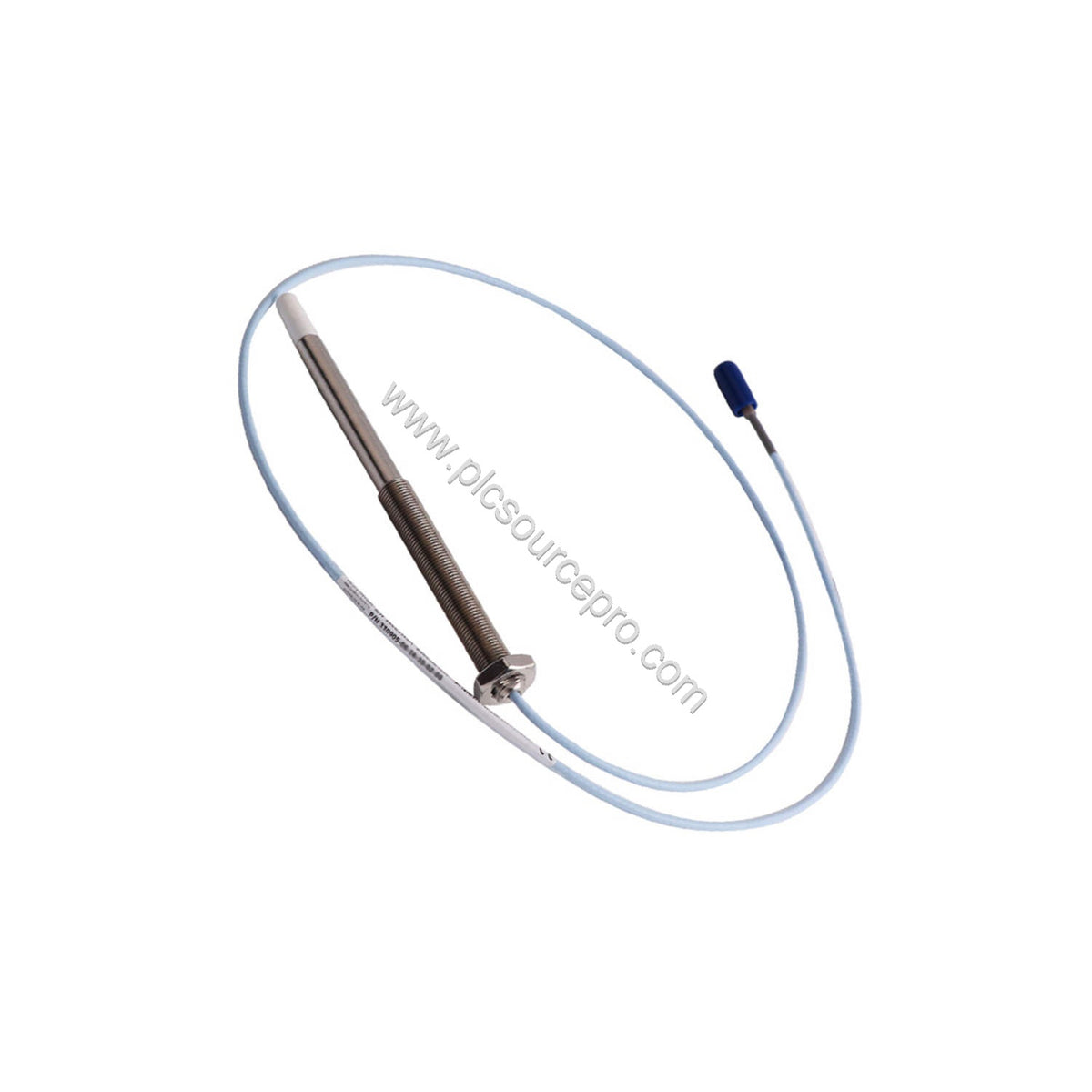

The Bently Nevada 330905-05-13-10-12-05 is a high-performance 3300 NSv proximity probe designed for reliable vibration and position monitoring in critical rotating machinery. This industrial automation module delivers accurate measurements in demanding environments, offering enhanced chemical resistance compared to earlier 3300 RAM probes. With its M10x1 thread and 1.0 meter total length, the 330905-05-13-10-12-05 integrates seamlessly into existing monitoring systems.
Key Features & Benefits
-
Enhanced Chemical Resistance: The NSv probe withstands harsh process media, making it ideal for process compressor applications.
-
Interchangeable Design: Mechanically and electrically compatible with previous 3300 RAM probes and extension cables.
-
Superior Side-View Characteristics: Provides better gapping accuracy than 3000-series 190 probes.
-
Multiple Approvals: Agency approval option -05 ensures compliance with various industry standards.
-
New & Original: Factory-packed with 12-month warranty.
Technical Specifications
| Parameter |
Value |
| Model |
330905 - 3300 NSv Probe, M10X1 thread, without armor |
| Unthreaded Length |
50 mm |
| Overall Case Length |
130 mm |
| Total Length |
1.0 meter (39 in) |
| Connector |
Miniature coaxial ClickLoc connector, FluidLoc cable |
| Agency Approval |
Multiple Approvals |
| Probe DC Resistance (1.0 m) |
4.2 ± 0.5 ohms |
| Extension Cable DC Resistance |
Center conductor: 0.220 Ω/m; Shield: 0.066 Ω/m |
| Extension Cable Capacitance |
69.9 pF/m typical |
| Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG); recommended three-conductor shielded triad; max length 305 m (1000 ft) |
| Linear Range |
1.5 mm (60 mils); begins at ~0.25 mm (10 mils) from target; -1 to -13 Vdc |
| Recommended Gap Setting |
1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) +12.5%/-20% |
| Deviation from Best Fit Straight Line |
Less than ±0.06 mm (±2.3 mils) |
| Frequency Response |
0 to 10 kHz: +0, -3 dB typical |
| Target Size (flat target) |
Minimum: 8.9 mm (0.35 in) diameter; Recommended: 13 mm (0.5 in) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Cable |
75 Ω coaxial, FEP insulated; lengths: 0.5, 1, 5, or 7 meters |
| Recommended Torque |
Finger tight; Maximum 0.56 N•m (5 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Probe Pressure Sealing |
Viton O-ring; designed to seal differential pressure |
| Probe Case Torque (M10X1) |
Max rated: 22.6 N•m (200 in•lb); Recommended: 7.5 N•m (66 in•lb) |
| Max Thread Engagement |
15 mm |
Applications
The Bently Nevada 330905-05-13-10-12-05 is engineered for critical machinery monitoring in industries such as oil & gas, power generation, and chemical processing. Its enhanced chemical resistance makes it particularly suitable for process compressors where exposure to aggressive media is common. The probe's superior side-view characteristics ensure accurate gap measurements, reducing the risk of misalignment and improving overall machine reliability. Whether used in turbomachinery, pumps, or motors, this probe delivers dependable data for predictive maintenance programs.
Installation & Setup
Proper installation is crucial for optimal performance. Follow these guidelines:
- Mount the probe with the M10x1 thread, ensuring the case threads engage at least 15 mm but do not exceed recommended torque (7.5 N•m or 66 in•lb).
- Use the recommended torque for the probe case: finger tight initially, then apply maximum 0.56 N•m (5 in•lb) for the connector.
- Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable to prevent damage.
- Set the recommended gap to 1.0 mm (40 mils) using the linear range starting at 0.25 mm (10 mils) from the target.
- For field wiring, use a three-conductor shielded triad cable with cross-section 0.2 to 1.5 mm² (16 to 24 AWG). Keep total cable length under 305 meters (1000 feet) to avoid signal rolloff.
Maintenance & Reliability
The 330905-05-13-10-12-05 is built for long service life, but regular inspection ensures continued accuracy. Check the probe tip and cable for signs of wear or chemical attack, especially in harsh environments. Verify the connector torque periodically to avoid loosening due to vibration. The Viton O-ring provides a reliable pressure seal, but if your application requires pressure testing, contact our custom design department. With proper care, this probe minimizes downtime and reduces total cost of ownership.
Buying Guide
When ordering the Bently Nevada 330905-05-13-10-12-05, verify the following: unthreaded length (50 mm), overall case length (130 mm), total length (1.0 m), and connector type (miniature coaxial ClickLoc). Ensure your monitoring system is compatible with the 3300 NSv series. PLC Source PRO offers this new, original unit with a 12-month factory warranty, backed by fast worldwide shipping. For bulk orders or technical support, contact our team to confirm availability and lead times.
