Product Overview

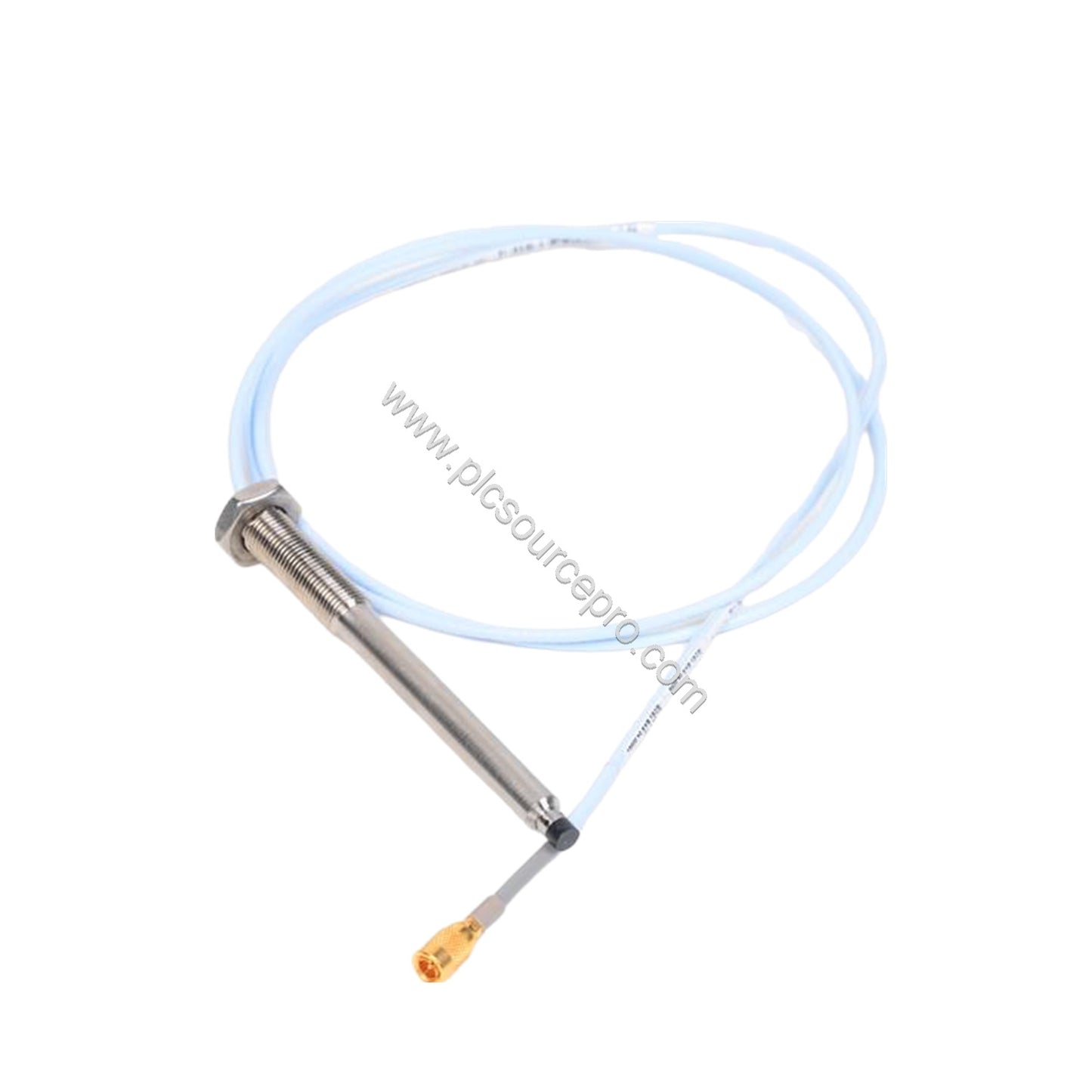

The Bently Nevada 330905-00-13-05-02-05 is a 3300 NSv proximity probe designed for reliable vibration and position monitoring in critical rotating machinery. This industrial automation module features an M10X1 thread, a 0.5-meter total length, and a miniature coaxial ClickLoc connector. It is mechanically and electrically compatible with previous 3300 RAM probes, offering enhanced chemical resistance for demanding process compressor applications.
Key Features and Benefits
-
Enhanced chemical resistance – suitable for process compressors where aggressive media are present.
-
Interchangeable with 3300 RAM probes – simplifies upgrades and spare part management.
-
Superior side-view characteristics – improves accuracy when gapping at the same distance from the target.
-
Multiple agency approvals – ensures compliance with various international standards.
-
Factory warranty – 12 months of coverage for peace of mind.
Technical Specifications
| Parameter |
Value |
| Probe dc Resistance (0.5 m length) |
4.0 ± 0.5 ohms |
| Extension cable dc resistance (center conductor) |
0.220 Ω/m (0.067 Ω/ft) |
| Extension cable dc resistance (shield) |
0.066 Ω/m (0.020 Ω/ft) |
| Extension cable capacitance |
69.9 pF/m (21.3 pF/ft) typical |
| Linear Range |
1.5 mm (60 mils) from 0.25 to 1.75 mm (10 to 70 mils) |
| Recommended Gap Setting |
1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) +12.5%/-20% |
| Deviation from Best Fit Straight Line (DSL) |
Less than ±0.06 mm (±2.3 mils) |
| Frequency Response |
0 to 10 kHz: +0, -3 dB typical with up to 305 m (1000 ft) field wiring |
| Target Size (flat target) |
Minimum 8.9 mm (0.35 in) diameter; recommended 13 mm (0.5 in) diameter |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel (SST) |
| Probe Cable |
75 Ω coaxial, FEP insulated, total lengths 0.5, 1, 5, or 7 m |
| Recommended Torque |
Finger tight; maximum 0.56 N•m (5 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Probe Pressure Sealing |
Viton O-ring; designed for differential pressure sealing |
| Connector-to-connector Torque (M10X1) |
Maximum 33.9 N•m (300 in•lb); recommended 11.3 N•m (100 in•lb) |
| Torque (first three threads) |
Maximum 22.6 N•m (200 in•lb); recommended 7.5 N•m (66 in•lb) |
Industry Applications
The 330905-00-13-05-02-05 excels in process compressor applications where chemical resistance is critical. It also suits general rotating machinery monitoring, including turbines, pumps, and fans, providing accurate shaft vibration and position data. Its superior side-view characteristics make it ideal for applications requiring precise gap settings.
Installation & Setup Guidance
Install the probe with finger-tight torque, then apply maximum 0.56 N•m (5 in•lb) for final seating. Ensure the target surface meets the minimum diameter requirements (8.9 mm flat target). For optimal linearity, set the gap to 1.0 mm (40 mils). Use three-conductor shielded triad cable for field wiring, maintaining a maximum length of 305 meters (1,000 feet) between the Proximitor Sensor and monitor.
Maintenance & Reliability
Periodically inspect the probe cable for bends exceeding the 25.4 mm minimum bend radius. Verify the O-ring seal integrity, especially in high-pressure applications. Regular calibration checks against the ISF tolerance help maintain measurement accuracy. The robust stainless steel case and PPS tip resist corrosion, extending service life in harsh environments.
Compatibility & Integration
The 330905-00-13-05-02-05 is fully compatible with Bently Nevada 3300 XL NSv Proximitor Sensors and monitors. It replaces older 3300 RAM probes without system modifications. The miniature coaxial ClickLoc connector ensures secure, quick connections with extension cables.
Selection Guide & Purchasing Advice
Before ordering, confirm your required thread size (M10X1), overall case length (130 mm), and total length (0.5 m). Verify the connector type (miniature coaxial ClickLoc) and agency approval options. PLC Source PRO offers this new, original unit with factory packaging and a 12-month warranty. Contact our team for application-specific guidance.
