Product Overview

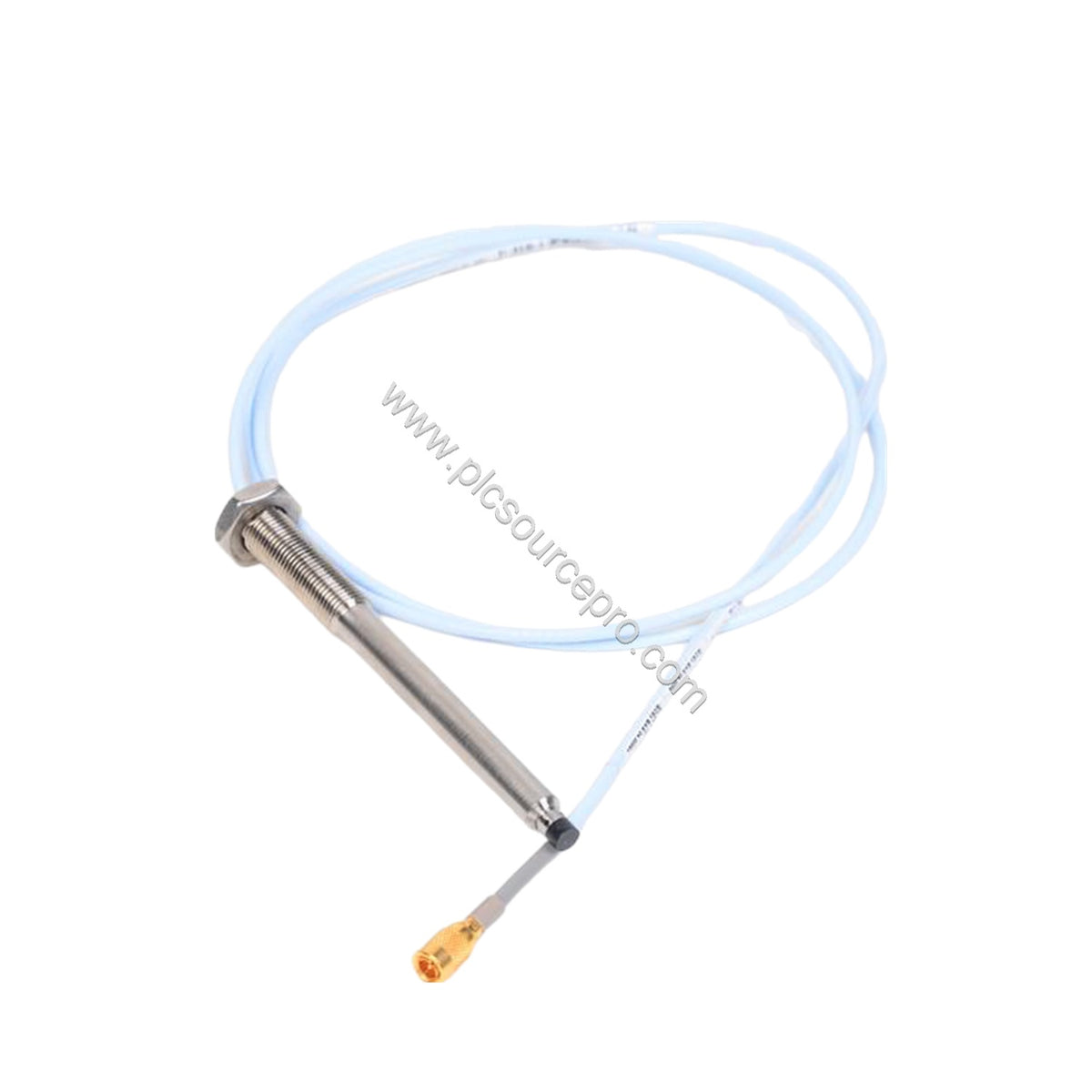

The Bently Nevada 330905-00-05-05-02-CN is a 3300 NSv proximity probe designed for reliable vibration and position monitoring in critical rotating machinery. This industrial automation module offers enhanced chemical resistance and superior side-view characteristics compared to earlier 3300 RAM probes, making it ideal for process compressor applications.
With a total length of 0.5 meters (20 inches) and an M10x1 thread without armor, this probe delivers precise measurements in demanding environments. The miniature coaxial ClickLoc connector ensures secure, quick installation.
Key Features and Benefits
-
Chemical Resistance: Increased resistance compared to the 3300 RAM probe, suitable for process compressors.
-
Interchangeability: Mechanically and electrically compatible with previous 3300 RAM probes and extension cables.
-
Precise Measurement: Linear range of 1.5 mm (60 mils) with incremental scale factor of 7.87 V/mm (200 mV/mil).
-
Robust Construction: Probe tip made of polyphenylene sulfide (PPS) and case of AISI 304 stainless steel.
-
Wide Temperature Range: Operates from -52°C to +177°C (-62°F to +351°F).
Technical Specifications
| Parameter |
Value |
| Probe dc Resistance (0.5 m) |
4.0 ± 0.5 ohms |
| Extension Cable dc Resistance |
Center: 0.220 Ω/m; Shield: 0.066 Ω/m |
| Extension Cable Capacitance |
69.9 pF/m typical |
| Linear Range |
1.5 mm (60 mils), from 0.25 to 1.75 mm |
| Recommended Gap Setting |
1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil), +12.5%/-20% |
| Deviation from Best Fit Straight Line |
Less than ±0.06 mm (±2.3 mils) |
| Frequency Response |
0 to 10 kHz: +0, -3 dB typical |
| Target Size (flat) |
Min: 8.9 mm dia; Recommended: 13 mm dia |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Cable |
75 Ω coaxial, FEP insulated |
| Maximum Torque |
0.56 N•m (5 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Operating/Storage Temperature |
-52°C to +177°C |
Industry Applications
The 330905-00-05-05-02-CN excels in vibration monitoring for turbomachinery, compressors, and pumps. Its enhanced chemical resistance makes it particularly suitable for process compressor applications where exposure to aggressive media is common.
In axial position monitoring, the probe provides accurate shaft position readings. For shafts smaller than 13 mm (0.5 in) diameter, users should adjust the gap to minimize scale factor changes, as noted in Figure 12 of the manual.
Installation & Setup
Install the probe with finger-tight torque initially, then tighten to the recommended torque values. For M10x1 probe cases, the maximum rated torque is 33.9 N•m (300 in•lb), but the recommended value is 11.3 N•m (100 in•lb). For the first three threads, reduce to 22.6 N•m (200 in•lb) maximum and 7.5 N•m (66 in•lb) recommended.
Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with three-conductor shielded triad cable. Maximum field wiring length is 305 meters (1,000 feet) between the Proximitor Sensor and monitor.
Maintenance & Reliability
Routine inspection should focus on the probe tip for contamination or damage, and on cable integrity. The Viton O-ring provides a pressure seal, but probes are not pressure tested before shipment. If your application requires pressure testing, contact the custom design department.
Regular calibration checks ensure measurement accuracy. The probe's robust materials and wide temperature range contribute to long service life, reducing downtime.
Buying Guide
When ordering, verify the unthreaded length (-00-), overall case length (-05-), total length (05), connector type (-02), and agency approval (-CN). This part number 330905-00-05-05-02-CN includes a miniature coaxial ClickLoc connector and standard cable.
PLC Source PRO offers this genuine Bently Nevada 330905-00-05-05-02-CN in new, original factory packing with a 12-month warranty. Ensure you have the correct extension cable and Proximitor sensor for your system.
