Product Overview

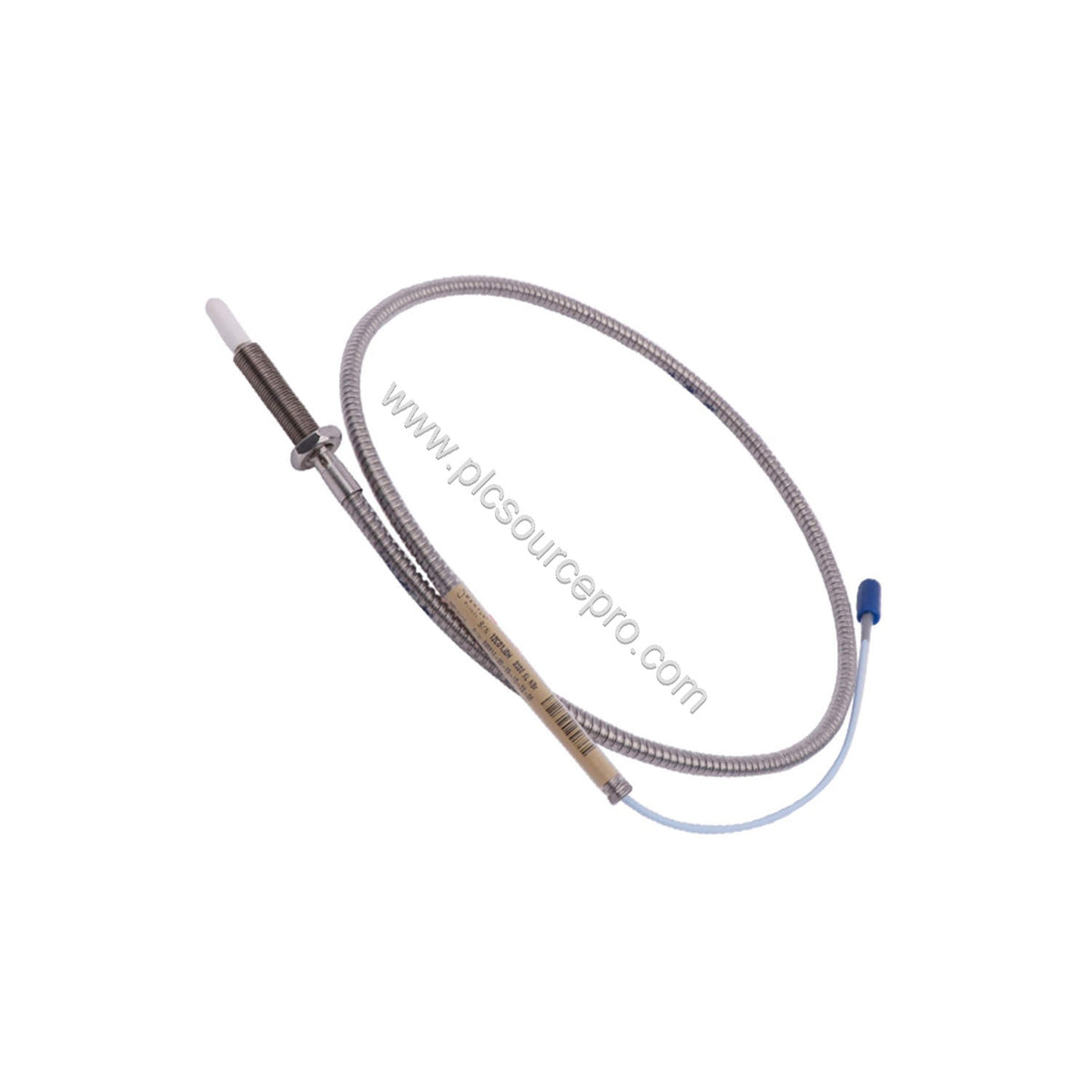

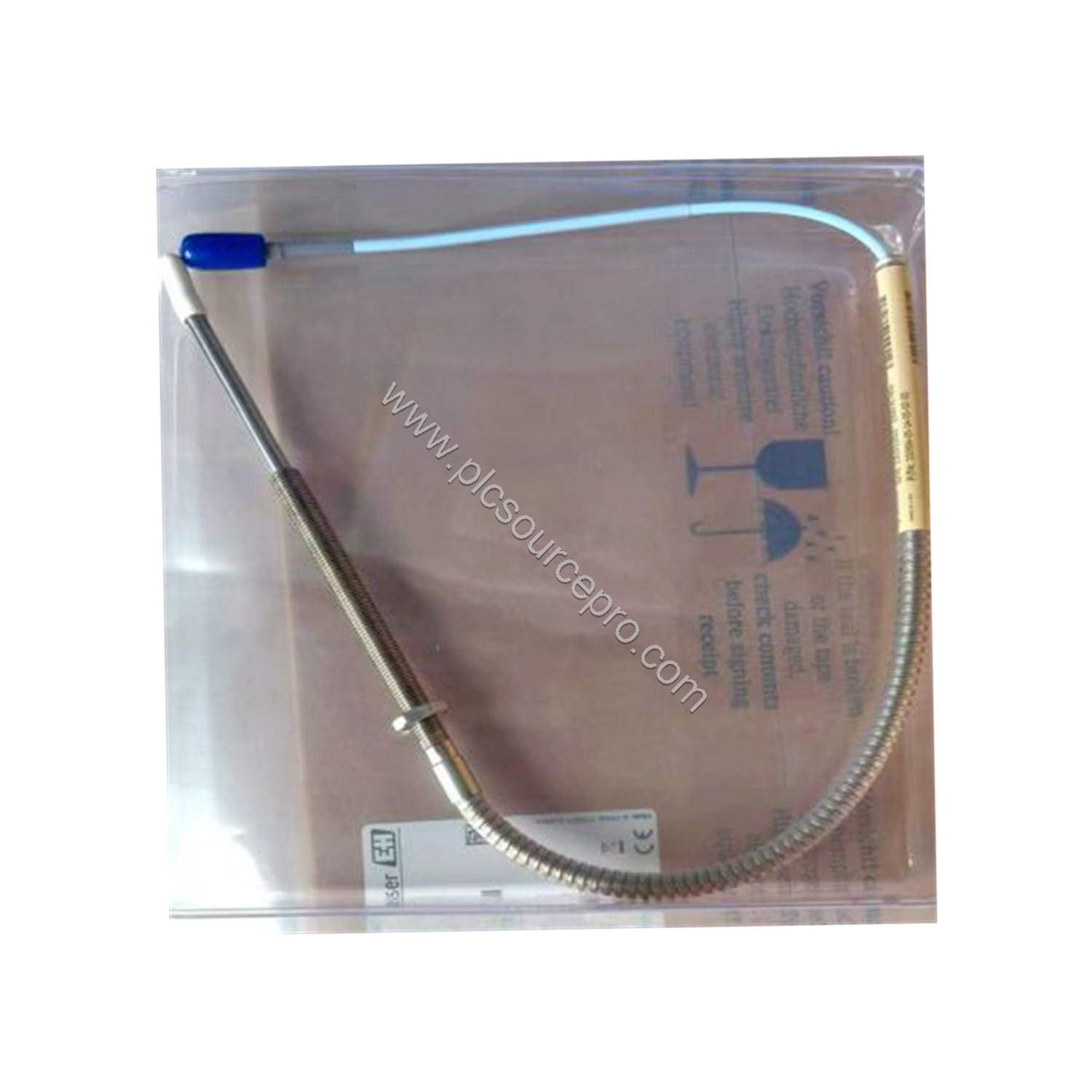

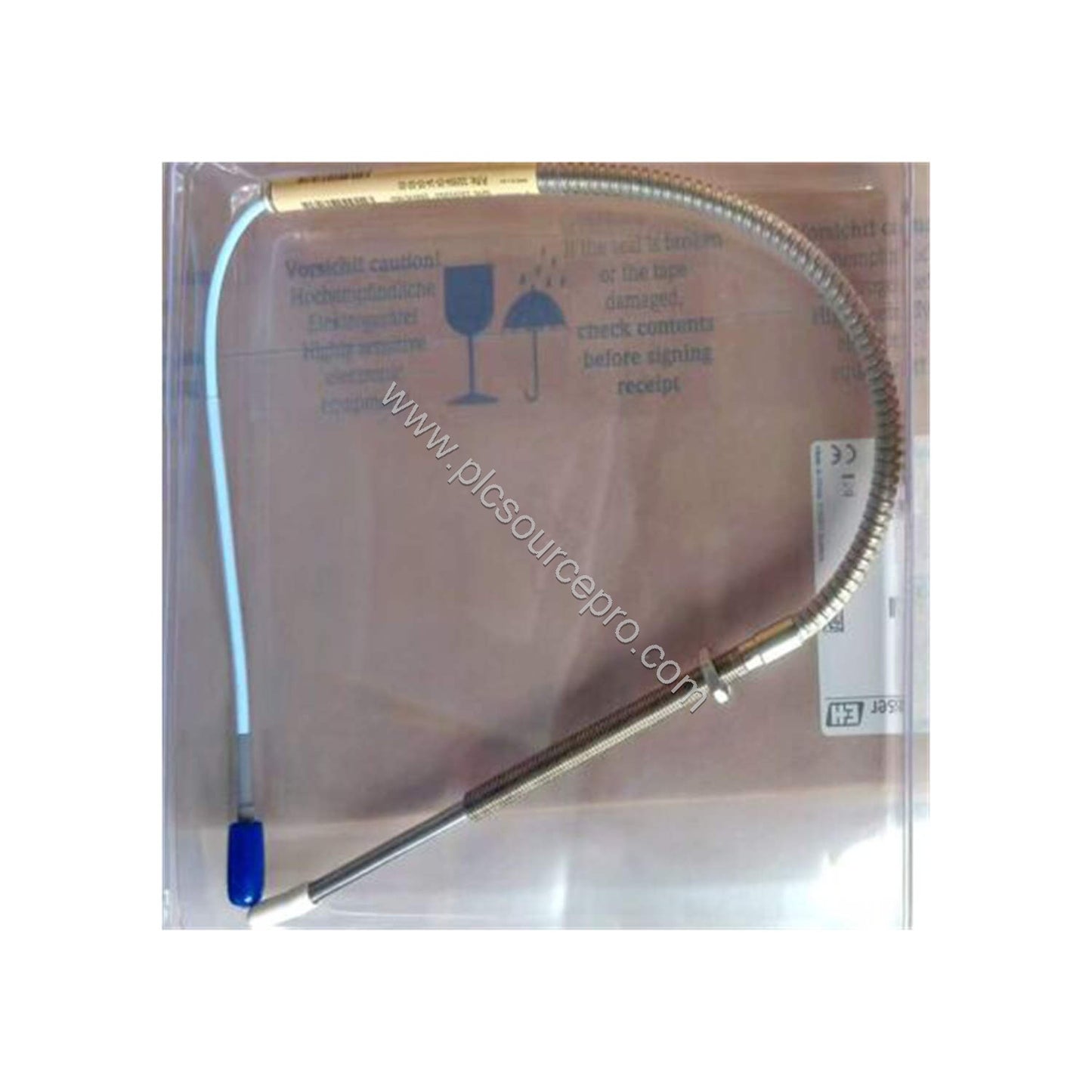

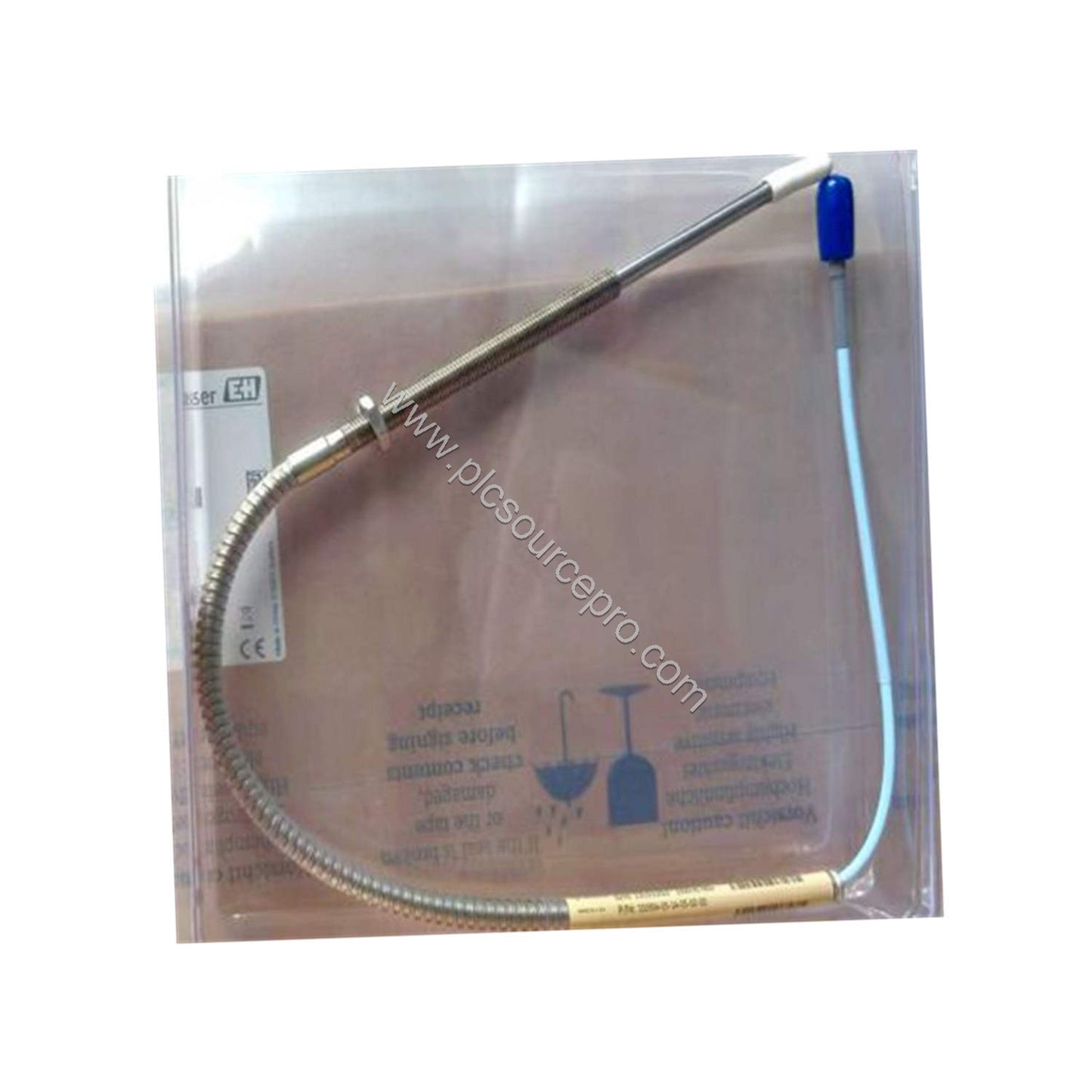

The Bently Nevada 330904-00-10-10-02-05 is a 3300 NSv proximity probe designed for precise vibration and position monitoring in critical rotating machinery. This industrial automation module features an M8X1 threaded case with armor, a 1.0-meter (39 in) total length, and a miniature coaxial ClickLoc connector with standard cable. It delivers reliable performance in harsh environments, offering enhanced chemical resistance compared to earlier 3300 RAM probes.
Key Features & Benefits
-
Enhanced Chemical Resistance: Ideal for process compressor applications where exposure to aggressive media is common.
-
Interchangeable Design: Mechanically and electrically compatible with Bently Nevada's previous 3300 RAM probe and extension cable.
-
Superior Side-View Characteristics: Provides better side-view performance than the 3000-series 190 probe at the same gap distance.
-

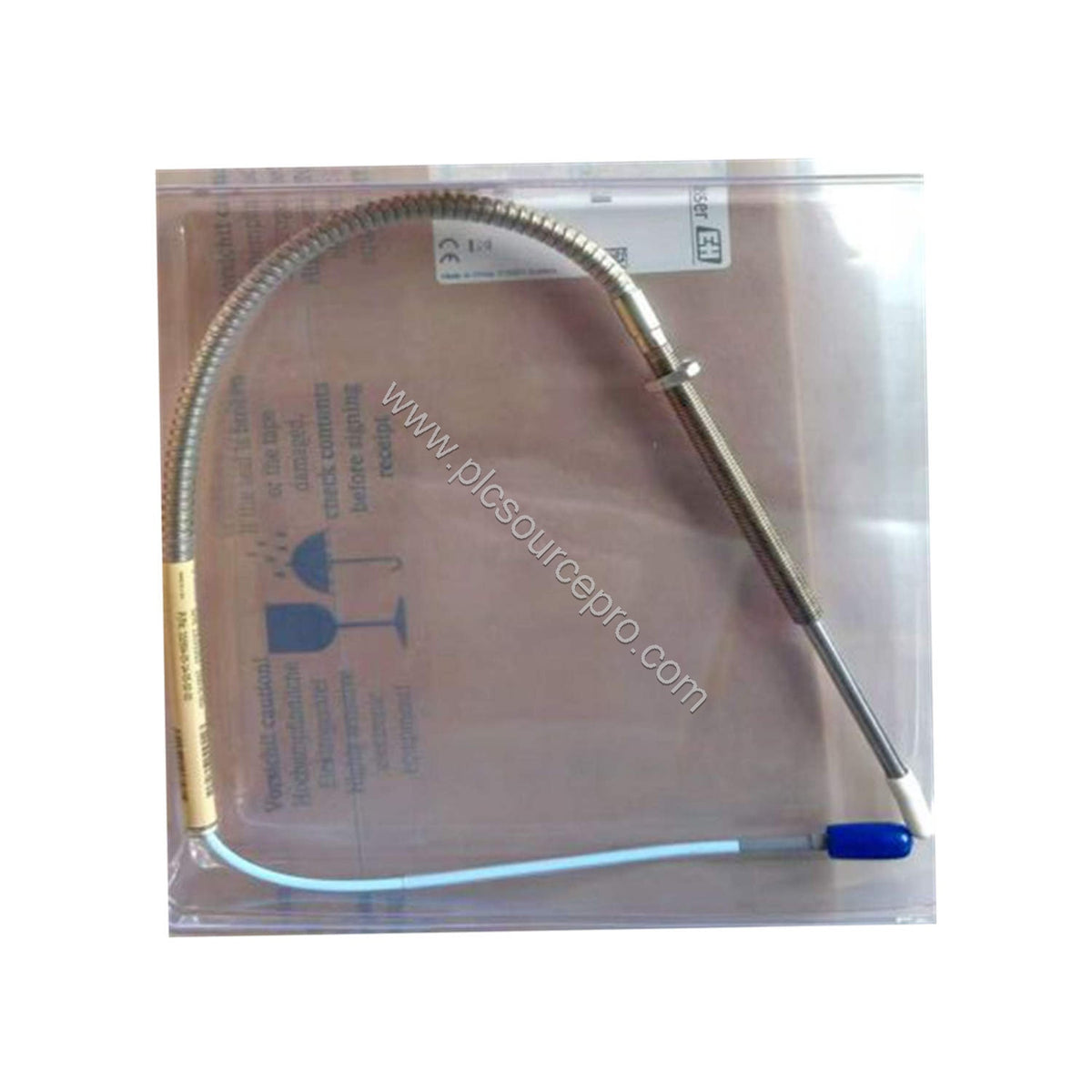

Robust Construction: Polyphenylene sulfide (PPS) probe tip and AISI 304 stainless steel case ensure durability.
-
Multiple Approvals: Agency approval option 05 ensures compliance with various international standards.
Technical Specifications
| Parameter |
Value |
| Probe DC Resistance (RPROBE) |
4.2 ± 0.5 ohms (at 1.0 m length) |
| Linear Range |
1.5 mm (60 mils), from 0.25 mm to 1.75 mm (10 to 70 mils) approx. -1 to -13 Vdc |
| Recommended Gap Setting |
1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) +12.5%/-20% including interchangeability error |
| Deviation from Best Fit Straight Line (DSL) |
Less than ±0.06 mm (±2.3 mils) |
| Frequency Response |
0 to 10 kHz: +0, -3 dB typical (with up to 305 m field wiring) |
| Target Size (flat target) |
Minimum: 8.9 mm (0.35 in) diameter; Recommended: 13 mm (0.5 in) diameter |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Cable |
75 Ω coaxial, FEP insulated; lengths: 0.5, 1, 5, or 7 meters |
| Operating / Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Maximum Torque |
0.56 N•m (5 in•lb) recommended finger tight |
| Minimum Bend Radius |
25.4 mm (1.0 in) with or without SST armor |
| Probe Case Torque (M8X1) |
Max 7.3 N•m (65 in•lb); Recommended 5.1 N•m (45 in•lb) |
| Thread Engagement (M8x1) |
Max 12 mm |
Applications
The 330904-00-10-10-02-05 is engineered for vibration monitoring on turbomachinery, compressors, pumps, and motors. Its enhanced chemical resistance makes it particularly suitable for process compressor applications where exposure to corrosive process media is common. The probe also excels in side-view mounting configurations, providing accurate gap measurements even in tight installations.
Installation & Setup
When installing the 330904-00-10-10-02-05, follow these guidelines:
- Use the recommended torque of 5.1 N•m (45 in•lb) for the M8X1 probe case to ensure proper sealing without damaging threads.
- Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable to prevent internal damage.
- Set the initial gap to 1.0 mm (40 mils) for optimal linear response.
- For field wiring, use a three-conductor shielded triad cable with cross-section 0.2 to 1.5 mm² (16 to 24 AWG). Maximum cable length between the Proximitor Sensor and monitor is 305 meters (1,000 feet).
Maintenance & Reliability
This proximity probe requires minimal maintenance due to its robust construction. The PPS tip and stainless steel case resist chemical attack and mechanical wear. However, periodic inspection of the cable and connector is recommended to ensure signal integrity. The probe's sealing system uses a Viton O-ring, designed to withstand differential pressure; for pressure-critical applications, consider requesting a pressure seal test from the manufacturer.
Compatibility & Integration
The 330904-00-10-10-02-05 is fully compatible with Bently Nevada's 3300 XL NSv Proximitor Sensor and existing 3300 monitoring systems. It is mechanically and electrically interchangeable with previous 3300 RAM probes, allowing seamless upgrades in legacy installations.
Selection Guide
Before ordering, verify your required unthreaded length, overall case length, and total cable length. This model includes armor and a ClickLoc connector. For assistance with product selection or to discuss your application, contact PLC Source PRO, your trusted supplier of industrial automation spares.
