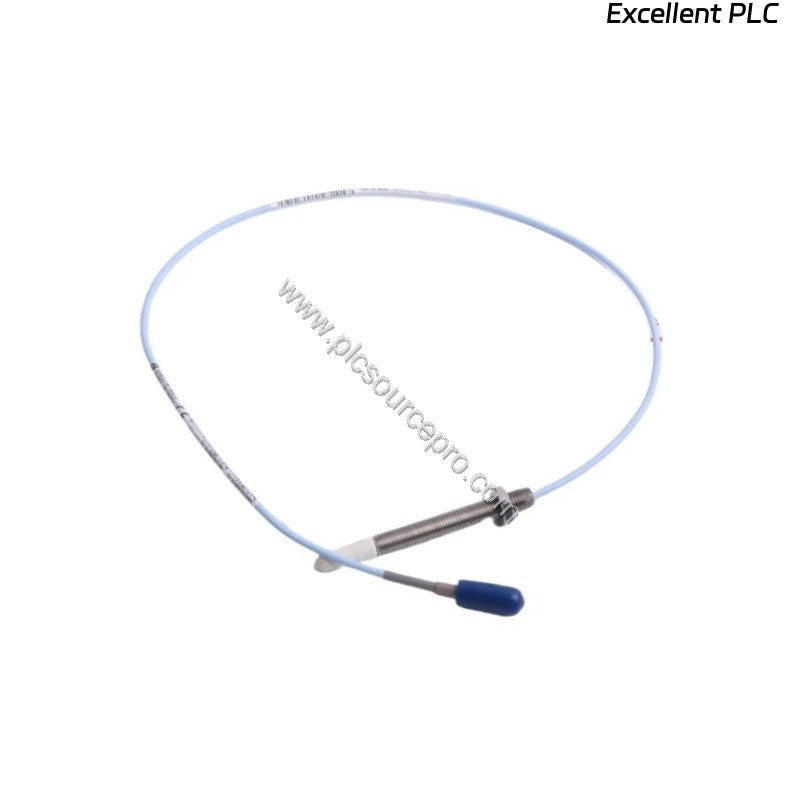

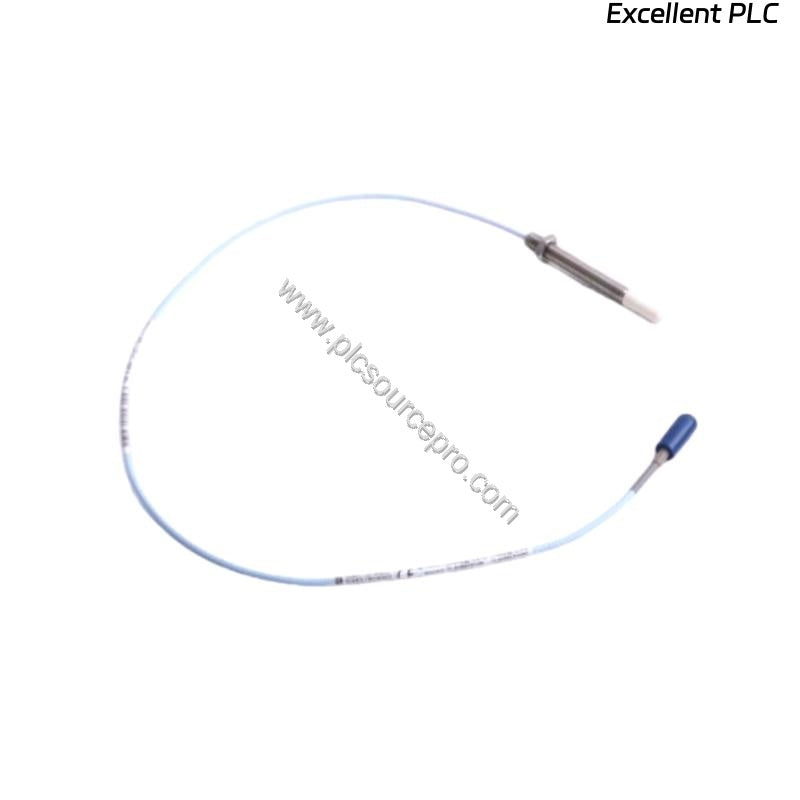

Product Overview
When precise shaft vibration and position monitoring are critical, the Bently Nevada 330903-00-05-05-01-05 delivers dependable performance. This 3300 NSv proximity probe, part of the trusted 3300 series, is engineered for industrial rotating machinery. It provides accurate displacement measurements, helping you detect issues before they become costly failures. As a new, factory-packed unit, this probe ensures reliable operation from the moment you install it.
Technical Specifications
The Bently Nevada 330903-00-05-05-01-05 is built to exacting standards. Key specifications include:
-

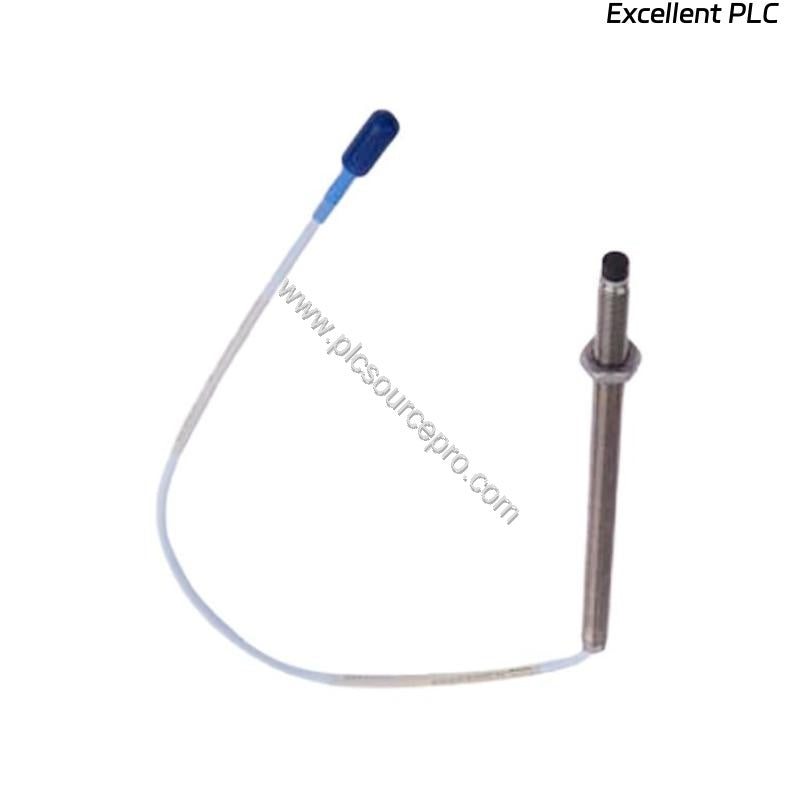

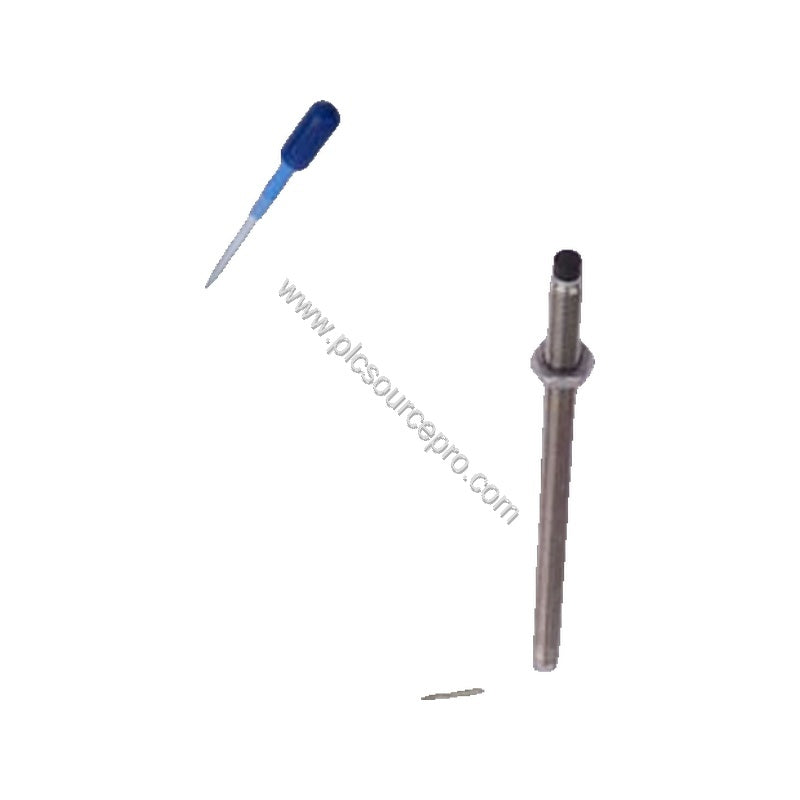

Probe Type: 3300 NSv, M8x1 thread, without armor
-
Total Length: 0.5 meter (20 inches)
-

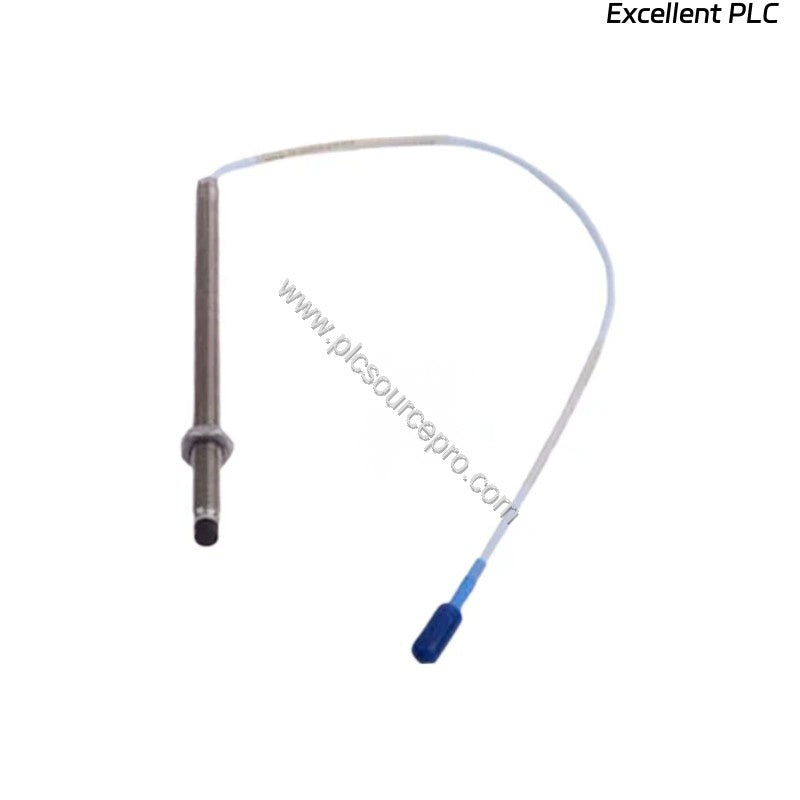

Connector: Miniature coaxial ClickLoc with connector protector
-
Cable: Standard 75 Ω coaxial, FEP insulated
-
Probe DC Resistance: 4.0 ± 0.5 ohms (for 0.5m length)
-
Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm
-
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil)
-
Deviation from Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
-
Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305m field wiring
-
Operating Temperature: -52°C to +177°C (-62°F to +351°F)
-
Probe Tip Material: Polyphenylene sulfide (PPS)
-
Probe Case Material: AISI 304 stainless steel
-
Maximum Torque: 0.56 N•m (5 in•lb)
-
Minimum Bend Radius: 25.4 mm (1.0 in)
Key Benefits & Applications
This probe offers superior chemical resistance compared to earlier models, making it ideal for process compressor applications. Its side-view characteristics are enhanced, providing more accurate gapping at the same distance from the target. Typical applications include:
- Vibration monitoring on centrifugal and reciprocating compressors
- Shaft radial and axial position measurement in turbines
- Eccentricity monitoring in large electric motors
- Thrust bearing wear detection in pumps
Compatibility & Integration
The Bently Nevada 330903-00-05-05-01-05 is mechanically and electrically interchangeable with the previous 3300 RAM probe and extension cable. It works seamlessly with 3300 XL NSv Proximitor Sensors, ensuring a straightforward upgrade path. Field wiring recommendations include three-conductor shielded triad cable, with a maximum length of 305 meters (1,000 feet) between sensor and monitor.
Installation & Setup Guidance
For optimal performance, follow these guidelines:
- Mount the probe with finger-tight torque; do not exceed 0.56 N•m (5 in•lb).
- Maintain a recommended gap setting of 1.0 mm (40 mils) from the target.
- Ensure the target surface is flat and at least 13 mm (0.5 in) in diameter for accurate readings.
- Route the cable with a bend radius of at least 25.4 mm (1.0 in) to prevent damage.
- Use the specified field wiring (0.2 to 1.5 mm²) and keep connections clean and secure.
Maintenance & Reliability
Regular inspection of the probe tip and cable is recommended to ensure consistent measurements. The 3300 NSv design offers increased chemical resistance, reducing the risk of degradation in harsh environments. With proper installation and routine checks, this probe provides long-term reliability, minimizing downtime and maintenance costs.
Selection Guide & Purchasing Advice
When ordering, verify the thread type (M8x1), unthreaded length (00 mm), overall case length (50 mm), and total length (0.5 m) to match your application. The connector type (ClickLoc) and agency approvals (Multiple Approvals) are already configured for this part. For genuine, factory-sealed components with a 12-month warranty, consider PLC Source PRO as your trusted supplier.
