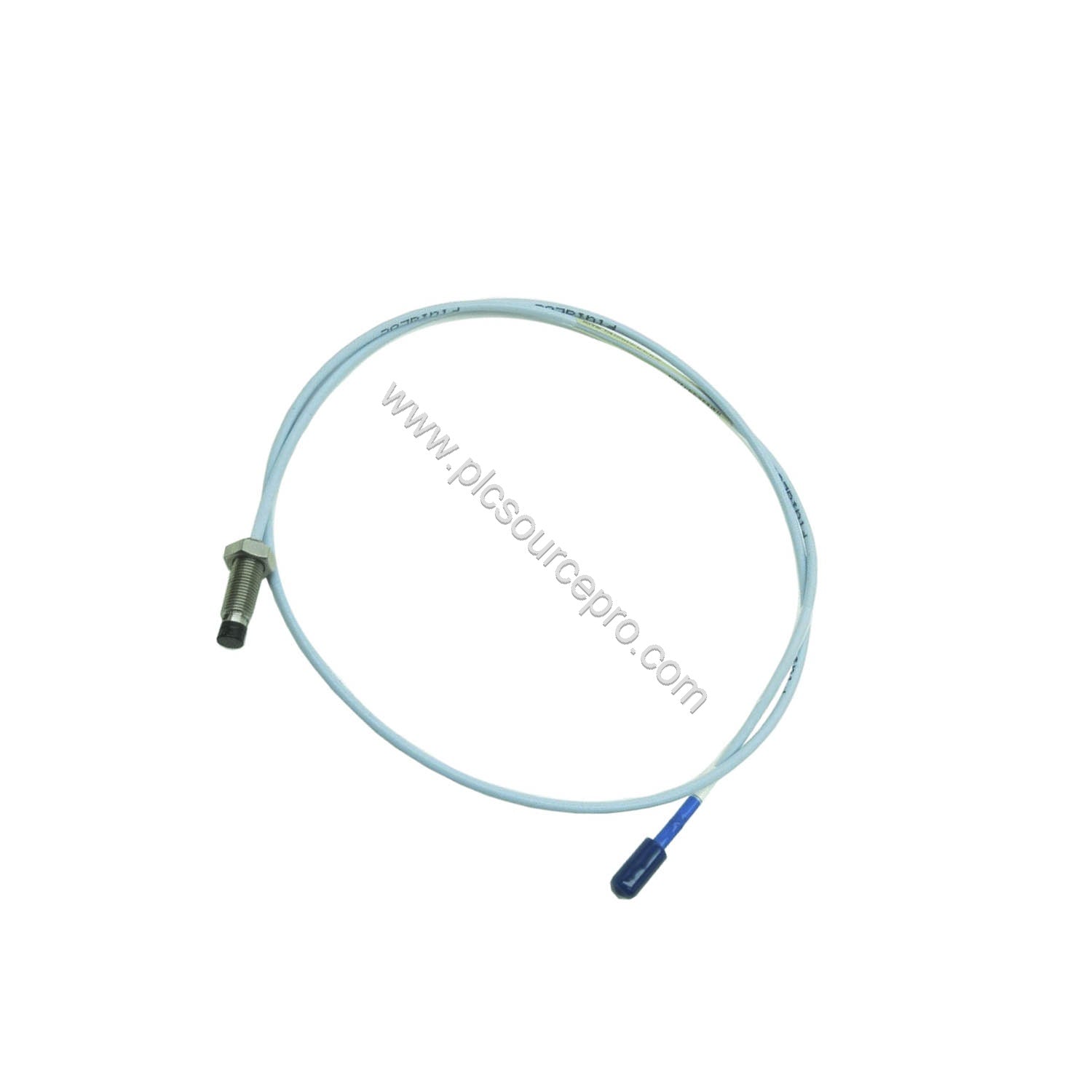

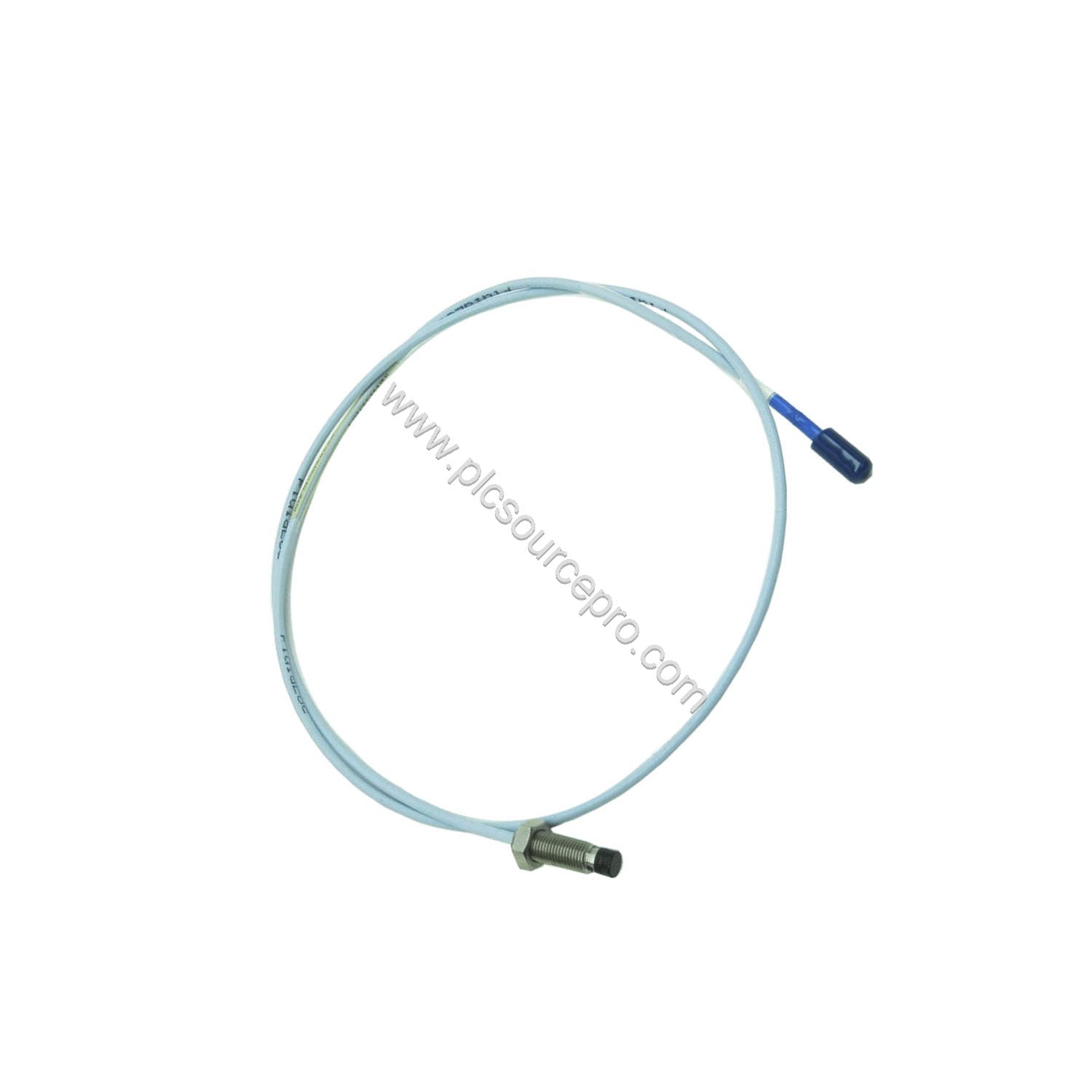

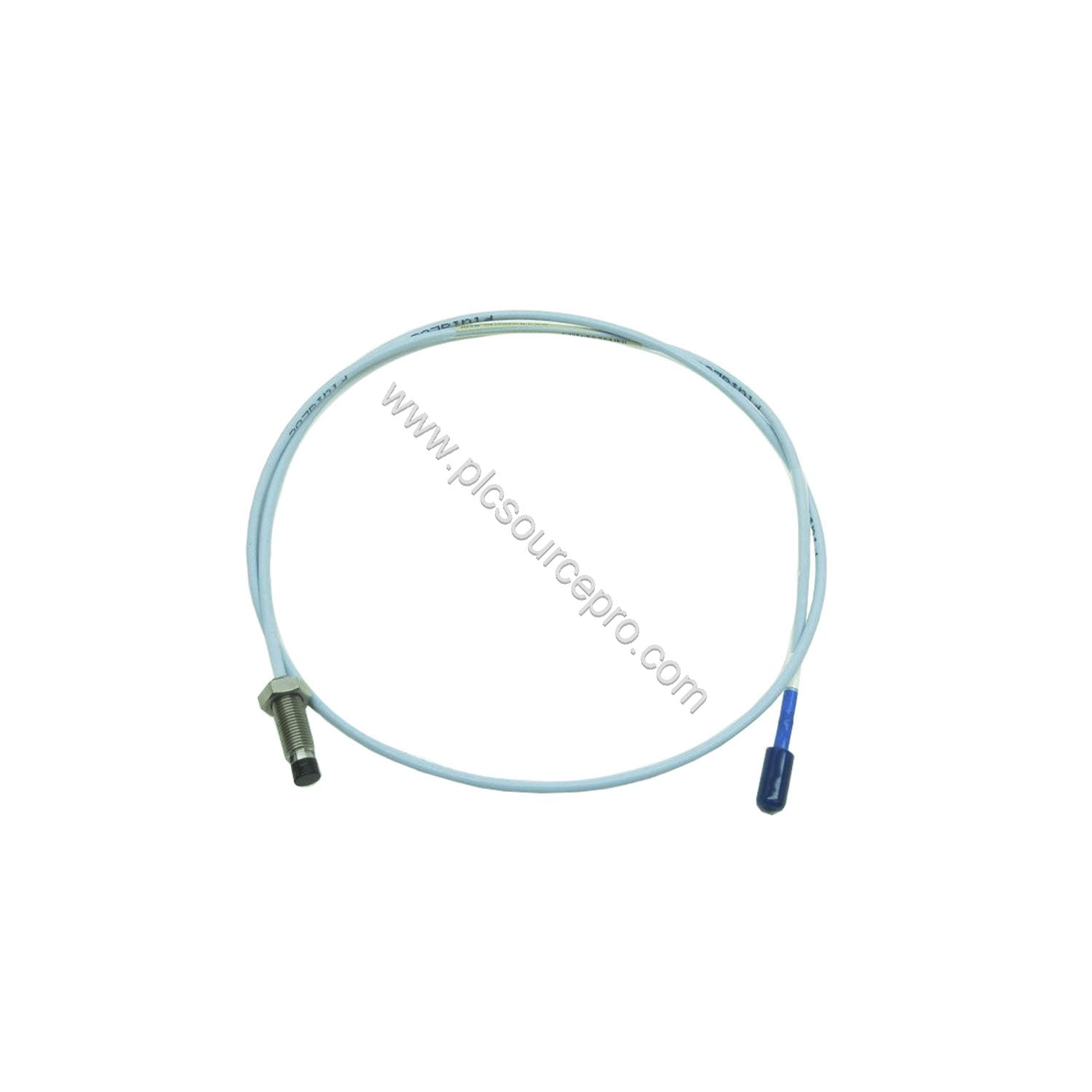

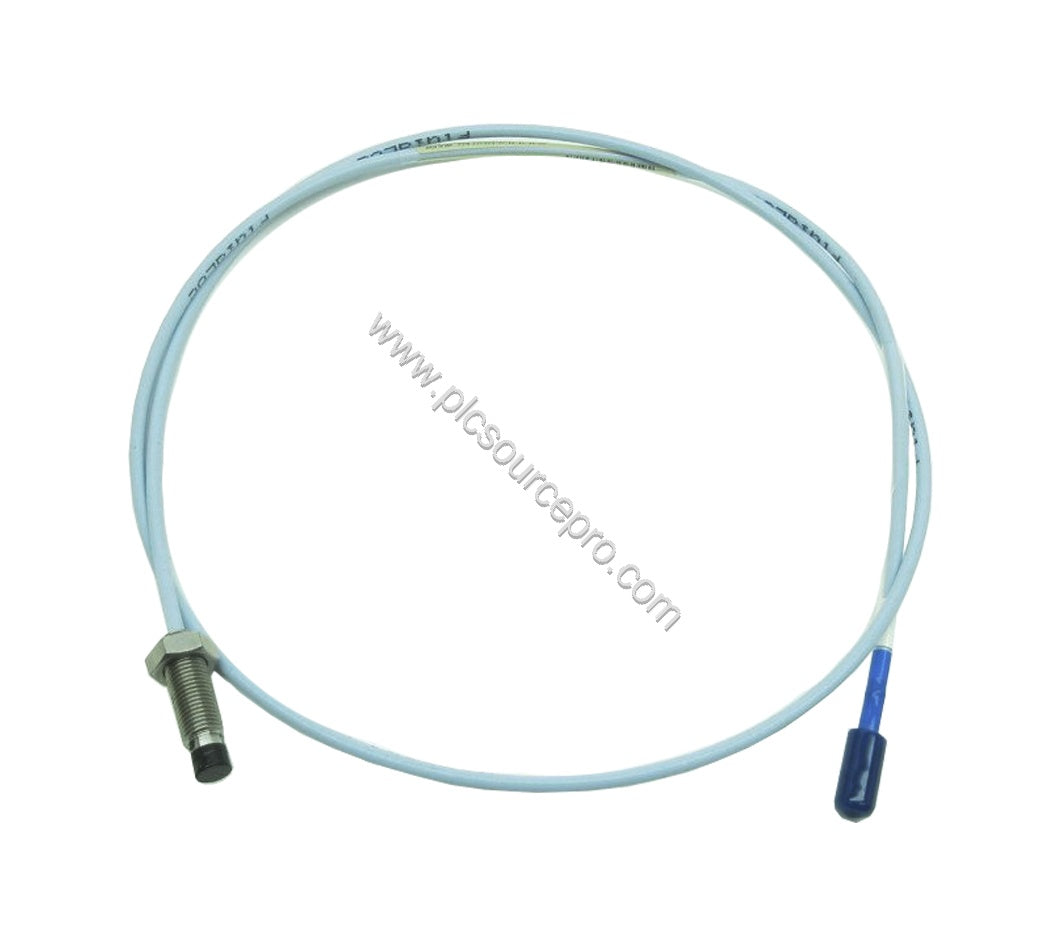

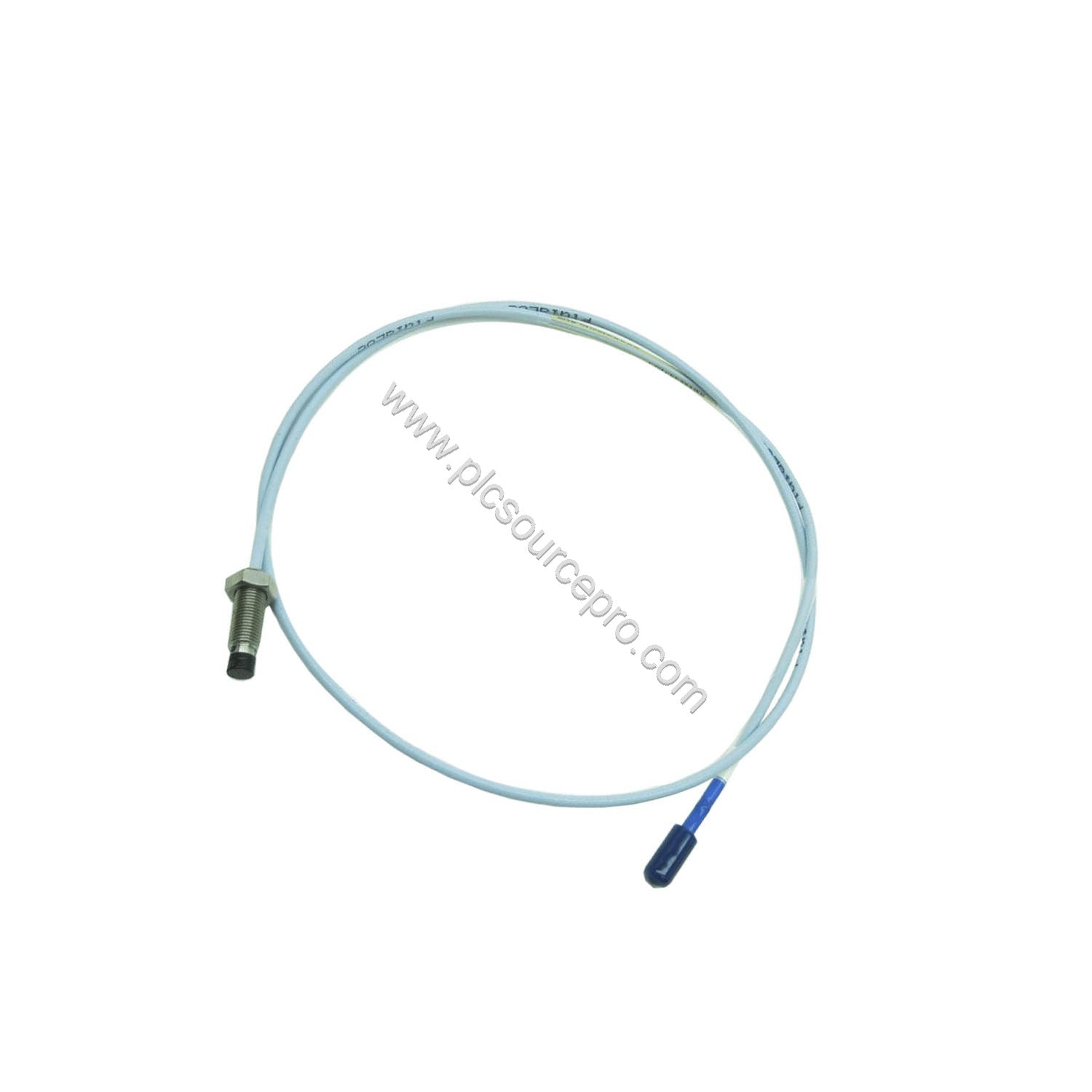

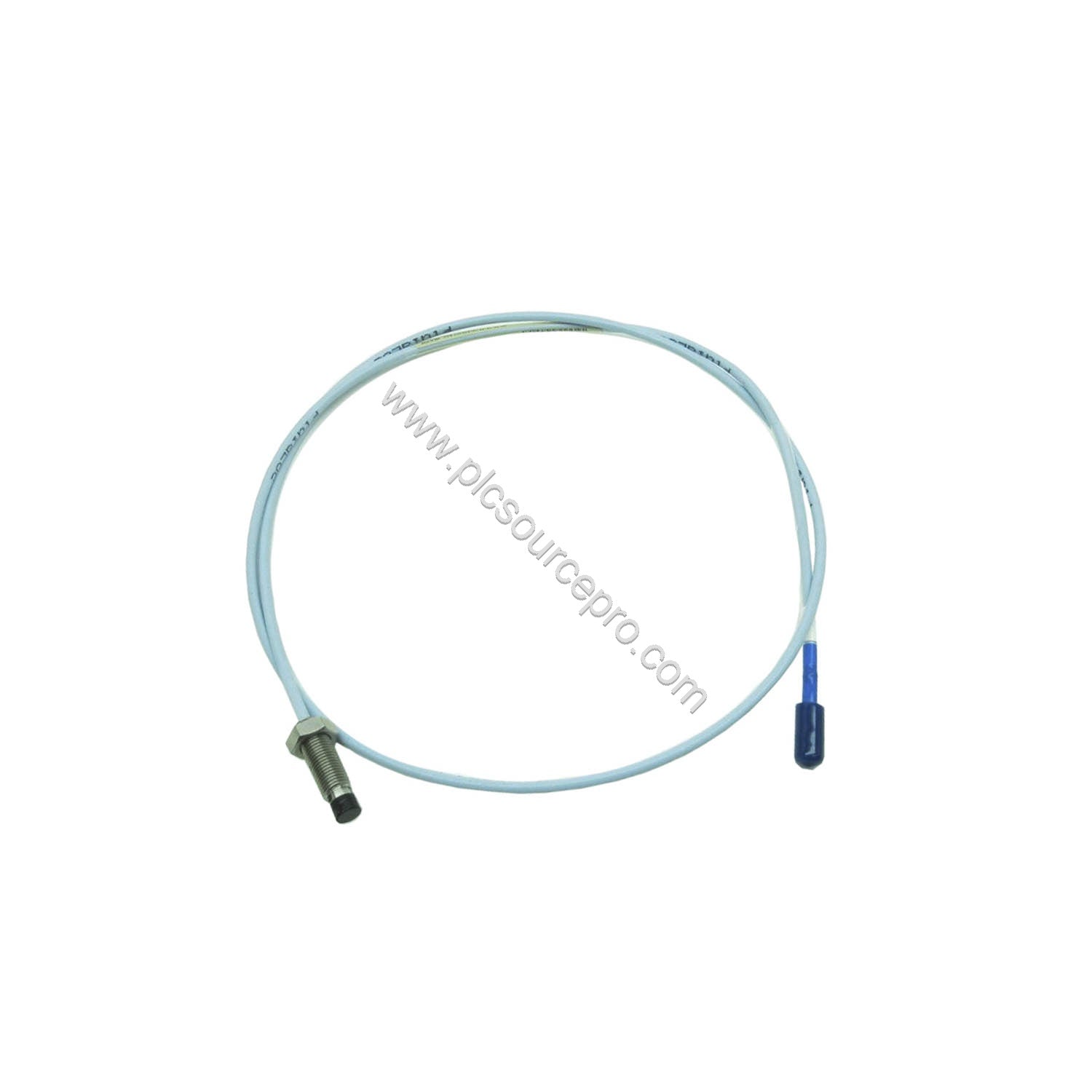

When vibration monitoring systems fail due to cross-talk or temperature extremes, the Bently Nevada 330710-000-060-50-02-00 delivers reliable displacement sensing for critical rotating machinery. This 3300 XL 11 mm proximity probe features an M16 x 1.5 threaded case with armor, 5.0 meter total length, and a miniature coaxial ClickLoc connector.
Technical Specifications
| Parameter |
Value |
| Total Length |
5.0 meters (16.4 feet) |
| Probe DC Resistance (RPROBE) |
7.2 ± 0.8 ohms |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Cable Specification |
75 Ω triaxial, FEP insulated |
| Operating Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
| Probe Case Thread |
M16x1.5 |
| Recommended Probe Case Torque (M16x1.5) |
21.1 N•m (187 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Cross-talk – Minimum Target Flat Surface Diameter |
30.5 mm (1.2 in) |
| Cross-talk – Minimum Shaft Diameter |
152 mm (6.0 in) |
Installation Guidance
Proper installation of the Bently Nevada 330710-000-060-50-02-00 ensures accurate readings. Apply the recommended case torque of 21.1 N•m for M16x1.5 threads. The maximum thread engagement length is 24 mm. Avoid exceeding the minimum bend radius of 25.4 mm for the cable, even with stainless steel armor. This probe is designed exclusively for use with a five meter Proximitor Sensor – do not substitute with other lengths.
Maintenance and Reliability
To maintain the Bently Nevada 330710-000-060-50-02-00’s performance, keep the probe within the specified temperature range. Exposing the probe to temperatures below -34°C (-30°F) may cause premature failure of the pressure seal. Inspect the cable and connector periodically for wear. The FEP‑insulated triaxial cable resists harsh chemicals, but avoid sharp bends that exceed the minimum bend radius.
Troubleshooting Common Issues
Cross‑talk between adjacent probes can occur if the target flat surface diameter is less than 30.5 mm or if the shaft diameter is under 152 mm. Verify the measured resistance from center conductor to outer conductor (RPROBE) is 7.2 ± 0.8 ohms for a 5.0‑meter probe. Deviations may indicate cable damage or connector issues. The Bently Nevada 330710-000-060-50-02-00 includes a miniature coaxial ClickLoc connector for reliable click‑lock termination.
Selection and Purchasing Advice
When ordering, confirm the part number 330710-000-060-50-02-00 matches your system requirements. The “060” option indicates a 650 mm overall case length, and “50” specifies a 5.0 meter total length. For reliable supply of this Bently Nevada 330710-000-060-50-02-00 probe, contact UBEST Automation (visit ubest101). We offer genuine industrial automation spares with fast shipping.
