Product Introduction
When harsh industrial environments threaten measurement accuracy, the Bently Nevada 330709-000-230-90-12-05 delivers reliable proximity sensing. This 3300 XL 11 mm probe withstands extreme temperatures and mechanical stress while providing precise shaft displacement data. Designed for continuous monitoring in rotating machinery, it ensures early fault detection and reduced downtime.
Technical Specifications Breakdown
The Bently Nevada 330709-000-230-90-12-05 features a robust construction with key parameters:
-
Probe DC Resistance: 8.5 ± 1.1 ohms (center to outer conductor) for consistent signal integrity.
-
Temperature Range: -52°C to +177°C (-62°F to +351°F) with specific temperature classifications (T1 to T5) per EPL Ga/Gc and Dc.
-
Case Material: AISI 304 stainless steel (SST) for corrosion resistance.
-
Tip Material: Polyphenylene sulfide (PPS) for durability.
-

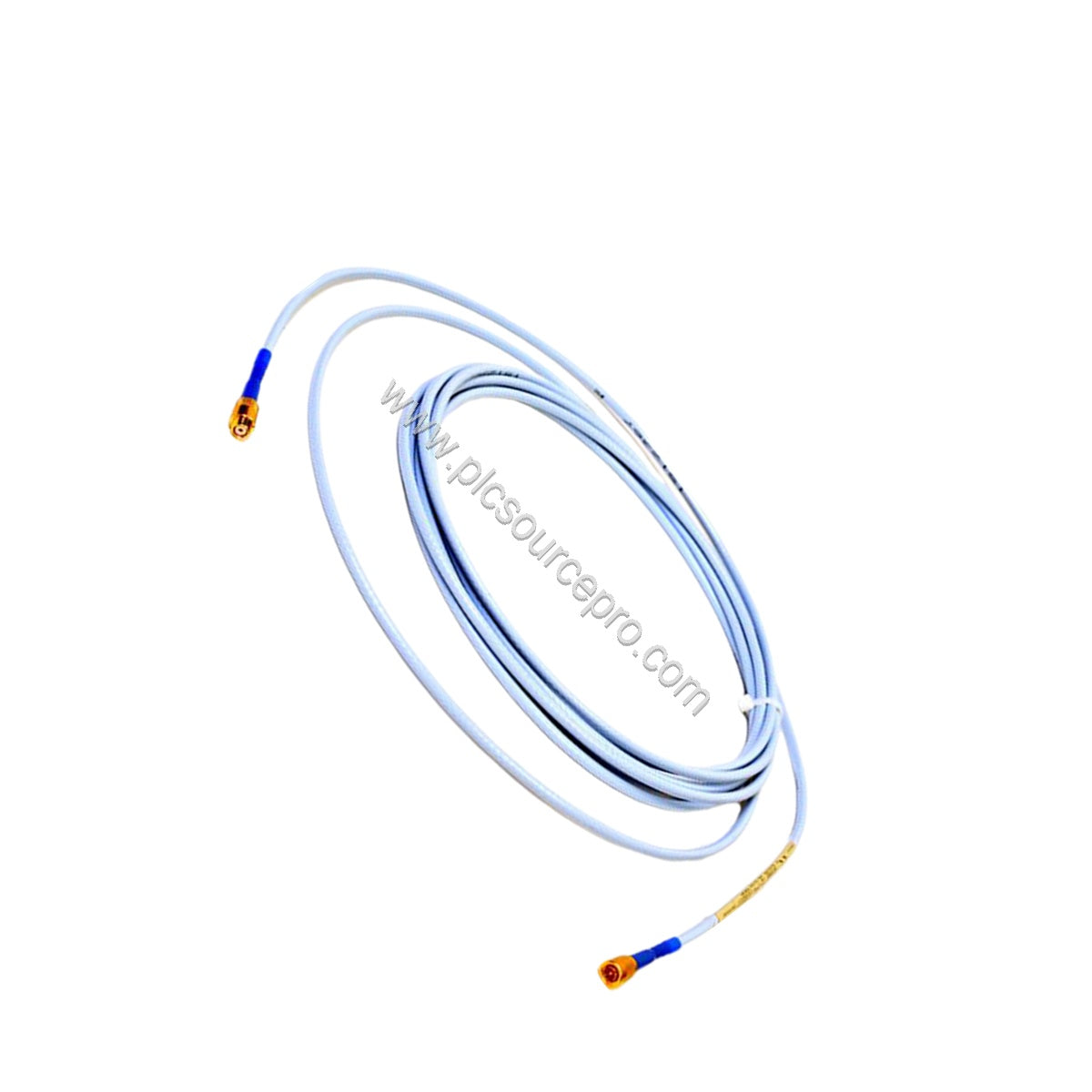

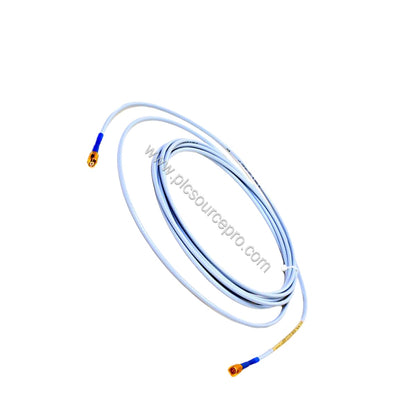

Cable: 75 Ω triaxial, FEP insulated, 9.0 m (29.5 ft) total length with miniature coaxial ClickLoc connector and FluidLoc cable.
Application Scenarios
The Bently Nevada 330709-000-230-90-12-05 excels in turbine, compressor, and pump vibration monitoring. Its cross-talk limitation requires a minimum shaft diameter of 152 mm (6.0 in) and flat target of 30.5 mm (1.2 in). For example, in a steam turbine train, the probe mounts in a M16x1.5 threaded hole with maximum engagement of 24 mm, ensuring stable readings despite thermal expansion. This reliability reduces false alarms and extends maintenance intervals—core benefits when applying failure prevention strategies.
Installation & Setup Guidance
When installing the Bently Nevada 330709-000-230-90-12-05, follow these torque guidelines: recommended probe case torque is 21.1 N·m (187 in·lb) with a maximum rated torque of 63.3 N·m (560 in·lb). Connector-to-connector torque should be finger tight; maximum 0.565 N·m (5 in·lb). Avoid bending the cable tighter than a 25.4 mm (1.0 in) radius. Use thread engagement up to 24 mm. For temperatures below -34°C, precaution is needed to avoid pressure seal failure. Always verify the unthreaded length is 0 mm and overall case length is 230 mm as specified.
Maintenance & Reliability
To maximize service life, the Bently Nevada 330709-000-230-90-12-05 requires periodic inspection of the cable and connector. The FluidLoc cable resists moisture but should be checked for cuts or kinks. Operating temperatures within the -52°C to +177°C range preserve seal integrity. The stainless steel case and PPS tip resist chemical attack. Regular resistance checks (8.5 ± 1.1 ohms) confirm probe health. This proactive approach aligns with failure mode prevention, catching issues before they escalate.
Selection Guide & Purchasing Advice
Before purchasing the Bently Nevada 330709-000-230-90-12-05, verify your system’s thread type (M16x1.5), total probe length (9.0 m), and connector type (miniature coaxial ClickLoc). For original replacement parts, source from trusted suppliers. UBEST Automation (formerly ubest101) stocks genuine Bently Nevada modules to ensure compatibility and performance. Contact us for application-specific recommendations.
