Product Overview

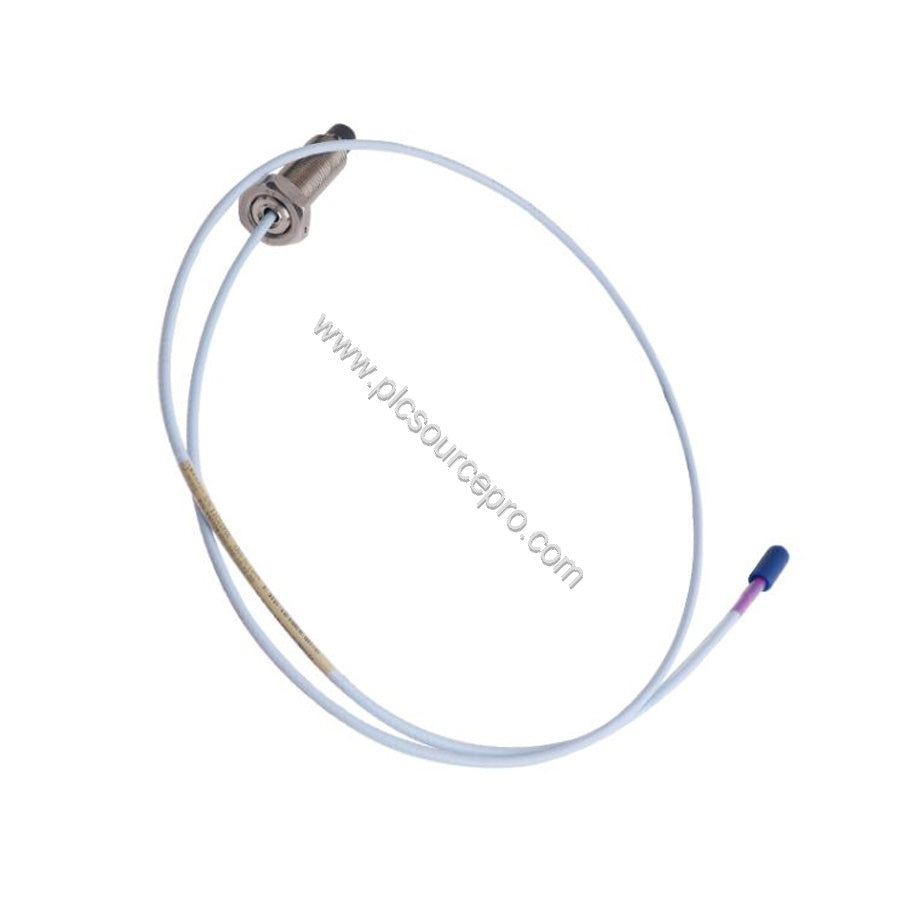

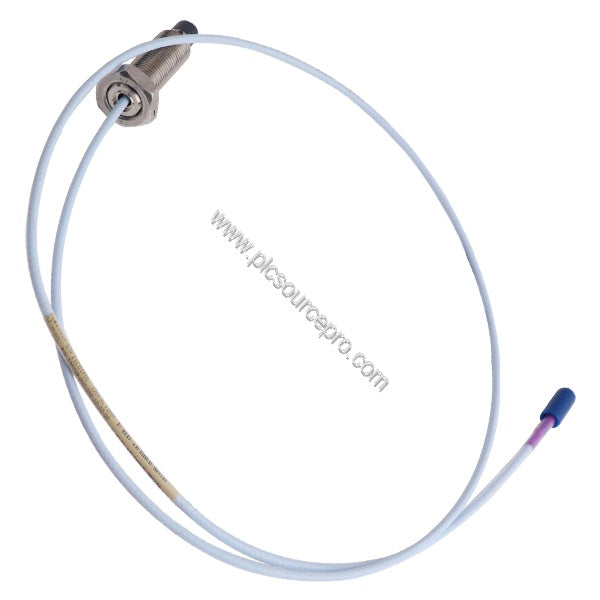

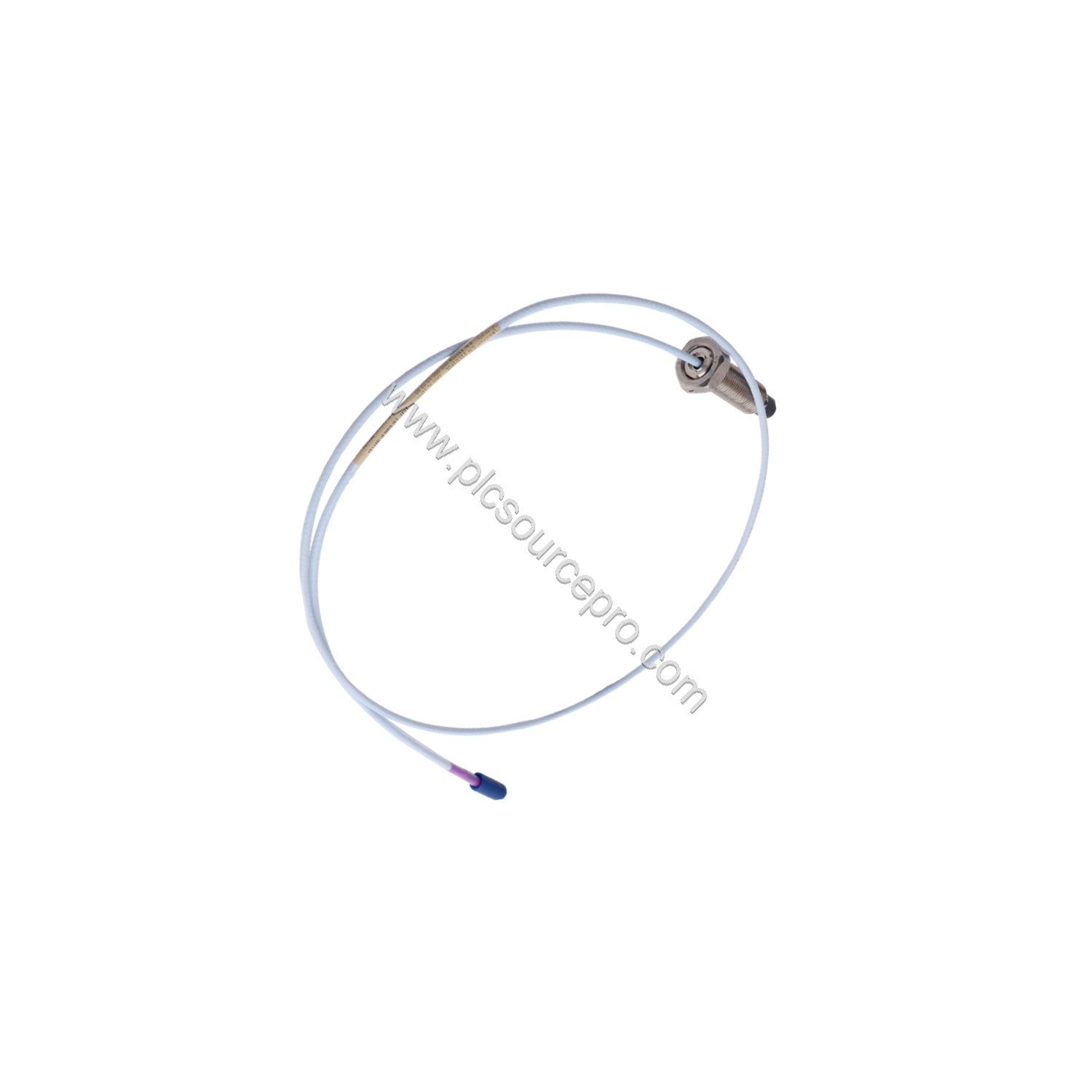

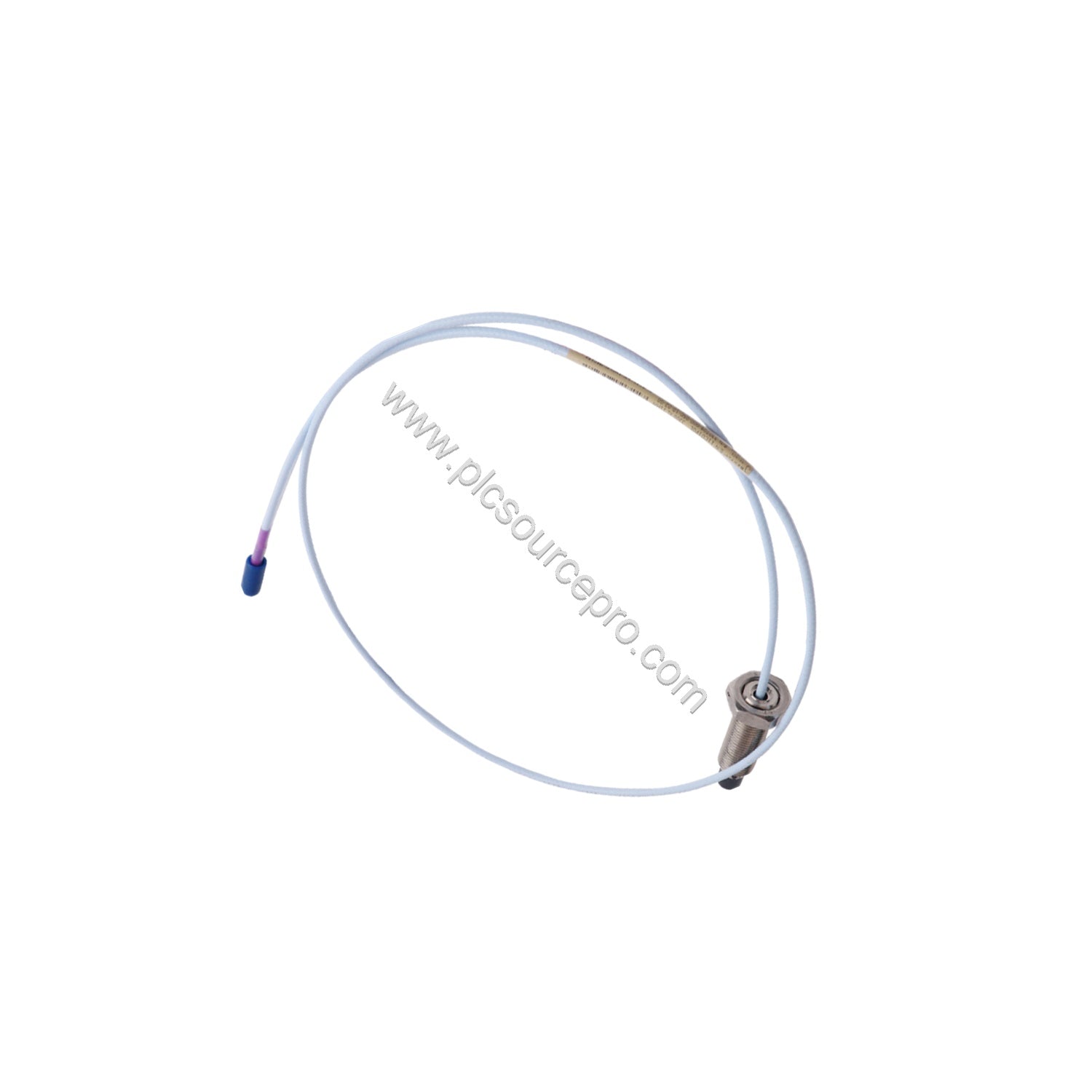

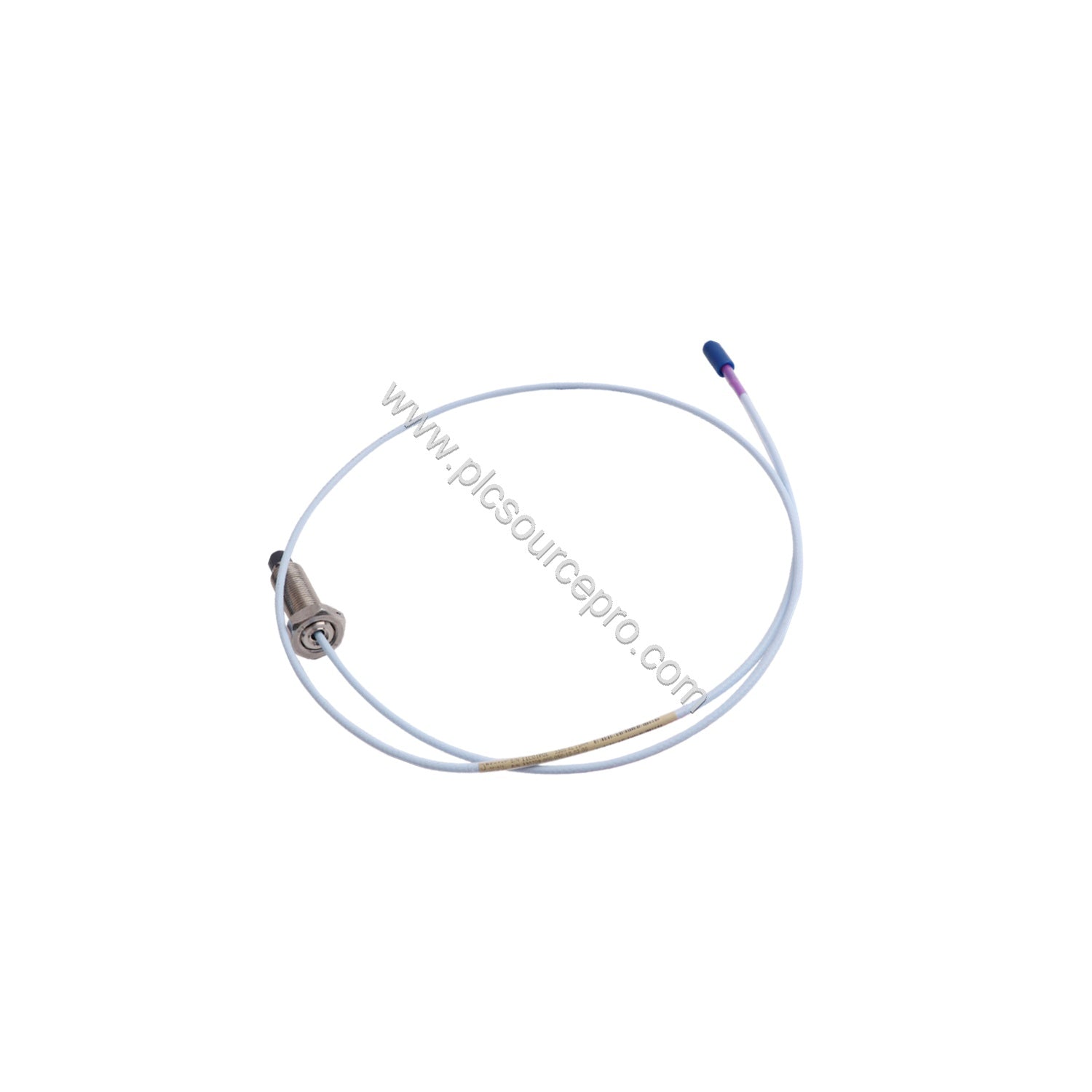

When upgrading your machinery protection system, the Bently Nevada 330709-000-230-50-11-05 3300 XL 11 mm Proximity Probes deliver reliable vibration and position sensing. Designed for use with the five meter Proximitor Sensor, this probe provides accurate measurements in harsh environments.
Technical Specifications
| Parameter |
Value |
| Probe Length |
5.0 meters (16.4 ft) |
| Thread Size |
M16 x 1.5 |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Operating Temperature |
-52°C to +177°C |
| DC Resistance |
7.2 ± 0.8 ohms |
| Connector |
Miniature coaxial ClickLoc with connector protector, FluidLoc cable |
| Agency Approvals |
Multiple |
Installation Guidance
Proper installation of the Bently Nevada 330709-000-230-50-11-05 ensures accurate readings. The probe case torque for M16x1.5 threads is recommended at 21.1 N·m (187 in·lb). Maximum thread engagement is 24 mm. Use only finger tight for connector-to-connector torque (max 0.565 N·m). Minimum bend radius is 25.4 mm.
Compatibility and Integration
The 330709-000-230-50-11-05 is designed for use with the five meter Proximitor Sensor. It is part of the 3300 XL series, ensuring seamless replacement of older Bently Nevada probes. The miniature coaxial ClickLoc connector offers secure connection.
Reliability and Maintenance
With an operating temperature range of -52°C to +177°C, the Bently Nevada 330709-000-230-50-11-05 withstands extreme conditions. Avoid exposing to temperatures below -34°C to protect pressure seal. Regular inspection of the FluidLoc cable and connector is recommended.
Selection Guide
When replacing, verify that your system uses a five meter Proximitor Sensor. The 330709-000-230-50-11-05 comes with multiple approvals, ensuring compliance. UBEST Automation offers genuine Bently Nevada parts with fast shipping.
