Product Overview

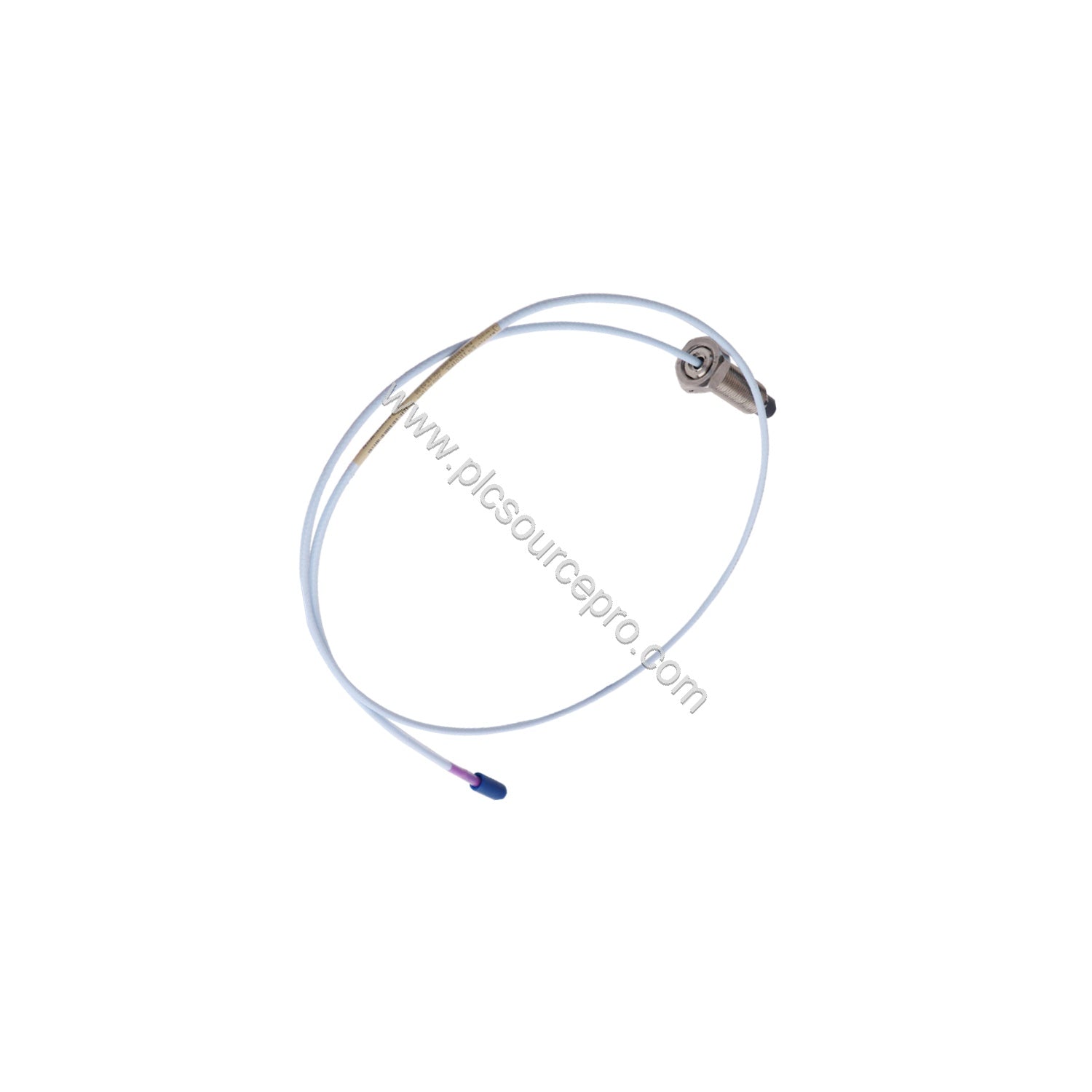

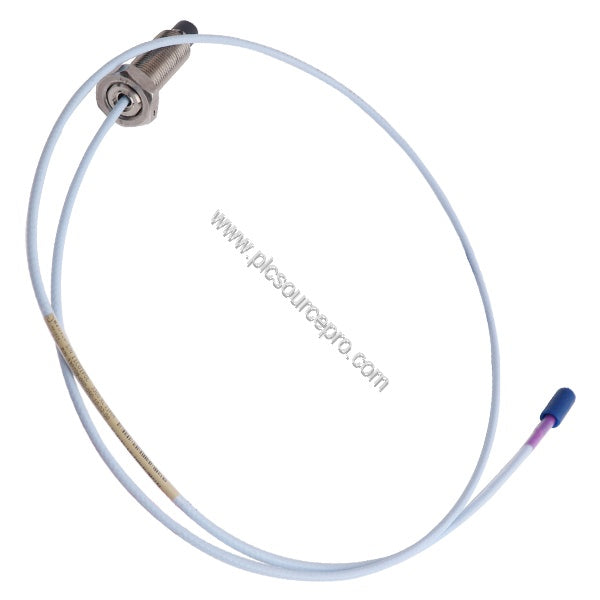

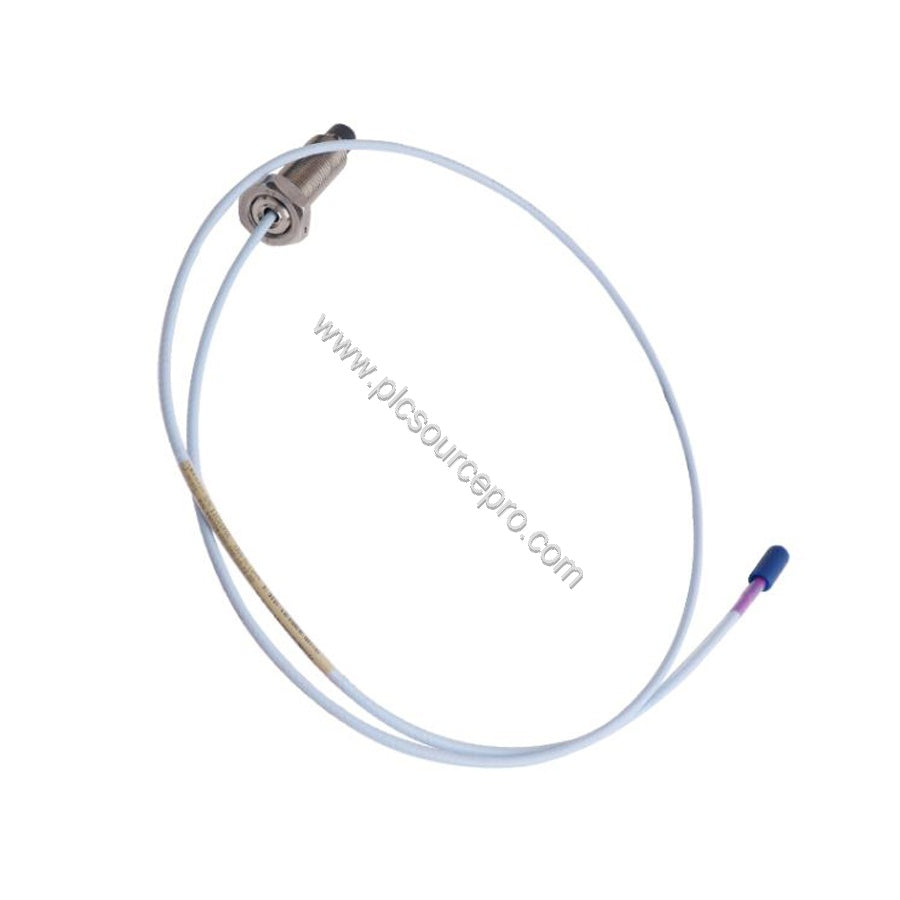

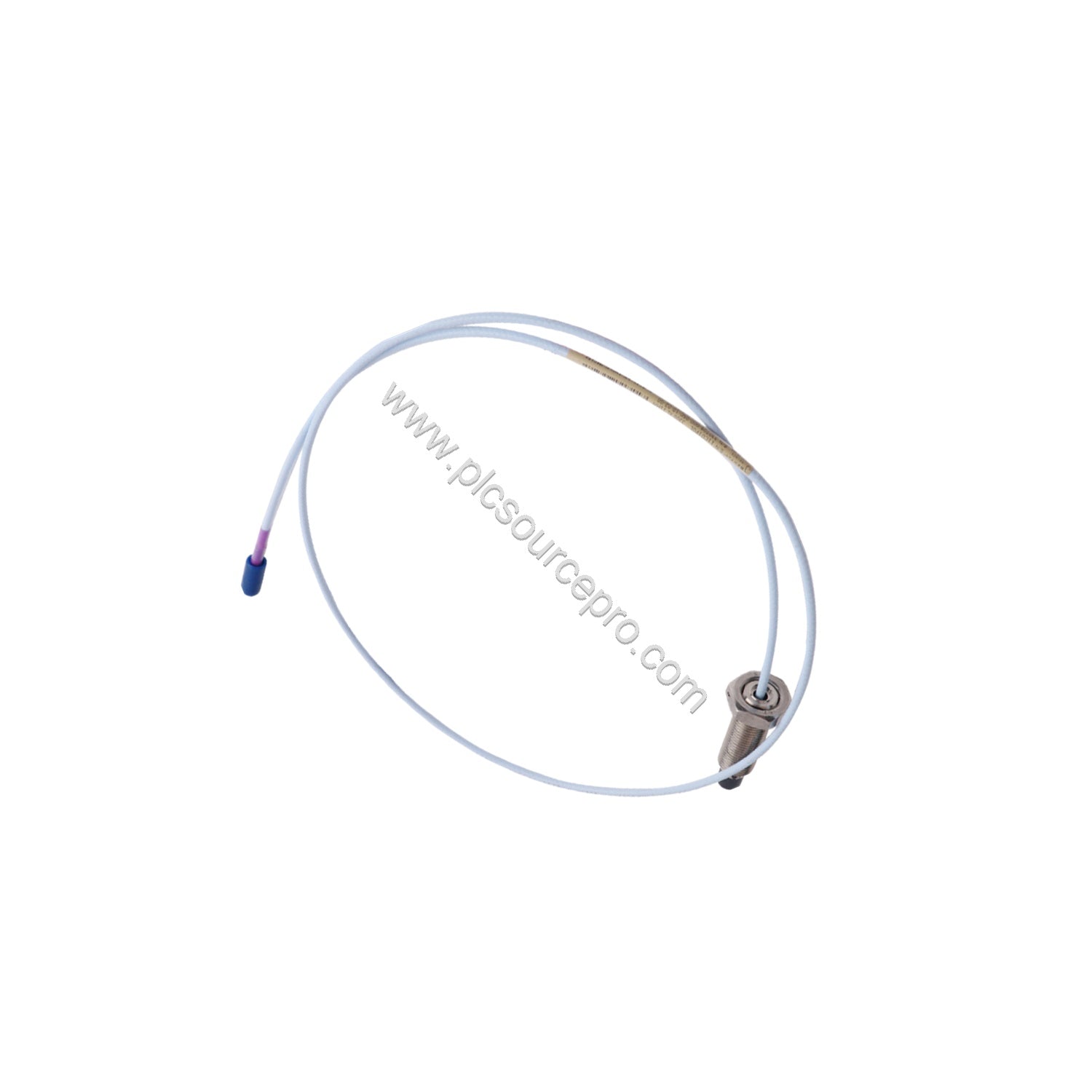

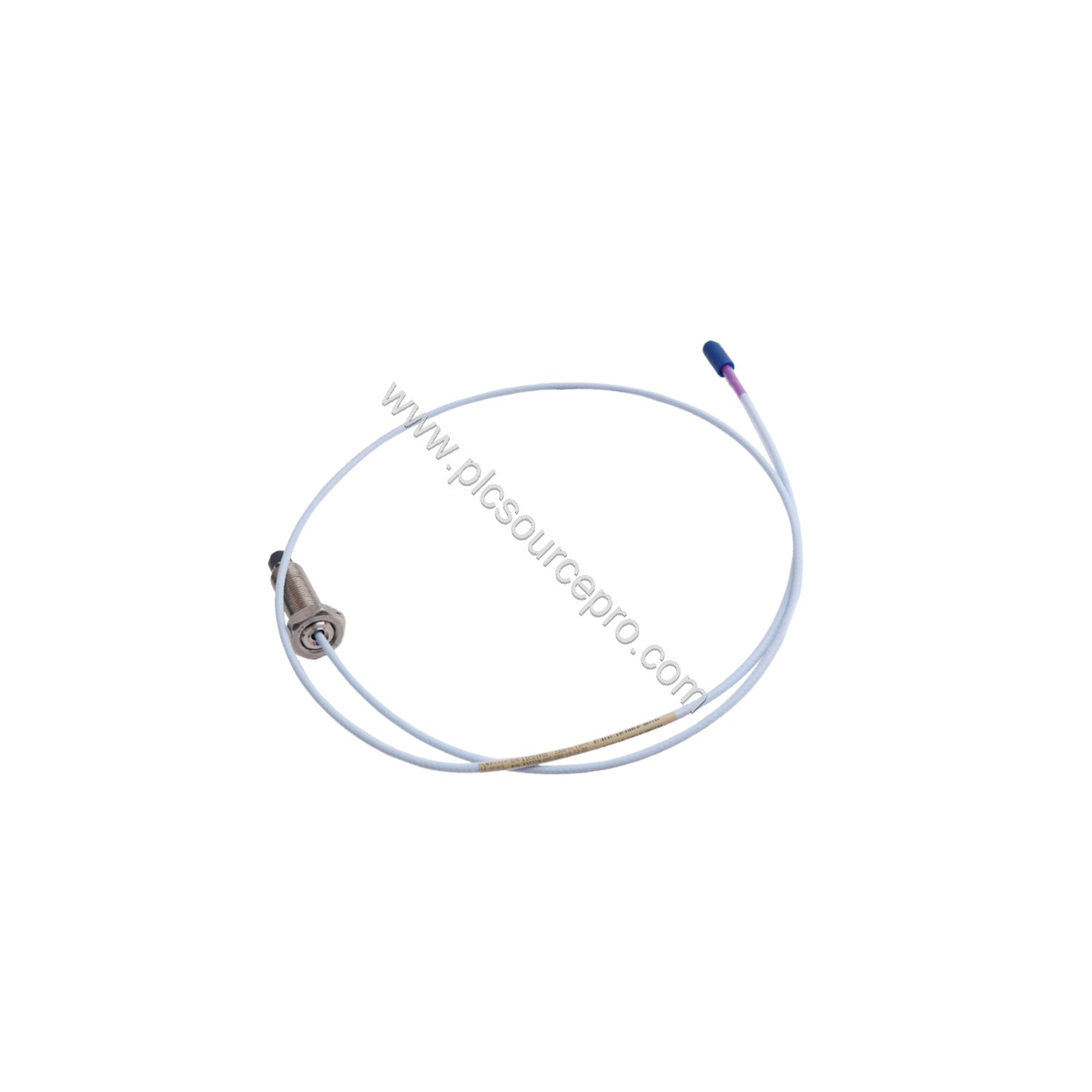

The Bently Nevada 330709-000-030-90-01-05 is a 3300 XL 11 mm Proximity Probe designed for precise shaft displacement and vibration monitoring in rotating machinery. With its M16 x 1.5 thread and 9.0-meter cable, this probe delivers reliable performance in harsh industrial environments. The 330709-000-030-90-01-05 features a miniature coaxial ClickLoc connector and multiple agency approvals, ensuring compliance with global standards.
Technical Specifications
While detailed specifications are not provided in the input, the product includes key parameters such as probe DC resistance (8.5 ± 1.1 ohms for 9m probe length), a minimum target size of 30.5 mm diameter, and a probe case material of AISI 304 stainless steel. The operating temperature range spans -52°C to +177°C, with a recommended torque of 21.1 N·m for M16x1.5 probe cases. For exact specifications, please contact our sales team.
Industry Applications
The 330709-000-030-90-01-05 is ideal for use in turbines, compressors, pumps, and gearboxes where reliable shaft proximity measurement is critical. Its rugged construction and wide temperature range make it suitable for power generation, oil & gas, and petrochemical plants. By choosing the Bently Nevada 330709-000-030-90-01-05, you reduce downtime and maintenance costs over the equipment lifecycle.
Installation & Setup Guidance
Proper installation ensures optimal performance. The probe case thread size is M16x1.5 with a maximum thread engagement of 24 mm. Apply the recommended torque of 21.1 N·m (187 in·lb) using an appropriate tool. For the connector-to-connector joint, tighten finger tight only, with a maximum torque of 0.565 N·m (5 in·lb). Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable to prevent damage. Before installation, verify that the target surface is flat and at least 30.5 mm in diameter.
Maintenance & Reliability
The Bently Nevada 330709-000-030-90-01-05 offers long service life thanks to its PPS probe tip and stainless steel case. Regularly inspect the cable for wear and ensure the connector remains clean and dry. The probe operates reliably from -52°C to +177°C, storing at similar conditions. Avoid exposure below -34°C (-30°F) to prevent pressure seal failure. With proper care, this probe consistently delivers accurate data, maximizing return on investment.
Selection Guide & Purchasing Advice
When selecting the 330709-000-030-90-01-05, confirm that your system requires an 11 mm probe with M16x1.5 thread and 9.0 meter cable. Check compatibility with your extension cable and monitor. For bulk orders or technical inquiries, contact ubest101, your trusted supplier of industrial automation spares. We verify all products before shipment to ensure you receive genuine Bently Nevada components.
