Product Overview

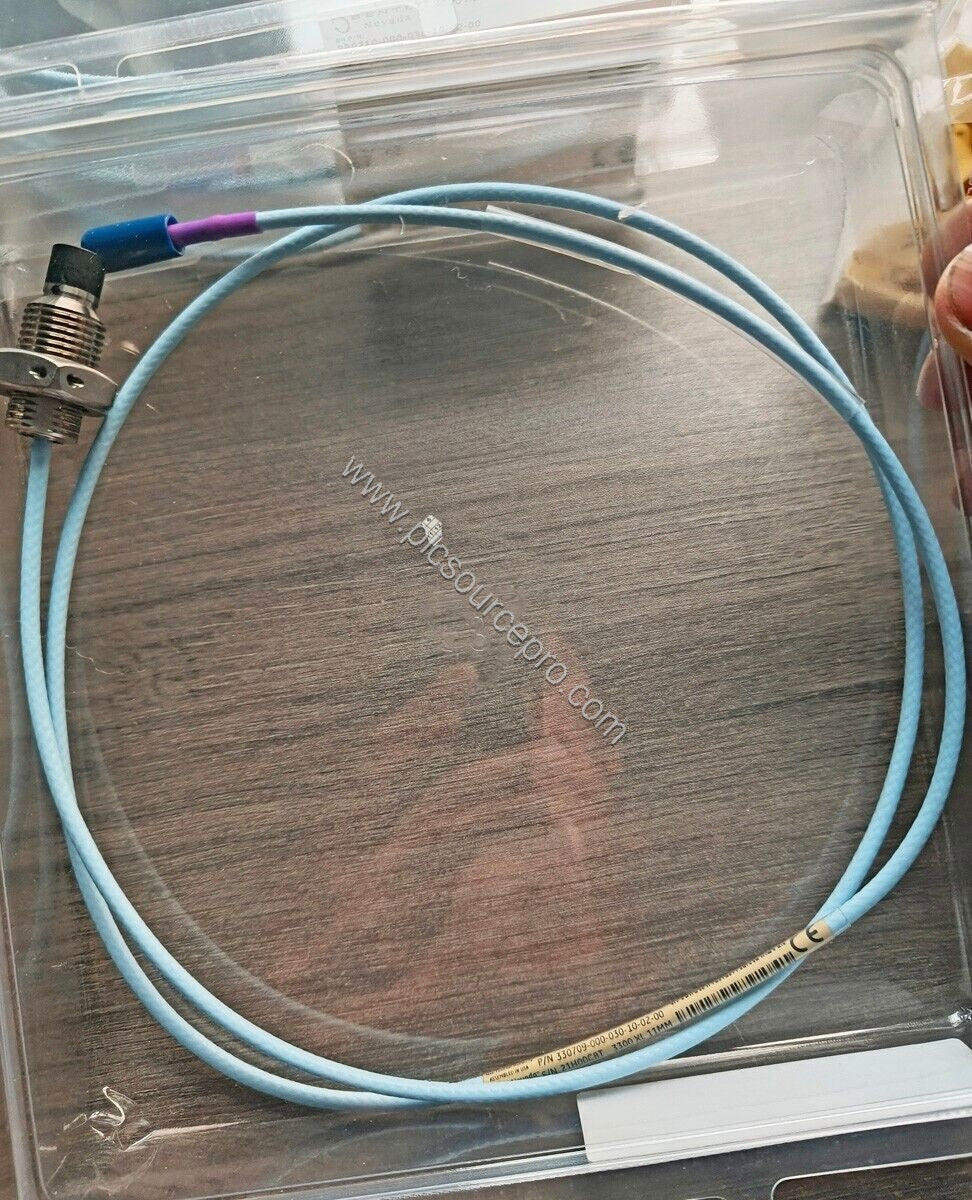

When monitoring critical rotating machinery in industrial environments, the Bently Nevada 330709-000-030-50-11-05 3300 XL 11 mm Proximity Probe delivers precise vibration measurement. This probe features an M16x1.5 thread, no armor, a 0 mm unthreaded length, and a 30 mm overall case length. The total 5.0-meter (16.4 feet) cable is designed for use exclusively with the five meter Proximitor Sensor. It comes with a miniature coaxial ClickLoc connector and connector protector, plus FluidLoc cable, and carries multiple agency approvals.
Technical Specifications
| Parameter |
Value |
| Probe Length |
5.0 meters |
| Probe DC Resistance (RPROBE) at 5.0 m |
7.2 ± 0.8 ohms |
| Cross-talk: Recommended Minimum Target Size (Flat Surface) |
30.5 mm (1.2 in) diameter |
| Cross-talk: Recommended Minimum Shaft Diameter |
152 mm (6.0 in) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel (SST) |
| Probe Cable Specification |
75 Ω triaxial, FEP insulated |
| Probe Case Torque (M16x1.5) Recommended |
21.1 N·m (187 in·lb) |
| Connector-to-connector Torque Maximum |
0.565 N·m (5 in·lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Probe Case Thread |
M16x1.5 |
| Maximum Thread Engagement |
24 mm |
| Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
| Temperature Classifications (EPL Ga/Gc) |
T1: -55°C to +232°C; T2: -55°C to +177°C; T3: -55°C to +120°C; T4: -55°C to +80°C; T5: -55°C to +40°C |
| Temperature Classifications (EPL Dc) |
T280°C @ Ta: -55°C to +232°C; T225°C @ Ta: -55°C to +177°C; T170°C @ Ta: -55°C to +120°C; T130°C @ Ta: -55°C to +80°C; T105°C @ Ta: -55°C to +100°C; T90°C @ Ta: -55°C to +40°C |
Industry Applications
The Bently Nevada 330709-000-030-50-11-05 3300 XL 11 mm Proximity Probe is ideal for vibration monitoring on turbines, compressors, pumps, and motors. When replacing older probe types, ensure the 5.0-meter length matches the corresponding Proximitor sensor. This upgrade provides improved accuracy and reliability in harsh environments.
Installation & Setup Guidance
Apply the recommended torque of 21.1 N·m (187 in·lb) for the M16x1.5 probe case. For the connector, finger tight is recommended; do not exceed 0.565 N·m (5 in·lb). Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable. Avoid temperatures below -34°C (-30°F) to prevent premature pressure seal failure. Thread engagement must not exceed 24 mm.
Maintenance & Reliability
Regularly inspect the probe cable and connector for damage. Operate within the temperature range of -52°C to +177°C. The robust AISI 304 stainless steel case and PPS tip ensure long service life. Following these practices minimizes downtime and extends probe lifespan.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system uses a five meter Proximitor sensor, as this probe is designed solely for that configuration. Confirm the thread type (M16x1.5) and required approvals. For reliable supply and fast delivery, choose UBEST Automation at ubest101.
