Product Overview

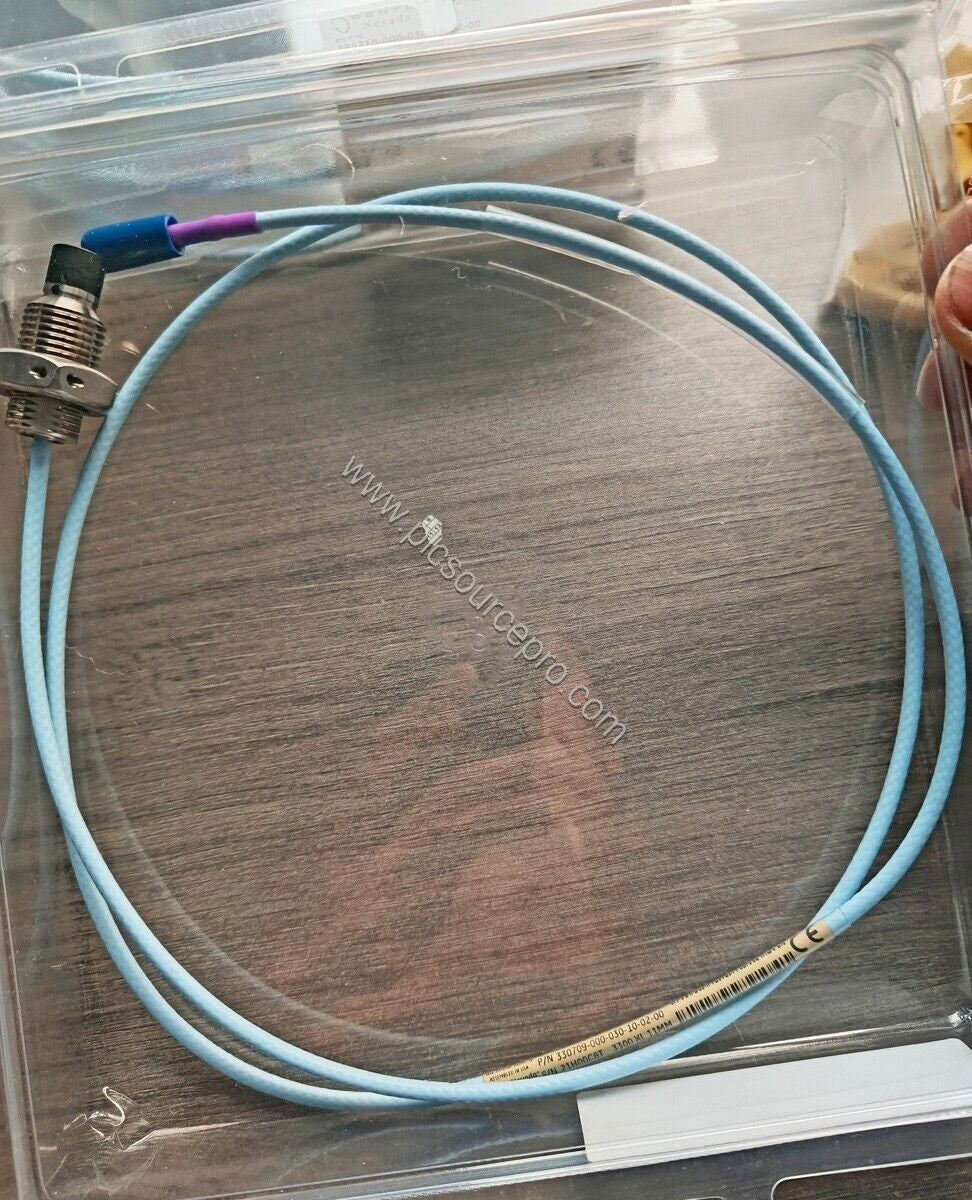

When monitoring critical rotating machinery, accurate vibration measurement is essential. The Bently Nevada 330709-000-030-50-01-00 3300 XL 11 mm Proximity Probe delivers precise displacement data, ensuring early detection of shaft misalignment and bearing wear. Part of the trusted 3300 XL series, this probe is designed for reliable performance in harsh industrial environments.
Technical Specifications
| Parameter |
Value |
| Probe DC Resistance (5.0m) |
7.2 ± 0.8 ohms |
| Cross-talk: Minimum Target Diameter |
30.5 mm (1.2 in) |
| Cross-talk: Minimum Shaft Diameter |
152 mm (6.0 in) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Cable Specification |
75 Ω triaxial, FEP insulated |
| Probe Case Torque (M16x1.5) |
21.1 N•m (187 in•lb) |
| Connector-to-connector Torque (Max) |
0.565 N•m (5 in•lb) |
| Minimum Bend Radius |
25.4 mm (1.0 in) |
| Temperature Range (Operating & Storage) |
-52°C to +177°C (-62°F to +351°F) |
| Probe Case Thread |
M16x1.5 |
| Max Thread Engagement |
24 mm |
Installation & Setup Guidance
Install the Bently Nevada 330709-000-030-50-01-00 3300 XL 11 mm Proximity Probe using a torque wrench set to 21.1 N•m for the M16x1.5 thread. Apply the connector only finger tight; do not exceed 0.565 N•m. Maintain a minimum bend radius of 25.4 mm on the cable to prevent internal damage. Ensure the threaded hole engagement does not exceed 24 mm to avoid binding.
Maintenance & Reliability
Regularly inspect the probe cable and connector for cuts or kinks. Avoid exposing the probe to temperatures below -34°C (30°F) as this may cause premature seal failure. The probe operates reliably across a wide temperature range of -52°C to +177°C. For hazardous locations, follow the temperature classification schedules provided in the datasheet.
Troubleshooting & Common Issues
Cross-talk problems: Ensure the target and shaft diameters meet the recommended minimums (30.5 mm target and 152 mm shaft). Incorrect readings: Verify that the probe is used only with a 5-meter Proximitor sensor – the 330709-000-030-50-01-00 is designed specifically for this pair. Over-torquing: Exceeding the recommended 21.1 N•m can strip the threads; always use a calibrated torque wrench.
Selection Guide & Purchasing Advice
Before purchasing the Bently Nevada 330709-000-030-50-01-00 3300 XL 11 mm Proximity Probe, confirm that your existing Proximitor sensor is the 5-meter model. This probe includes a miniature coaxial ClickLoc connector with connector protector and a standard cable. For reliable industrial automation parts, choose UBEST Automation (visit ubest101) – your trusted source for genuine Bently Nevada spares.
