Introduction to the Bently Nevada 330709-000-030-10-12-05

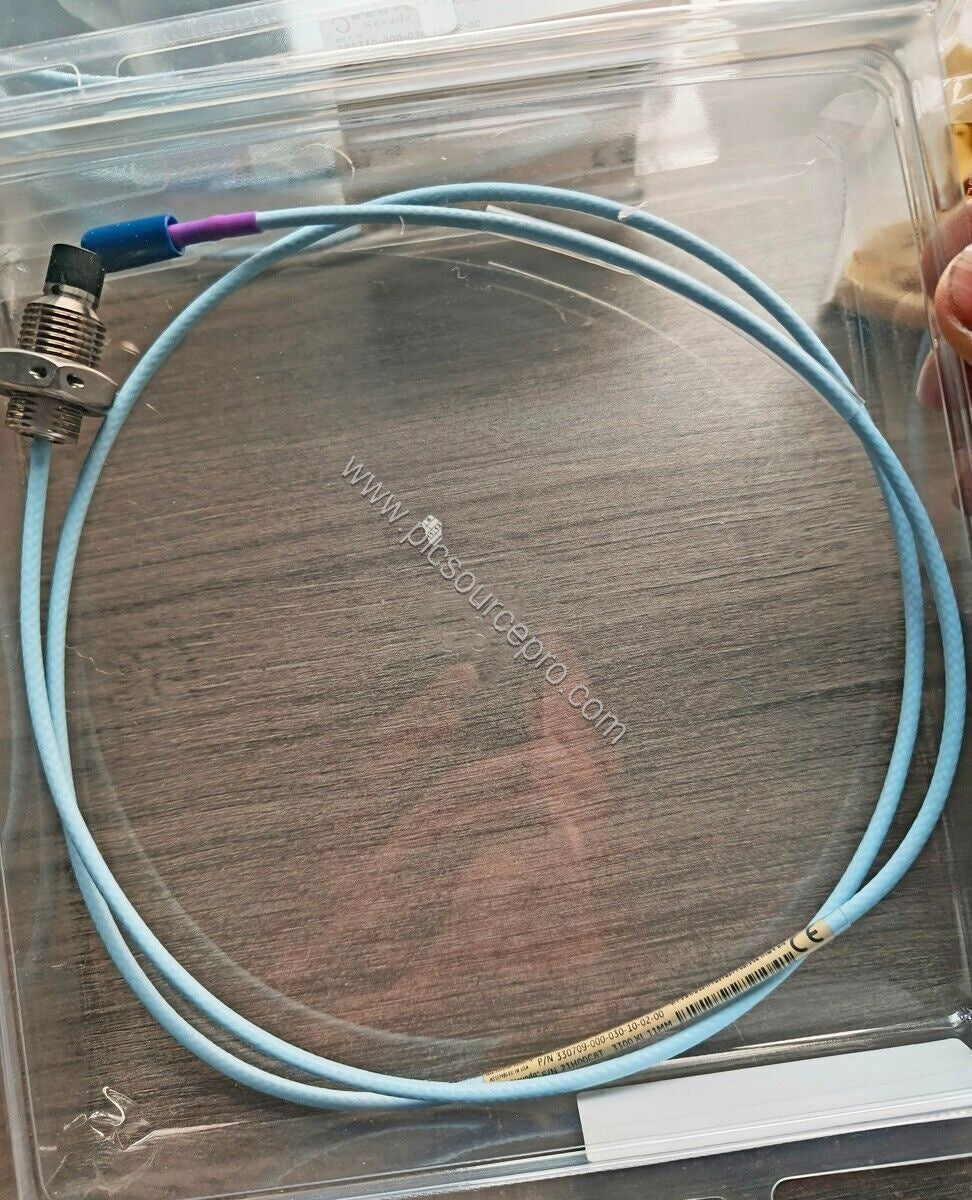

When industrial machinery faces vibration monitoring challenges, the Bently Nevada 330709-000-030-10-12-05 3300 XL 11 mm Proximity Probes deliver precise, reliable measurements. Designed for demanding environments, this probe features a M16x1.5 thread, 1.0 meter cable with a miniature coaxial ClickLoc connector and FluidLoc cable, ensuring stable signal transmission even under harsh conditions. Manufactured in the U.S.A., this probe is a trusted component for critical asset protection.
Technical Specifications Breakdown
The Bently Nevada 330709-000-030-10-12-05 offers several key parameters that ensure accurate and durable performance:
-
Probe Length: 1.0 m (3.3 ft) total length with 30 mm overall case length and 0 mm unthreaded length.
-
Probe DC Resistance: 5.9 ± 0.5 ohms from center to outer conductor, ensuring consistent signal integrity.
-
Cross-talk Limitation: Requires a minimum target flat surface diameter of 30.5 mm (1.2 in) and shaft diameter of 152 mm (6.0 in) to avoid interference.
-
Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance and durability.
-
Probe Case Material: AISI 304 stainless steel for corrosion resistance in wet or corrosive environments.
Installation & Setup Guidance
Proper installation of the Bently Nevada 330709-000-030-10-12-05 prevents common failures. The probe case torque for M16x1.5 threads should be 63.3 N·m (560 in·lb) maximum, with a recommended torque of 21.1 N·m (187 in·lb). The connector-to-connector torque should be finger tight, not exceeding 0.565 N·m (5 in·lb). Ensure the minimum bend radius of 25.4 mm (1.0 in) is maintained for the cable to avoid internal damage. Thread engagement must not exceed 24 mm.
Maintenance & Reliability
Routine inspection of the Bently Nevada 330709-000-030-10-12-05 focuses on the probe cable and connector. Check for physical damage, kinks, or corrosion. The probe operates between -52°C and +177°C, but prolonged exposure below -34°C may degrade the pressure seal. Follow the temperature schedule for hazardous area classifications (EPL Ga, Gc, Dc) to ensure safe operation. Regular resistance checks confirm the probe’s health—a deviation beyond ±0.5 ohms indicates potential issues.
Troubleshooting & Common Issues
Common problems with proximity probes include cross-talk from adjacent targets and signal degradation due to temperature extremes. The Bently Nevada 330709-000-030-10-12-05 mitigates these with its specified target size requirements and wide temperature range. If signal noise appears, verify that the target surface meets the minimum diameter and shaft size. For erratic readings, check the connector torque and cable integrity. The probe’s multiple agency approvals (option 05) ensure compliance with global safety standards.
Selection Guide & Purchasing Advice
When selecting the Bently Nevada 330709-000-030-10-12-05, confirm compatibility with your monitoring system, particularly the connector type (miniature coaxial ClickLoc) and cable length (1.0 m). For longer runs, consider extension cables. For reliable sourcing, UBEST Automation (ubest101) offers genuine Bently Nevada probes with full traceability. Always verify mounting thread (M16x1.5) and required agency approvals before ordering.
