Product Overview

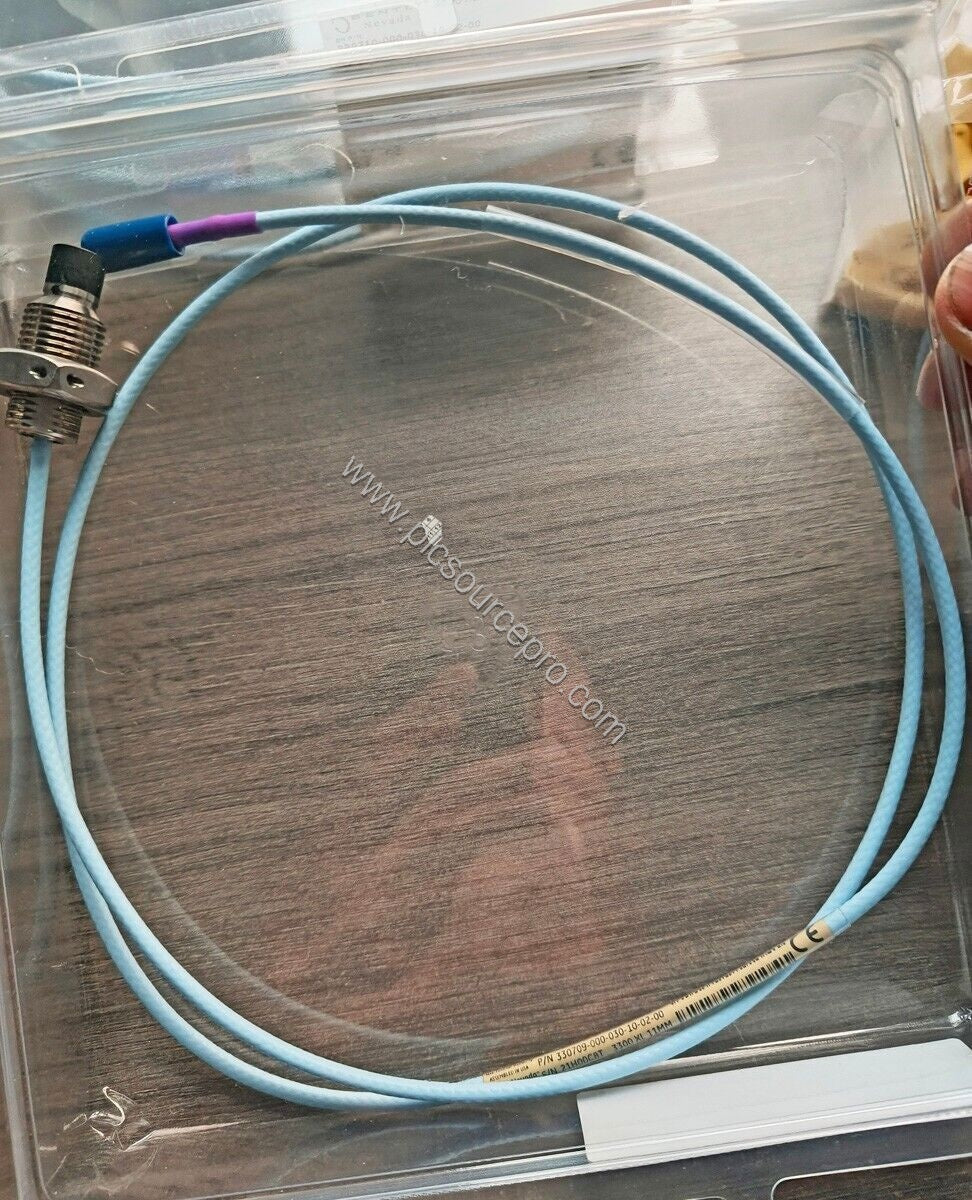

When excessive vibration threatens the reliability of critical rotating machinery, the Bently Nevada 330709-000-030-10-02-05 3300 XL 11 mm Proximity Probes delivers precise shaft displacement measurements. Engineered for harsh industrial environments, this probe addresses common failure modes such as cable degradation, temperature extremes, and cross-talk interference. The 330709-000-030-10-02-05 features a 1.0 meter total probe length with a miniature coaxial ClickLoc connector, ensuring secure signal transmission even under continuous motion.
Technical Specifications Breakdown
The Bently Nevada 330709-000-030-10-02-05 3300 XL 11 mm Proximity Probes incorporates robust design parameters that mitigate typical failure points:
-
Probe DC Resistance: 5.9 ± 0.5 ohms (1.0m length) – ensures consistent electrical performance for reliable gap voltage output.
-
Cross-talk Limitation: Requires minimum target diameter of 30.5 mm and minimum shaft diameter of 152 mm – prevents signal interference in close-proximity installations.
-
Probe Tip Material: Polyphenylene sulfide (PPS) – provides chemical resistance and dimensional stability over a wide temperature range.
-
Probe Case Material: AISI 304 stainless steel – offers corrosion resistance in demanding environments like steam turbines and compressors.
-
Temperature Range: Operating and storage from -52°C to +177°C – with specific temperature classifications for hazardous area use (EPL Ga, Gc, Dc).
-
Probe Case Torque: Maximum rated 63.3 N·m, recommended 21.1 N·m for M16x1.5 thread – prevents overtightening damage.
Real-World Applications
In petrochemical plants, the Bently Nevada 330709-000-030-10-02-05 3300 XL 11 mm Proximity Probes monitors compressor shaft vibration, where its 75 ohm triaxial FEP cable resists oil and chemical attack. For power generation turbines, the probe’s -52°C to +177°C operating range ensures accurate readings during cold starts and high-load operation. The ClickLoc connector eliminates intermittent signals caused by connector loosening – a common failure mode in high-vibration environments.
Maintenance & Reliability
To maximize the life of the Bently Nevada 330709-000-030-10-02-05 3300 XL 11 mm Proximity Probes, follow these practices:
- Inspect the cable for cuts or kinks at each scheduled outage – bend radius minimum 25.4 mm to avoid internal conductor fracture.
- Verify connector-to-connector torque remains finger tight (maximum 0.565 N·m) – overtightening can damage the miniature coaxial interface.
- Avoid exposing the probe to temperatures below -34°C (-30°F) for extended periods, as this may cause premature pressure seal failure.
Selection Guide & Purchasing Advice
Before ordering, confirm that your application requires the 330709-000-030-10-02-05 configuration: M16x1.5 thread, 0 mm unthreaded length, 30 mm overall case length, 1.0 meter total length, miniature coaxial ClickLoc connector, and multiple agency approvals. For assistance with compatibility or alternative cable lengths, contact UBEST Automation (ubest101) – your trusted source for Bently Nevada spares.
