Product Overview

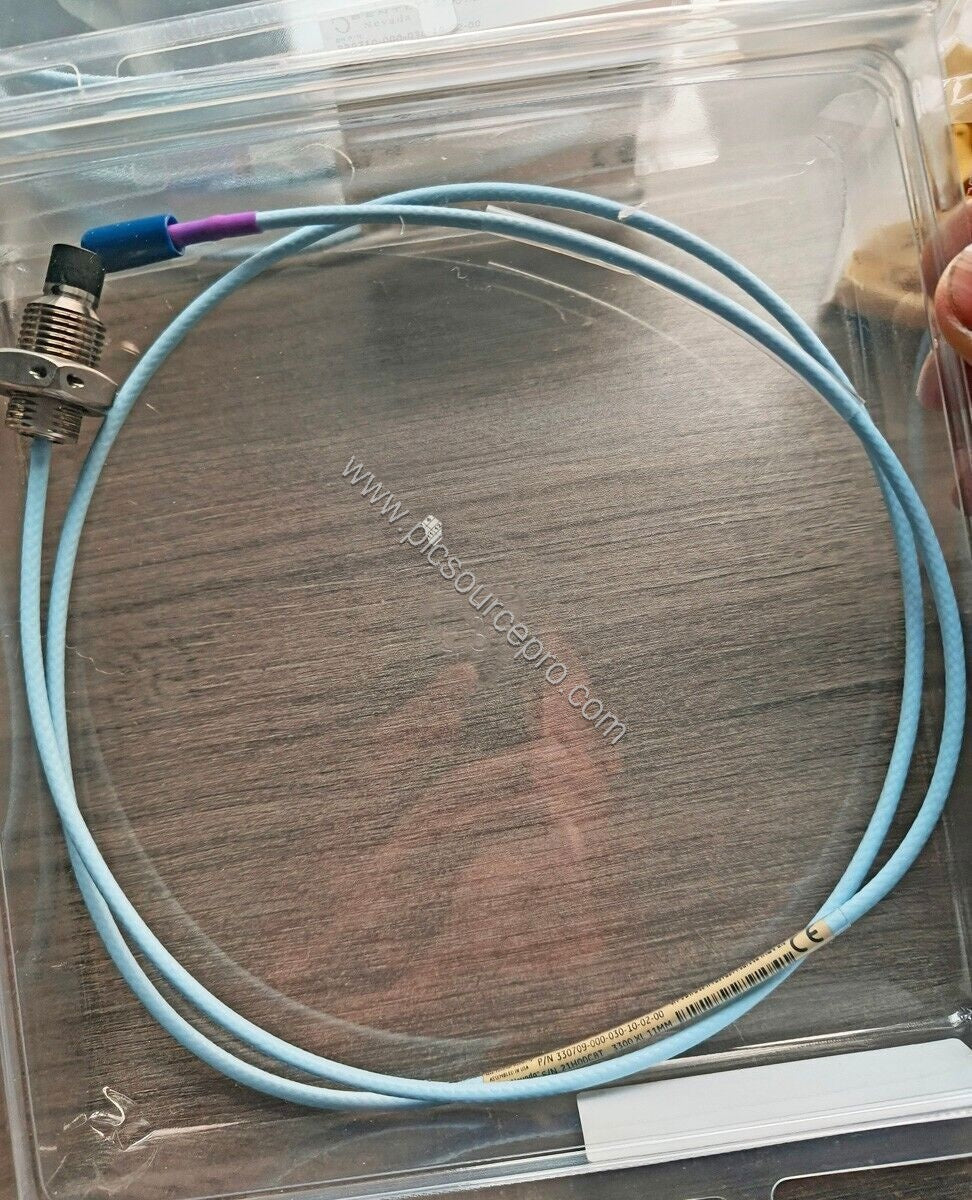

When machinery vibration threatens unplanned downtime, the Bently Nevada 330709-000-030-10-02-00 3300 XL 11 mm Proximity Probe provides precise, real-time shaft displacement monitoring. This probe is designed for hostile industrial environments, featuring a robust PPS tip and AISI 304 stainless steel case. With a wide temperature range and controlled impedance, it ensures accurate data for predictive maintenance. Part of the trusted 3300 XL series, this probe is a standard for critical asset protection.
Technical Specifications
| Parameter |
Value |
| Probe DC Resistance (1.0m) |
5.9 ± 0.5 Ω |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 Stainless Steel |
| Probe Cable |
75 Ω triaxial, FEP insulated |
| Connector Type |
Miniature coaxial ClickLoc |
| Probe Case Torque (M16x1.5) |
63.3 N•m (560 in•lb) |
| Max Connector Torque |
0.565 N•m (5 in•lb) |
| Min Bend Radius |
25.4 mm (1.0 in) |
| Operating Temperature |
-52°C to +177°C |
| Cross-talk Min Target Dia |
30.5 mm |
| Cross-talk Min Shaft Dia |
152 mm |
| Max Thread Engagement |
24 mm |
Industry Applications
The 330709-000-030-10-02-00 excels in monitoring radial vibration and axial position of rotating shafts in steam turbines, compressors, and pumps. Its 11 mm sensing face and 1.0 m cable length suit installations in confined spaces. With a 30.5 mm minimum target diameter, it is ideal for small-to-medium shaft diameters. The probe's 177°C rating allows use near hot bearings, while the ClickLoc connector ensures secure signal transmission even under vibration.
Installation & Setup Guidance
Proper mounting is critical. Tighten the probe case to 63.3 N•m (M16x1.5 thread) to avoid air gaps. Use finger-tight torque for the connector (max 0.565 N•m). Ensure the minimum bend radius of 25.4 mm for the cable to prevent internal conductor damage. Verify the thread engagement does not exceed 24 mm to avoid case deformation. Avoid exposing the probe below -34°C during installation to preserve the pressure seal.
Maintenance & Reliability
Routine inspection should focus on cable condition, connector tightness, and probe tip wear. The PPS tip resists abrasion but may require replacement if damaged. The stainless steel case withstands corrosive environments. Periodic recalibration checks (every 12 months) ensure drift-free readings. Operating within the -52°C to +177°C range maximizes sensor life. Adhering to the cross-talk limitations (30.5 mm target, 152 mm shaft) prevents false proximity signals.
Selection Guide & Purchasing Advice
Before ordering the 330709-000-030-10-02-00, verify your mounting thread (M16x1.5), required cable length (1.0 m in this variant), and connector style (ClickLoc). This model does not include agency approvals (option 00). For matched systems, pair with compatible Bently Nevada monitors. UBEST Automation stocks genuine Bently Nevada probes; contact us for detailed lead times and bulk pricing. We ensure traceable, factory-fresh units for your critical spares program.
