Product Overview

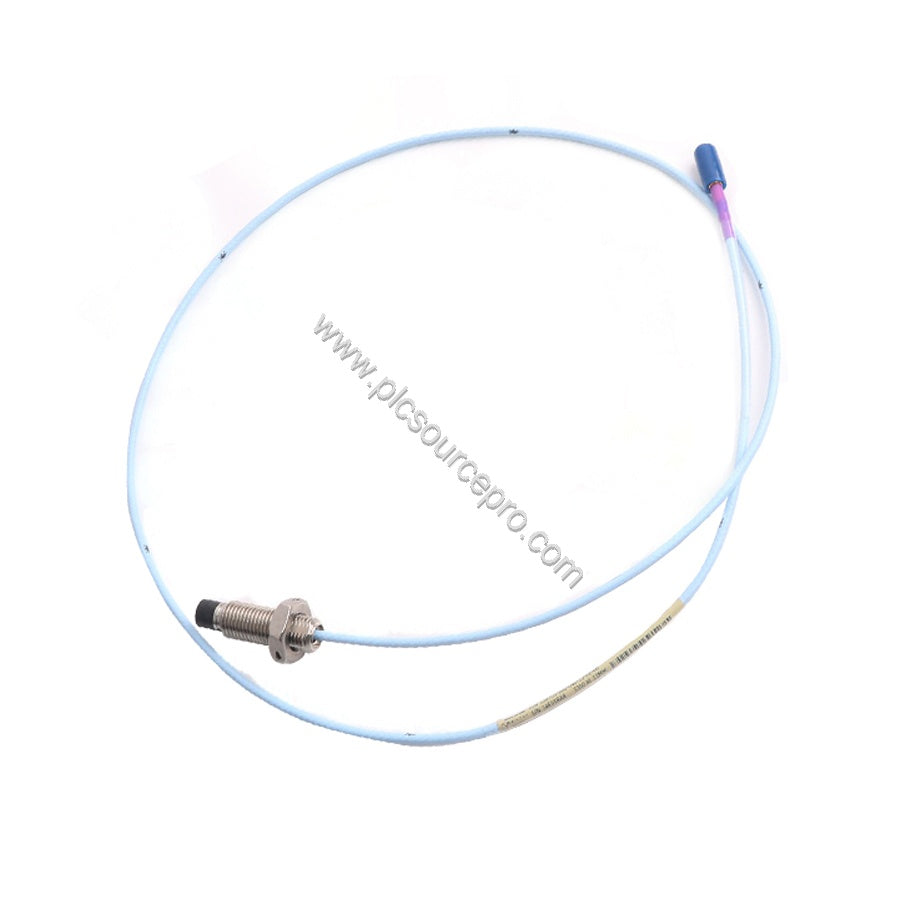

When high-temperature environments cause signal drift in proximity probes, the Bently Nevada 330302-000-011-10-90-00-00 3300 High Temperature Probe delivers reliable performance. Designed for continuous monitoring of critical rotating machinery, this probe maintains accurate displacement measurements even under extreme thermal stress. Its robust construction and precise specifications make it a trusted choice for turbines, compressors, and other high-temperature applications.
Technical Specifications
| Parameter |
Value |
| Unthreaded Length Option |
000 = 0mm |
| Overall Case Length Option |
011 = 11mm |
| Hardline Length Option |
10 = 1.0 metre (3.3 feet) |
| Total Length Option |
90 = 9.0 metres (30 feet) |
| Extension Cable Armor Option |
00 = Without stainless steel armor |
| Agency Approval Option |
00 = Not required |
| Probe DC Resistance (RpROBE) at 1.0m length |
5.06 ohms |
| Incremental Scale Factor (ISF) |
3.94 V/mm (100 mV/mil) ±9.65% including interchangeability error |
| Deviation from Best Fit Straight Line (DSL) |
Less than ±78 µm (±3.1 mils) |
| System Performance over Extended Temperatures (22°C to 350°C) |
ISF within ±30% of 3.94 V/mm; DSL within ±0.51 mm |
| Frequency Response |
0 to 6 kHz: +0, -3 dB typical with up to 305 metres of field wiring |
| Recommended Minimum Target Size |
30.5 mm (1.2 in) diameter (flat target) |
| Recommended Minimum Shaft Diameter |
152 mm (6.0 in) |
| Probe Tip Material |
Ceramic |
| Probe Case Material |
AISI 316L stainless steel (SST) |
| Probe Weight |
117 g/m of hardline cable + 12 g/cm of case |
| Operating and Storage Temperature |
-34°C to +350°C (-30°F to +662°F) |
Installation and Setup Guidance
Proper installation of the Bently Nevada 330302-000-011-10-90-00-00 3300 High Temperature Probe ensures accurate monitoring. Mount the probe with the specified unthreaded length of 0mm and overall case length of 11mm. Secure the hardline cable (1.0m) and extension cable (9.0m total) without sharp bends. For optimal performance, target a flat surface at least 30.5mm in diameter. Avoid excessive torque during mounting to prevent damage to the ceramic tip. The probe does not require stainless steel armor for the extension cable, as indicated by the '00' option.
Maintenance and Reliability
The 330302-000-011-10-90-00-00 is engineered for long-term reliability in harsh environments. Its ceramic tip resists wear, and the AISI 316L stainless steel case provides corrosion resistance. The probe's ISF remains stable within ±30% over the full temperature range from -34°C to +350°C, minimizing signal drift. Routine checks should include verifying the extension cable connection and inspecting for physical damage. Frequency response remains consistent up to 6 kHz with typical field wiring lengths of 305 metres. This reliability reduces unplanned downtime and lowers total cost of ownership.
Selection Guide
When selecting the Bently Nevada 330302-000-011-10-90-00-00 3300 High Temperature Probe, verify that your system requires a hardline length of 1.0m and a total length of 9.0m. The probe is designed for high-temperature applications up to +350°C. Ensure the target shaft diameter is at least 152mm. For purchasing, PLC Source PRO offers genuine Bently Nevada modules with full traceability. Contact us for availability and pricing on this and related industrial automation parts.
