Introduction
When industrial machinery suffers from probe cable pull-out or oil leakage, the Bently Nevada 330191-00-16-50-00 provides a robust solution. This 3300 XL 8 mm ETR proximity probe features patented TipLoc and CableLoc designs to ensure secure bonding and high pull strength, minimizing common failure modes.
Technical Specifications
| Parameter |
Value |
| Total Probe Length |
5.0 meters (16.4 feet) |
| Thread |
3/8-24 UNF |
| Maximum Thread Engagement |
0.563 in |
| Cable Type |
75 Ω triaxial, FEP insulated |
| Tensile Strength (probe case to lead) |
330 N (75 lbf) |
| Maximum Connector Torque |
0.565 N·m (5 in·lbf) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel |
| DC Resistance (RPROBE) |
8.73 ± 0.50 Ω |
| Temperature Range (T3) |
-55°C to +120°C |
Installation & Setup Guidance

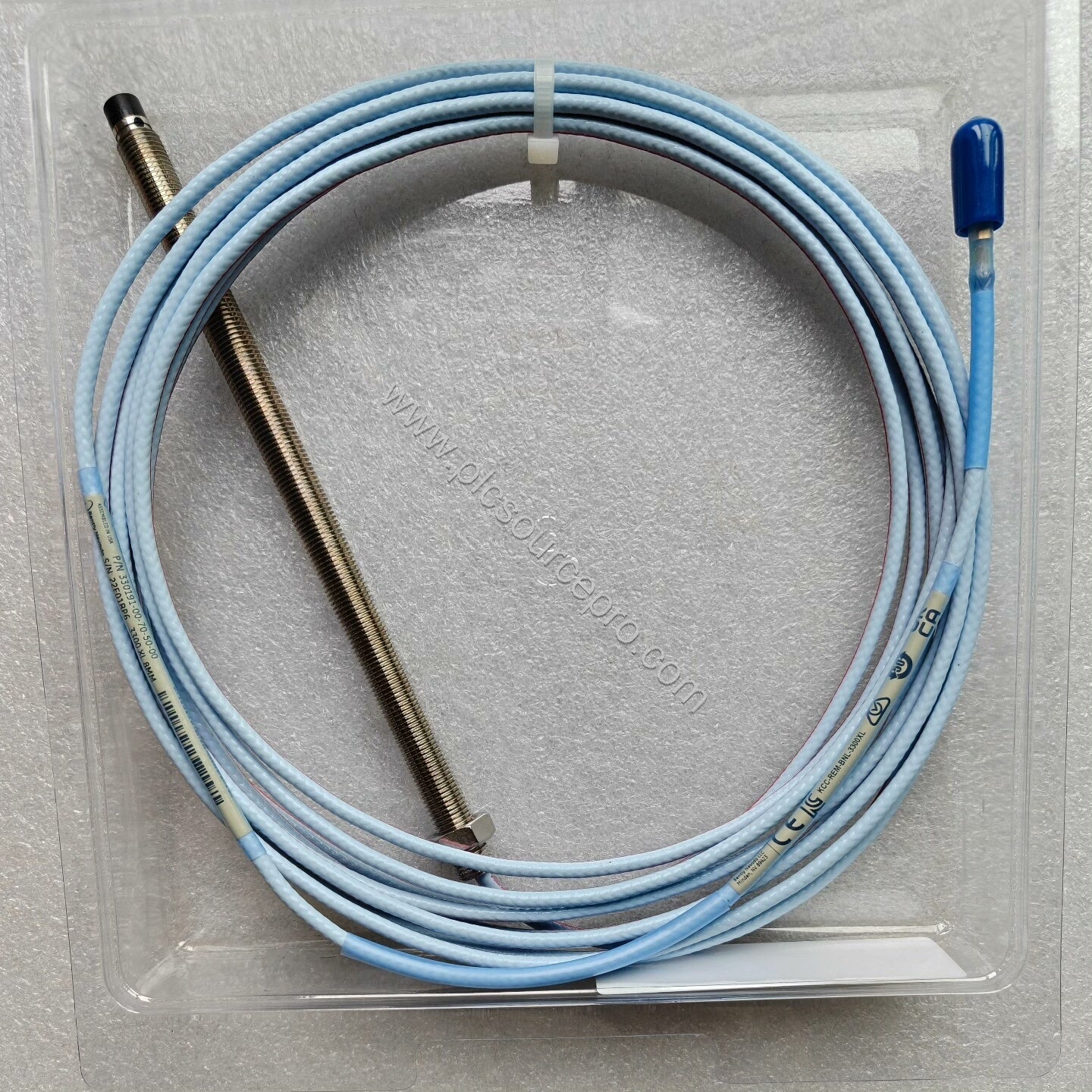

Use the 3/8-24 UNF thread with a maximum thread engagement of 0.563 in. Apply a maximum connector torque of 0.565 N·m. The probe seals differential pressure with a Viton O-ring. This 5-meter probe must be used with a 5-meter Proximitor sensor only.
Maintenance & Reliability

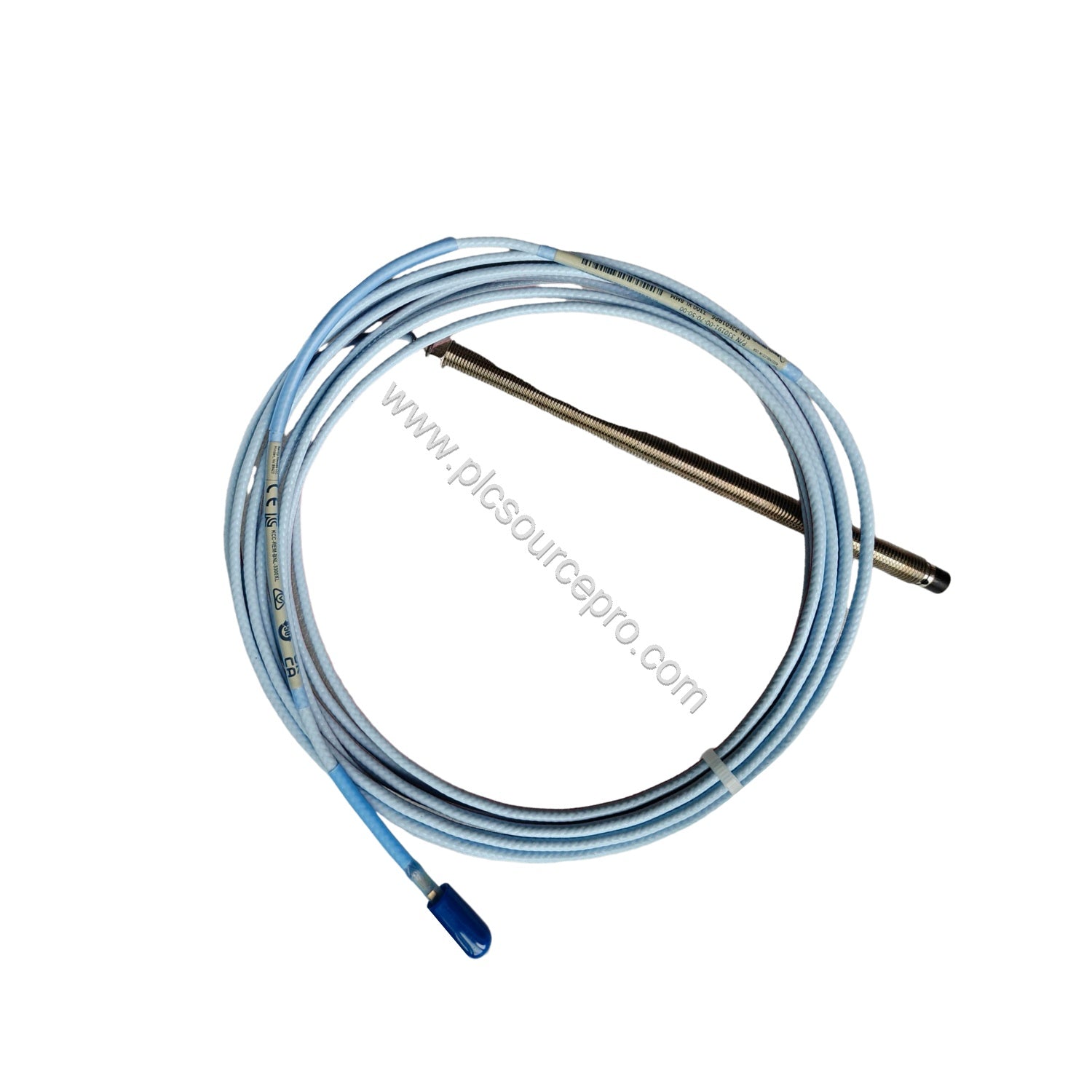

The patented TipLoc molding secures the probe tip, while CableLoc provides 330 N pull strength. An optional FluidLoc cable prevents oil leakage through the cable interior. The probe withstands temperatures up to +232°C (T1) and physical abuse thanks to the 8 mm PPS tip encapsulation.
Selection Guide & Purchasing Advice
Verify total probe length (5.0 m) and thread type (3/8-24 UNF) before ordering. The 330191-00-16-50-00 comes in new original factory packing with a 12-month warranty. For reliable supply, PLC Source PRO stocks this Bently Nevada probe and can assist with compatibility questions.
