Product Overview

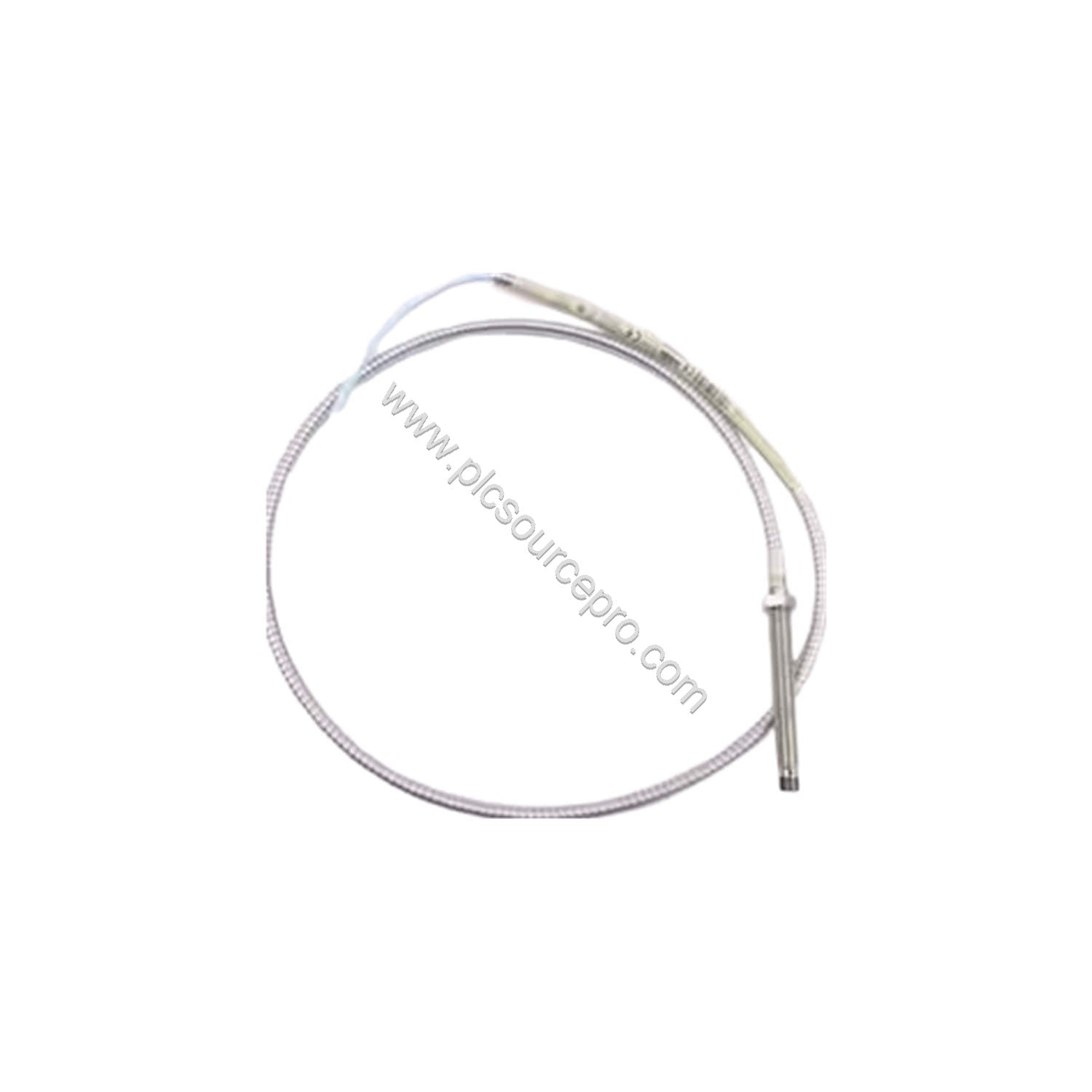

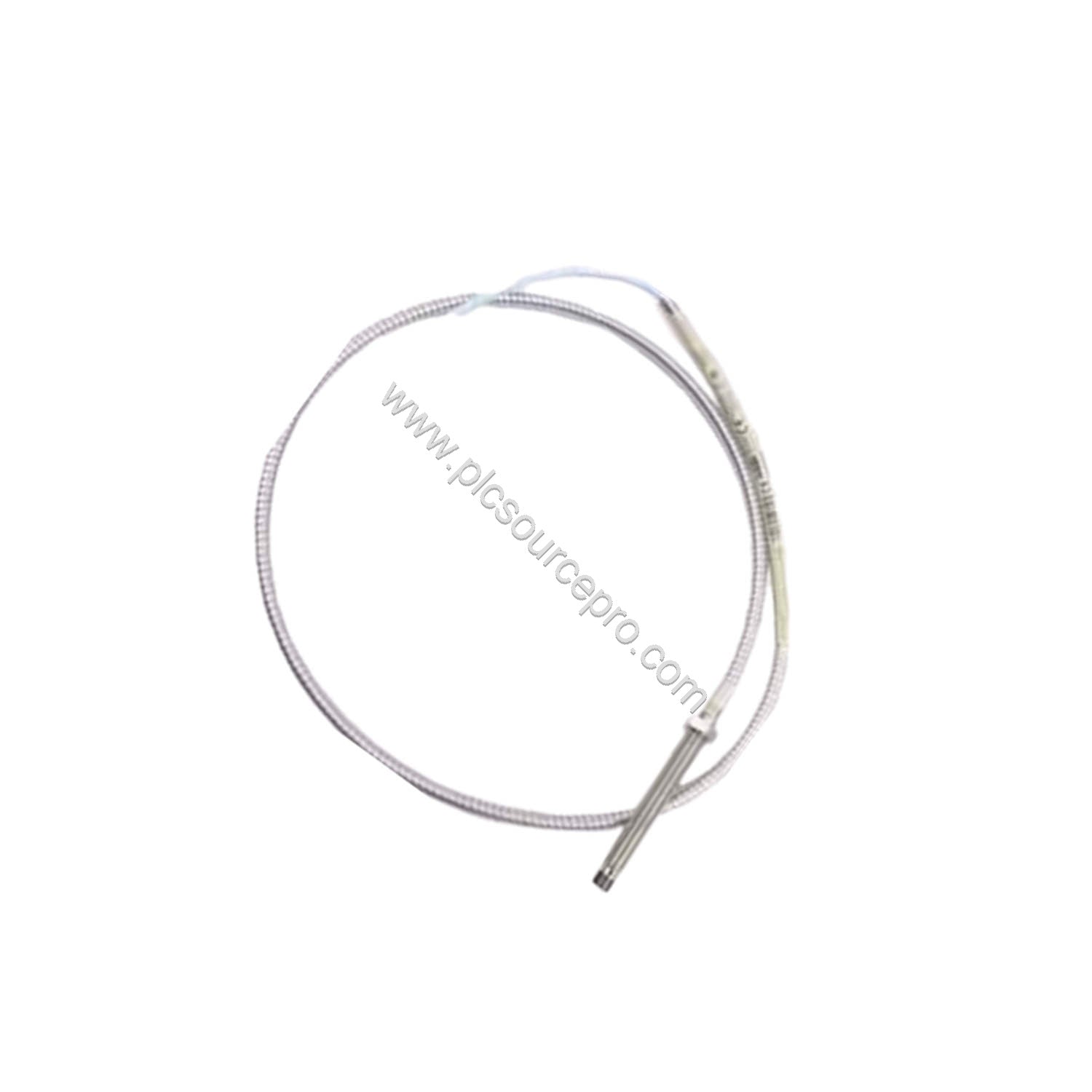

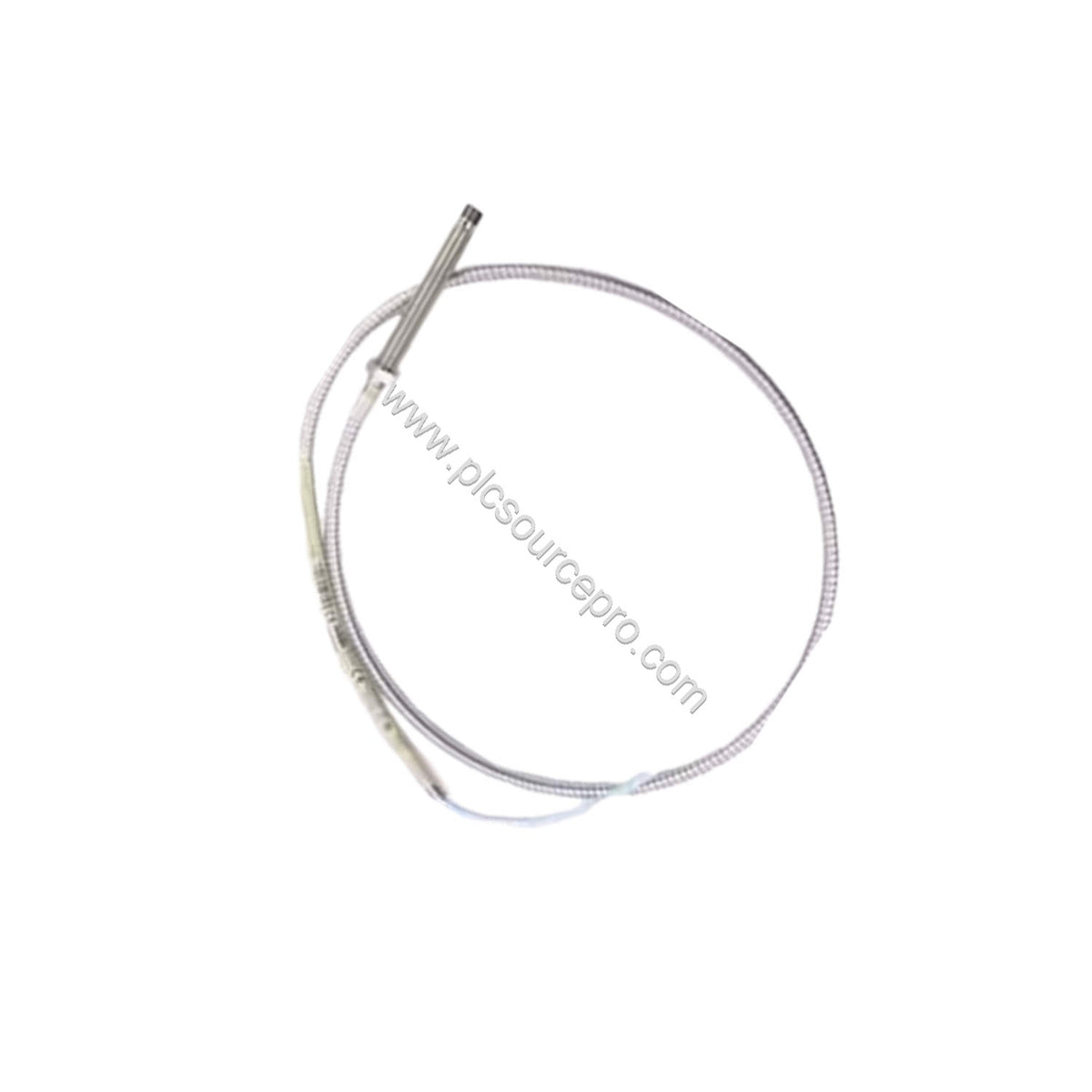

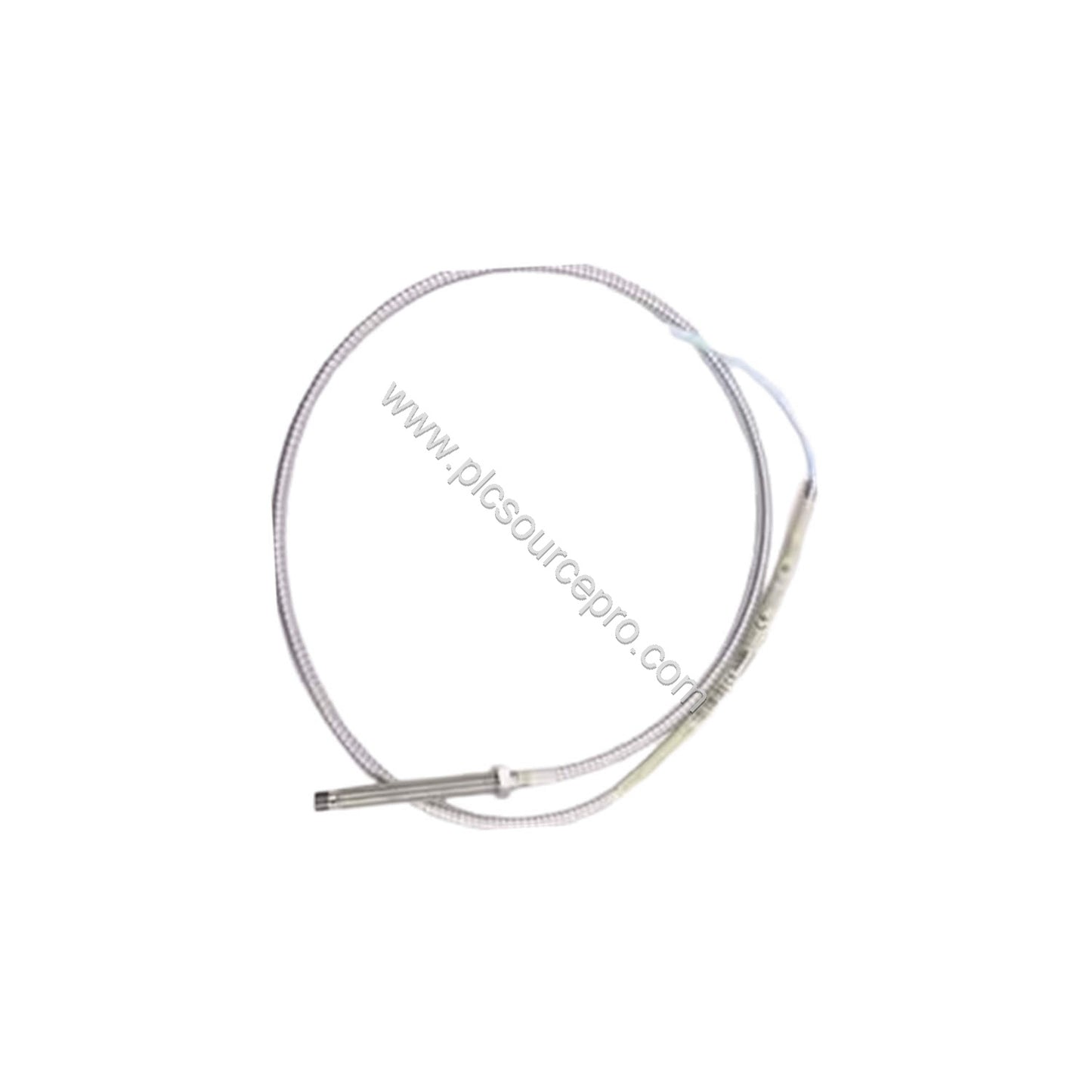

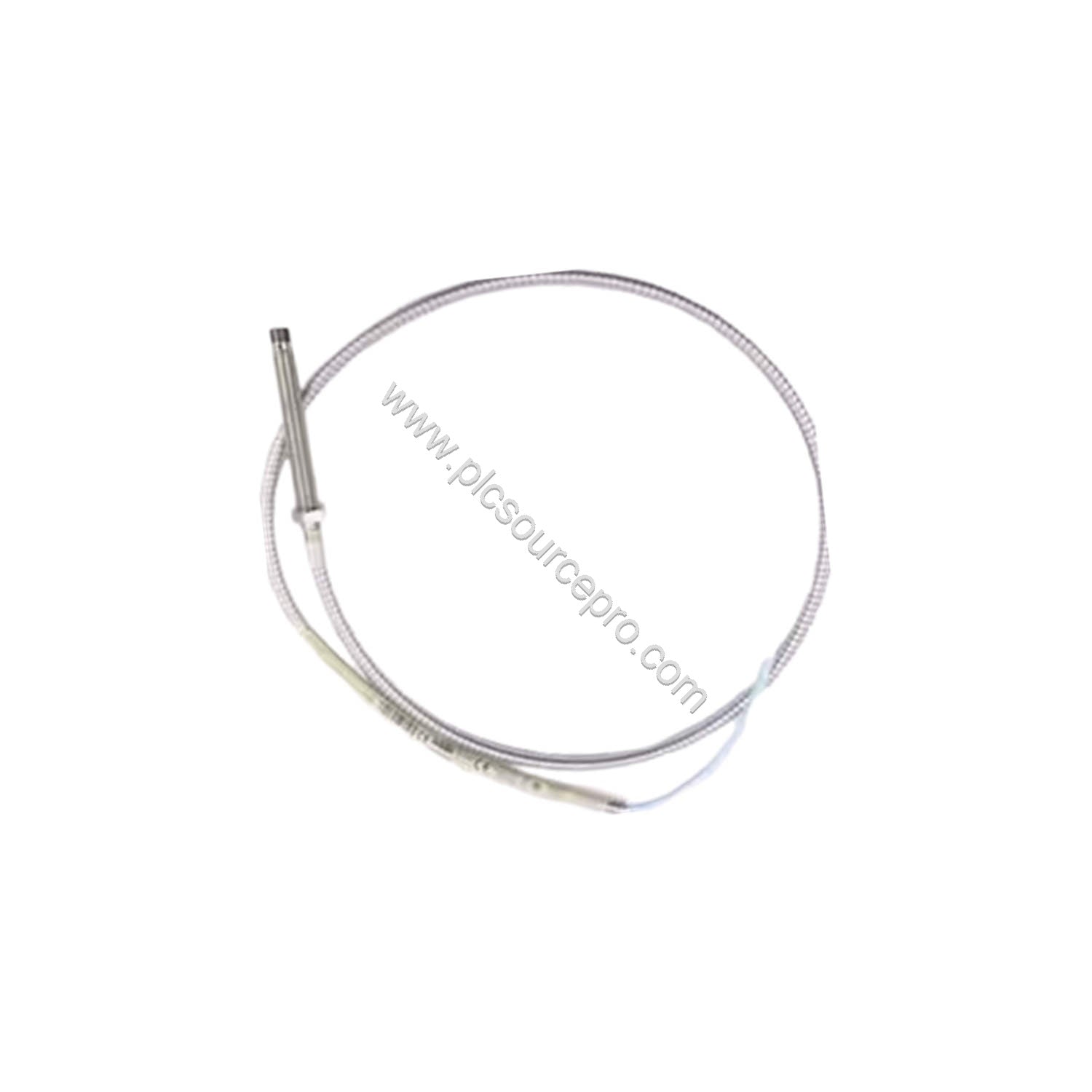

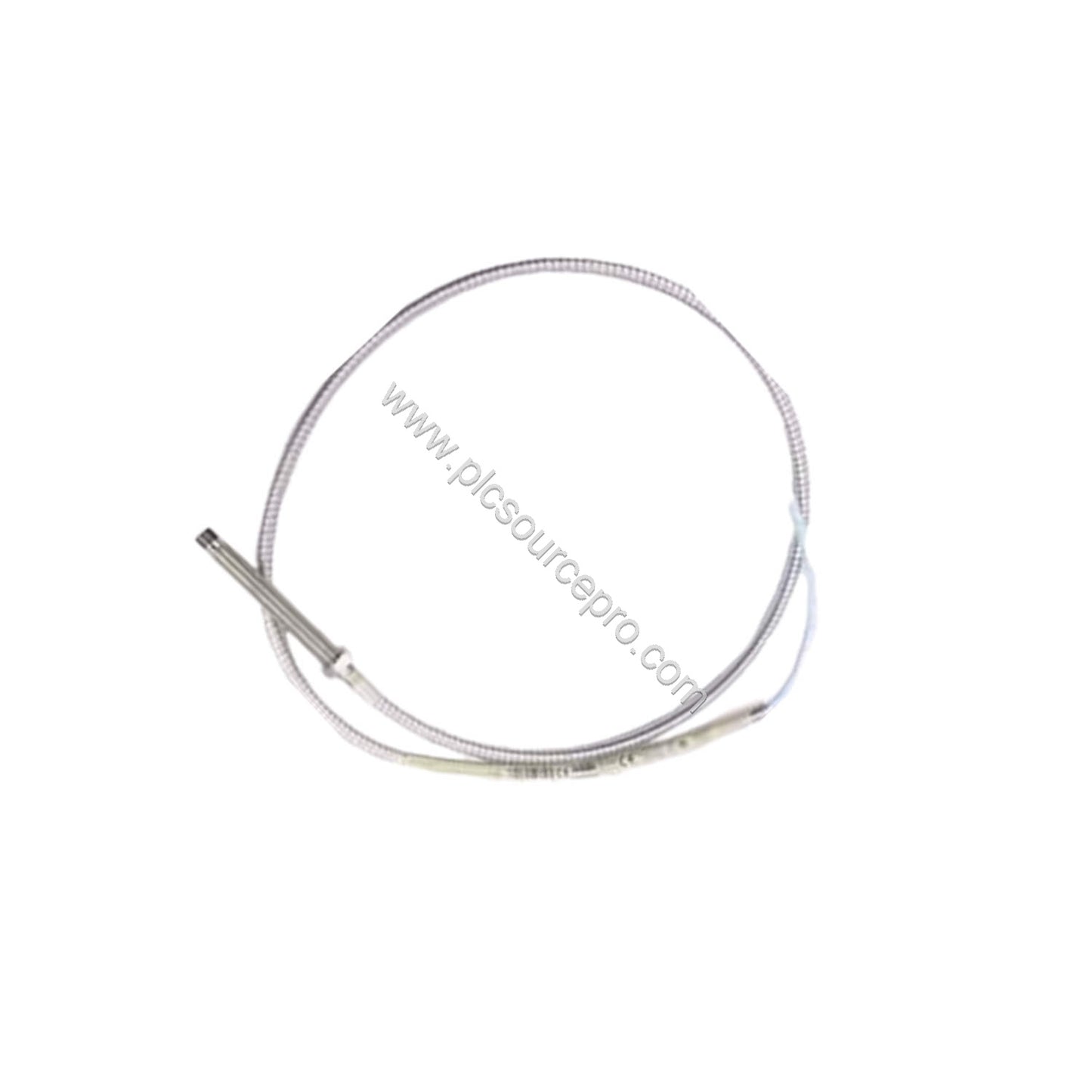

The Bently Nevada 330172-00-08-10-02-05 is a 3300 series 5mm proximity probe designed for precise vibration and position measurement in critical rotating machinery. This probe features a 1/4-28 UNF thread, armor protection, and a miniature coaxial ClickLoc connector with standard cable. Its rugged construction includes a polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case, ensuring reliability in harsh industrial environments.
Technical Specifications
Key parameters sourced directly from the product datasheet:
| Parameter |
Value |
| Unthreaded Length |
0 in |
| Overall Case Length |
0.8 in |
| Total Length |
1.0 meter (3.3 feet) |
| Connector |
Miniature coaxial ClickLoc, standard cable |
| Agency Approval |
Multiple Approvals |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 304 stainless steel |
| Probe Case Thread |
1/4-28 |
| Max Thread Engagement |
0.375 in |
| Weight |
0.323 kg |
| Power Supply |
-17.5 to -26 Vdc at 12 mA max |
| Output Resistance |
50 Ω |
| Probe DC Resistance (1.0m) |
7.59 ± 0.50 Ω |
| Tensile Strength |
222 N (50 lbf) case to lead |
| Probe Temp Range |
-35°C to +177°C |
| Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
Industry Applications
The 330172-00-08-10-02-05 excels in monitoring shaft vibration and position in steam turbines, compressors, and pumps. In petrochemical plants, it detects early signs of bearing wear by measuring radial vibration. Its PPS tip withstands exposure to lubricants and process fluids, while the stainless steel case resists corrosion in offshore and refining environments. The probe’s sensitivity to magnetic fields (effects documented up to 300 Gauss) makes it suitable for integration with XL Proximitor sensors in existing Bently Nevada systems.
Installation & Setup Guidance
Proper mounting is critical for accurate readings. Use a #3 or larger tap drill when tapping a hole for the 1/4-28 thread. Maximum thread engagement is 0.375 in to avoid stress on the probe case. Apply the recommended torque of 5.1 N·m (45 in·lb) when tightening the probe case; do not exceed 7.3 N·m. For cable connectors, the max torque is 0.565 N·m (0.42 ft·lbf). Ensure the cable bend radius stays above 25.4 mm to prevent internal damage. When gapping the probe at 1.27 mm (50 mils), use a -24 Vdc power supply and 10 kΩ load for standard calibration.
Maintenance & Reliability
Regularly inspect the probe cable for cuts or abrasion, as the FEP insulation can degrade if exposed to temperatures below -34°C (-30°F). The probe temperature rating of -35°C to +177°C defines its safe operating window; exceeding these limits may compromise the pressure seal. In high-vibration areas, verify the connector torque periodically. The effects of 60 Hz magnetic fields up to 300 Gauss are minimal at typical gaps but should be considered in environments with large motors or transformers. Adhering to the temperature schedule for hazardous locations (EPL Ga, Gc, Dc) ensures safe operation in explosive atmospheres.
Selection Guide & Purchasing Advice
When ordering the 330172-00-08-10-02-05, confirm that your system requires a 5mm probe with 1.0 meter cable and ClickLoc connector. This model suits applications needing armored cable protection. For longer cable runs, consider alternative lengths (0.5, 2, 5, or 9 meters). Verify that your Proximitor sensor is compatible with 75 Ω triaxial cable. For reliable delivery of genuine Bently Nevada parts, trust PLC Source PRO as your industrial automation supplier.
