Product Overview

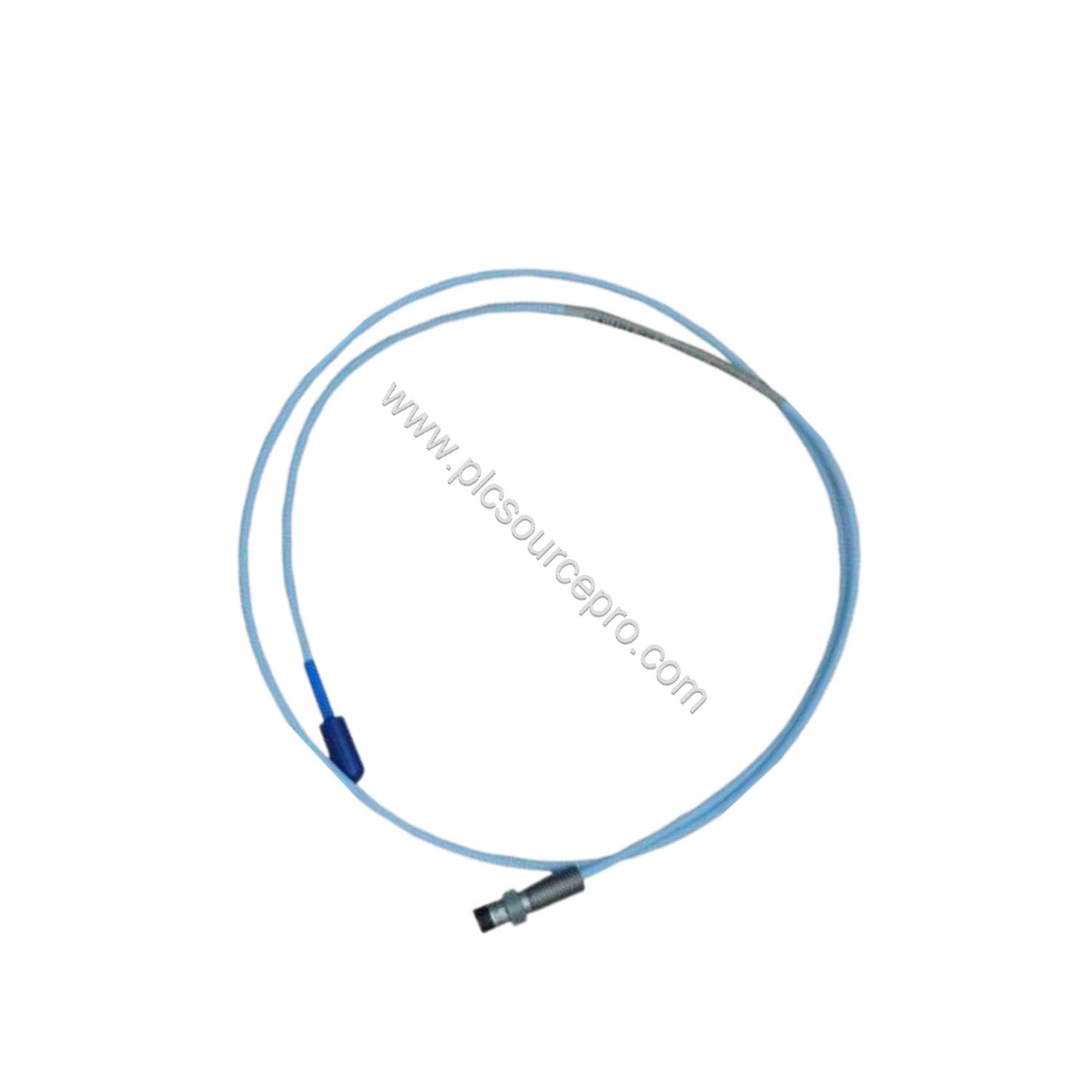

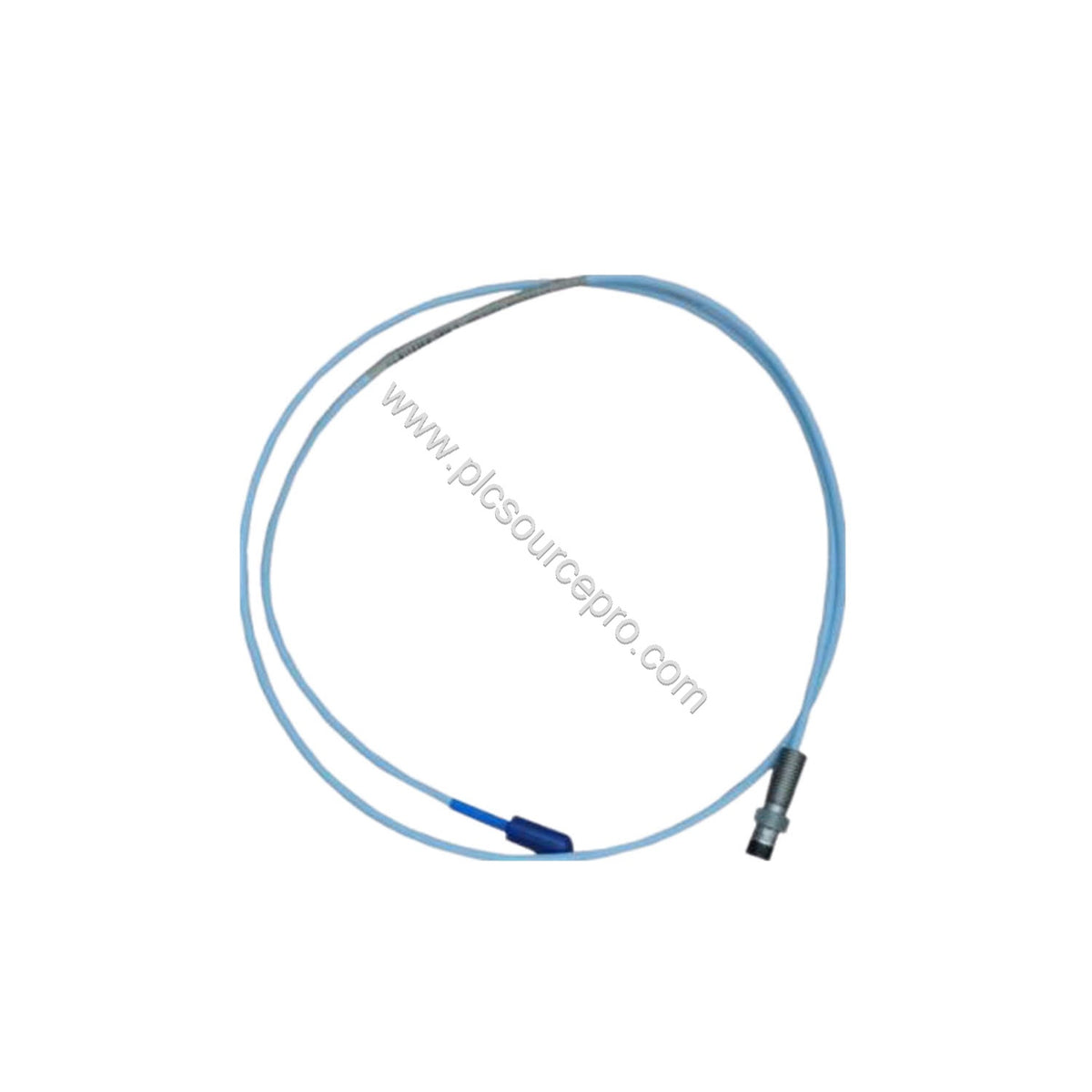

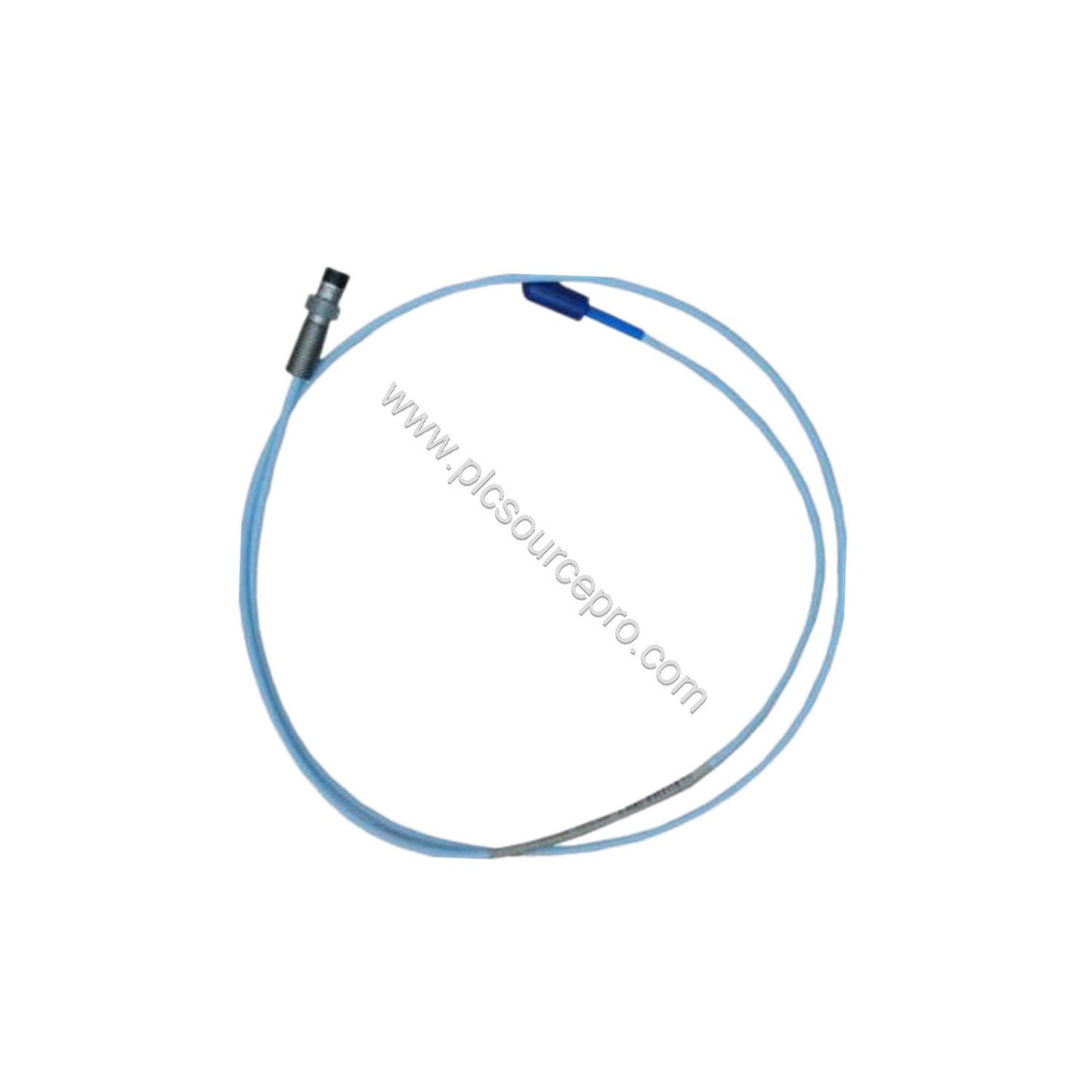

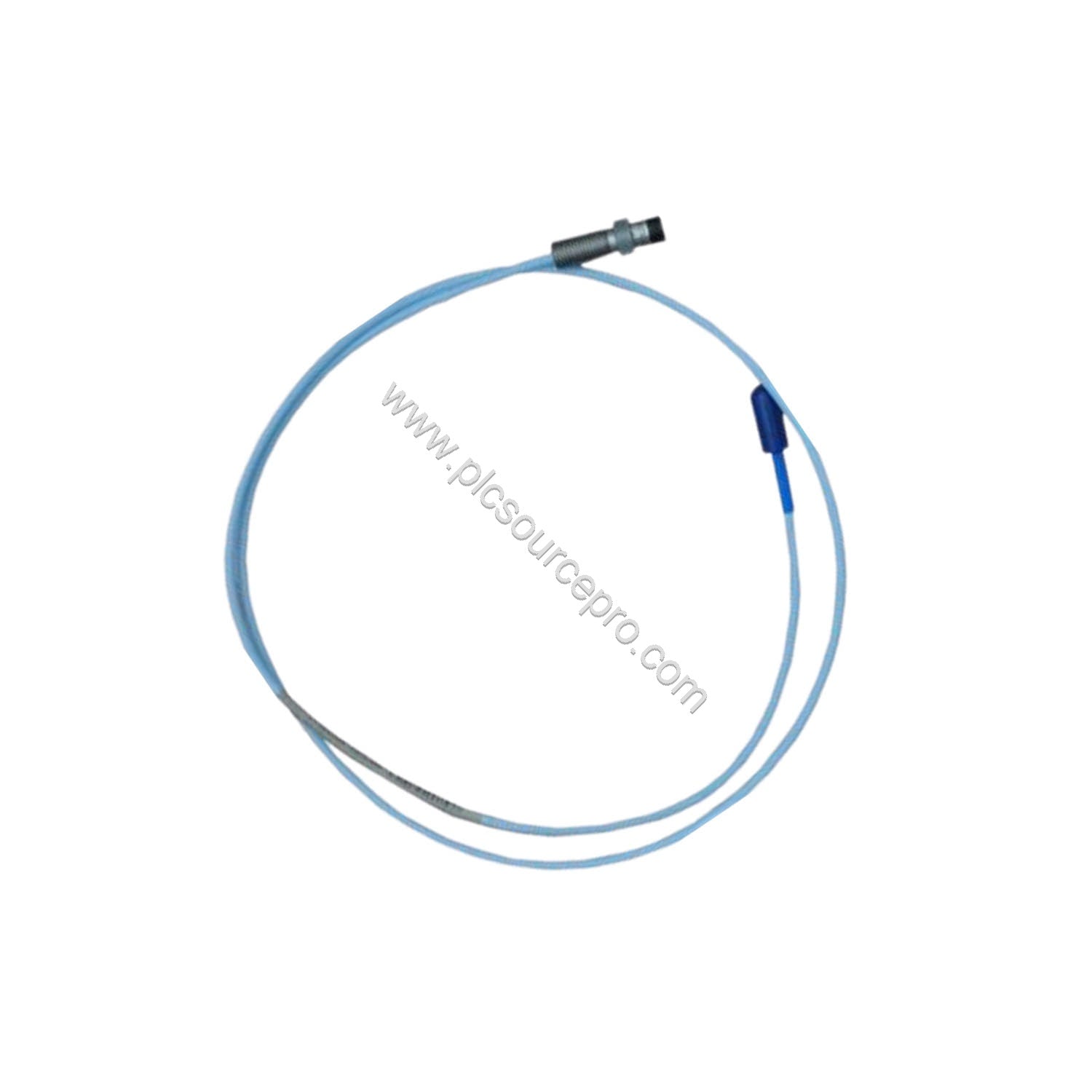

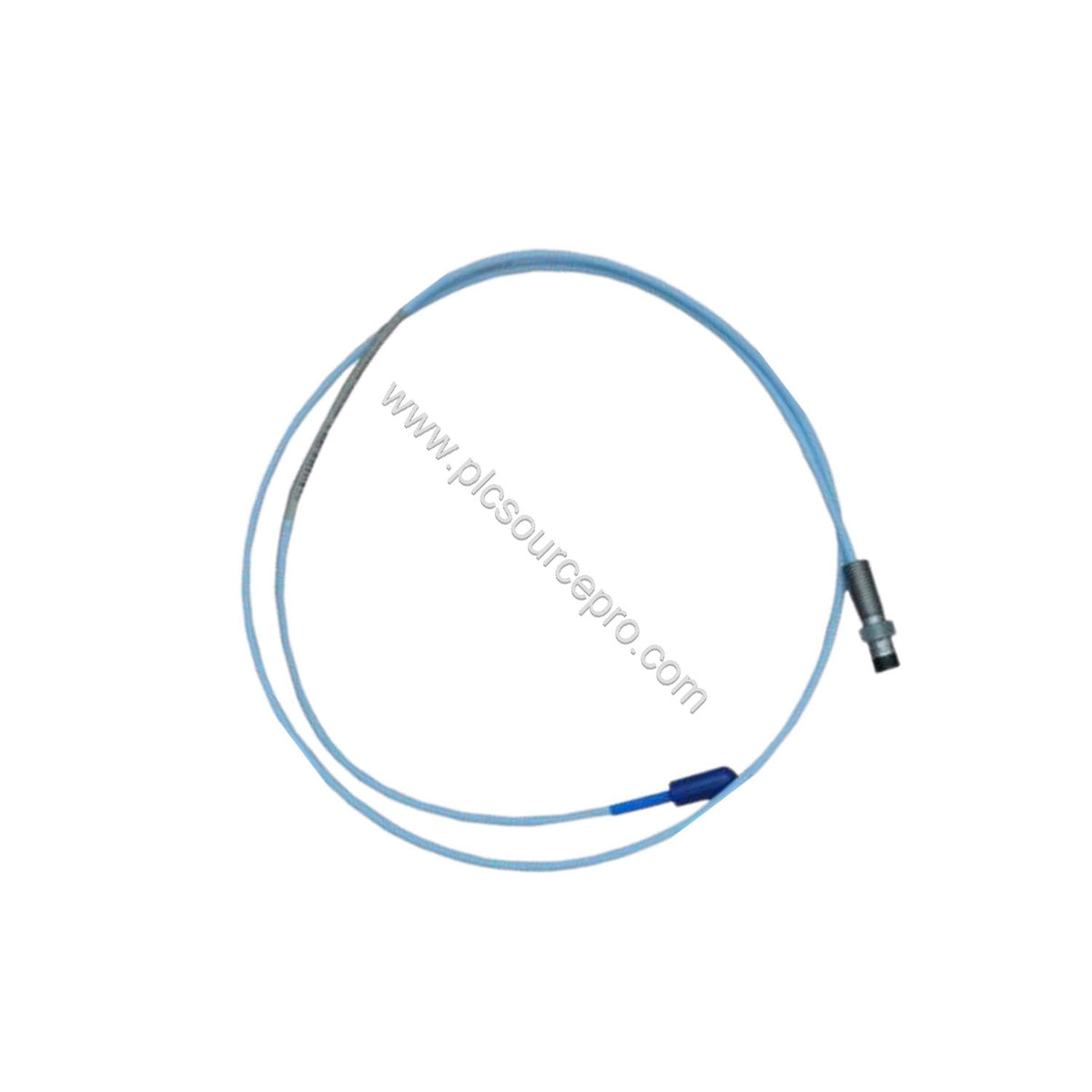

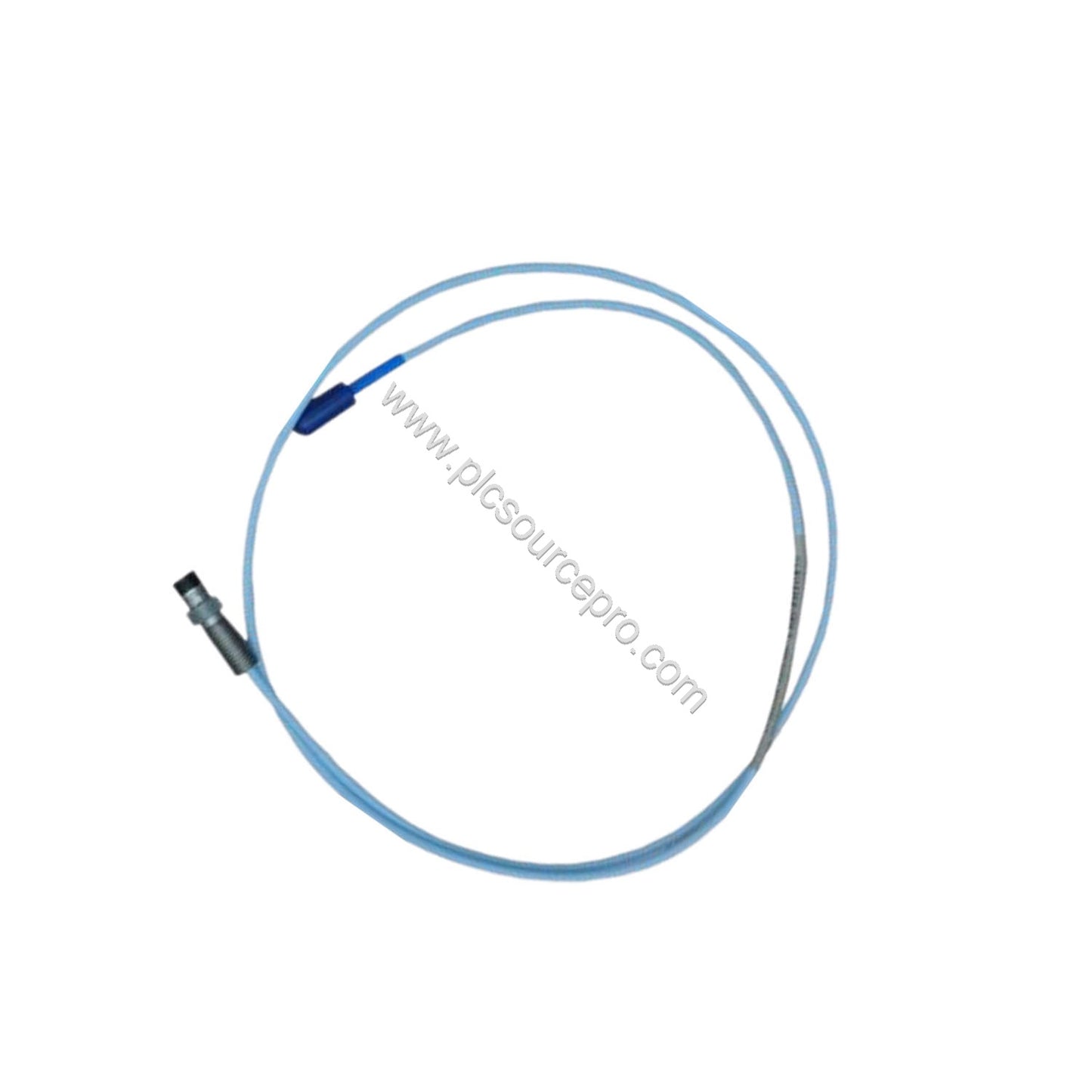

When vibrations threaten rotating machinery, the Bently Nevada 330171-05-63-05-02-05 5mm probe delivers precise displacement measurements. This unarmored probe features a 1/4-28 UNF thread, a polyphenylene sulfide (PPS) tip, and an AISI 304 stainless steel case. Designed for 3300 series systems, it provides reliable proximity sensing in harsh industrial environments. The 330171-05-63-05-02-05 includes a 0.5 meter cable with a miniature coaxial ClickLoc connector, making installation straightforward.
Technical Specifications Breakdown
The Bently Nevada 330171-05-63-05-02-05 operates within exacting parameters. Key specifications include:
-
Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption. Operating above -23.5 Vdc reduces linear range.
-
Output Resistance: 50 W.
-
Probe DC Resistance: 7.45 ± 0.50 Ω (0.5 meter length).
-
Probe Temperature Range: -35°C to +177°C (-31°F to +351°F). Exposure below -34°C may damage the pressure seal.
-
Tensile Strength: 222 N (50 lbf) for both probe case to lead and lead to extension cable connectors.
-
Recommended Probe Case Torque: 5.1 N·m (45 in·lb); maximum 7.3 N·m (65 in·lb).
-
Connector-to-Connector Torque: Maximum 0.565 N·m (0.42 ft·lbf).
-
Minimum Cable Bend Radius: 25.4 mm (1.0 in).
-
Weight: 0.323 kg.
All specifications apply at +18°C to +27°C with -24 Vdc supply, 10 kW load, AISI 4140 steel target, and 1.27 mm (50 mils) gap unless noted.
Real-World Applications
The Bently Nevada 330171-05-63-05-02-05 excels in turbomachinery monitoring. Common applications include:
-
Steam Turbines: Detects shaft vibration and eccentricity, enabling early intervention to prevent catastrophic failure.
-
Centrifugal Compressors: Monitors radial and axial shaft position, maintaining safe operating clearances.
-
Large Pumps: Provides reliable vibration data to schedule maintenance and reduce unplanned downtime.
Because the probe is unarmored, it suits applications where cable protection is provided by the installation environment.
Installation & Setup Guidance
Proper mounting of the Bently Nevada 330171-05-63-05-02-05 ensures accurate readings. The probe case thread is 1/4-28 with a maximum thread engagement of 0.375 inches. When drilling and tapping, use a #3 or larger tap drill. Do not exceed the maximum torque of 7.3 N·m (65 in·lb) on the probe case to avoid damaging the case. The connector-to-connector torque must not exceed 0.565 N·m (0.42 ft·lbf). Maintain a minimum cable bend radius of 25.4 mm (1.0 in) to prevent internal cable damage. For optimal performance, gap the probe at 1.27 mm (50 mils) per factory recommendations.
Troubleshooting & Common Issues
Despite robust design, the Bently Nevada 330171-05-63-05-02-05 can encounter problems if installation guidelines are ignored. Common issues include:
-
Overtightening: Exceeding 7.3 N·m probe case torque can strip threads or deform the stainless steel case, leading to false readings.
-
Temperature Extremes: Operating below -34°C risks premature seal failure. Always verify ambient conditions against the probe temperature range of -35°C to +177°C.
-
Incorrect Power Supply: Supplying a voltage more positive than -23.5 Vdc reduces linear range. Use a regulated -24 Vdc supply to maintain accuracy.
-
Magnetic Field Interference: The probe shows minimal sensitivity to 60 Hz magnetic fields up to 300 Gauss (output voltage in mil pp/gauss ranges from 0.0004 at 10 mil gap to 0.0045 at 90 mil gap). Avoid mounting near large transformers or motors if interference is suspected.
If output voltages drift, check the probe gap and verify the cable is not kinked or stressed.
