Product Overview

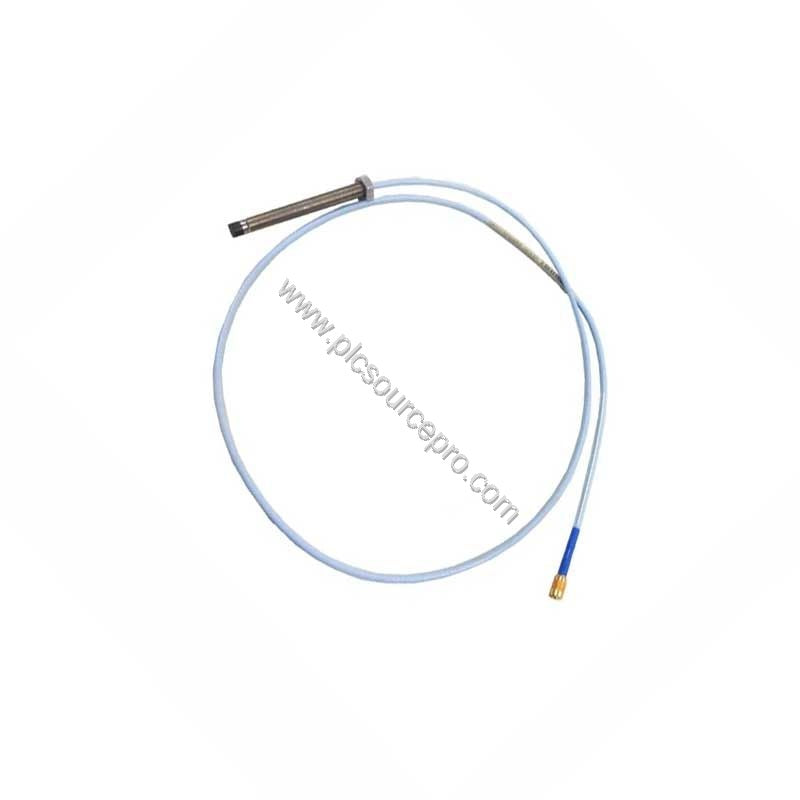

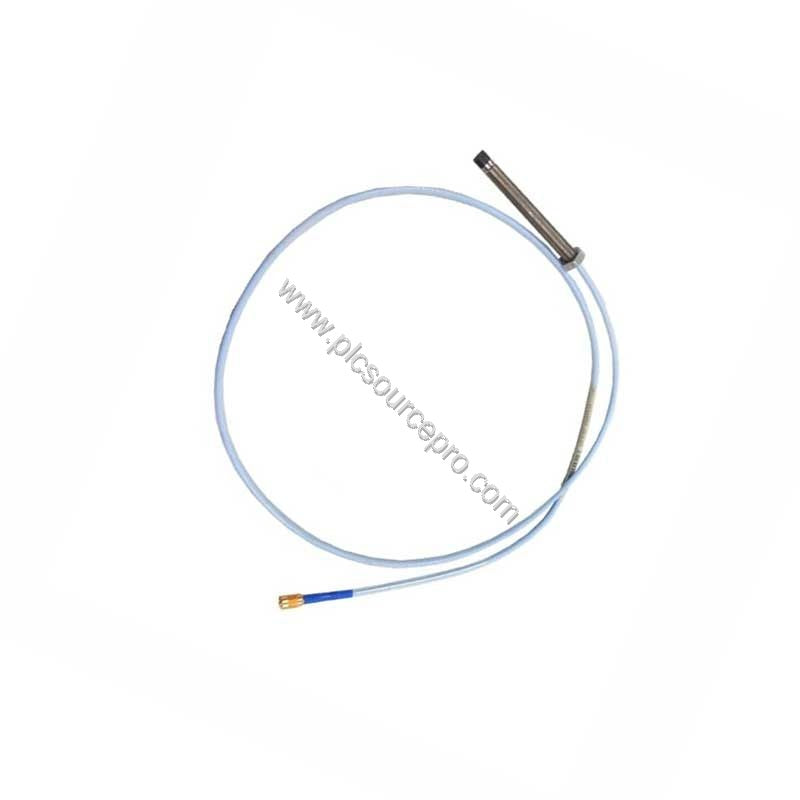

When machine vibration monitoring demands high reliability, the Bently Nevada 330141-24-50-01-05 delivers accurate displacement measurements with enhanced durability. This 3300 XL 8 mm probe with armor represents a significant upgrade over previous designs, incorporating patented TipLoc and CableLoc technologies for superior robustness. As part of the 3300 XL series, the Bently Nevada 330141-24-50-01-05 is engineered for long-term performance in demanding industrial environments.
Technical Specifications
The following specifications are based on the exact Bently Nevada 330141-24-50-01-05 configuration. All values are sourced directly from the product data.
| Parameter |
Value |
| Overall Case Length |
2.4 in (24 option) |
| Total Cable Length |
5.0 m (16.4 ft) |
| Connector Type |
Miniature coaxial ClickLoc with connector protector, standard cable |
| Agency Approvals |
CSA, ATEX, IECEx |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
| Weight |
323 g/m (11.4 oz/ft) |
| Incremental Scale Factor (5m system) |
7.87 V/mm (200 mV/mil) ±5% |
| Nominal Probe DC Resistance (5m) |
8.73 Ω ±0.50 Ω |
| Deviation from Best Fit Line (5m system) |
Less than ±0.025 mm (±1 mil) |
| Standard Operating Temperature (probe) |
-52°C to +177°C (-62°F to +350°F) |
| Extended Operating Temperature (probe tip) |
-52°C to +218°C (-62°F to +425°F) |
| Relative Humidity Effect |
Less than 3% change in ASF at 93% RH per IEC 68-2-3 |
Industry Applications
The Bently Nevada 330141-24-50-01-05 is ideally suited for vibration monitoring on critical rotating machinery such as turbines, compressors, pumps, and motors. Its 8 mm diameter and armored construction provide optimal robustness against physical abuse, making it a preferred choice for heavy industrial applications. The patented CableLoc design delivers 330 N (75 lbf) pull strength, preventing cable detachment in high-vibration environments. The optional FluidLoc cable prevents oil leakage, making it suitable for machines with lubricating fluids.
Installation and Setup Guidance
When installing the Bently Nevada 330141-24-50-01-05, ensure proper probe gap settings according to the 3300 XL system requirements. The miniature coaxial ClickLoc connector simplifies field wiring and provides a secure connection. With a total cable length of 5.0 meters, plan routing to avoid sharp bends or excessive tension. The probe case is stainless steel; mount it using standard hardware. For extended temperature range installations, verify that ambient conditions stay within the probe tip rating of -52°C to +218°C.
Selection Guide and Purchasing Advice
Before purchasing, verify that the overall case length of 2.4 inches and cable length of 5.0 meters match your installation requirements. The Bently Nevada 330141-24-50-01-05 includes agency approvals for hazardous locations (CSA, ATEX, IECEx). For new installations or upgrades from older probes, this model offers proven reliability improvements. PLC Source PRO provides quick shipping of genuine Bently Nevada parts. Contact us for bulk pricing or customization requests.
