Product Introduction

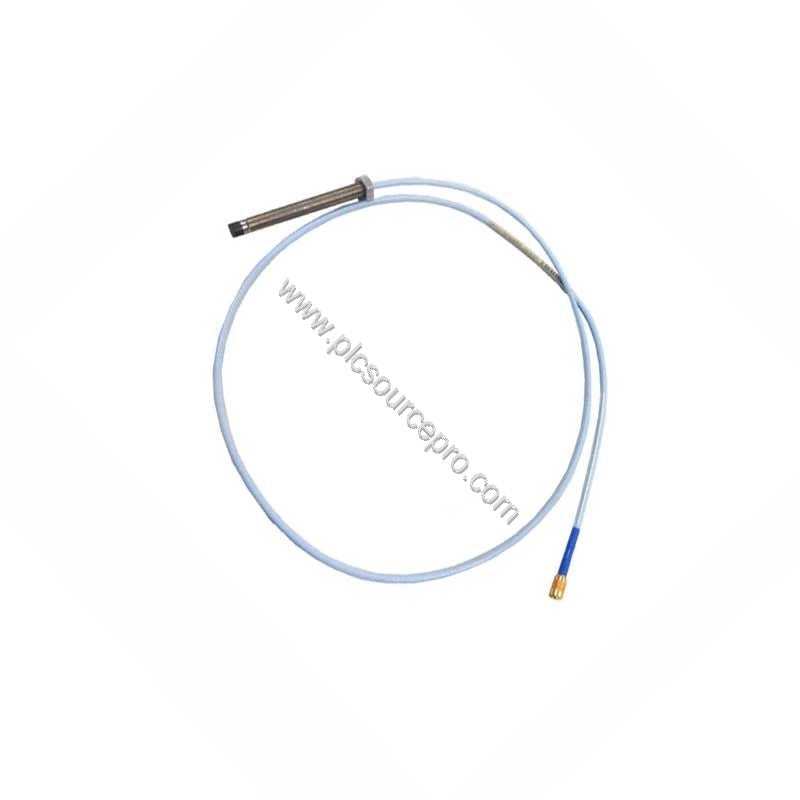

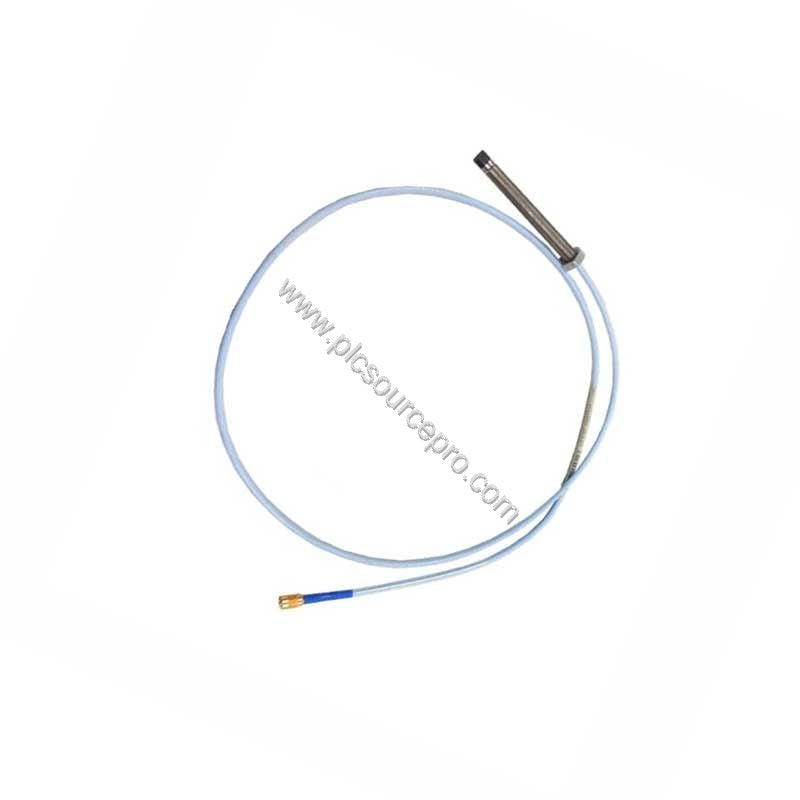

When machinery vibration threatens uptime, the Bently Nevada 330141-08-90-01-05 provides a robust solution. This 3300 XL 8 mm probe with armor is designed for reliable shaft vibration and position monitoring in harsh industrial environments. It incorporates patented TipLoc and CableLoc technologies to prevent common failure modes like probe tip separation and cable pull-out, ensuring consistent performance even under physical abuse.
Technical Specifications Breakdown
The table below lists key specifications derived from the product datasheet.
| Parameter |
Value |
| Overall Case Length |
0.8 in (08 option) |
| Total Length |
9.0 meters (29.5 feet) |
| Connector Type |
Miniature coaxial ClickLoc with connector protector, standard cable |
| Agency Approvals |
CSA, ATEX, IECEx |
| Nominal Probe DC Resistance (9.0 m) |
9.87 Ω ± 0.50 |
| Incremental Scale Factor (Standard 9 m System) |
7.87 V/mm (200 mV/mil) ± 6.5% over 80 mil linear range, 0°C to +45°C |
| Deviation from Best Fit Straight Line (9 m) |
Less than ±0.038 mm (±1.5 mil) at 0°C to +45°C |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel |
| Probe Weight |
323 g/m (11.4 oz) |
| Standard Operating Temperature |
-52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Range |
Tip: -52°C to +218°C; Cable: -51°C to +260°C |
| Humidity Effect |
< 3% change in ASF after 56 days at 93% RH per IEC 68-2-3 |
Applications
The Bently Nevada 330141-08-90-01-05 excels in critical rotating machinery such as steam turbines, compressors, and large pumps. Its armored construction and FluidLoc option (for liquid leakage prevention) make it ideal for oil-lubricated bearings and environments where oil or coolant leaks are common. With a scale factor of 7.87 V/mm, it provides precise gap measurements for protection and monitoring systems.
Installation & Setup Guidance
Mount the probe using the manufacturer’s recommended clearance and gap settings. For the 9.0 meter cable, ensure a clean routing path to avoid kinks. The ClickLoc connector simplifies installation; push until it clicks and secure the connector protector. Calibrate using a target of AISI 4140 steel. Verify incremental scale factor at mounting.
Maintenance & Reliability
The probe's Viton O-ring seals differential pressure, but it is not pressure tested before shipment – avoid over-torquing. Inspect the cable periodically for cuts or abrasions. Do not expose to temperatures below -34°C (-30°F) to preserve the pressure seal. The patented CableLoc provides 330 N pull strength, reducing cable breakage risk. Regularly check for fluid leaks if using standard cable; consider the FluidLoc option for harsh environments.
Selection Guide & Purchasing Advice
When ordering the Bently Nevada 330141-08-90-01-05, verify your total length and connector preferences. This model includes the 01 connector option (ClickLoc) and 05 agency approval (CSA, ATEX, IECEx). For extreme temperatures, ensure you select the extended temperature range probe. PLC Source PRO stocks genuine Bently Nevada spares for prompt delivery. Contact our team to confirm compatibility with your existing 3300 XL system.
