Product Overview

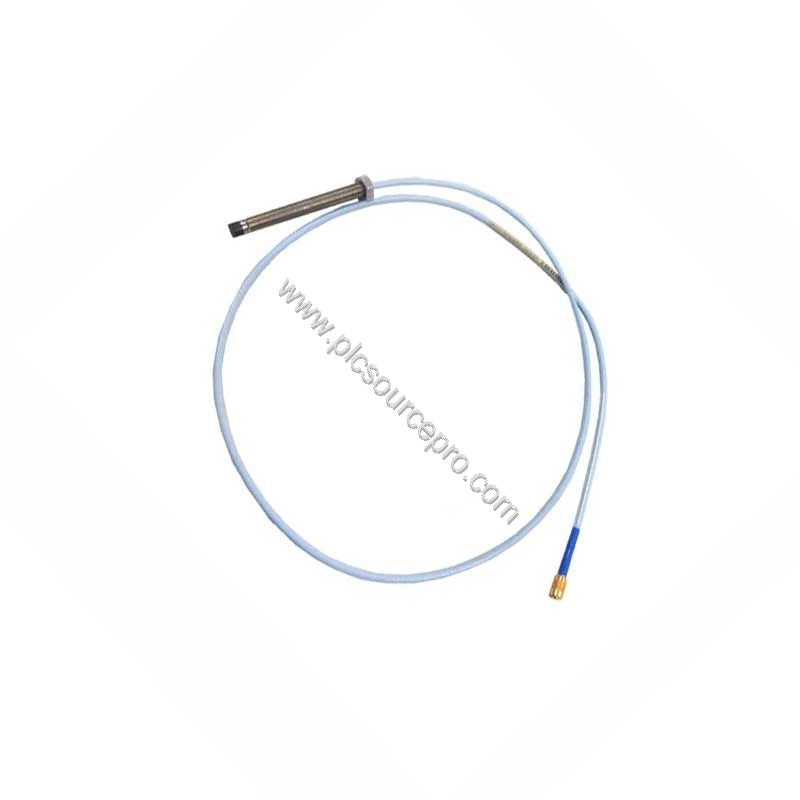

When older probes fail under extreme conditions, the Bently Nevada 330141-08-50-11-00 provides a robust upgrade with advanced TipLoc and CableLoc technology. This 3300 XL 8 mm probe with armor features a 5.0 meter (16.4 feet) cable and a miniature coaxial ClickLoc connector with FluidLoc cable for enhanced reliability. Designed for use with the 5 meter Proximitor sensor, it offers a direct replacement for earlier models in the 3300 series.
Technical Specifications
| Parameter |
Value |
| Overall Case Length |
0.8 in (08 option) |
| Total Cable Length |
5.0 meters (50 option) |
| Connector Type |
Miniature coaxial ClickLoc with connector protector, FluidLoc cable (11 option) |
| Agency Approval |
Not required (00 option) |
| Nominal Probe DC Resistance (at 5.0 m) |
8.73 ± 0.50 Ω |
| Incremental Scale Factor (Standard 5 m system) |
7.87 V/mm (200 mV/mil) ±5% |
| Deviation from Best Fit Straight Line |
Less than ±0.025 mm (±1 mil) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
| Probe Weight |
323 g/m (11.4 oz) |
| Standard Probe Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
| Probe Relative Humidity |
Less than 3% change in ASF at 93% RH per IEC 68-2-3 |
Applications
The Bently Nevada 330141-08-50-11-00 excels in machine vibration monitoring for turbines, compressors, and pumps. In high-vibration environments, the patented TipLoc molding method ensures a stronger bond between probe tip and body, preventing failures common in earlier designs. The FluidLoc cable option prevents oil leakage from inside the machine, ideal for lubricated machinery. Upgrade from older 3300 series probes to benefit from 8 mm thicker PPS encapsulation and CableLoc pull strength of 330 N (75 lbf).
Selection Guide
Before purchasing, verify that your system uses a 5 meter Proximitor sensor, as the cable length is optimized for that interface. The connector option 11 includes a miniature coaxial ClickLoc with FluidLoc cable – ensure compatibility with your extension cable or monitor. For technical support or to order, visit PLC Source PRO for genuine Bently Nevada 330141-08-50-11-00 probes.
Troubleshooting and Common Issues
Older probes often suffer from cable pull-out or tip separation. The 330141-08-50-11-00 addresses this with CableLoc and TipLoc. If readings are erratic, check the ClickLoc connector for proper engagement and ensure the probe is not exposed to temperatures below -34°C (-30°F), which can compromise the pressure seal. Use only with the specified 5 meter Proximitor to avoid scale factor errors.
