Product Overview

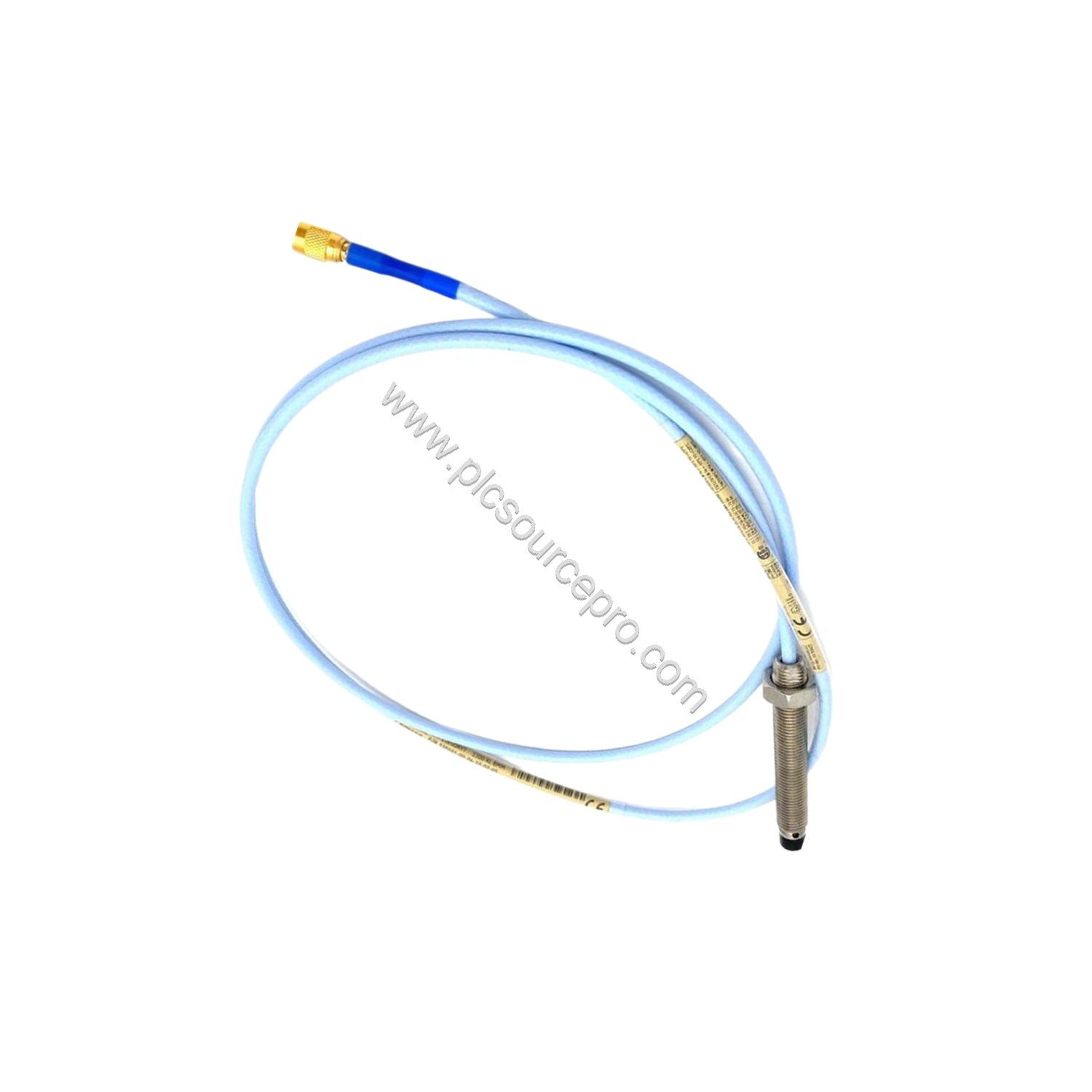

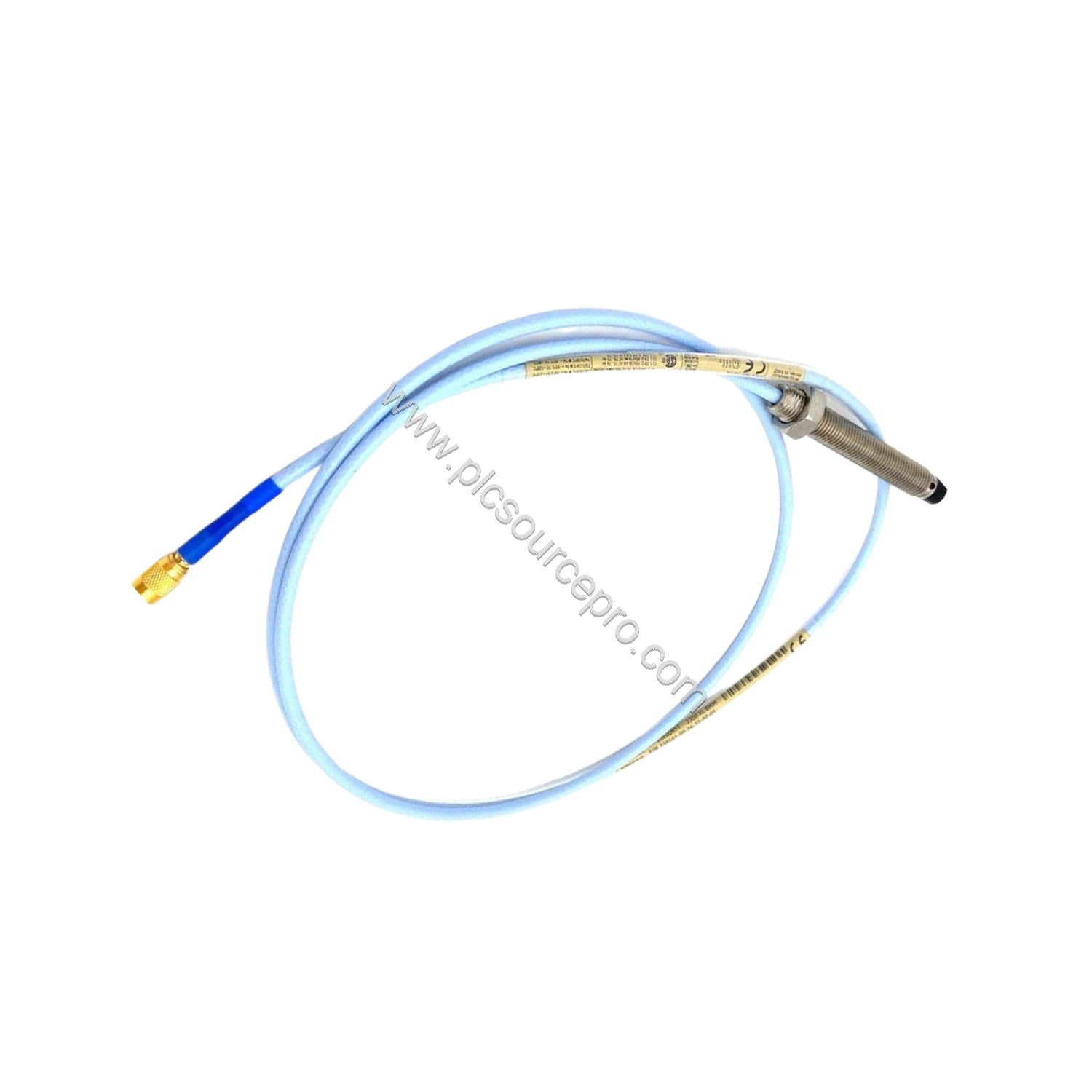

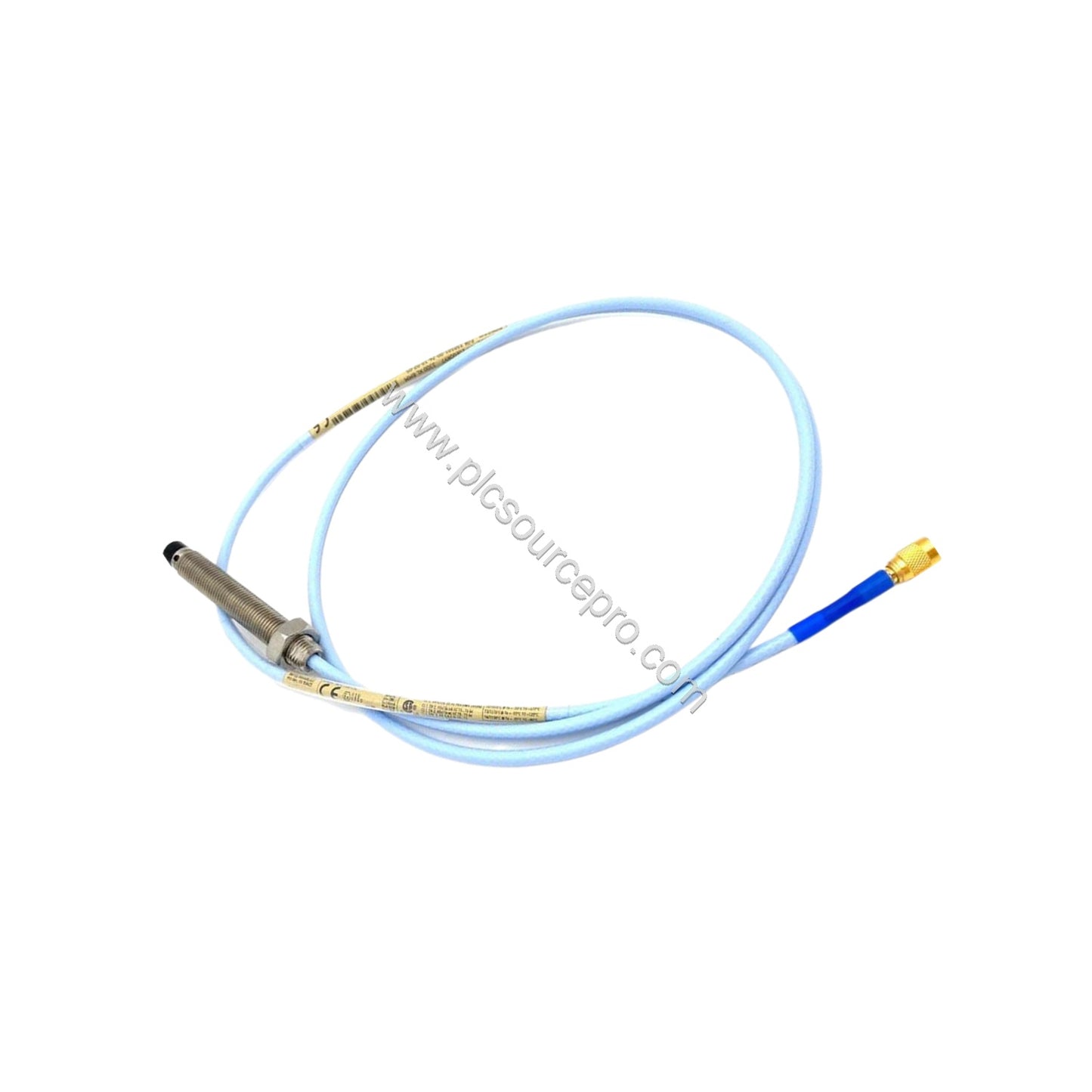

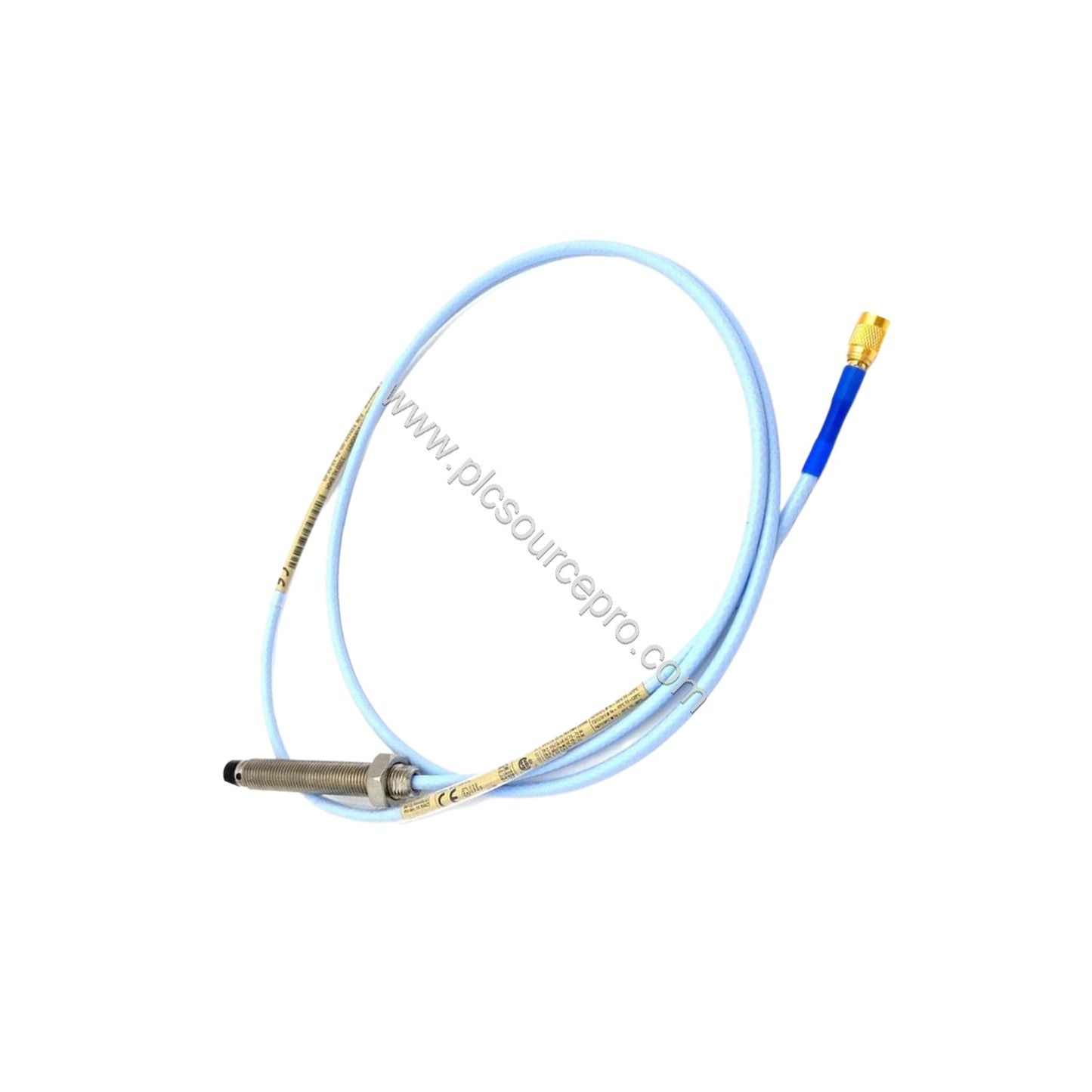

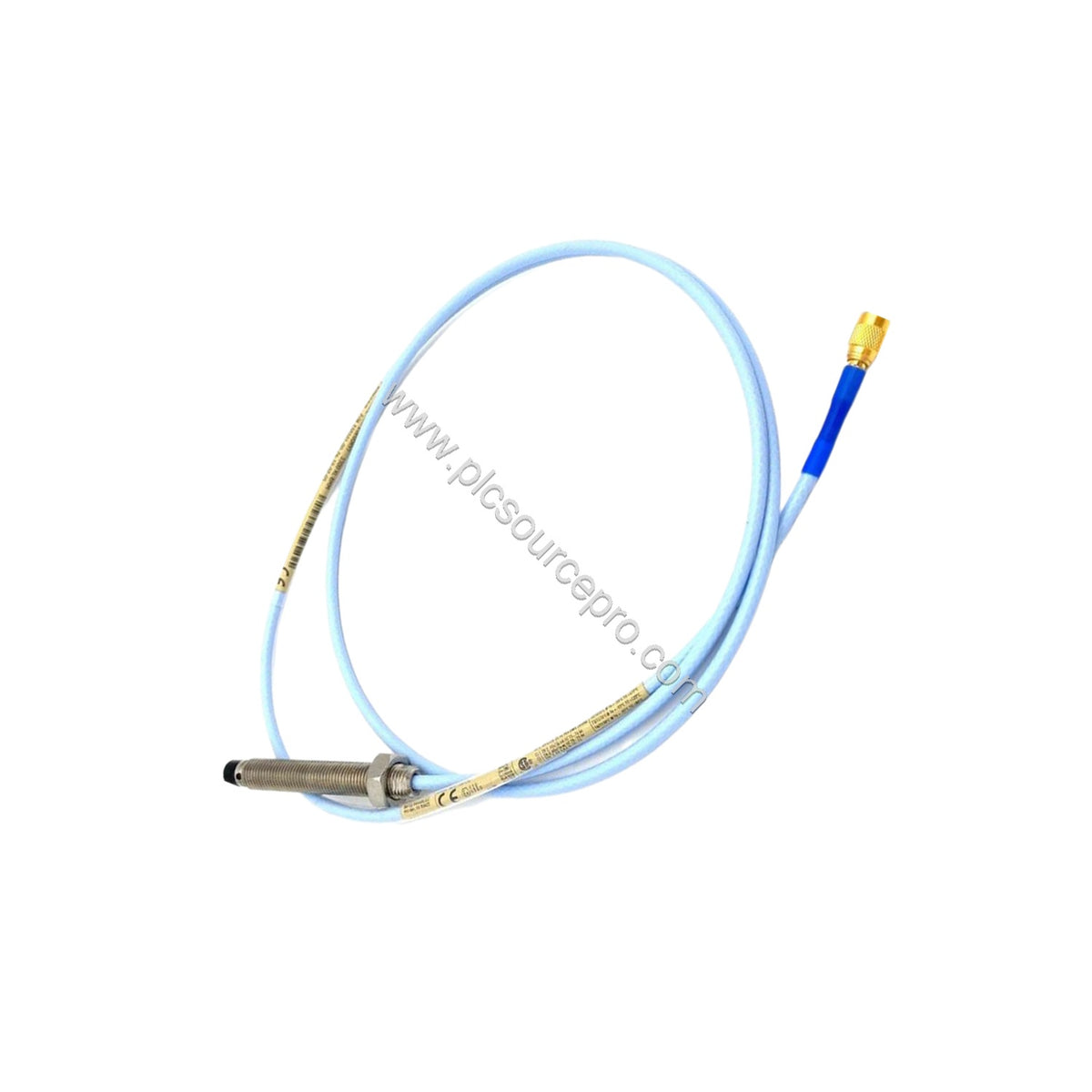

The Bently Nevada 330101-20-35-10-02-00 is a 3300 XL 8 mm Probe with a 3/8-24 UNF thread, without armor. This industrial automation module is engineered for precision vibration monitoring in rotating machinery. Built with a patented TipLoc molding method and CableLoc design, it delivers a robust bond and 330 N (75 lbf) pull strength, ensuring reliable performance in demanding environments. Made in the U.S.A., this probe is a trusted choice for critical asset protection.
Key Specifications
-
Unthreaded Length: 2.0 in (20 option)
-
Overall Case Length: 3.5 in (35 option)
-
Total Length: 1.0 meter (3.3 feet) (10 option)
-
Connector: Miniature coaxial ClickLoc connector, standard cable (02 option)
-
Linear Range: 2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils)
-
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% (1 m system)
-
Probe Tip Material: Polyphenylene sulfide (PPS)
-
Probe Case Material: AISI 303 or 304 stainless steel
-
Operating Temperature: -52°C to +177°C (standard)
Technical Specifications
| Parameter |
Value |
| Nominal Probe DC Resistance (RPROBE) |
7.59 ± 0.50 Ω (1.0 m length) |
| Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
| Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG), max 305 m (1000 ft) |
| Recommended Gap Setting (Radial Vibration) |
-9 Vdc [approx. 1.27 mm (50 mils)] |
| Deviation from Best Fit Straight Line (DSL) |
Less than ±0.025 mm (±1 mil) for 1 m system |
| Probe Weight |
323 g/m (11.4 oz) |
| Relative Humidity Effect |
<3% change in ASF at 93% RH (IEC 68-2-3) |
Industry Applications
This 330101-20-35-10-02-00 probe excels in turbomachinery, pumps, compressors, and electric motors where shaft vibration and position monitoring are critical. Its rugged 8 mm design provides a thicker PPS encapsulation, offering superior resistance to physical abuse. In high-temperature environments, the extended range option (not included) can operate up to +218°C for the tip, but this standard version handles -52°C to +177°C, suitable for most industrial settings.
Installation & Setup
Mount the probe with the 3/8-24 UNF thread into a properly tapped hole. Ensure the target surface is clean and the gap is set to approximately -9 Vdc for radial vibration measurements. Use shielded triad cable with tinned wiring, and keep field wiring length under 305 meters to avoid signal rolloff. The ClickLoc connector simplifies cable attachment, providing a secure, quick connection.
Maintenance & Reliability
The probe's stainless steel case and PPS tip resist corrosion and wear. Periodically inspect the cable and connector for damage, and verify the probe gap reading to ensure accurate measurements. Avoid exposing the probe to temperatures below -34°C, as this may damage the pressure seal. With proper care, this probe delivers long-term, dependable service, reducing downtime.
Selection Guide
Before ordering, confirm your system's required total length, thread type, and connector option. This model, 330101-20-35-10-02-00, includes a 2.0 in unthreaded length, 3.5 in case length, 1.0 meter total length, and ClickLoc connector. For assistance with compatibility, consult the Bently Nevada 3300 XL system documentation. PLC Source PRO offers genuine parts and fast shipping to keep your operations running.
