Product Overview

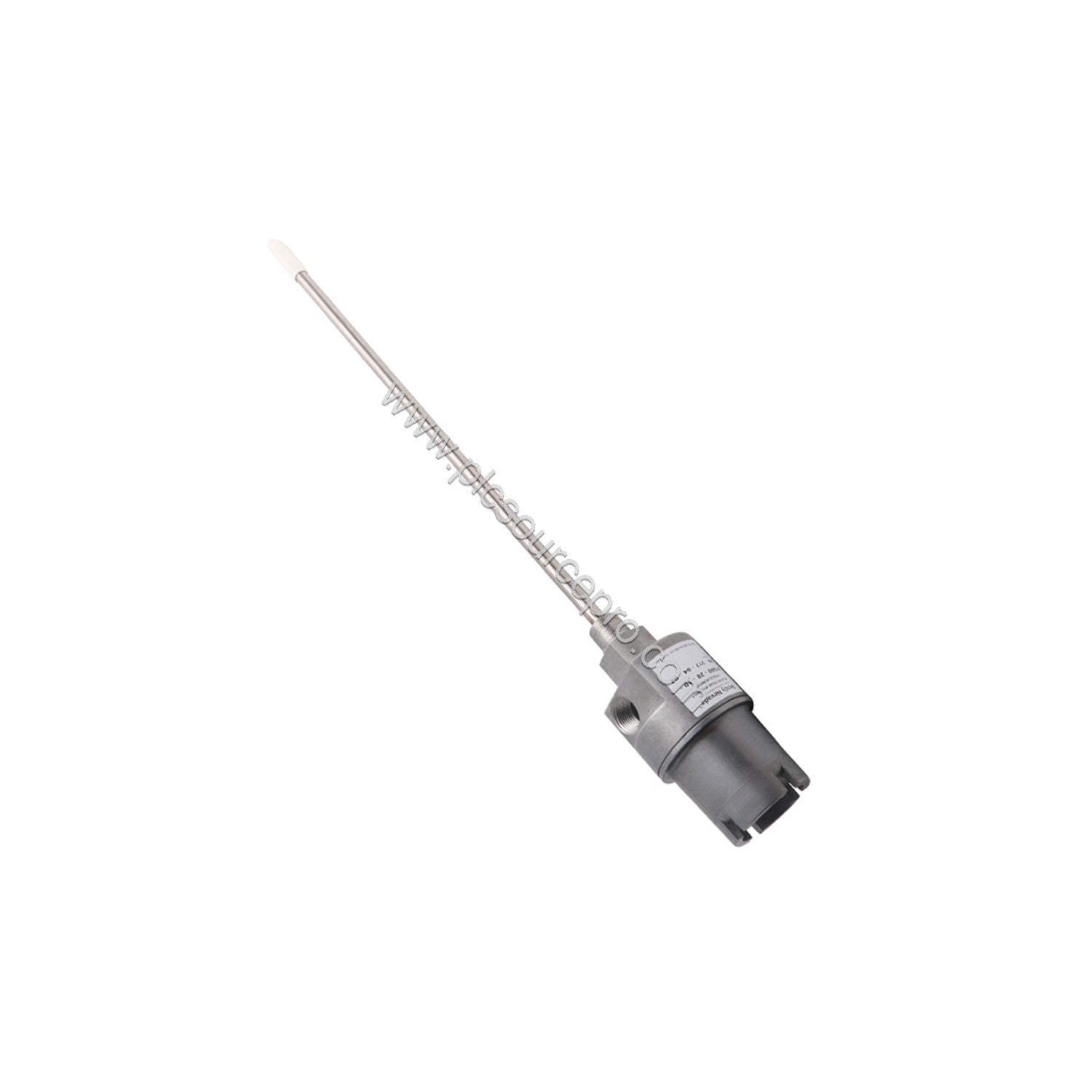

The Bently Nevada 21000-28-10-00-066-04-02 is a precision-engineered proximity probe housing assembly designed for reliable vibration and position monitoring in rotating machinery. With an aluminum body and 304 stainless steel sleeve, this housing provides robust protection for the 3300 XL 8 mm probe while maintaining accurate measurement in demanding industrial environments.
This assembly is certified as a CSA Type 4 enclosure and is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. Rated explosion-proof for hazardous areas, the 21000-28-10-00-066-04-02 ensures safe operation in potentially explosive atmospheres, making it a trusted choice for critical asset protection.
Technical Specifications
The table below lists the key specifications for the Bently Nevada 21000-28-10-00-066-04-02:
| Parameter |
Value |
| Probe with Connector |
3300 XL 8 mm probe, selectable hazardous area approvals |
| Probe Cable Length |
1.0 m (39 in) |
| Standoff Adapter Length (Option C) |
No standoff adapter (00) |
| Probe Penetration (Option D) |
6.6 in (-066) |
| Fittings Option |
One 3/4-14 NPT plug only |
| Mounting Thread Option |
3/4-14 NPT (-02) |
| Material |
Aluminum body with 304 stainless steel sleeve |
| Maximum (C)+(D) with visible probe P/N and S/N |
17.0 in (43.18 mm) |
| Maximum (C)+(D) Dimension |
29.2 in (74.2 mm) |
| Weight (typical, without fittings) |
1.1 kg (2.4 lb) |
These specifications ensure precise mounting and reliable probe positioning, essential for accurate vibration monitoring.
Industry Applications
The Bently Nevada 21000-28-10-00-066-04-02 is widely used in industries where rotating equipment reliability is critical. Common applications include:
-
Turbo-machinery monitoring – Compressors, turbines, and pumps in oil & gas and power generation facilities.
-
Paper and pulp mills – Monitoring rollers and motors to prevent unplanned downtime.
-
Chemical processing plants – Ensuring safe operation of agitators and mixers in hazardous areas.
In each scenario, the housing protects the probe from environmental contaminants while maintaining the precise gap required for accurate measurements, reducing the risk of false trips and equipment damage.
Installation & Setup Guidance
Proper installation of the 21000-28-10-00-066-04-02 is crucial for optimal performance. Follow these guidelines:
- Ensure the mounting thread (3/4-14 NPT) matches the machine case opening. Use the included NPT plug for unused conduit ports.
- Adjust the probe penetration (Option D) within the 13 mm (±0.5 in) range to achieve the desired gap. The housing allows fine adjustment for precise positioning.
- For probe penetration lengths (C + D) greater than 300 mm (12 in), install sleeve support near the probe to prevent resonance.
- If penetration is between 1.0 and 2.0 inches, consider counter-boring the machine case to reduce side-view or rear-view effects.
- Verify that the probe cable is routed without sharp bends and secured to avoid vibration damage.
Maintenance & Reliability
Regular maintenance of the housing assembly extends its service life and ensures consistent monitoring. Key practices include:
- Periodically inspect the O-rings and thread seal for wear; replace them if damaged to maintain the explosion-proof rating.
- Check the dome cover for tightness and the conduit connections for moisture ingress.
- Clean the probe tip and surrounding area to prevent debris from affecting measurements.
- Verify the cable integrity and connections during routine shutdowns.
These steps help avoid unexpected failures and minimize costly downtime, making the 21000-28-10-00-066-04-02 a cost-effective choice for long-term asset protection.
Selection Guide & Purchasing Advice
When selecting a replacement or new housing assembly, confirm the following:
- Verify the probe type (3300 XL 8 mm) and cable length (1.0 m) match your existing system.
- Ensure the mounting thread (3/4-14 NPT) and fittings (one plug) are compatible with your installation.
- Check the probe penetration length (6.6 in) against your machine's clearance and measurement requirements.
PLC Source PRO offers this Bently Nevada 21000-28-10-00-066-04-02 in new, original factory packaging with a 12-month warranty, ensuring you receive a genuine, reliable component for your critical monitoring system.
