Product Overview

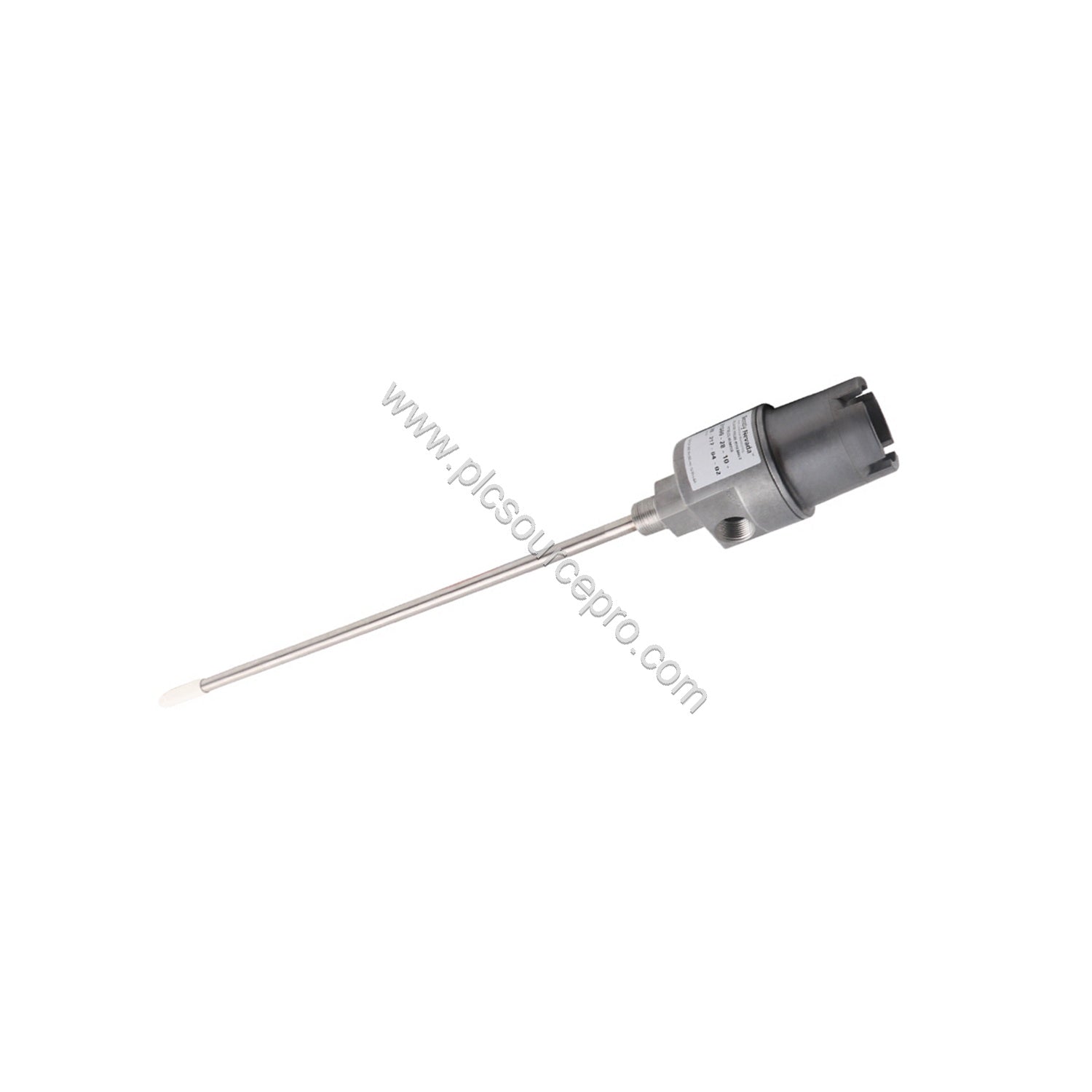

The Bently Nevada 21000-16-05-15-084-03-02 is a precision-engineered Proximity Probe Housing Assembly designed for reliable vibration monitoring in rotating machinery. This industrial automation module ensures accurate clearance measurements in demanding environments.
Key Specifications
| Specification |
Detail |
| Probe Option |
3300 XL 8 mm probe with connector |
| Probe Cable Length |
0.5 m (20 in) |
| Standoff Adapter |
1.5 in |
| Probe Penetration |
8.4 in |
| Fitting Option |
One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, one cable seal grip with grommets for cable sizes 1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in |
| Mounting Thread |
3/4-14 NPT |
| Material |
Aluminum body with 304 stainless steel sleeve |
| Maximum (C) + (D) Dimension |
13.5 in (34.3 mm) |
| Weight |
1.1 kg (2.4 lb) typical, without fittings |
Applications
This housing assembly is ideal for use in turbines, compressors, pumps, and other rotating equipment where precise shaft vibration and position monitoring are critical. The 21000-16-05-15-084-03-02 provides robust protection for the proximity probe, ensuring consistent performance even in hazardous areas.
Installation & Setup

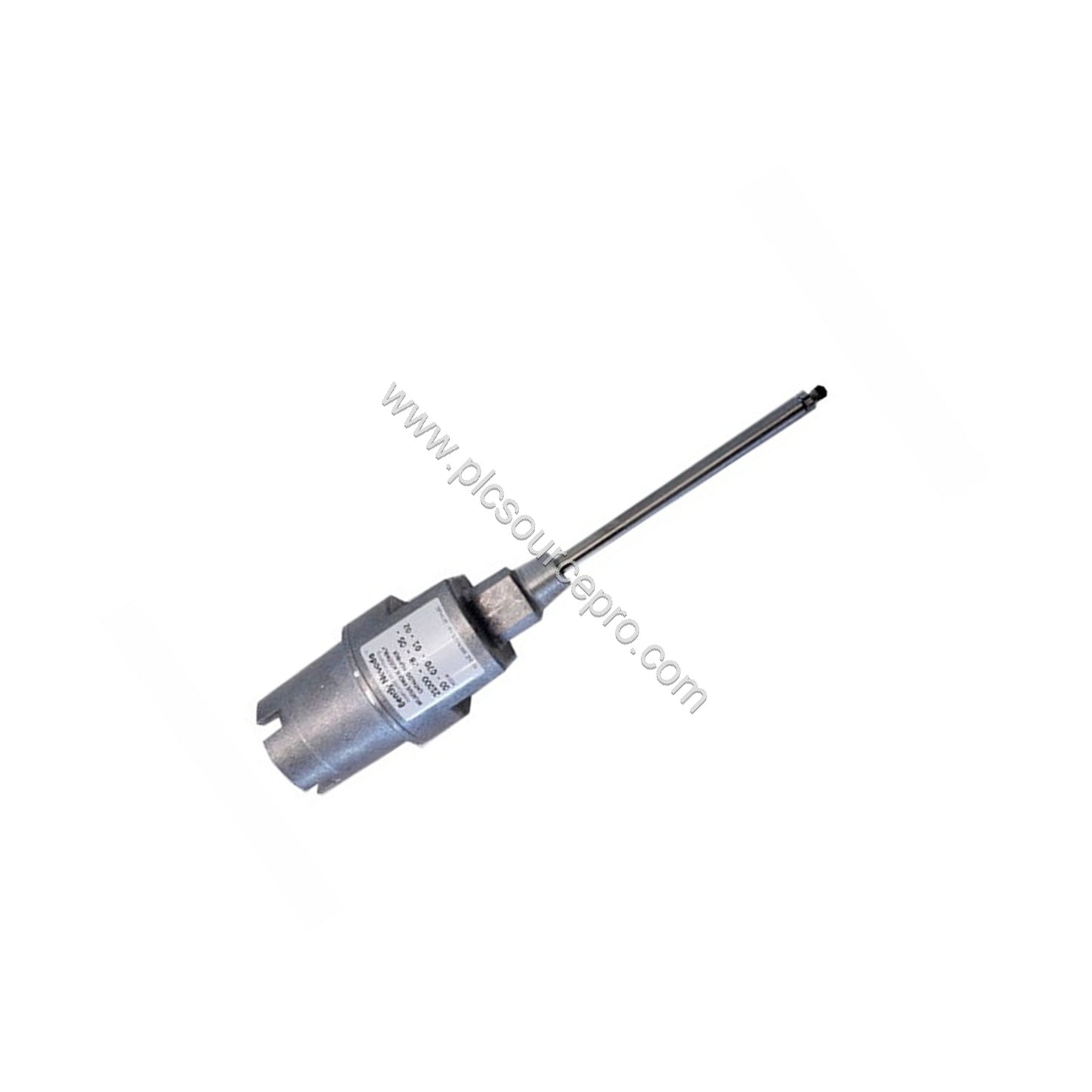

When installing the Bently Nevada 21000-16-05-15-084-03-02, ensure the mounting thread (3/4-14 NPT) is properly engaged. The standoff adapter (1.5 in) must be correctly positioned to achieve the desired probe penetration (8.4 in). Use the provided cable seal grip with appropriate grommets to maintain a secure, moisture-resistant seal.
Maintenance & Reliability
Regular inspection of the housing and seals is recommended to maintain long-term reliability. The aluminum body with 304 stainless steel sleeve offers excellent corrosion resistance. Periodic checks of the probe cable and connectors help prevent signal degradation.
Compliance & Standards
The 21000 and 24701 housings are CSA approved and rated explosion proof for hazardous areas. They are certified as CSA Type 4 enclosures and fully comply with API 670 Standard for externally mounted proximity probe housings.
Selection Guide
When selecting a replacement or new housing, verify the specific suffix codes match your requirements. For expert assistance, consider PLC Source PRO as a reliable supplier of genuine Bently Nevada components.
