Product Overview

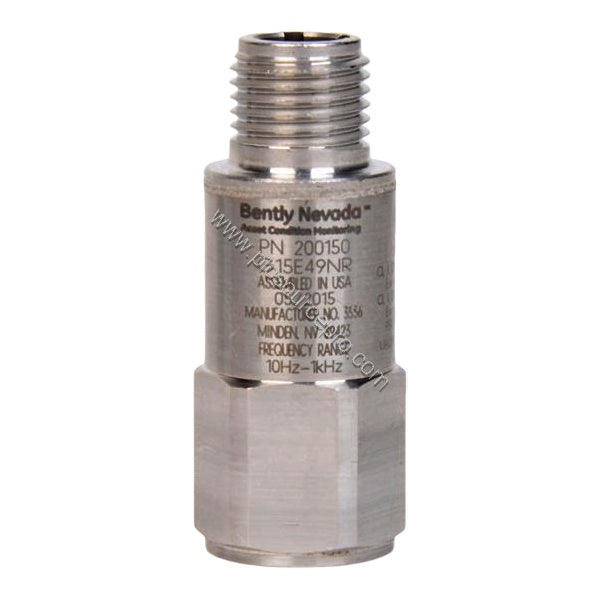

The Bently Nevada 200155-15-05 is a Low Frequency Trendmaster Pro Accelerometer designed for reliable vibration monitoring in industrial automation environments. This industrial automation module excels in applications involving fin-fan cooling systems and slow rotating shafts, where precise low-frequency measurement is critical. Manufactured in the U.S.A., the 200155-15-05 delivers exceptional performance and durability.
With a mounting stud option of 3/8-24 to 3/8-16 UNC and a 3/4 inch hex stud, this accelerometer ensures secure installation. The multiple approvals (CSA, ATEX, and IECEx) make it suitable for hazardous locations, providing peace of mind in demanding settings.
Key Specifications
| Parameter |
Value |
| Sensitivity @ 80 Hz (±12%) |
10.2 mV/(m/s²) (100 mV/g) |
| Measurement Range (Acceleration) |
±196 m/s² (±20 g) |
| Measurement Range (Velocity) |
24.5 mm/s² (2.5 mg) |
| Frequency Range (Referenced to 80 Hz, ±10%) |
1.5 to 10,000 Hz (90 to 600,000 cpm) |
| Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
| Amplitude Linearity (1 to 10 g pk) |
±2% |
| Transverse Sensitivity |
≤7% |
| Settling Time (Within 5% of Bias) |
≤2000 ms |
| Excitation Voltage |
4.7 to 5.5 Vdc |
| Polarity (Acceleration from Base to Connector) |
SIG+ positive with respect to SIG- |
| Quiescent Current |
<800 µA |
| Output Bias Voltage |
+2.5 ± 0.23 Vdc |
| Axial Shock Limit |
49,050 m/s² pk (5,000 g pk) |
| Temperature Range (Operating) |
-40 ºC to +105 ºC (-40 ºF to +221 ºF) |
| Sealing (Hermetic) |
5X10⁻⁸ atm•cc/s (3.1X10⁻⁹ atm•in³/s), maximum |
| Relative Humidity |
100% relative, condensing, non-submerged |
| Size (Hex x Height) |
17.5 mm x 45.7 mm (11/16 in x 1.8 in) |
| Weight |
58 g (2.0 oz), typical |
| Mounting Thread |
3/8-24 female |
| Mounting Torque |
2.7 to 6.8 N•m (2 to 5 ft•lbf) |
| Sensing Element |
Ceramic |
| Sensing Geometry |
Shear |
| Housing and Connector Material |
316L stainless steel |
Industry Applications
This accelerometer is engineered for low-frequency vibration monitoring on fin-fan cooling systems and slow rotating shafts. These assets often operate at speeds below 600 RPM, generating vibrations in the 1.5 to 10,000 Hz range, which the 200155-15-05 captures with high fidelity. The Bently Nevada 200155-15-05 excels in:
- Cooling tower fin-fan monitoring
- Paper machine rolls and dryer sections
- Centrifugal pumps and compressors with slow-speed shafts
- Generators and turbines in low-speed auxiliary drives
By providing accurate data on machinery health, this module supports predictive maintenance strategies, reducing unplanned downtime.
Installation & Setup
Proper mounting is essential for accurate readings. Follow these guidelines for the Bently Nevada 200155-15-05:
-
Surface Preparation: Ensure the mounting surface is flat, clean, and free of paint or debris.
-
Mounting Torque: Tighten the stud to 2.7 to 6.8 N•m (2 to 5 ft•lbf) to achieve a solid mechanical connection.
-
Stud Orientation: The mounting stud option (3/8-24 to 3/8-16 UNC, 3/4 inch hex) provides flexibility for various bracket configurations.
-
Cable Routing: Route cables away from high-temperature surfaces and moving parts to prevent damage.
-
Excitation Voltage: Ensure the power supply provides 4.7 to 5.5 Vdc to the accelerometer.
Maintenance & Reliability
The 200155-15-05 is built to withstand harsh industrial environments. Its 316L stainless steel housing and hermetic sealing protect against moisture and contaminants. However, routine checks are recommended:
- Inspect the mounting stud for loosening due to vibration.
- Check cable integrity for cuts or abrasion.
- Verify the output bias voltage remains within +2.5 ± 0.23 Vdc.
With proper care, this accelerometer delivers long-term reliability, minimizing lifecycle costs.
Selection Guide
When selecting a replacement or new accelerometer, verify the model number 200155-15-05 matches your system requirements. This module is specifically designed for use with the ProTIM option for Low Frequency Acceleration-to-Velocity channel type (-05). Confirm compatibility with your existing monitoring hardware. For expert assistance and genuine parts, consider PLC Source PRO as your trusted supplier.
