Product Overview

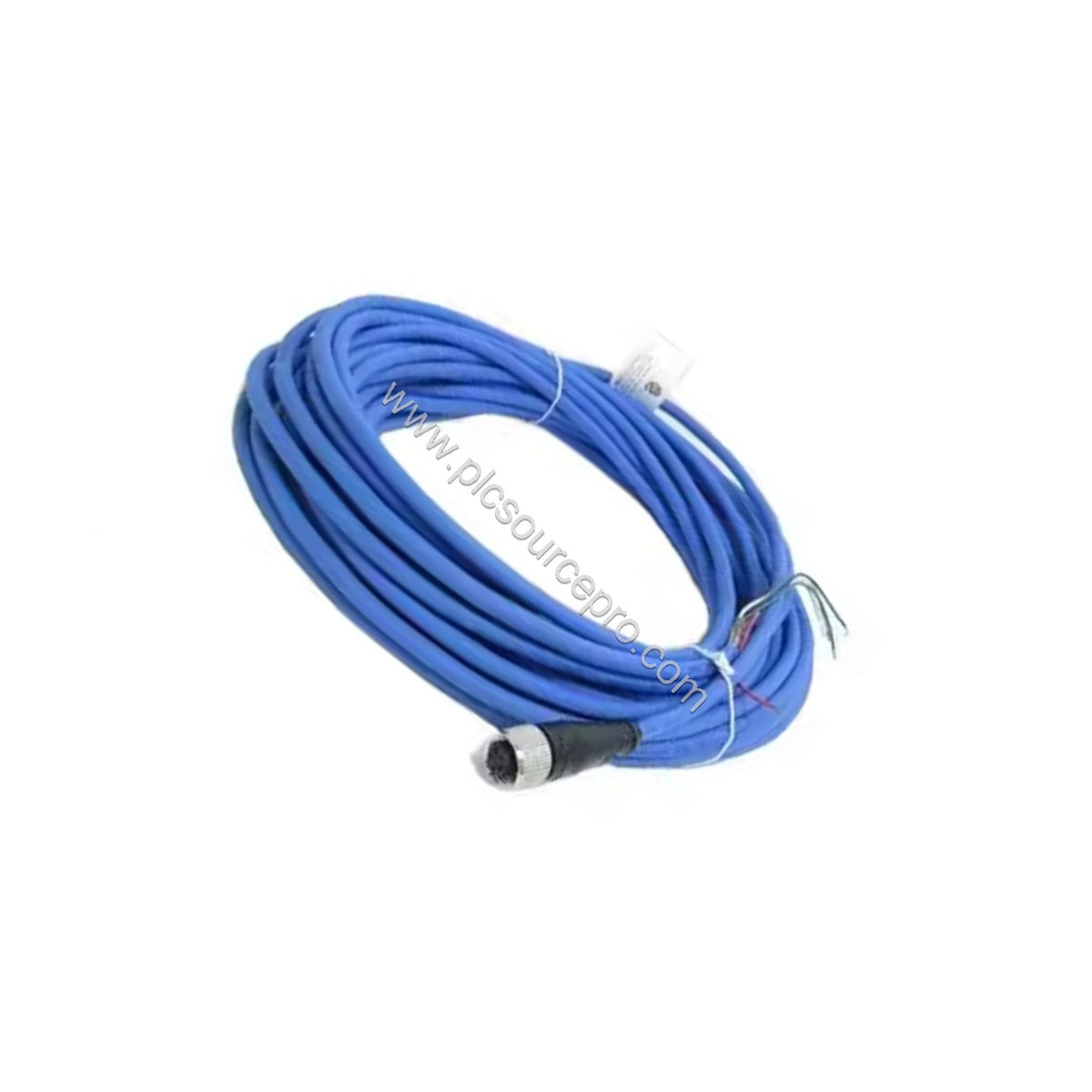

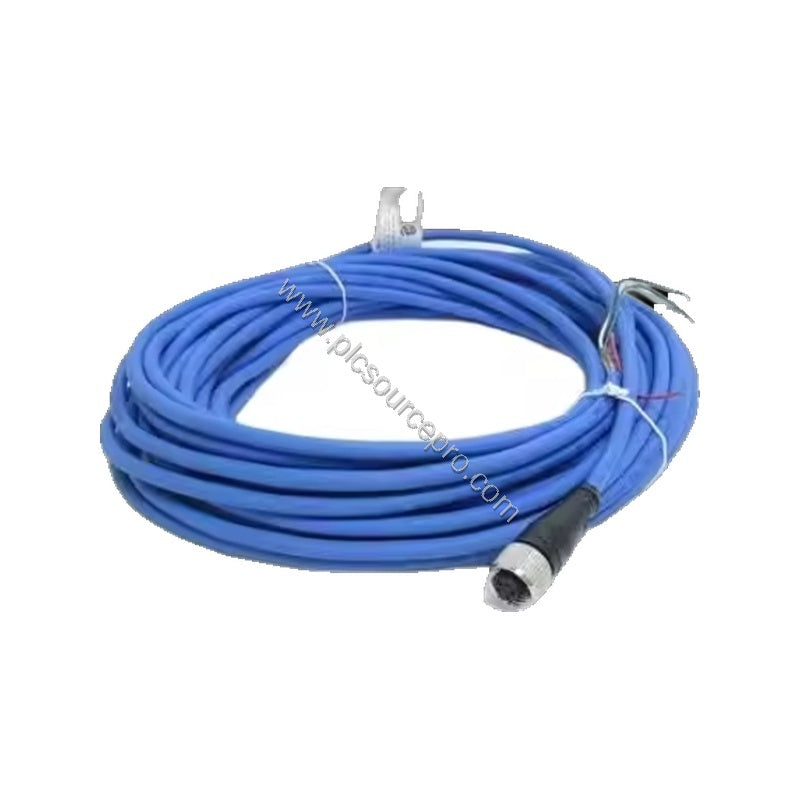

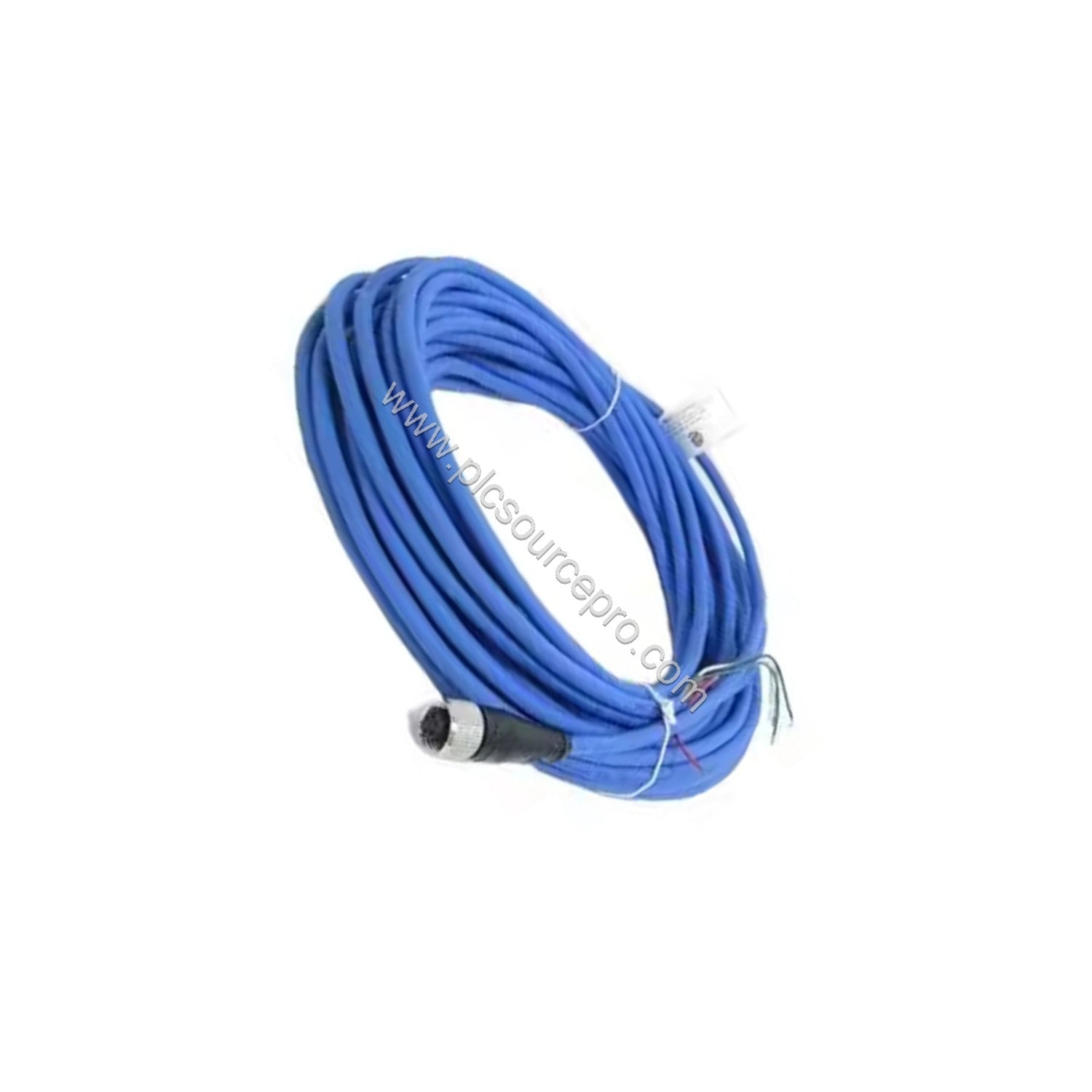

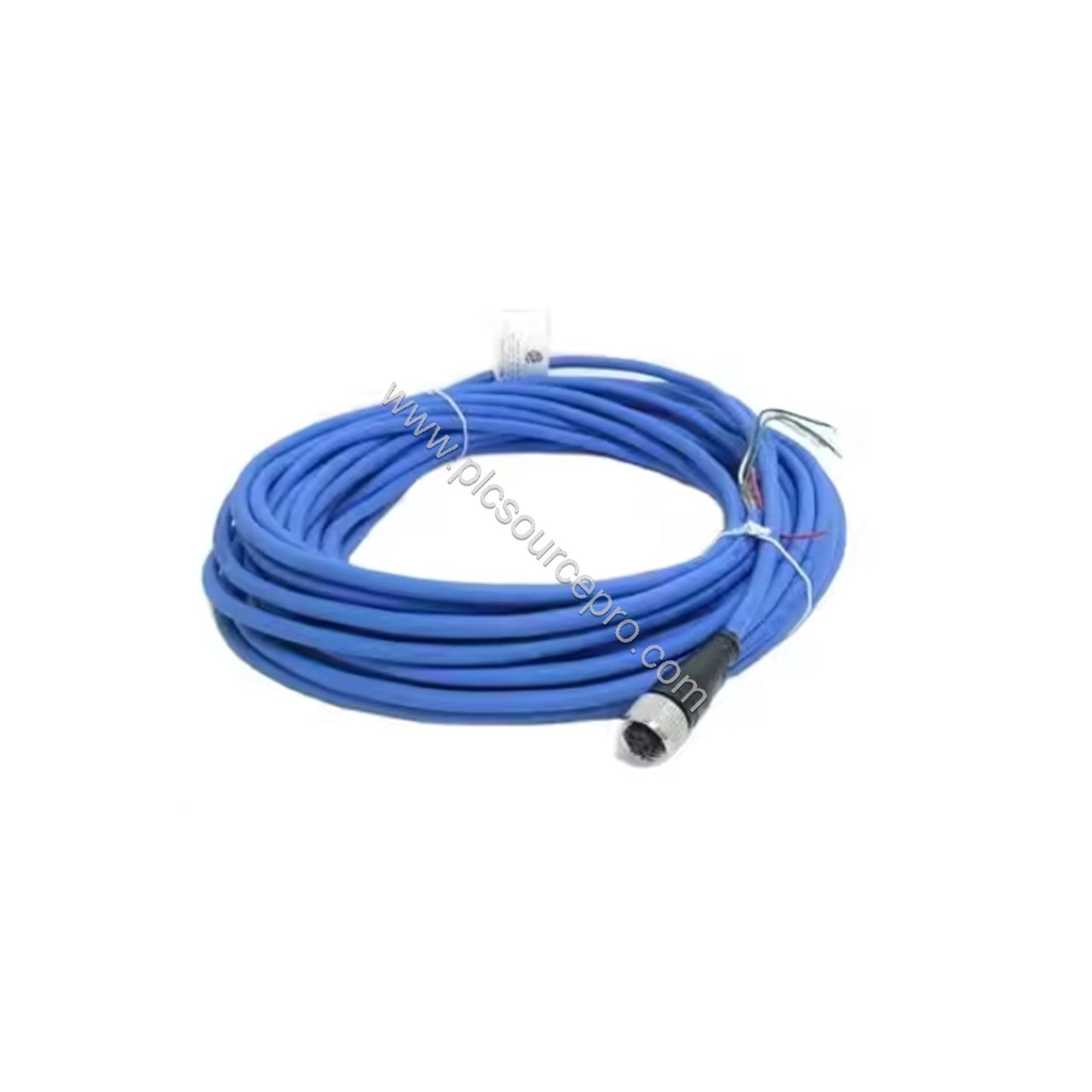

The Bently Nevada 200152-15-CN is a precision-engineered Accelerometer Interface Standard Cable designed for reliable vibration monitoring in demanding industrial environments. This 15-meter cable, part of the 200151 series, features a connector on the accelerometer end only and a country-specific coupling nut (-CN). It delivers dependable signal transmission for critical rotating machinery, ensuring accurate data for predictive maintenance and asset protection.
Technical Specifications
-
Model: 200151 - Accelerometer Interface Standard Cable, Connector on Accelerometer End Only
-
Cable Length: 15 meters
-
Coupling Nut: -CN (Country Specific)
-
Minimum Bend Radius: 73.7 mm (2.9 in)
-
Operating Temperature Range: -20 ºC to +100 ºC (-4 ºF to +212 ºF)
-
Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts
-
Seal: Connectors provide an IP67 seal to transducers and mating hardware; molded connectors; DC4 electrical insulating compound added for moisture protection during thermal shock
-
Temperature Range (for DC4 compound): -55 ºC to +121 ºC (-67 ºF to +250 ºF)
-
Cure Time (for DC4 compound): 24 hours
Key Benefits & Applications
The Bently Nevada 200152-15-CN cable excels in harsh conditions, thanks to its robust construction and IP67 sealing. The braided shield minimizes electromagnetic interference, preserving signal integrity for accurate vibration data. Ideal for use in:
- Rotating machinery monitoring in power generation plants
- Pump and compressor vibration analysis in oil and gas facilities
- Condition monitoring in manufacturing and processing industries
With a 15-meter length and country-specific coupling nut, this cable offers flexibility for installations where standard lengths fall short, ensuring a secure and reliable connection.
Installation & Setup Guidance
Proper installation is critical for optimal performance. Observe the minimum bend radius of 73.7 mm to prevent cable damage. Avoid flexing the cable at temperatures below -20 ºC (-4 ºF) as this may cause damage; if lower temperatures are unavoidable, ensure the cable is not flexed or bent. Tighten coupling nuts securely to achieve the IP67 seal, protecting against moisture and contamination.
Maintenance & Reliability
Regularly inspect the cable for cuts, abrasions, or kinks, especially near connection points. Verify that coupling nuts remain tight to maintain the IP67 seal. The molded connectors and DC4 insulating compound provide long-term reliability even under thermal shock conditions. By following these simple checks, you can extend service life and avoid unexpected downtime.
Selection Guide & Purchasing Advice
Before ordering, confirm your required cable length and coupling nut configuration. The 200152-15-CN is designed for accelerometer end connection only; ensure compatibility with your transducer and instrumentation. For expert assistance and genuine Bently Nevada parts, trust PLC Source PRO as your reliable supplier.
