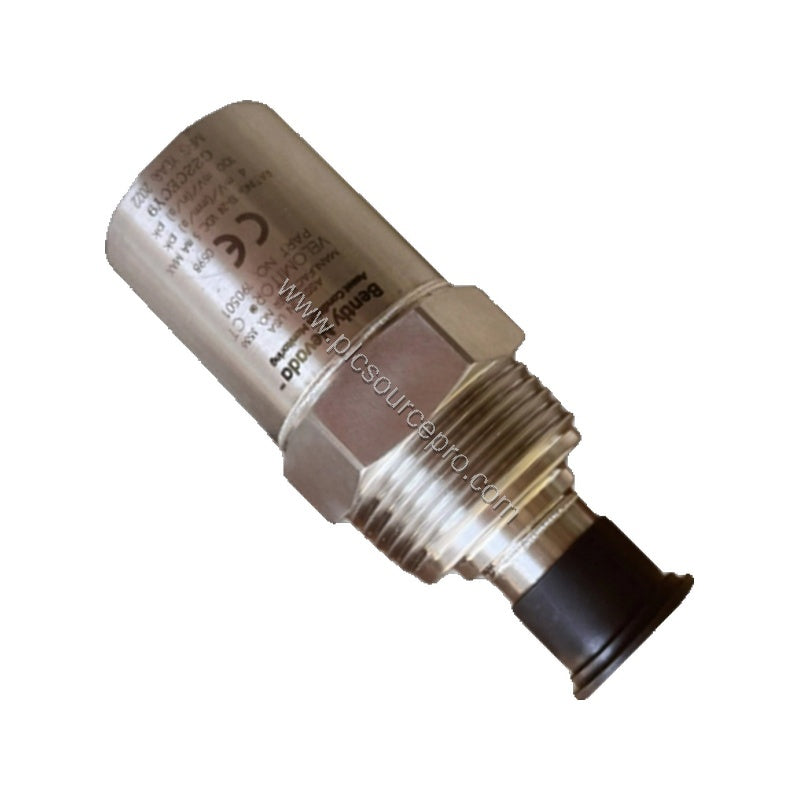

Product Overview
The Bently Nevada 190501-02-00-01 is a high-performance Velomitor CT Velocity Transducer designed for precise vibration monitoring in critical rotating machinery. As a key component of predictive maintenance systems, this industrial automation module delivers accurate velocity measurements essential for detecting imbalance, misalignment, and bearing wear before they lead to costly failures.
Manufactured in the U.S.A., the 190501-02-00-01 features a 316L stainless steel case and a 2-pin MIL-C-5015 connector, ensuring durability in harsh industrial environments. With agency approvals including CSA/NRTL/C (Class I, Division 1) and ATEX/IECEx/CSA (Class I, Zone 0/1), this transducer is certified for use in explosive atmospheres, making it a reliable choice for oil & gas, petrochemical, and power generation facilities.
Technical Specifications
The 190501-02-00-01 offers outstanding performance metrics, as detailed below:
-
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
-
Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB; 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
-
Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
-
Dynamic Output Impedance: <400 Ω typical
-
Broadband: 0.229 mm/s (0.009 in/s) pk
-
Base Strain Sensitivity: 0.43 mm/s/μstrain (0.017 in/s/μstrain)
-
Maximum Cable Length: 305 metres (1,000 ft.) of cable (part number 02173006) with no degradation of signal
-
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
-
Storage Temperature: -40°C to +100°C (-40°F to +212°F)
-
Shock Limit: 5000 g pk, maximum
-
Humidity Limit: 100% condensing, non-submerged
-
Magnetic Field Susceptibility: <0.0068 mm/s/gauss (0.268 mil/s/gauss) @ 50 gauss, 50-60Hz
-
Weight: <297 g (10.5 oz.), typical
-
Mounting Surface: 33 mm diameter (1.3 in diameter)
-
Height: 82 mm (3.2 in)
-
Case Material: 316L stainless steel
-

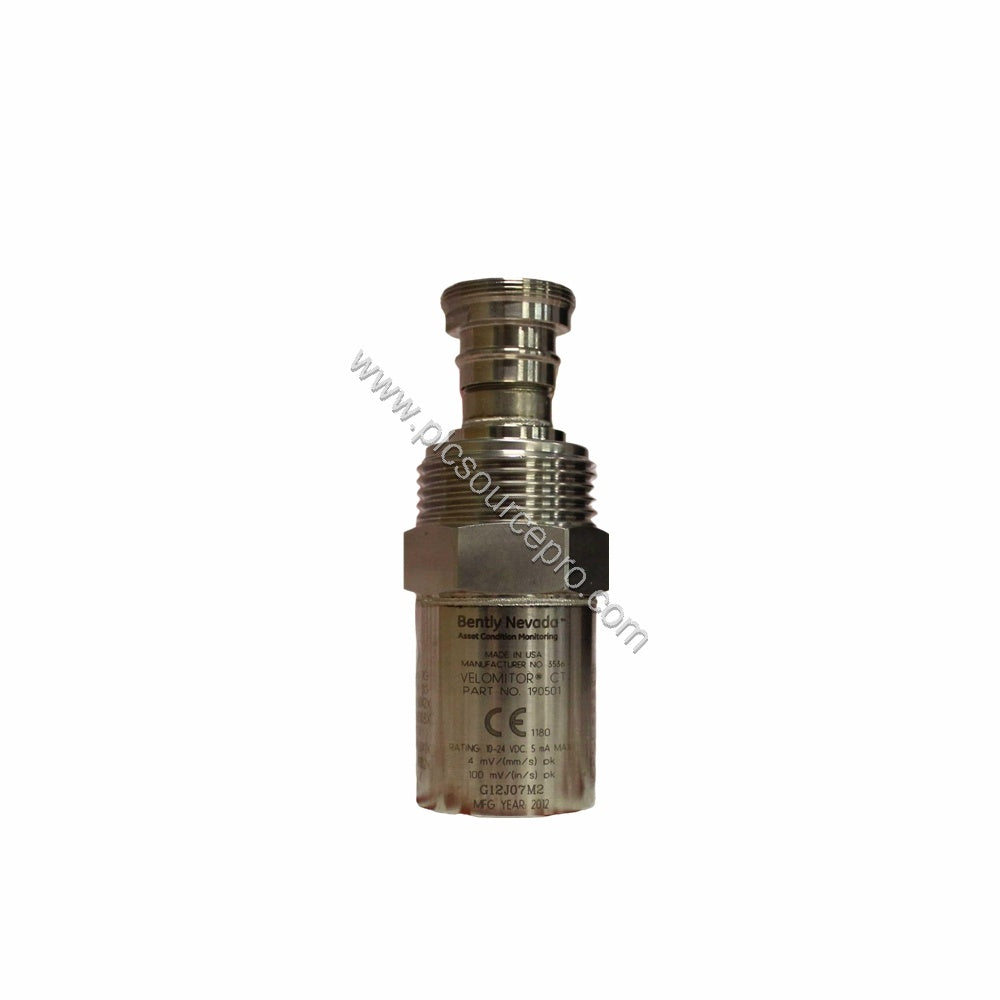

Connector: 2-pin 316L stainless steel MIL-C-5015, top
-
Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf)
-
Polarity: Pin A goes positive with respect to Pin B when velocity is from base to top of the transducer
-
Mounting Angle: Any orientation
Intrinsic Safety Approvals (Agency Approval Options 01 through 04):
-
Intrinsically Safe: Ex ia IIC T4; Class I, Div 1, Groups A, B, C, D; Class II, Group E, F and G; Class III; AEx ia IIC T4; Install per drawing 167536; T4 @ -40°C ≤ Ta ≤ +100°C
-
Intrinsically Safe and NonIncendive: Ex nL IIC T4; Class I, Division 2, Groups A, B, C and D; AEx nA T4; Install per drawing 167536; T4 @ -40°C ≤ Ta ≤ +100°C
Industry Applications
The 190501-02-00-01 excels in demanding environments where reliable vibration monitoring is critical. Typical applications include:
-
Rotating Machinery Monitoring: Pumps, compressors, fans, and motors in continuous process industries.
-
Predictive Maintenance Programs: Integrating with condition monitoring systems to schedule maintenance based on actual machine condition, reducing unplanned downtime.
-
Hazardous Area Installations: With its intrinsic safety certifications, the transducer is suitable for use in explosive atmospheres, ensuring safe operation in oil & gas and chemical plants.
By providing accurate velocity data, the 190501-02-00-01 enables early detection of mechanical faults, allowing maintenance teams to act before minor issues escalate into major failures. This proactive approach significantly improves asset reliability and extends equipment life.
Installation & Setup Guidance
Proper installation is essential for optimal performance. Follow these guidelines:
-
Mounting: The transducer can be mounted in any orientation. Use a stud mounting (3/8-in 24 to 1/2-in 20) for secure attachment. Ensure the mounting surface is clean and flat to achieve proper contact.
-
Torque: Apply a mounting torque of 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf) to avoid over-torquing, which can damage the housing or affect sensitivity.
-
Connector: The 2-pin MIL-C-5015 connector must be properly mated and locked to prevent signal loss. Use the specified cable (part number 02173006) for maximum signal integrity.
-
Cable Routing: Keep cable runs away from high-voltage lines and electromagnetic interference sources. The maximum cable length is 305 metres (1,000 ft.) with no signal degradation.
-
Polarity: Ensure correct wiring: Pin A goes positive with respect to Pin B when velocity is from base to top of the transducer. Verify the output bias voltage (10.1 Vdc ± 1.0 Vdc) at the monitoring system.
Maintenance & Reliability
The 190501-02-00-01 is built for long-term reliability, but routine checks help ensure consistent performance:
-
Periodic Inspection: Inspect the mounting stud and connector for signs of loosening or corrosion. Re-torque if necessary within the specified range.
-
Cable Integrity: Check the cable for cuts, abrasion, or moisture ingress, especially in harsh environments. Replace if damaged.
-
Environmental Resistance: The 316L stainless steel case withstands corrosive atmospheres and can operate in 100% condensing humidity (non-submerged).
-
Shock and Vibration: The transducer handles shock up to 5000 g pk, making it resilient to transient impacts.
Regular maintenance minimizes the risk of false readings and extends the service life of the transducer, contributing to lower total cost of ownership.
Selection Guide & Purchasing Advice
When selecting a replacement or new transducer, verify the following:
-
Model Number: Confirm the exact part number 190501-02-00-01 to ensure compatibility with your monitoring system.
-
Mounting Hardware: This configuration includes a stud mount (3/8-in 24 to 1/2-in 20). Ensure your installation site matches this requirement.
-
Connector Type: The MIL-C-5015 connection interface is standard; verify your cable assembly matches.
-
Agency Approvals: The approval option 01 provides CSA/NRTL/C (Class I, Division 1) and ATEX/IECEx/CSA (Class I, Zone 0/1) certifications. Confirm these meet your facility's safety requirements.
For reliable sourcing, choose PLC Source PRO as your supplier. We offer genuine Bently Nevada components with verified specifications to ensure your operations run smoothly.
