Product Overview

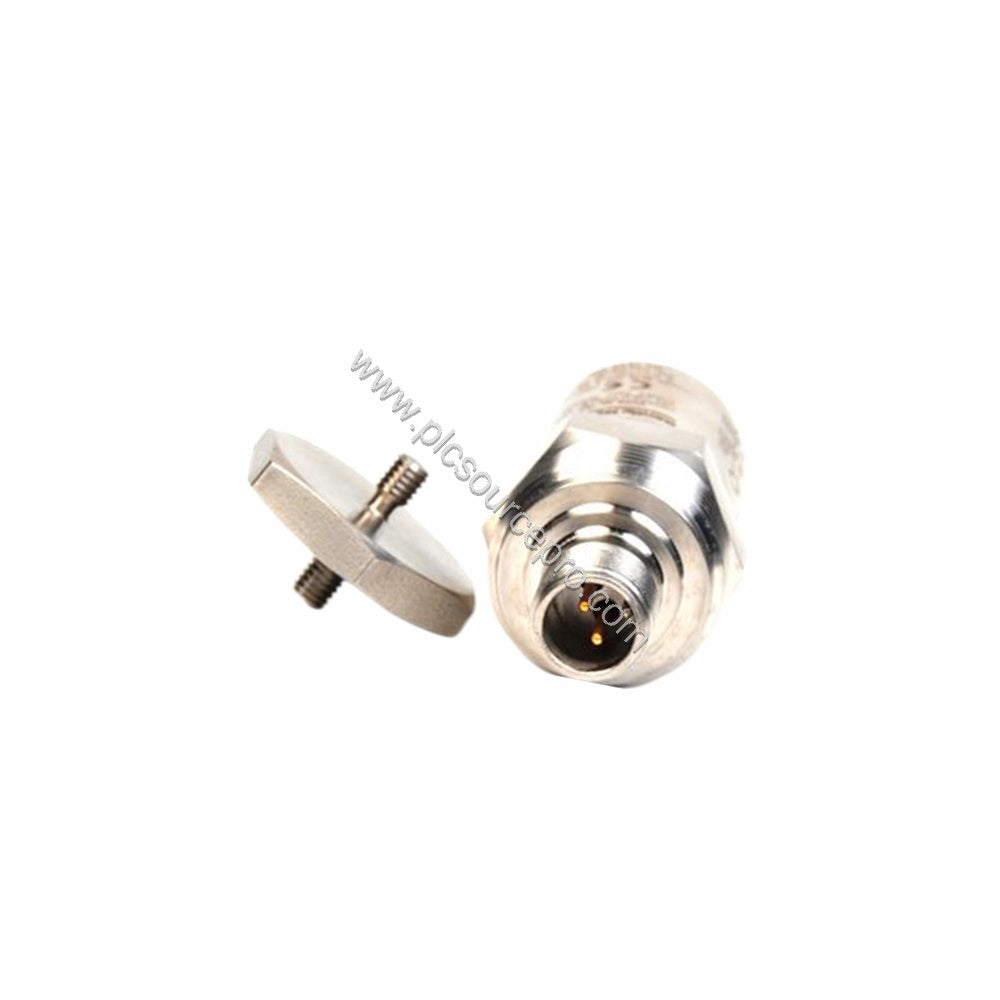

The Bently Nevada 190501-01-99-CN is a Velomitor CT Velocity Transducer designed for industrial vibration monitoring. This Industrial Automation Module delivers accurate velocity measurements in rotating machinery, helping you detect mechanical issues before they escalate. Built in the U.S.A., this sensor is engineered for reliability in demanding environments.
Technical Specifications
Key performance parameters for the 190501-01-99-CN include:
-
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
-
Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB; 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
-
Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
-
Mounted Resonant Frequency: 9 kHz minimum (stud mounted, except quick disconnect)
-
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
-
Shock Limit: 5000 g pk, maximum
-
Case Material: 316L stainless steel
-
Weight: <297 g (10.5 oz.), typical
Industry Applications
This transducer suits critical machinery in power generation, oil and gas, and manufacturing. For example, in a steam turbine train, the 190501-01-99-CN monitors bearing housing vibration to warn of imbalance or misalignment. In a paper mill, it tracks roll and motor vibration to schedule maintenance proactively. The wide frequency response and robust construction make it ideal for continuous duty.
Installation & Setup Guidance

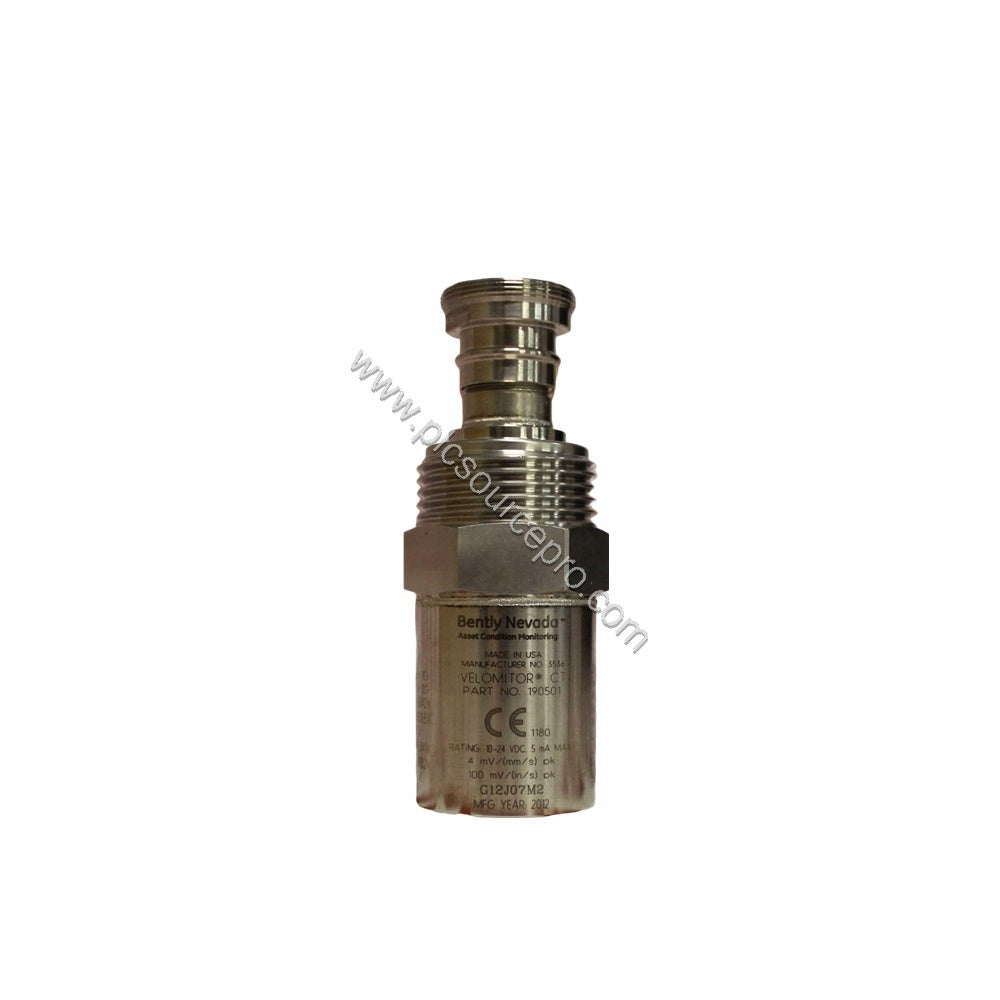

Mount the 190501-01-99-CN using the 3/8-in-24 stud option provided. Apply the recommended mounting torque of 4.5 N·m ± 0.6 N·m (40 in–lbf ± 5 in-lbf) to ensure proper coupling. The transducer can be mounted in any orientation, simplifying installation. Connect the included 32-foot cable (or up to 305 meters of cable part number 02173006) without signal degradation. Verify that Pin A goes positive with respect to Pin B when velocity is from base to top, confirming correct polarity.
Maintenance & Reliability
The sealed 316L stainless steel case and internal electronics isolated from the case provide excellent durability. With no moving parts, the 190501-01-99-CN requires minimal maintenance. Periodically inspect the mounting stud for tightness and check the cable for wear or damage. The unit withstands 100% condensing humidity and up to 5000 g shock, ensuring long service life even in harsh conditions.
Selection Guide & Purchasing Advice
Before purchasing, verify your mounting and connection requirements. This model includes a stud mount and a 32-foot cable, with the CN agency approval option. For other mounting or cable options, consider alternative part numbers. PLC Source PRO offers genuine Bently Nevada parts and can help you confirm compatibility with your monitoring system. Order the 190501-01-99-CN today to ensure reliable vibration monitoring.
