Product Overview

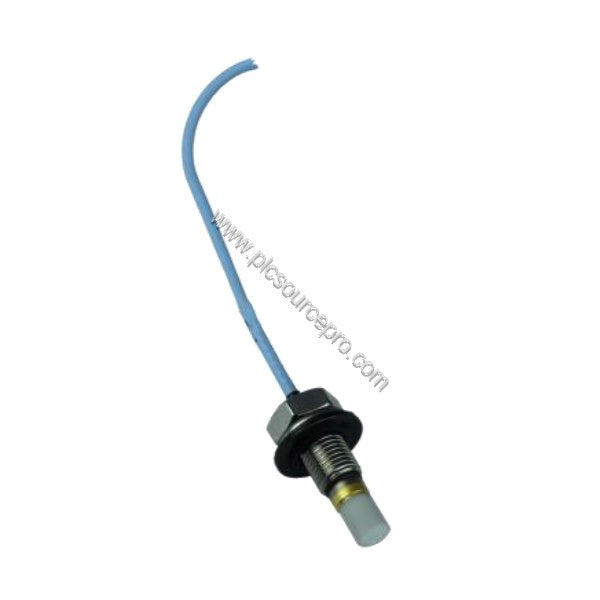

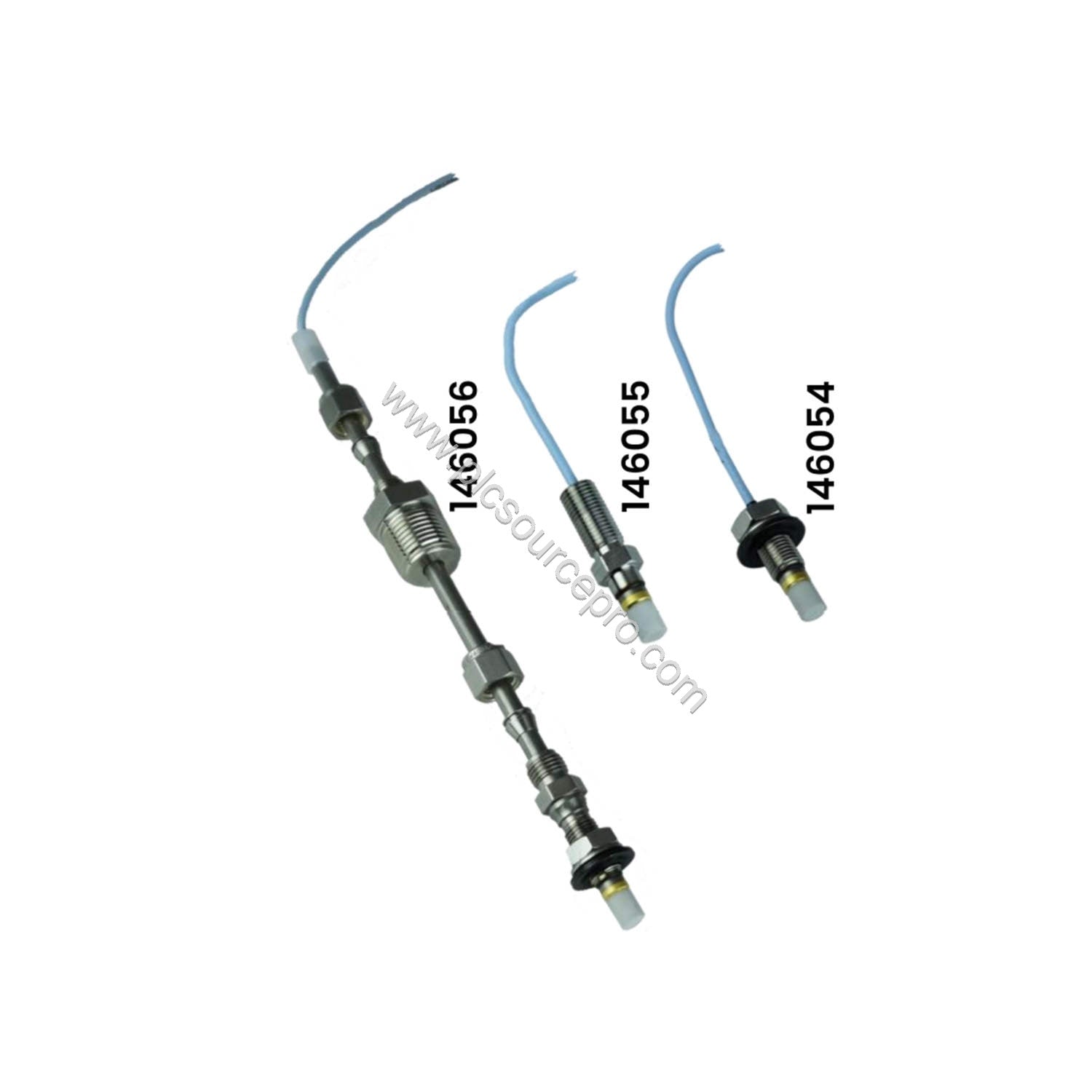

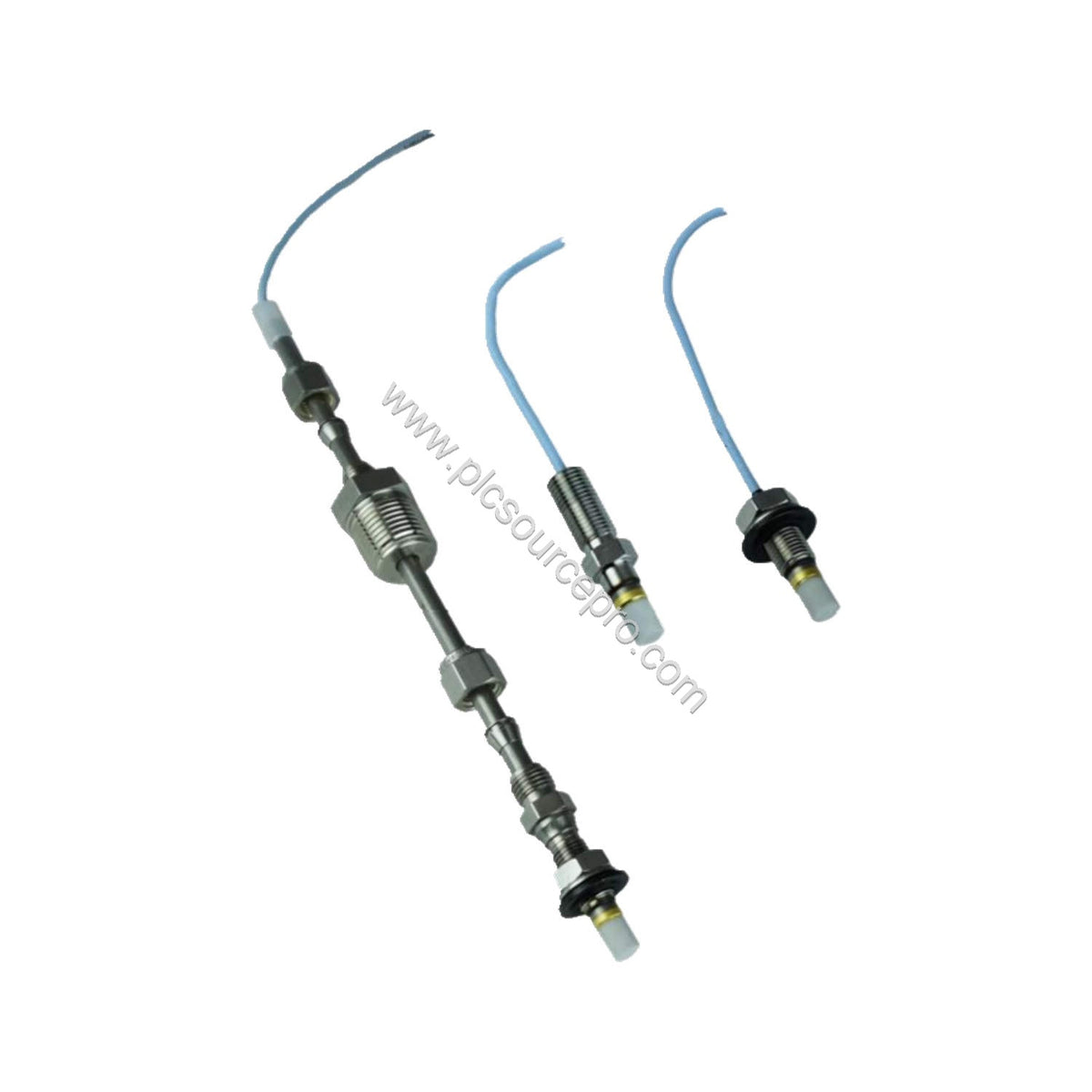

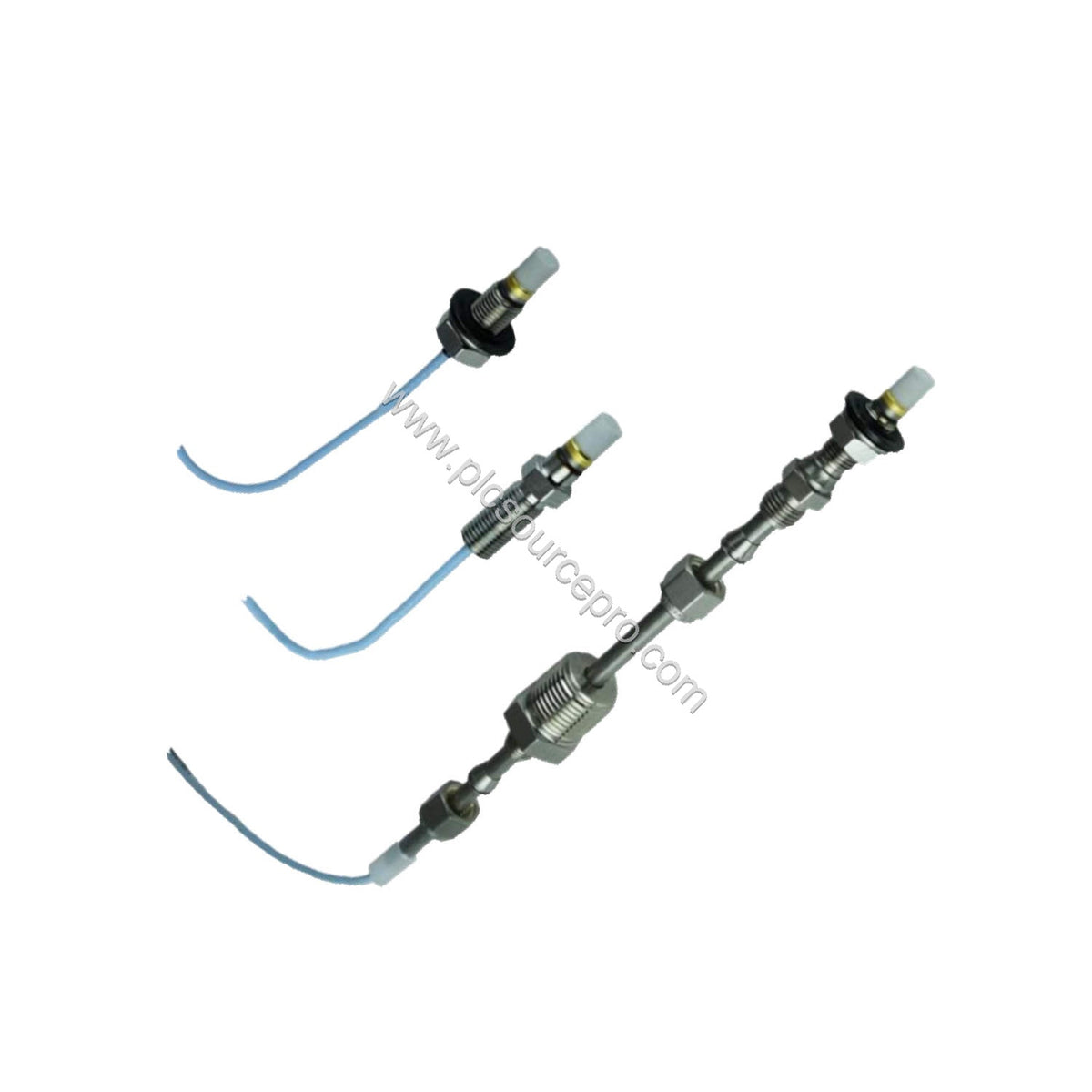

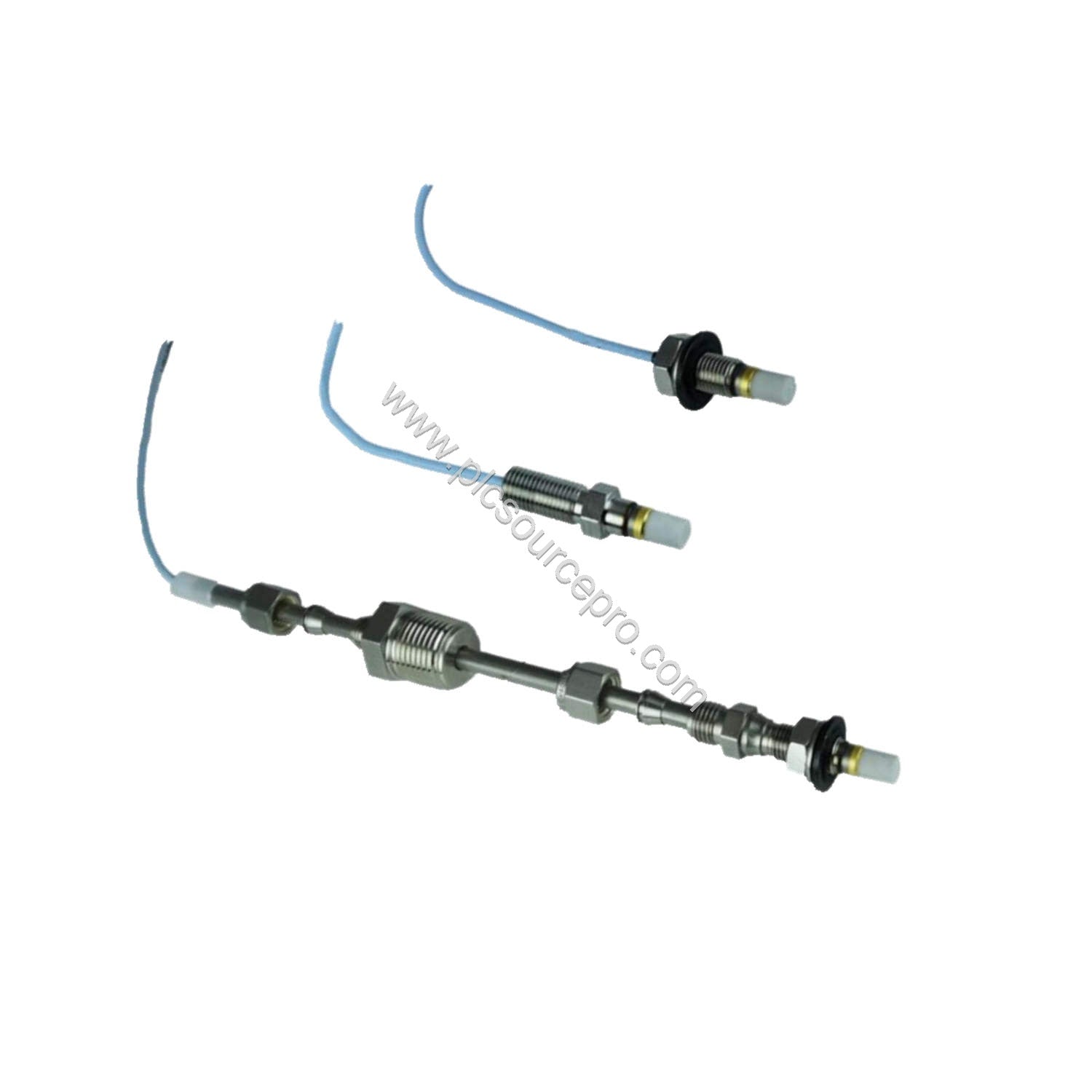

The Bently Nevada 146054-08-05-01-05 is a 3300 Ceramic Capped Proximity Probe designed for precise vibration and position monitoring in rotating machinery. This industrial automation module delivers reliable performance in harsh environments, featuring a 3/8-24 UNF thread and a 0.5-meter cable with a miniature coaxial ClickLoc connector. With agency approvals including CSA, ATEX, and IECEx, this probe is ready for demanding applications.

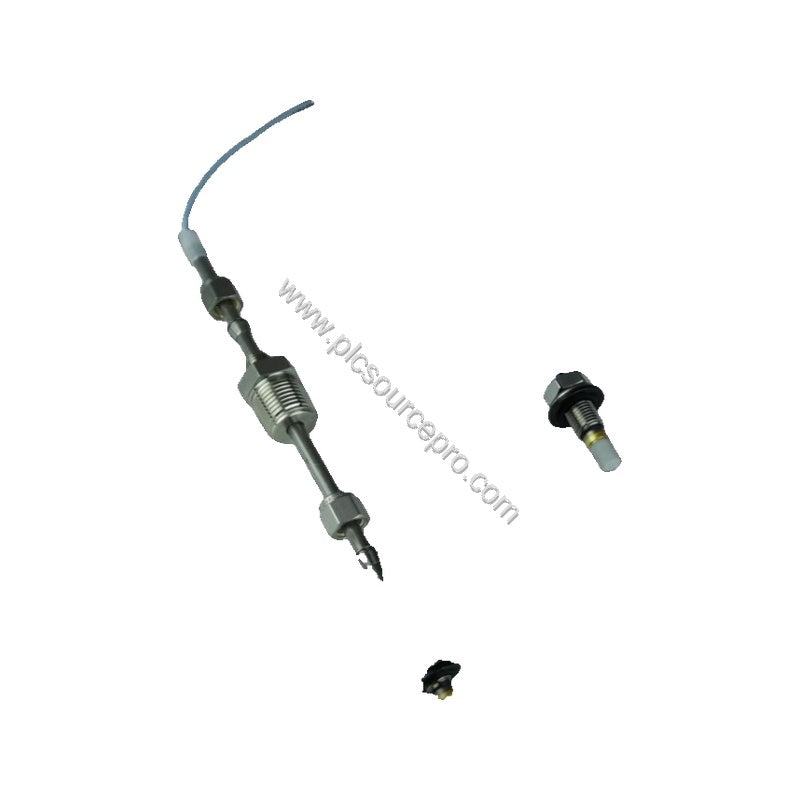

Key Specifications
-
Model: 3300 Ceramic Capped Probe
-
Thread: 3/8-24 UNF
-
Overall Case Length: 0.8 in
-
Total Length: 0.5 meter (1.6 feet)
-
Connector: Miniature coaxial ClickLoc with connector protector
-
Approvals: CSA, ATEX, IECEx
-
Probe Tip Material: Alumina ceramic (Al2O3)
-
Probe Case Material: AISI 304 stainless steel
-
Operating Temperature: -51°C to +177°C (-60°F to +351°F)
-
Pressure Rating: 34 Bar (500 psi) nitrogen
Technical Specifications
| Parameter |
Value |
| Probe Nominal DC Resistance |
7.45 ± 0.50 ohms (center to outer conductor) |
| Linear Range |
1.52 mm (60 mils), from 0.25 to 1.78 mm (10 to 70 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil), ±6.5% including interchangeability error |
| Standard Cable |
75 Ω coaxial, FEP insulated, lengths: 0.5, 1, 2, 5, or 9 meters |
Applications
The 146054-08-05-01-05 is ideal for monitoring shaft vibration, radial position, and thrust position in turbines, compressors, pumps, and other rotating equipment. Its ceramic tip offers excellent wear resistance, and the stainless steel case ensures durability in corrosive environments. The ATEX and IECEx approvals make it suitable for hazardous areas where explosive atmospheres may be present.
Installation & Setup
When installing the 146054-08-05-01-05, ensure the target surface is clean and free of debris. Mount the probe with the specified thread engagement (maximum 0.563 in) and verify the gap according to the system calibration. Use the recommended torque to avoid damaging the ceramic tip. Always follow the manufacturer's guidelines for cable routing to prevent signal interference.
Maintenance & Reliability
This probe requires minimal maintenance. Periodically inspect the cable and connector for wear or damage. Keep the probe tip clean and avoid impact. The operating temperature range of -51°C to +177°C ensures reliable performance in extreme conditions. The pressure rating of 34 Bar (500 psi) nitrogen makes it suitable for high-pressure applications.
Selection Guide
Before ordering, verify the total length and connector type match your system requirements. The 146054-08-05-01-05 includes a 0.5-meter cable and ClickLoc connector. Ensure your system is compatible with 3300 XL components for optimal performance. PLC Source PRO offers new, factory-packed units with a 12-month warranty.
