Product Overview

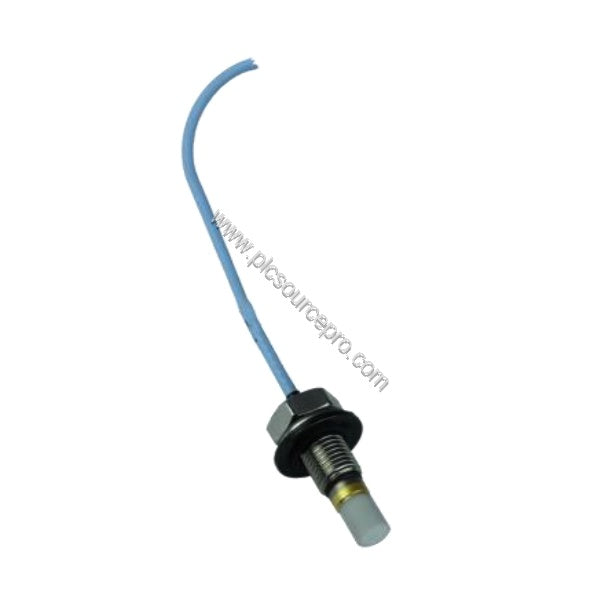

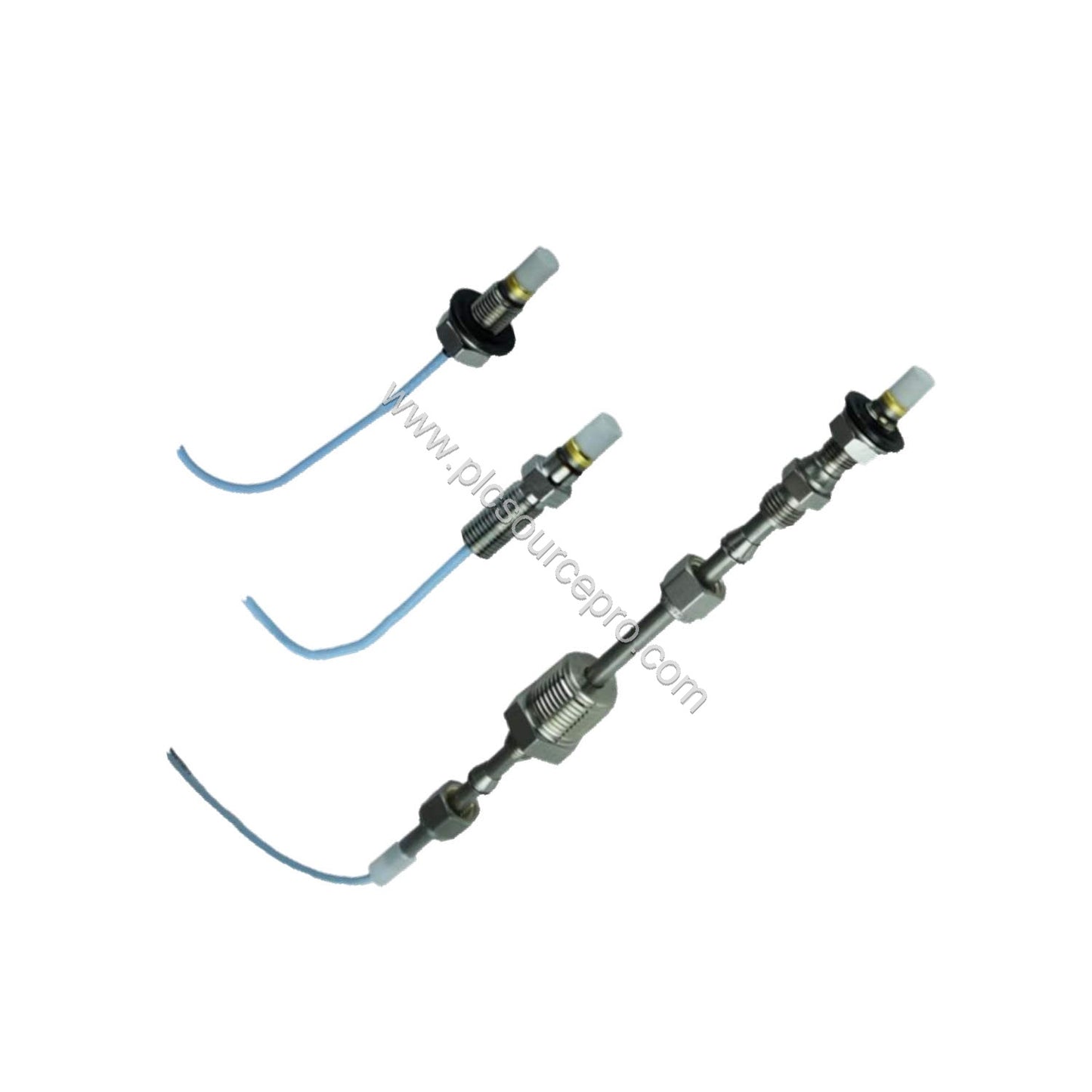

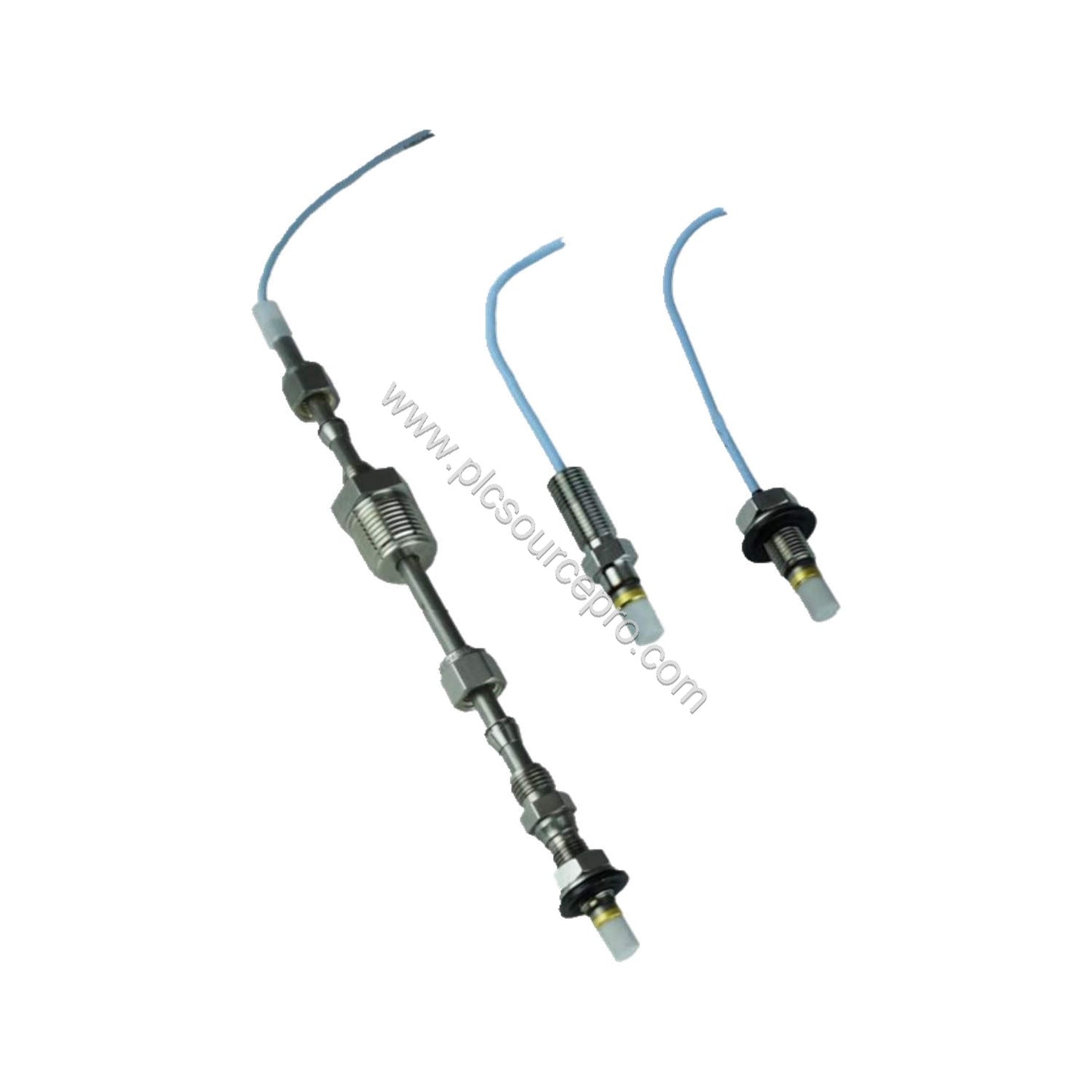

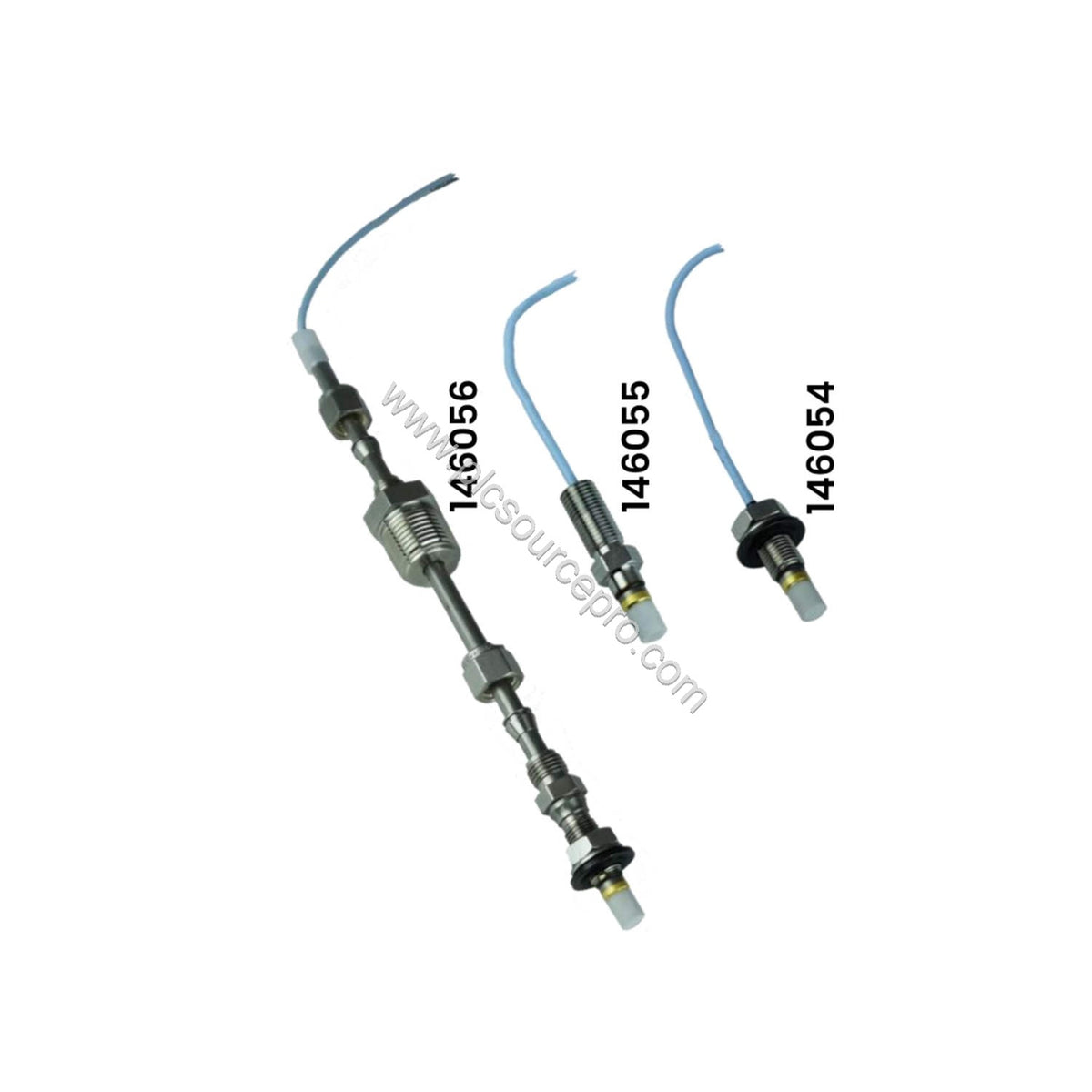

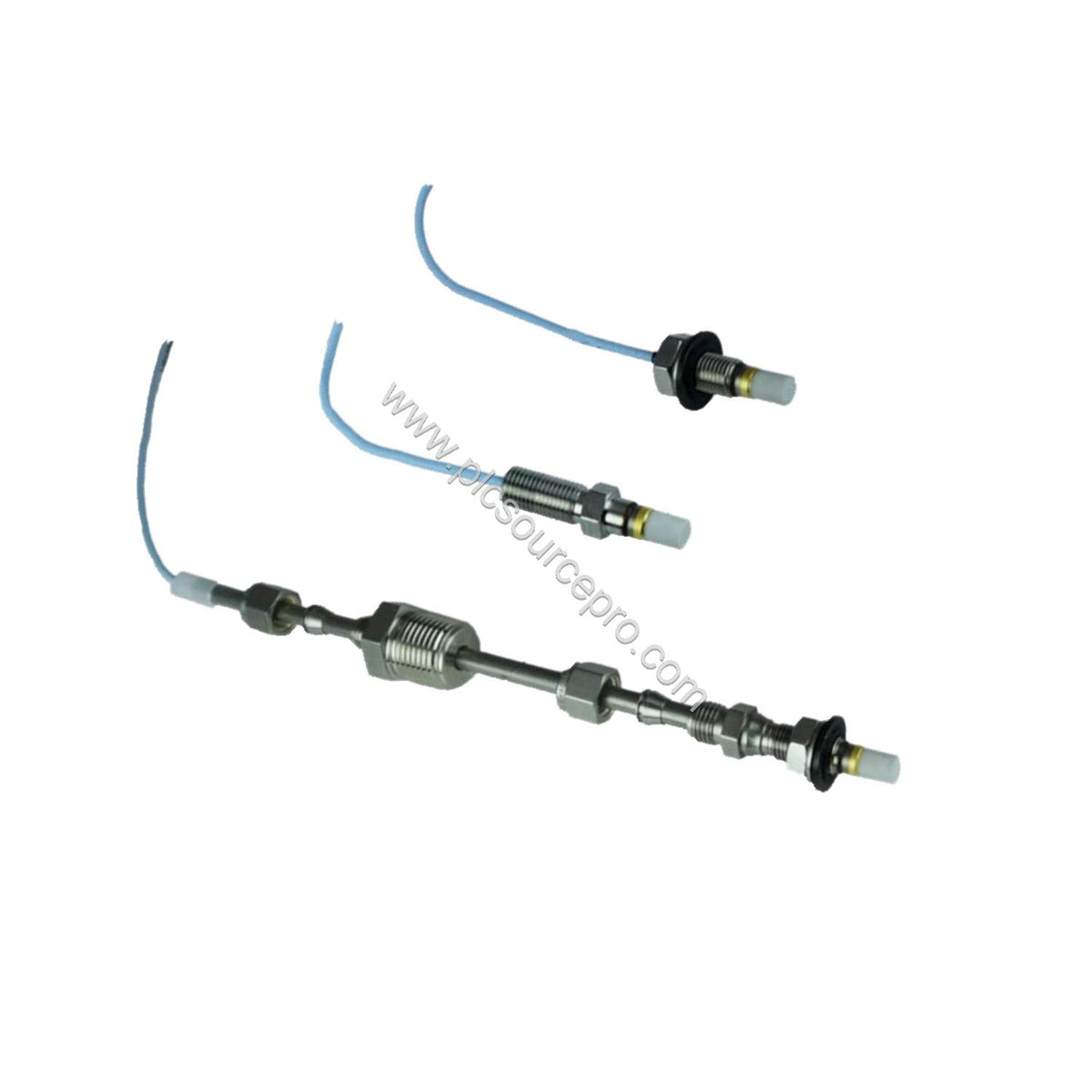

When reliable vibration and position monitoring is critical, the Bently Nevada 146054-040-10-02-05 delivers precise measurements in demanding industrial environments. This 3300 Ceramic Capped Proximity Probe is part of the trusted 3300 series, engineered for use with 3300 XL Proximitor systems. It features a 3/8-24 UNF thread, a 4.0-inch overall case length, and a 1.0-meter standard cable terminated with a miniature coaxial ClickLoc connector. The probe is agency approved for CSA, ATEX, and IECEx, making it suitable for hazardous area installations.
Key Specifications
-
Probe Case Thread: 3/8-24 UNF
-
Maximum Thread Engagement: 0.563 in
-
Probe Tip Material: Alumina ceramic (Al2O3)
-
Probe Case Material: AISI 304 stainless steel
-
Cable: 75 Ω coaxial, FEP insulated, 1.0 m length
-
Operating Temperature: -51°C to +177°C (-60°F to +351°F)
-
Pressure Rating: 34 Bar (500 psi) nitrogen
Technical Specifications
| Parameter |
Value |
| Linear Range |
1.52 mm (60 mils); from 0.25 to 1.78 mm (10 to 70 mils) |
| Incremental Scale Factor (ISF) |
7.87 V/mm (200 mV/mil) ±6.5% |
| Probe Nominal DC Resistance |
7.59 ± 0.50 ohms (center to outer conductor) |
| Cable Length |
1.0 meter (3.3 feet) |
| Connector |
Miniature coaxial ClickLoc |
| Agency Approvals |
CSA, ATEX, IECEx |
These specifications are for a 3300 5 mm system including a Proximitor sensor, extension cable, and probe, with a -24 Vdc supply and 10 kΩ load, using an AISI 4140 steel target.
Applications
The 146054-040-10-02-05 is ideal for monitoring shaft vibration and axial position in rotating machinery such as turbines, compressors, and pumps. Its ceramic tip resists wear and provides stable readings in harsh environments. Use it in conjunction with a 3300 XL Proximitor for accurate, repeatable measurements.
Installation & Setup

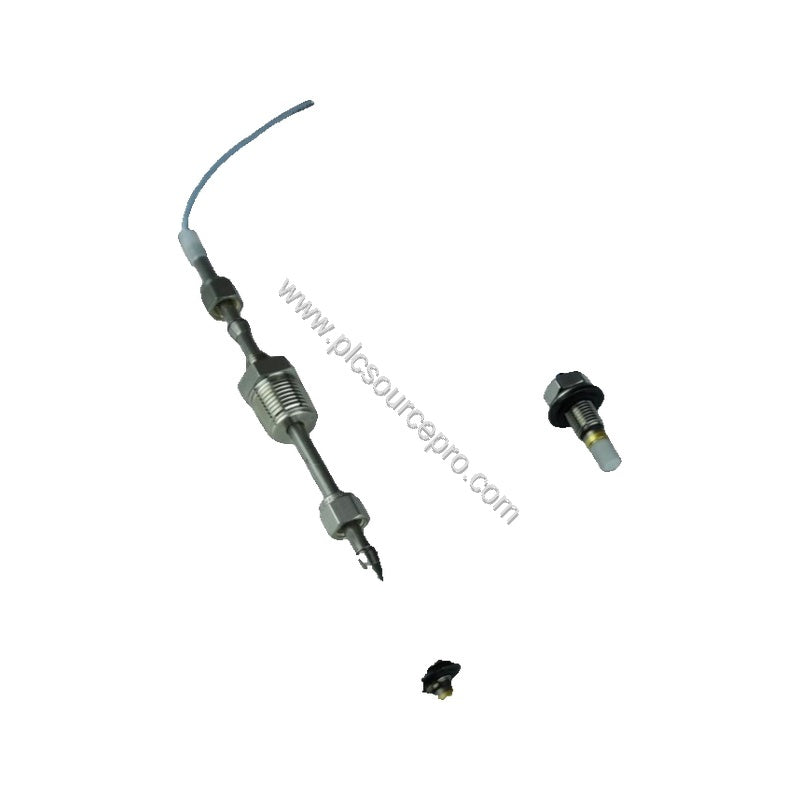

Mount the probe with the 3/8-24 UNF thread into a properly tapped hole. Ensure the cable is routed without sharp bends. The ClickLoc connector simplifies extension cable attachment—push until it clicks. Calibrate the system with an AISI 4140 steel target to achieve the specified ISF and linear range.
Maintenance & Reliability
Inspect the probe tip periodically for contamination or damage. The ceramic cap is robust, but debris can affect accuracy. Verify cable integrity and connector tightness. With proper care, this probe provides long-term, drift-free performance, reducing downtime and maintenance costs.
Selection Guide
When ordering, verify the part number breakdown: 146054-AA-BB-CC-DD. AA=-040 (case length), BB=-10 (cable length), CC=02 (connector type), DD=-05 (approvals). For assistance, contact PLC Source PRO to ensure you select the correct configuration.
