Introduction

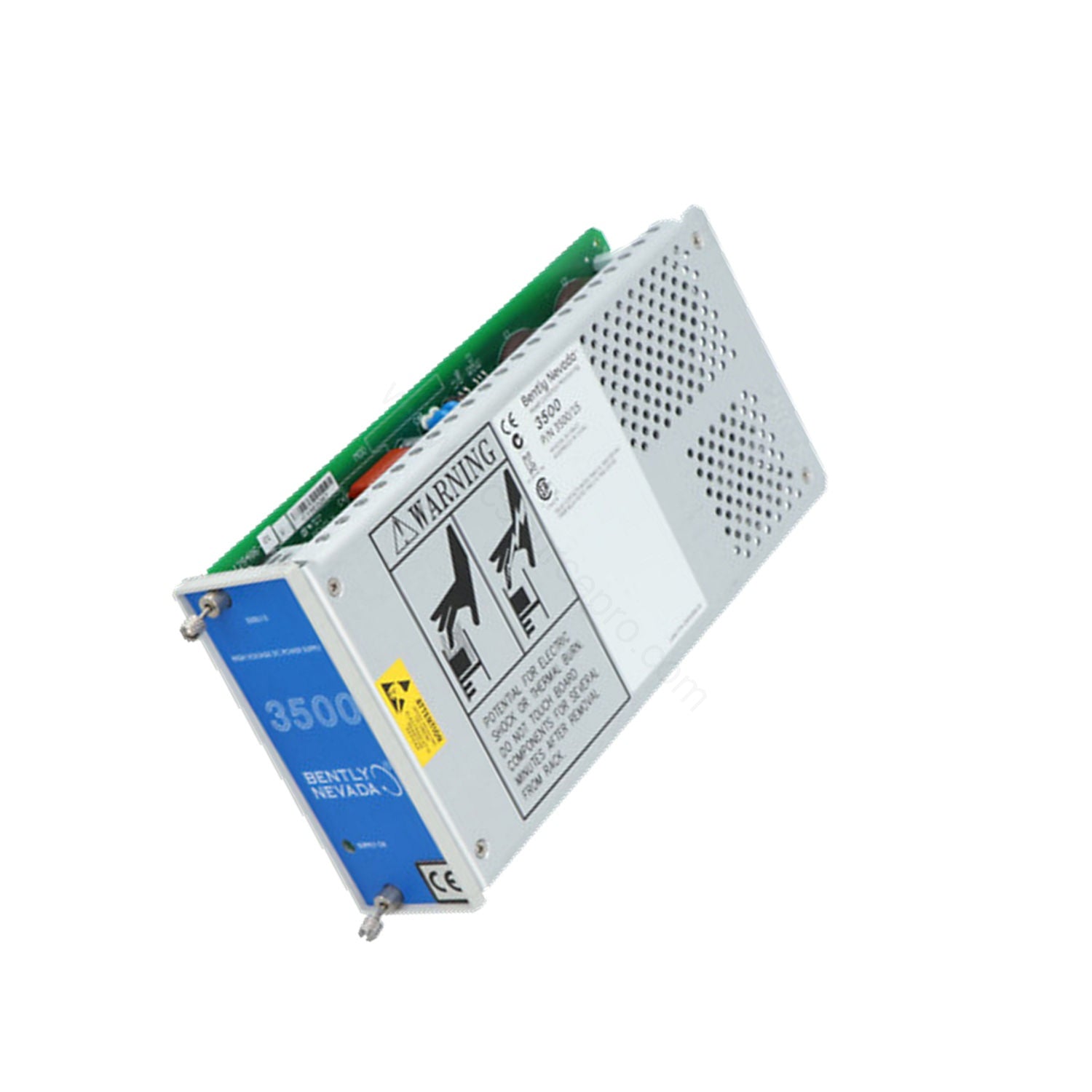

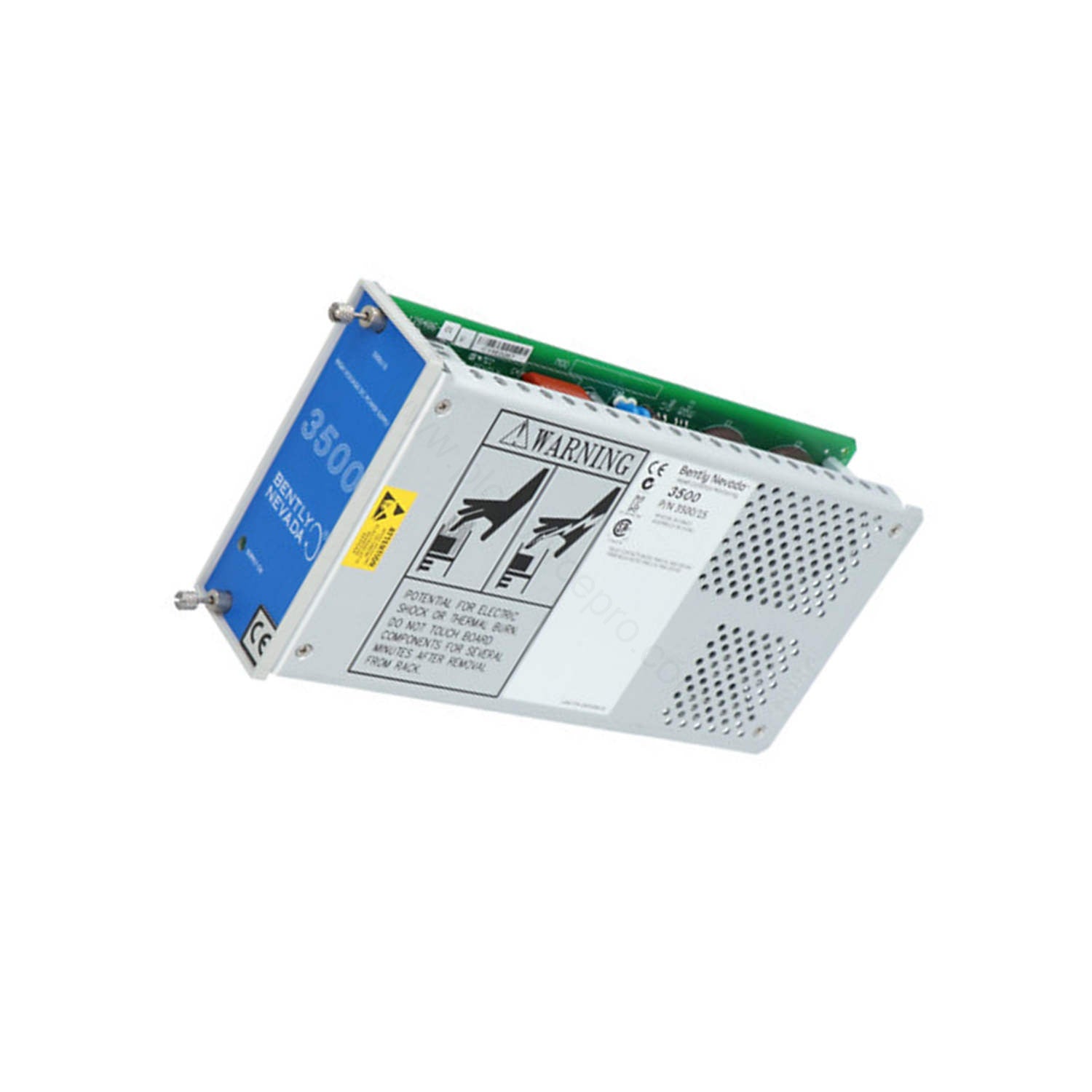

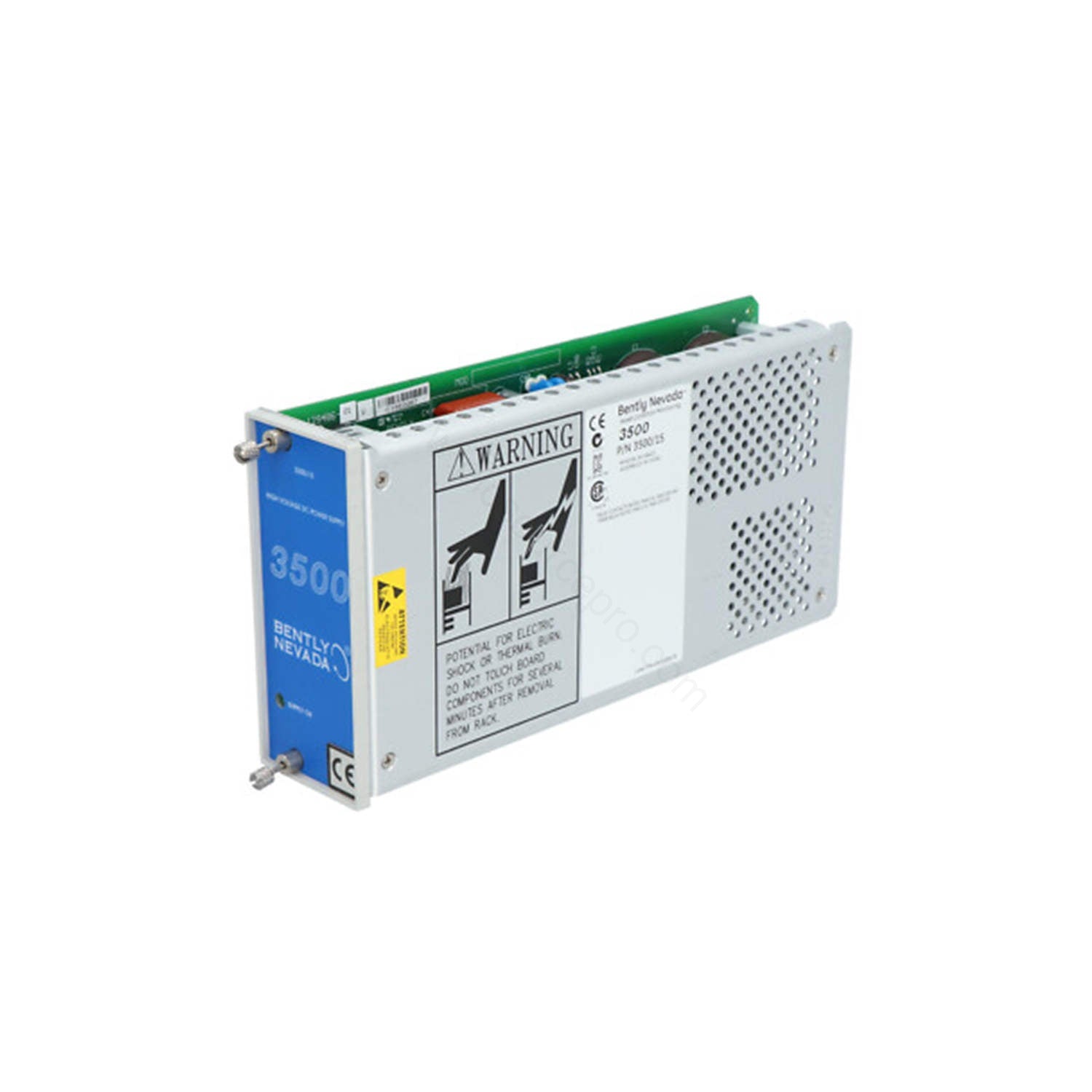

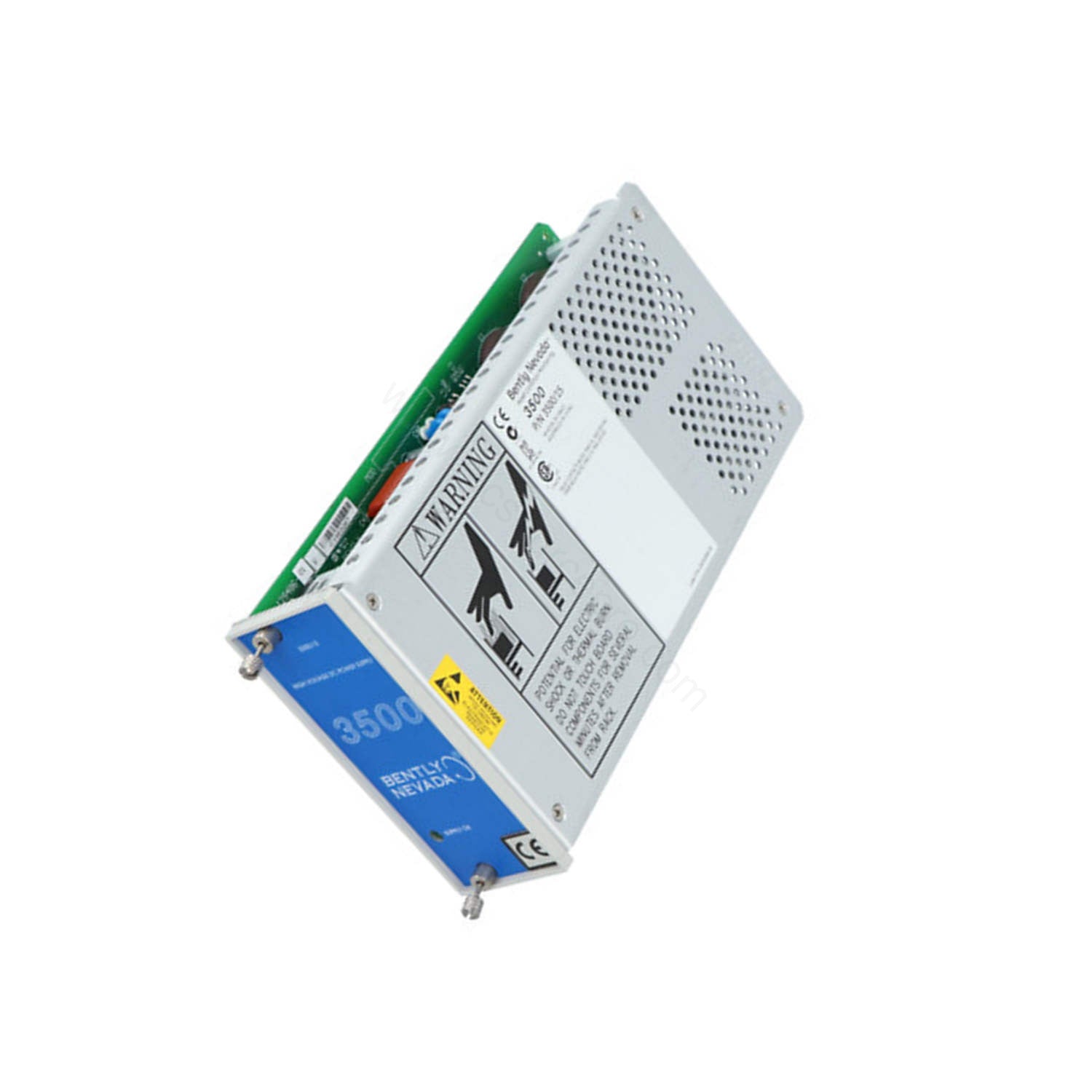

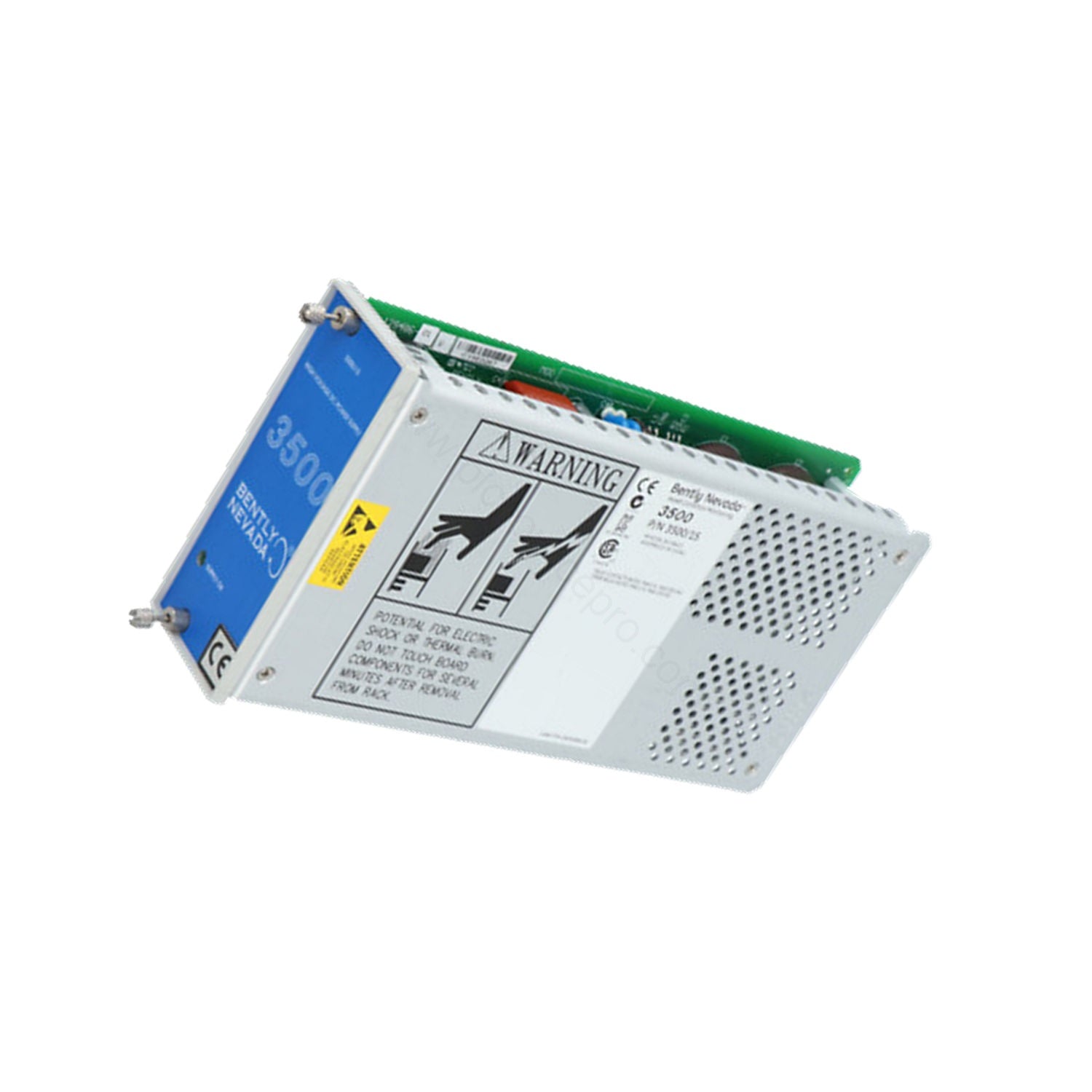

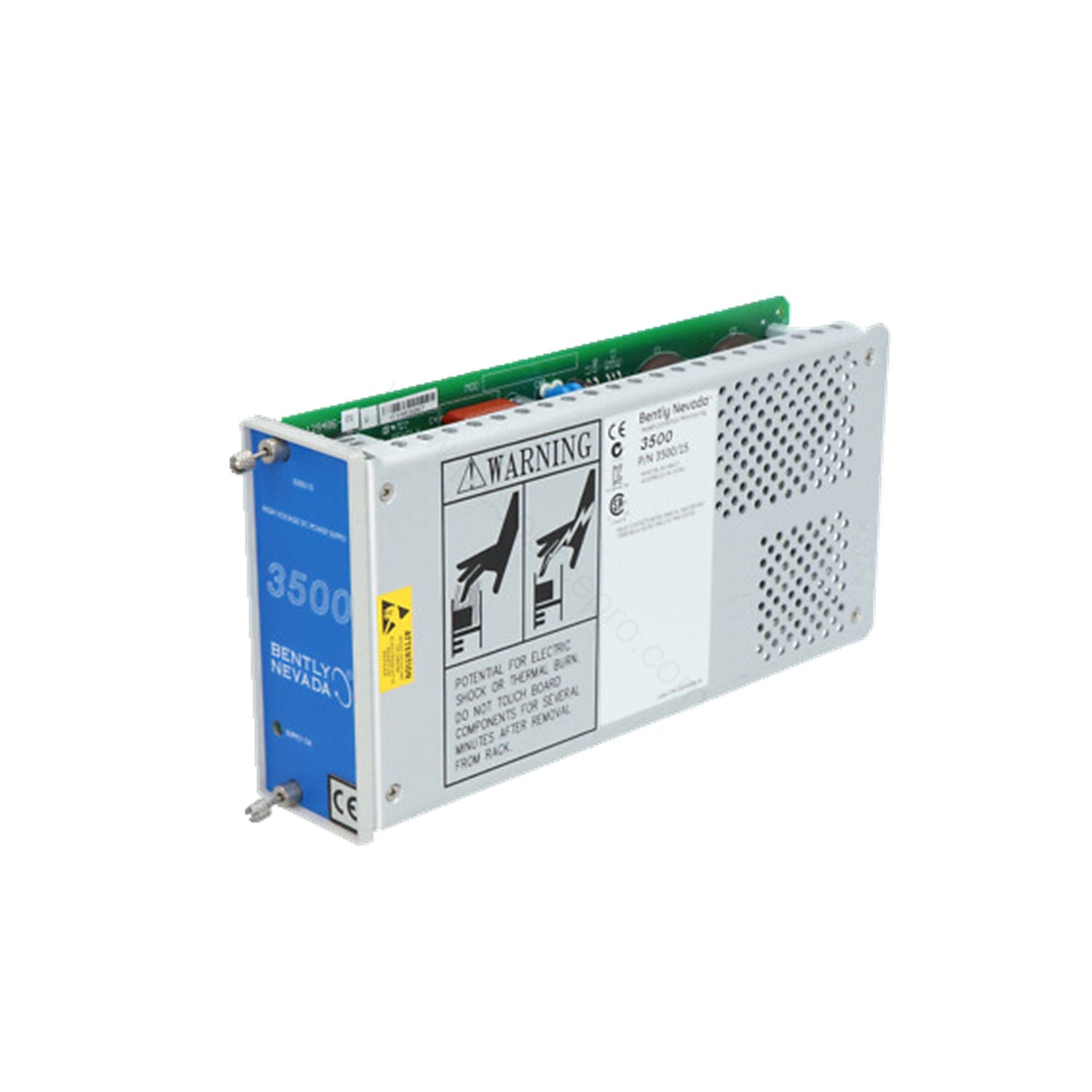

When your Bently Nevada 3500 monitoring system requires reliable high voltage DC power, the Bently Nevada 129486-01 Legacy High Voltage DC Power Supply Module delivers robust performance. This power supply module is engineered to provide stable DC power while protecting the system from voltage anomalies. Designed for challenging industrial environments, the 129486-01 ensures continuous operation of critical vibration monitoring and protection systems.
Key Features and Protection
The Bently Nevada 129486-01 includes built-in over-voltage protection. In the event of an over-voltage condition, the fuse opens on the Power Input Module, preventing damage to downstream components. An under-voltage condition does not harm the supply or the PIM. Additionally, the front panel Supply OK LED provides immediate visual confirmation of proper operation, simplifying routine checks and troubleshooting.
Installation and Setup Guidance
Installing the Bently Nevada 129486-01 is straightforward. The module occupies two half-height slots on the left side of the rack. Both slots can hold a power supply simultaneously, allowing for redundant configurations. Ensure the rack is powered down before installation. Slide the module into the designated slots and secure it with the provided fasteners. No minimum rack load is required, offering flexibility in system design.
Maintenance and Reliability
The 129486-01 is built for long-term reliability. Environmental limits include a wide operating temperature range, making it suitable for extreme conditions. Routine maintenance involves periodic inspection of the Supply OK LED and checking for any signs of dust or contamination on the connectors. For redundant configurations, verify that both supplies are functioning properly. The robust design minimizes the need for frequent replacement, reducing total cost of ownership.
Troubleshooting and Common Issues
Common issues with the Bently Nevada 129486-01 are typically related to voltage anomalies. If the Supply OK LED is off, first check the input voltage. Over-voltage may have blown the fuse on the PIM; inspect and replace if needed. Under-voltage does not cause permanent damage, so restoring proper input voltage should restore normal operation. For persistent problems, consult the system documentation or contact UBEST Automation for support.
Selection Guide and Purchasing Advice
Before purchasing the Bently Nevada 129486-01, verify compatibility with your existing 3500 rack and system voltage requirements (88 to 140 Vdc). Ensure you have sufficient empty slots for installation. The part number 129486-01 is the exact model needed; check your inventory for this designation. For additional accessories or redundant power configurations, UBEST Automation offers expert guidance and genuine Bently Nevada parts. Contact us for detailed specifications if needed.
