Product Introduction

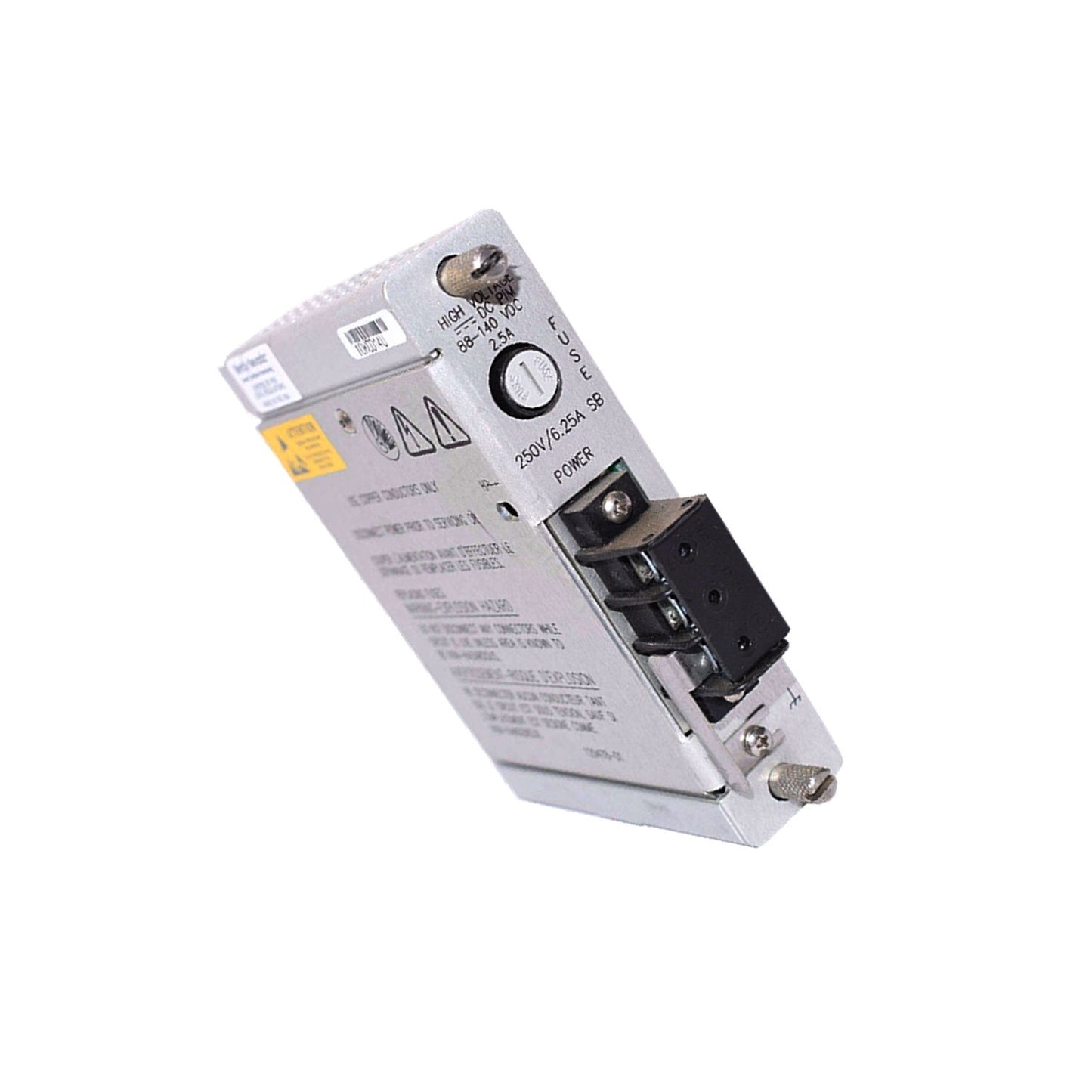

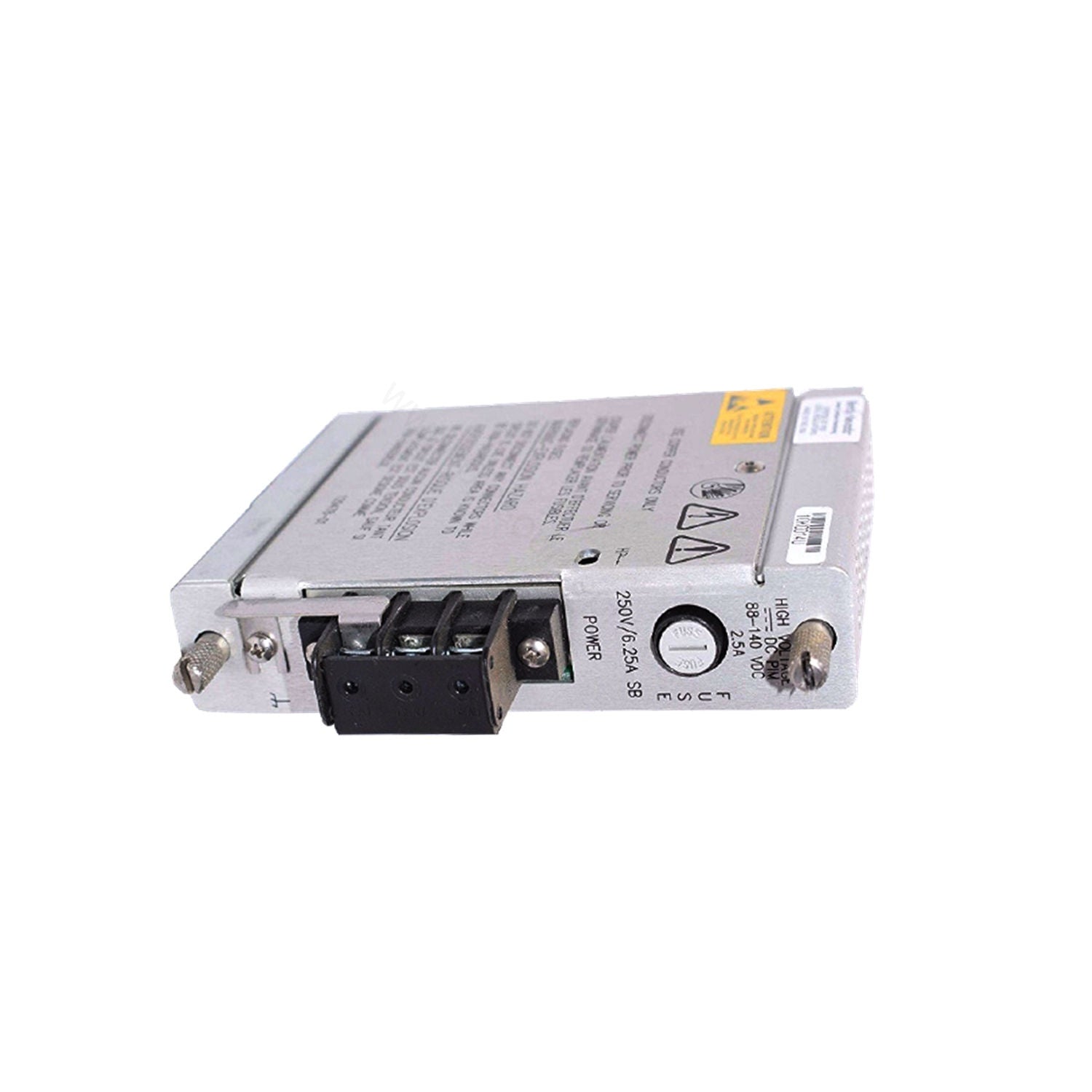

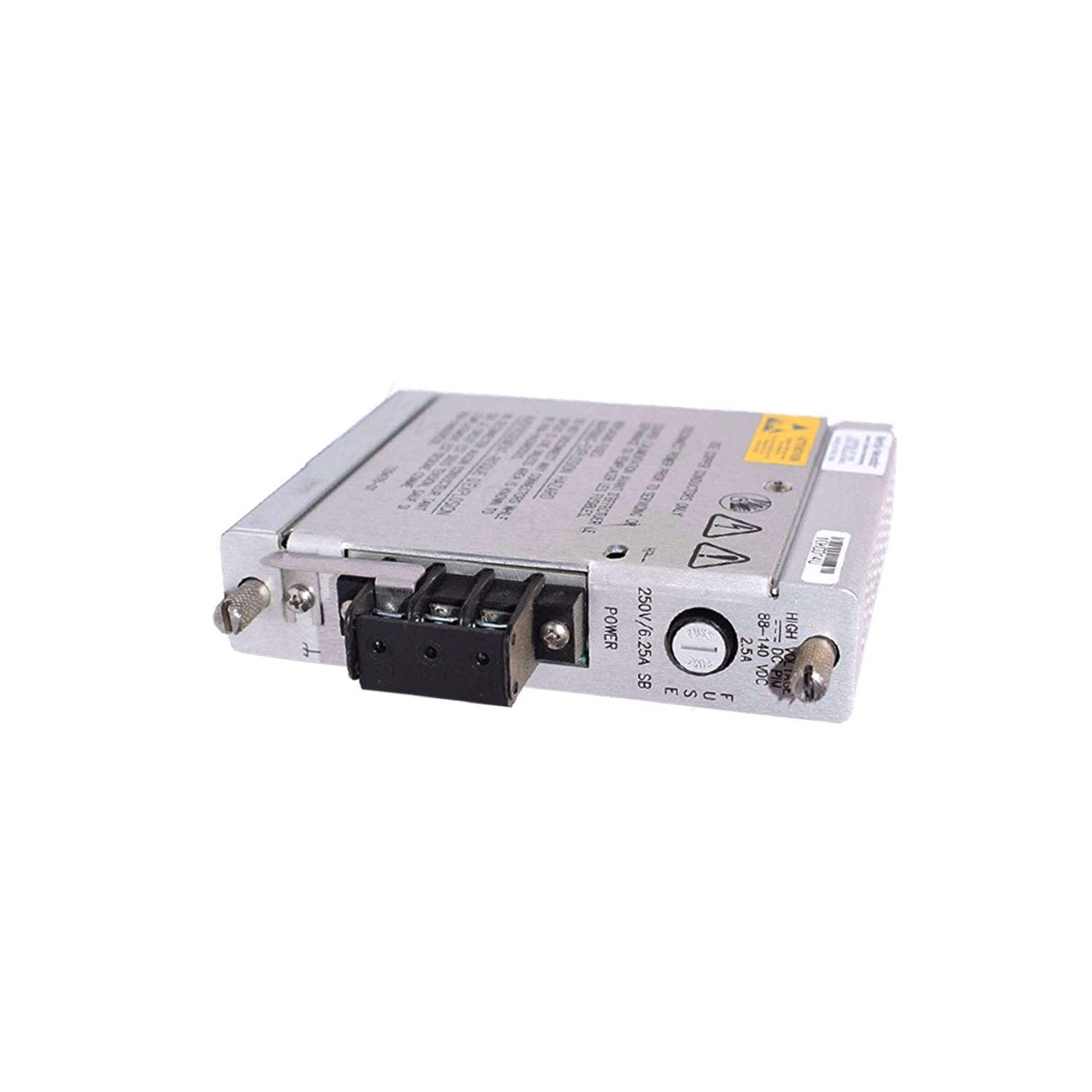

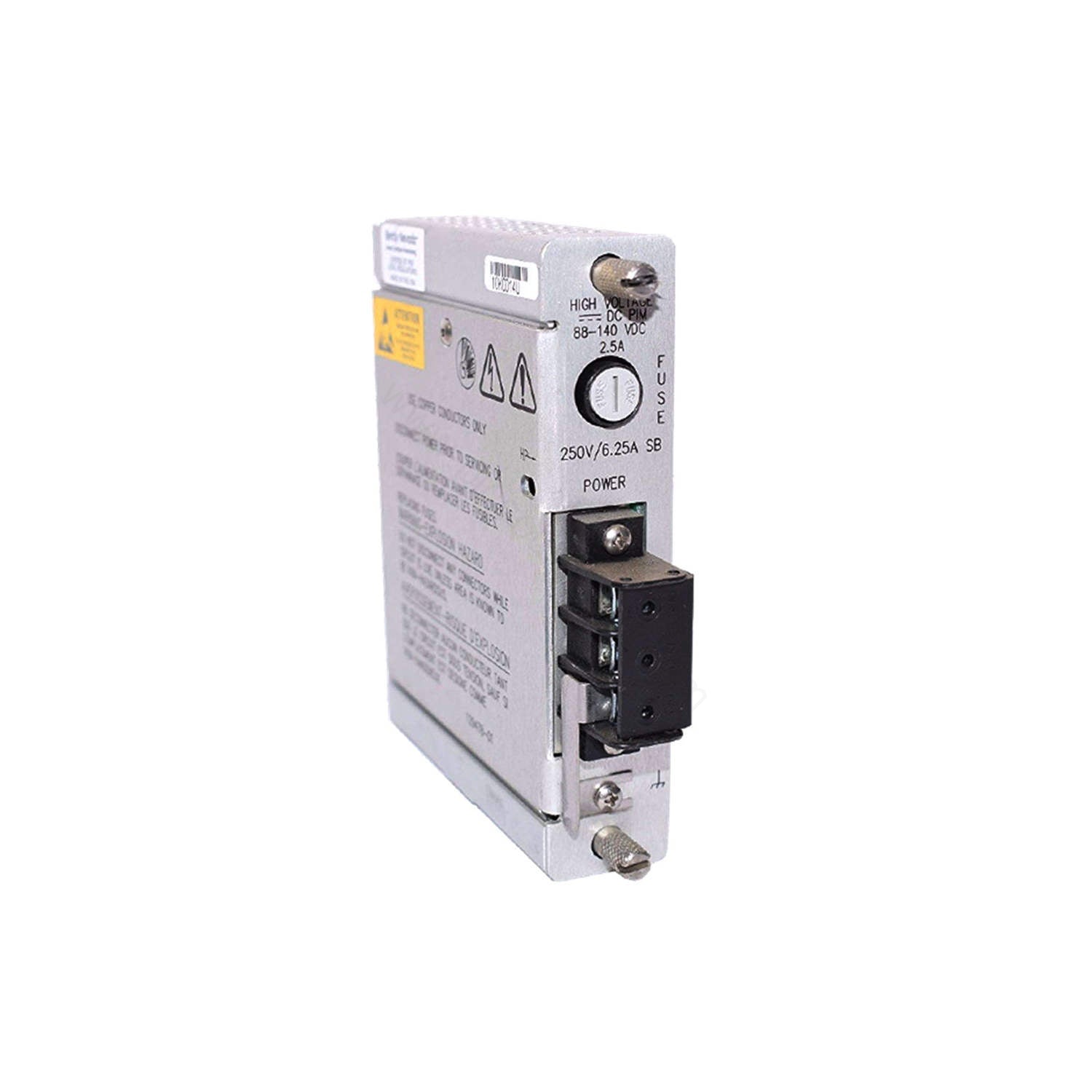

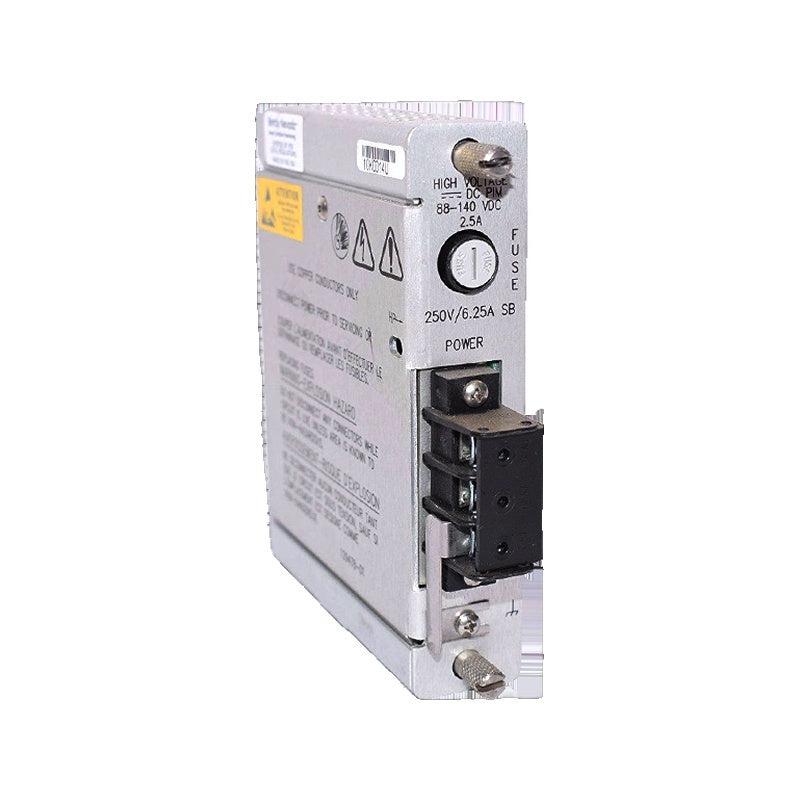

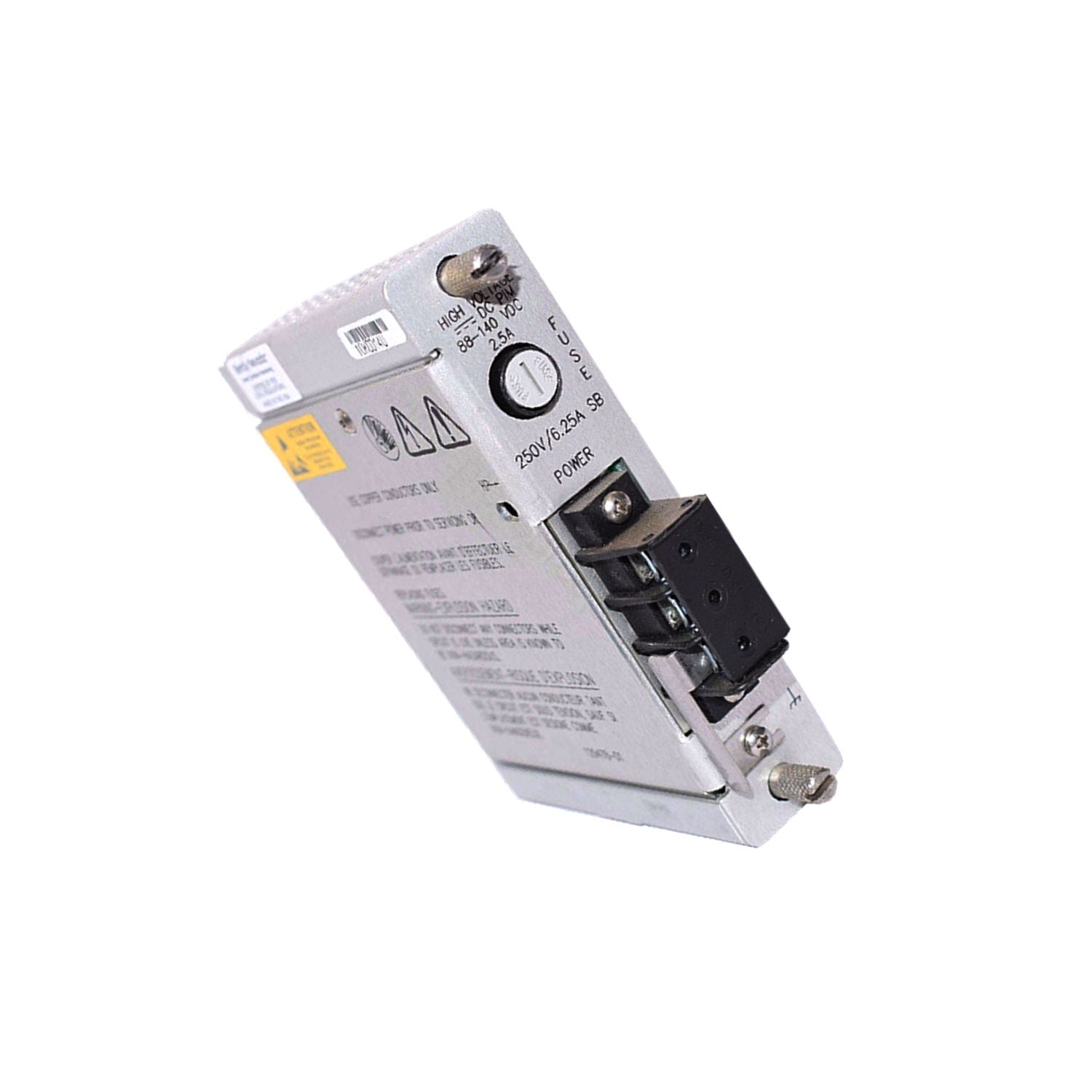

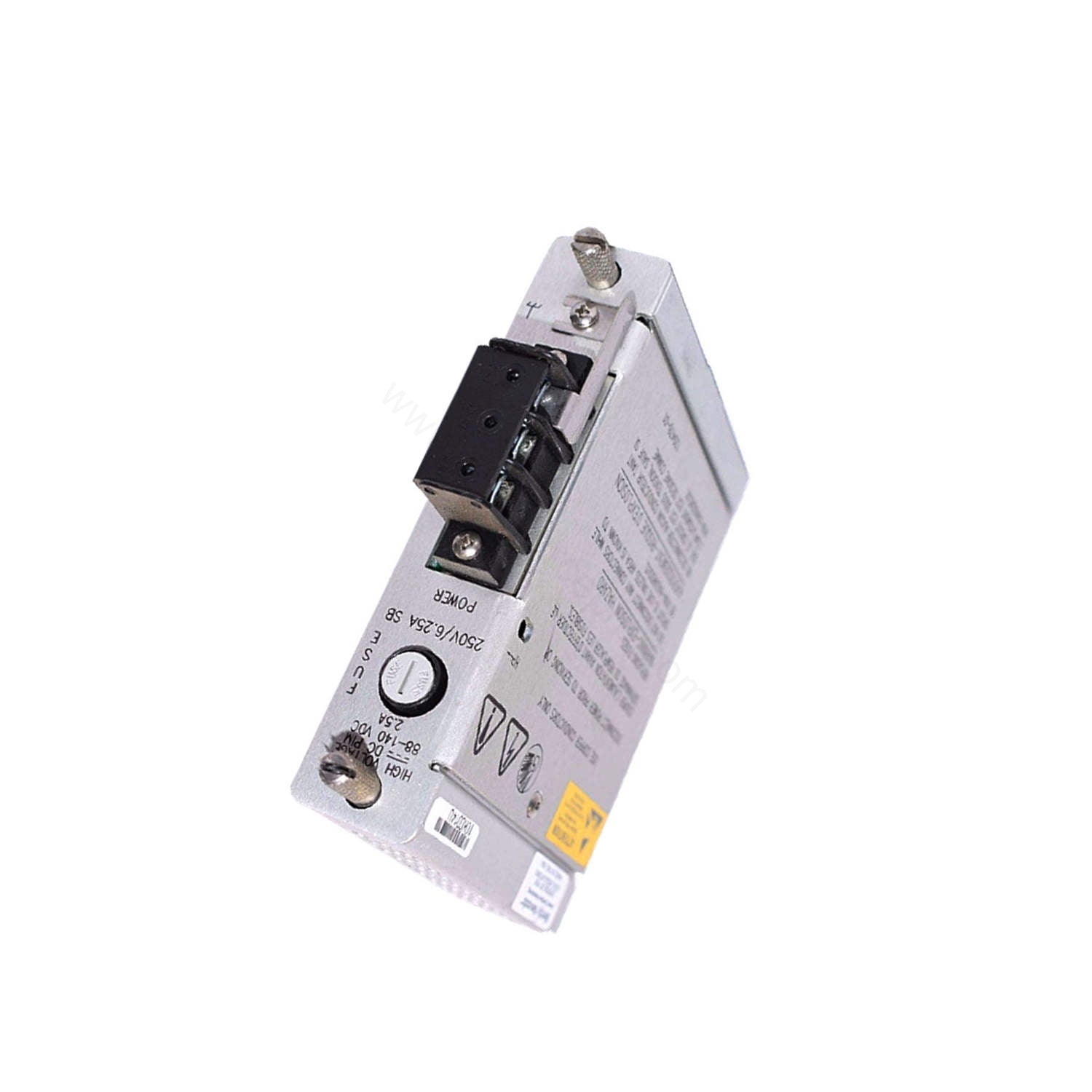

When industrial systems demand stable and reliable DC power input, the Bently Nevada 129478-01 Legacy High Voltage DC Power Input Module delivers a robust solution. Designed as a critical component for the 3500/15 monitoring system, this module ensures consistent power delivery in high-voltage DC environments. The 129478-01 is built to withstand demanding conditions, providing essential power management for vibration monitoring and protection applications.
Industry Applications
The Bently Nevada 129478-01 is widely used in rotating machinery monitoring, including steam turbines, compressors, and pumps in power generation, oil & gas, and petrochemical facilities. In these environments, the module supplies stable DC power to the monitoring system, enabling continuous data acquisition and machine protection. Its high-voltage DC input capability (88 to 140 Vdc input) makes it suitable for installations where standard AC power is not available or where DC backup is preferred.
Installation & Setup Guidance
Installation of the 129478-01 is straightforward on a 3500/15 rack. The module occupies a half-height slot on the left side of the rack, adjacent to its companion power supply. When setting up redundant power supplies, ensure both slots are populated with identical modules. No minimum rack load is required, making configuration flexible. Verify input voltage polarity before connection, and use appropriate DC-rated fusing as per system guidelines.
Maintenance & Reliability
Regular inspection of the 129478-01 should include checking the front panel Supply OK LED to confirm proper operation. Over-voltage conditions can cause the internal fuse to open, protecting downstream components. Under-voltage does not harm the module, but sustained operation outside the rated range may affect system reliability. The module operates across a wide temperature range (-30°C to +65°C) and withstands high humidity (up to 95% non-condensing), ensuring long service life in harsh industrial environments.
Troubleshooting & Common Issues
The primary failure mode for the Bently Nevada 129478-01 is an open fuse due to an input over-voltage event. If the Supply OK LED is off and the system is unpowered, check the input fuse. If the input voltage is within the rated 88 to 140 Vdc range, the fuse likely requires replacement. If the LED remains off after fuse replacement, test the power supply itself. The module's under-voltage protection ensures no damage occurs if input drops below the threshold, making it resilient against brownout conditions.
