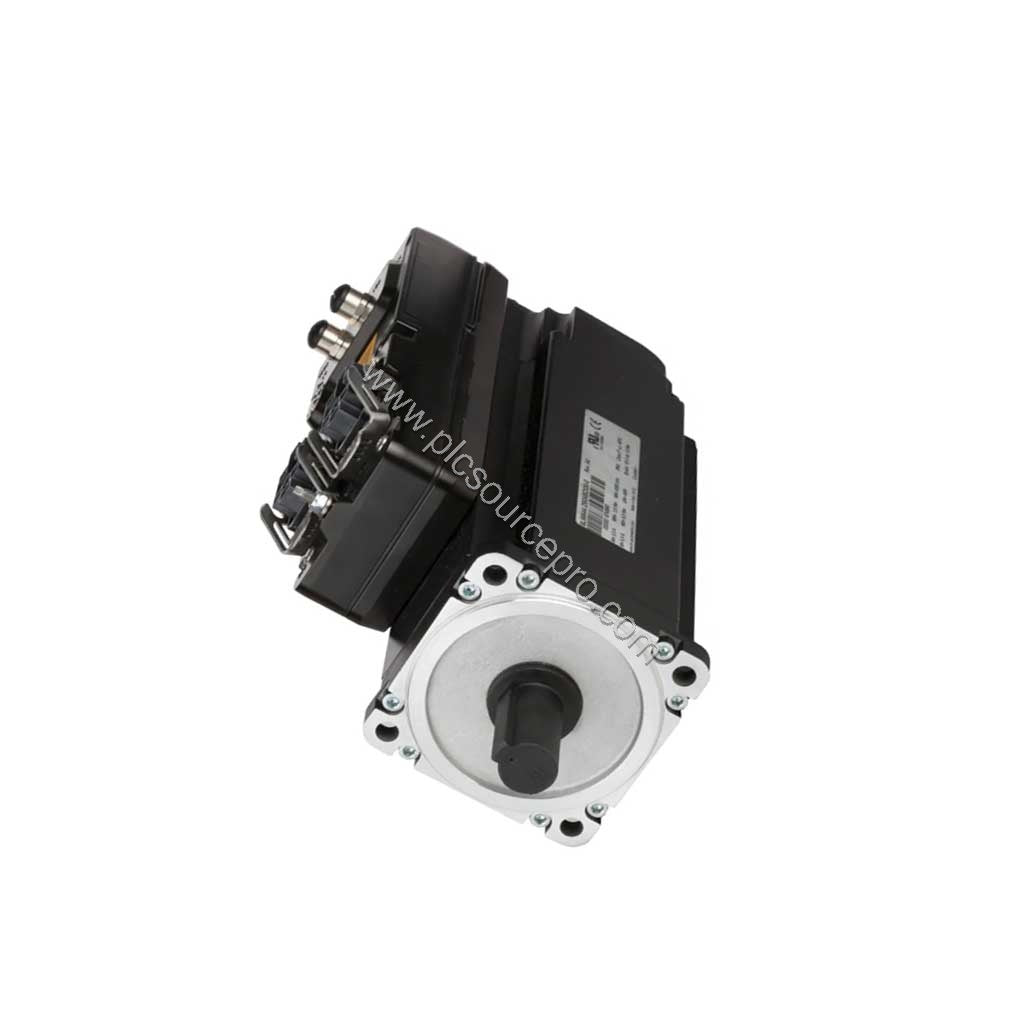

Product Overview

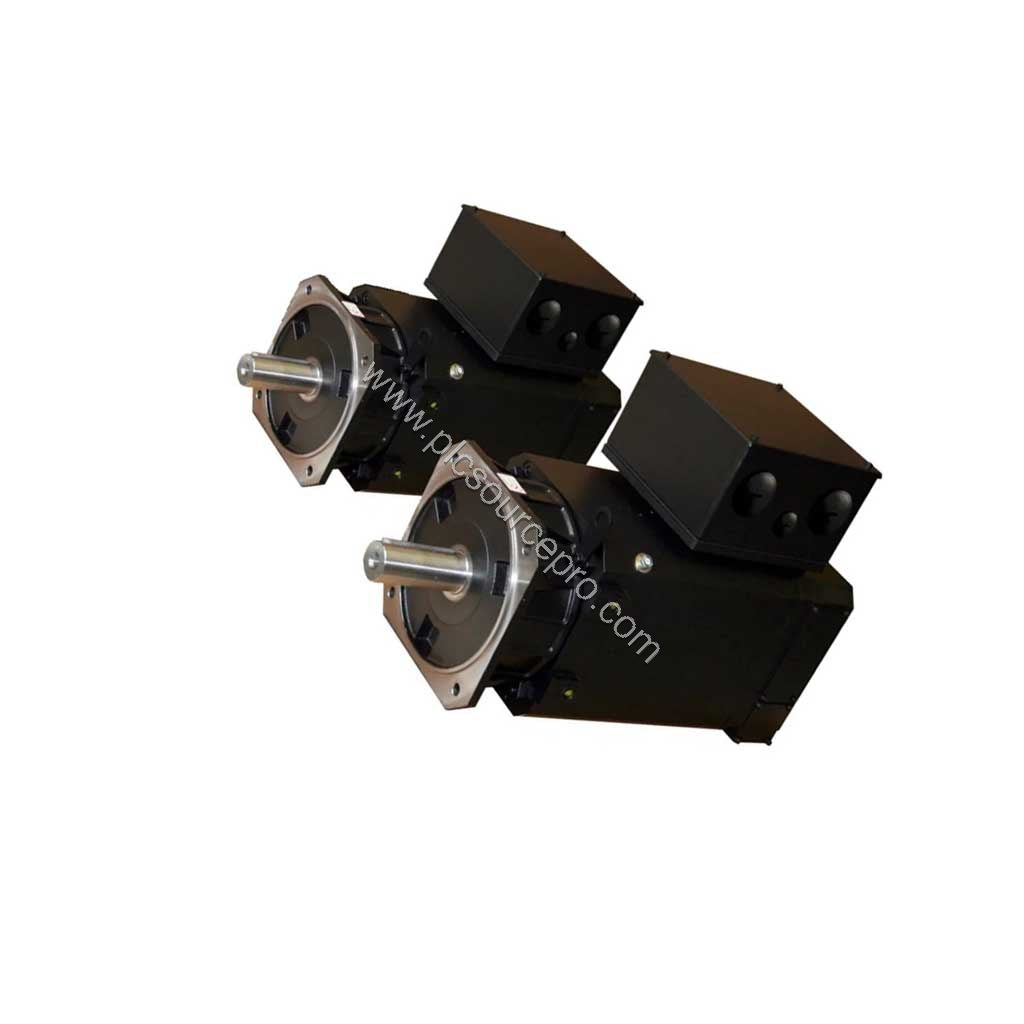

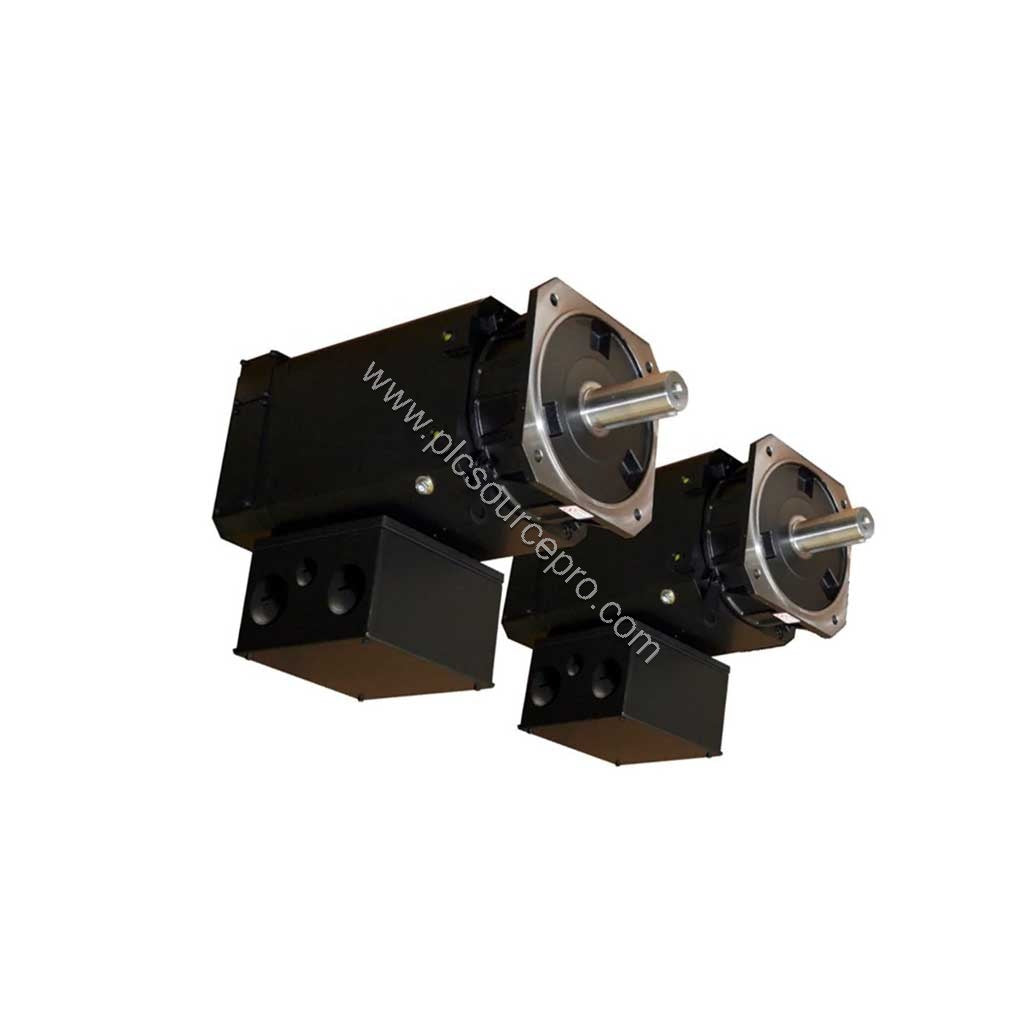

When demanding motion control applications require precise positioning and excellent dynamic response, the B&R 8LSC45.ee060ff00-4 delivers. This three-phase synchronous servo motor is externally fan-cooled and features a permanent-magnet, electronically commutated design. It is engineered for applications that need compact size, reduced weight, and large overload capacity. The 8LSC45.ee060ff00-4 also offers a single-cable (hybrid) solution option and encoders for functional safety, making it a versatile choice for modern industrial automation.
Technical Specifications
The B&R 8LSC45.ee060ff00-4 provides robust performance metrics that ensure reliable operation in demanding environments. Key parameters include:
| Parameter |
Value |
| Nominal speed (nN) |
6000 rpm |
| Number of pole pairs |
5 |
| Nominal torque (Mn) |
6.5 Nm |
| Nominal power (PN) |
4096 W |
| Nominal current (IN) |
8.0 A |
| Stall torque (M0) |
10.4 Nm |
| Stall current (I0) |
12.8 A |
| Maximum torque (Mmax) |
30.4 Nm |
| Maximum current (Imax) |
58.3 A |
| Maximum speed (nmax) |
6600 rpm |
| Torque constant (KT) |
0.81 Nm/A |
| Voltage constant (KE) |
49.22 V/1000rpm |
| Stator resistance (R2ph) |
0.69 Ohm |
| Stator inductance (L2ph) |
5.4 mH |
| Electrical time constant (tel) |
7.8 ms |
| Thermal time constant (ttherm) |
26 min |
| Moment of inertia (J) |
3.2 kg·cm² |
| Mass (without brake) |
7.74 kg |
These specifications show the motor's capability to handle high torque density and rapid acceleration, making it suitable for high-performance automation tasks.
Key Features & Benefits
-
Excellent Dynamic Characteristics: The 8LSC45.ee060ff00-4 provides precise control and fast response, ideal for applications that require high positioning accuracy.
-
Large Overload Capacity: With a maximum torque of 30.4 Nm, the motor can handle peak loads without compromising performance.
-
Compact and Lightweight: The design reduces space requirements and simplifies integration into existing systems.
-
Single-Cable (Hybrid) Solution Option: Reduces wiring complexity and installation time.
-
Encoders for Functional Safety: Supports safety-related applications when paired with compatible drives.
-
Optimized Torque Rippling: Ensures smooth operation and good controllability.
Applications
The B&R 8LSC45.ee060ff00-4 excels in a variety of industrial automation scenarios. Typical applications include:
-
Packaging Machinery: High-speed indexing and precise registration control.
-
Machine Tools: Spindle and feed axis drives requiring high accuracy and dynamic response.
-
Robotics: Joint actuation and end-effector positioning.
-
Material Handling: Conveyor and sorting systems that need reliable torque and speed control.
Its robust construction and high overload capacity make it particularly suitable for applications that experience variable loads and require consistent performance.
Installation & Setup Guidance
Proper installation is critical for optimal performance of the 8LSC45.ee060ff00-4. Follow these guidelines:
- Mount the motor according to EN 60034-7 (IM) configurations: IM 3001 horizontal, IM 3011, or IM 3031. Ensure the flange matches DIN 42948 Form A and the shaft end conforms to DIN 748 Form E.
- Use the recommended ACOPOS servo drive (type 017X) to ensure correct electrical matching and control performance.
- Connect the motor cable with a cross-section of 1.5 mm², as specified. Verify the connector size/type matches the motor's built-in plug-in connectors.
- If using the optional brake, ensure the holding torque of 8 Nm meets your application's safety requirements.
- For environments with high ambient temperatures, apply derating: 10% per 10 K above 40°C and 5% per 1000 m elevation increase.
Maintenance & Reliability
To maximize the service life of the 8LSC45.ee060ff00-4, implement a routine maintenance schedule:
- Periodically inspect the external fan for dust accumulation and ensure unobstructed airflow. The fan is rated IP20, so keep the area clean.
- Check the motor's thermal protection (KTY83-110 / AM-PTC1000) by monitoring winding temperature. The maximum winding temperature is 155°C, but for extended life, keep it below 130°C when using ACOPOS with EnDat/resolver.
- Verify that the motor's IP64 protection is maintained. If an oil seal is installed, inspect it for wear.
- Listen for unusual noise from the fan. The 24 VDC fan for this size is rated at 57 dB(A), and the 230 VAC fan at 37 dB(A). A significant increase may indicate bearing wear.
- Check the shaft for excessive runout or vibration, which could indicate bearing issues.
By following these steps, you can reduce downtime and extend the operational life of your equipment.
Selection Guide & Purchasing Advice
Before purchasing the B&R 8LSC45.ee060ff00-4, verify that it matches your application requirements. Consider the following:
- Confirm the required torque and speed profiles. The motor provides 6.5 Nm nominal torque and 6000 rpm nominal speed, with a maximum speed of 6600 rpm.
- Check the compatibility with your existing servo drive. The recommended ACOPOS drive is model 017X. Ensure your control system supports the selected feedback type (resolver or EnDat).
- Evaluate the need for the optional brake. The motor's brake has a holding torque of 8 Nm and adds 1.0 kg to the mass.
- Assess the environmental conditions. The motor operates in -15°C to +40°C (up to +55°C with derating) and is rated IP64. For higher elevations, note that the maximum is 2000 m.
For reliable sourcing and competitive pricing, PLC Source PRO offers the B&R 8LSC45.ee060ff00-4 with genuine authenticity and fast delivery. Contact our team for expert guidance on selecting the right servo motor for your application.
