Product Overview

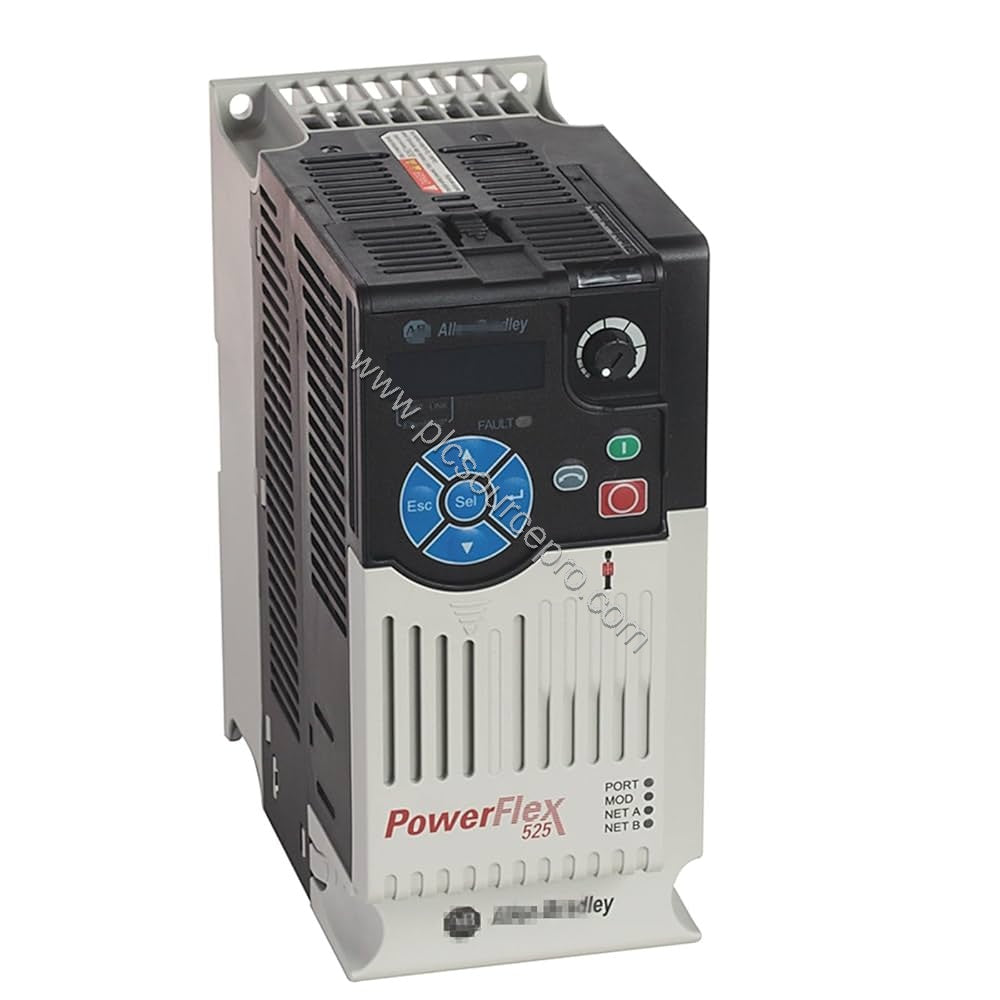

When precise motor speed control is required, the Allen-Bradley 25B-D013N104 PowerFlex 525 VFD delivers reliable performance with its 13 A output current and wide input voltage range of 323-528 VAC, 3-phase. This Industrial Automation Module is part of the PowerFlex 520 series of AC drives, designed for versatile industrial applications. The Allen-Bradley 25B-D013N104 features an integrated keypad with LED signals and a potentiometer, enabling easy tuning and calibration for maximum productivity. Its detachable controller and power modules simplify mounting and installation, supporting both panel mount and DIN rail configurations.
Technical Specifications
| Parameter |
Value |
| Output Current |
13 A |
| Brand |
Allen-Bradley |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Input Voltage |
323-528 VAC |
| Input Phase |
3-Phase |
| Input Current |
15.4 A |
| Output Voltage |
0-460 VAC |
| Output Power |
7.5 kW (5.5 HP) |
| I/O Configuration |
7 Discrete Inputs (Sink/Source), 1 N.O. & 1 N.C. Discrete Outputs, 2 Digital/Optocoupler Outputs, 2 Analog Inputs (0-10 VDC, 0-20 mA), 1 Analog Output (0-10 VDC, 0-20 mA) |
| Installation |
Panel Mount / DIN Rail |
| Enclosure Rating |
IP20 / NEMA UL Type Open |
| Built-in Communication |
EtherNet/IP |
| Optional Protocols |
Dual EtherNet/IP, DeviceNet, Profibus DP |
| Series |
PowerFlex 525 Drive |
| Frame Size |
Frame C |
| EMC Filtering |
No Filter |
| HP Rating |
7.5 HP |
| kW Rating |
5.5 kW |
| UPC |
884951885929 |
The Allen-Bradley 25B-D013N104 operates with a frequency range of 50-60 Hz and a power factor of 0.98. It supports multiple motor control methods including Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC, Closed Loop Velocity Vector Control, and Permanent Magnet Motor control. The drive offers four independently programmable accel/decel times from 0 to 600 s in 0.01 s increments.
Industry Applications
In conveyor systems, the Allen-Bradley 25B-D013N104 provides smooth acceleration and deceleration with programmable ramp stops. For pump and fan applications, its Economizer SVC and sensorless vector control reduce energy consumption by optimizing motor torque. The integrated EtherNet/IP port allows seamless integration into automation networks for real-time monitoring and control.
Installation & Setup
The Allen-Bradley 25B-D013N104 mounts easily on a panel or DIN rail within an IP20 / NEMA open-type enclosure. Ensure the frame size is Frame C. The drive does not include EMC filters by default; if electromagnetic compatibility is required, consider adding an external filter. The controller and power modules are detachable, simplifying wiring and replacement. Always verify input voltage (323-528 VAC, 3-phase) and load requirements before installation.
Compatibility & Integration
The built-in EtherNet/IP port facilitates direct connection to PLCs and SCADA systems. For legacy networks, optional communication modules support DeviceNet or Profibus DP. The Allen-Bradley 25B-D013N104 is compatible with C-size frames and can be controlled via Ethernet using the IP-USB-RS485 interface. Its analog and discrete I/O allow integration with sensors, actuators, and HMI devices.
Selection Guide
When selecting the Allen-Bradley 25B-D013N104, confirm that your motor matches the 13 A output current and 5.5 kW (7.5 HP) rating. Verify the input voltage is within 323-528 VAC, 3-phase. For projects requiring advanced connectivity, consider the included EtherNet/IP port or optional fieldbus modules. For a reliable supply, PLC Source PRO offers genuine Allen-Bradley 25B-D013N104 units with prompt shipping and support.
Frequently Asked Questions
What is the operating voltage range of the 25B-D013N104?
The input voltage range is 323-528 VAC, 3-phase, with a nominal 480 VAC output.
Can this drive be used with single-phase power?
No, the Allen-Bradley 25B-D013N104 requires 3-phase power input.
What communication protocols are supported?
The drive has built-in EtherNet/IP and supports optional DeviceNet and Profibus DP via add-on modules.
Does the 25B-D013N104 come with an EMC filter?
No, this model does not include EMC filtering; an external filter may be needed for compliance.
What enclosure rating does the drive have?
It is rated IP20 / NEMA UL Type Open, suitable for indoor panel installations.
