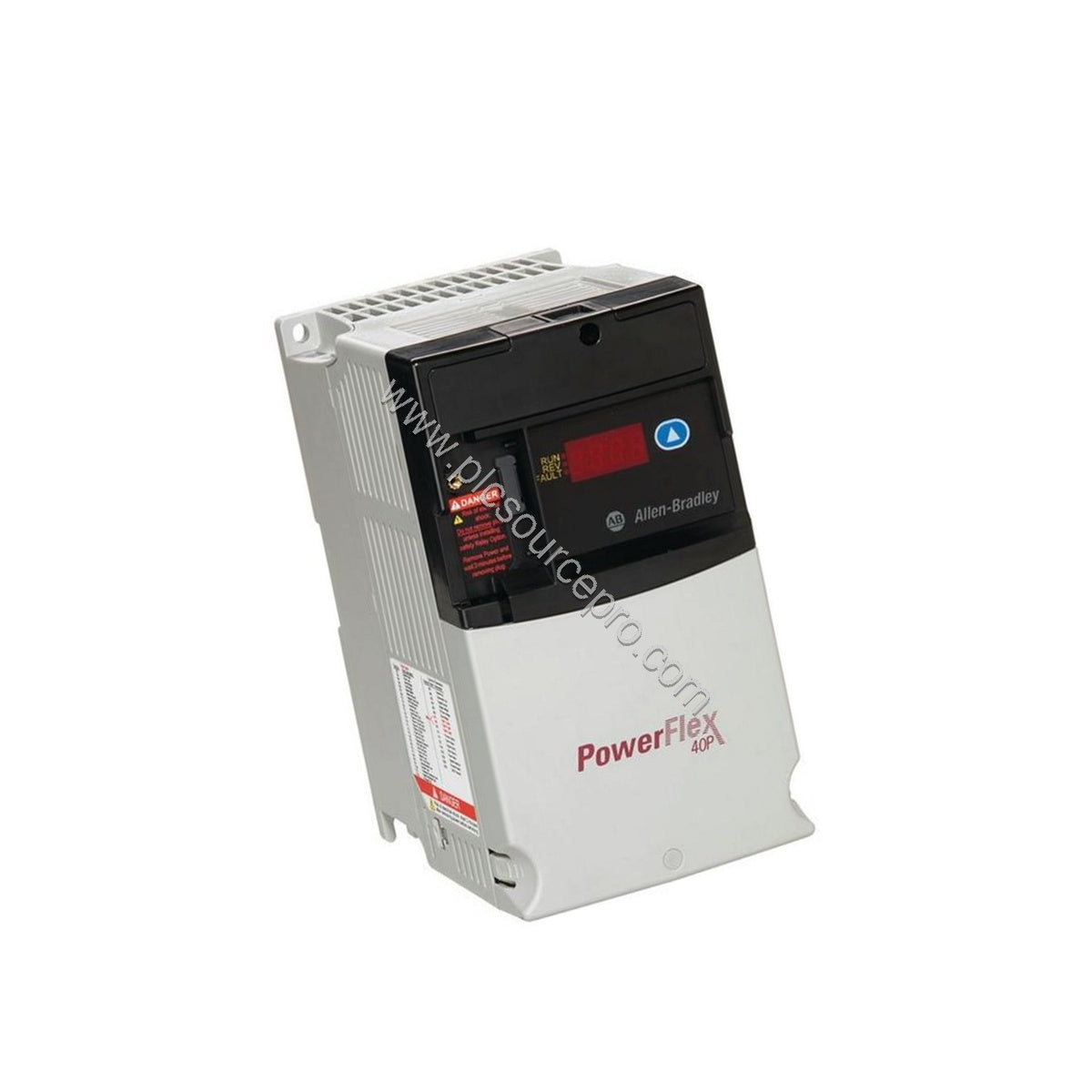

Product Overview: Allen-Bradley 22D-E9P9F104 Adjustable Frequency Drive
The Allen-Bradley 22D-E9P9F104 adjustable frequency drive is designed to precisely control motor speed and torque in PLC-based systems. Part of the PowerFlex 40P series, it delivers reliable performance for industrial automation. With a 600 Volts AC three-phase input and 9.9 Amps output, it handles 7.5 Horsepower loads efficiently. Its compact flange-mount design (IP20) saves panel space and simplifies enclosure integration.
Technical Specifications Breakdown
The following table lists key technical parameters for the Allen-Bradley 22D-E9P9F104. All values are directly from the product datasheet.
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22D-E9P9F104 |
| Product Line |
PowerFlex 40P |
| Amperage |
9.9 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type - Flange Mount (IP20) |
| Input Power |
600 Volts AC |
| Horsepower |
7.5 HP |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
These specifications ensure the Allen-Bradley 22D-E9P9F104 fits standard industrial three-phase systems and provides consistent motor control.
Application Scenarios
The adjustable frequency drive excels in applications requiring variable speed and torque. For conveyor systems, it smooths startup and reduces mechanical stress. In pump and fan applications, it adjusts flow and pressure to match process demands, lowering energy consumption. The Allen-Bradley 22D-E9P9F104 also supports precise positioning in packaging machines and material handling equipment.
- Conveyor speed control with soft start
- HVAC fan and pump variable frequency operation
- Automated assembly lines requiring consistent torque
Installation and Setup Guidance
Mount the Allen-Bradley 22D-E9P9F104 using the DIN rail or panel mounting options. The flange-mount design allows integration into enclosures with IP20 protection. Ensure proper spacing between drives when using Zero Stacking technology to operate at up to 50°C. For programming, connect the internal RS485 port to a PC running Rockwell Automation software. Alternatively, use the intuitive keypad with a 4-digit display and 10 LED indicators for basic configuration. The Basic Program Group simplifies setup for common applications.
Compatibility and Integration
The Allen-Bradley 22D-E9P9F104 integrates seamlessly with PLC systems via RS485 communications. It works with Rockwell Automation controllers (e.g., ControlLogix, CompactLogix) and supports remote operation through NEMA Type 4X or Type 1 hand-held keypads. The drive accepts PC programming tools for advanced parameter adjustments. Its zero stacking technology reduces heat buildup when drives are mounted side by side, improving system reliability.
Selection Guide and Purchasing Advice
Before ordering the Allen-Bradley 22D-E9P9F104, verify your system voltage (600 VAC three-phase) and load requirements (7.5 HP or 9.9 A). Confirm enclosure type and mounting space. For applications requiring compliance filtering, consider the standard model without CE filter and add external filtering if needed. PLC Source PRO offers genuine Allen-Bradley 22D-E9P9F104 drives with fast shipping.
