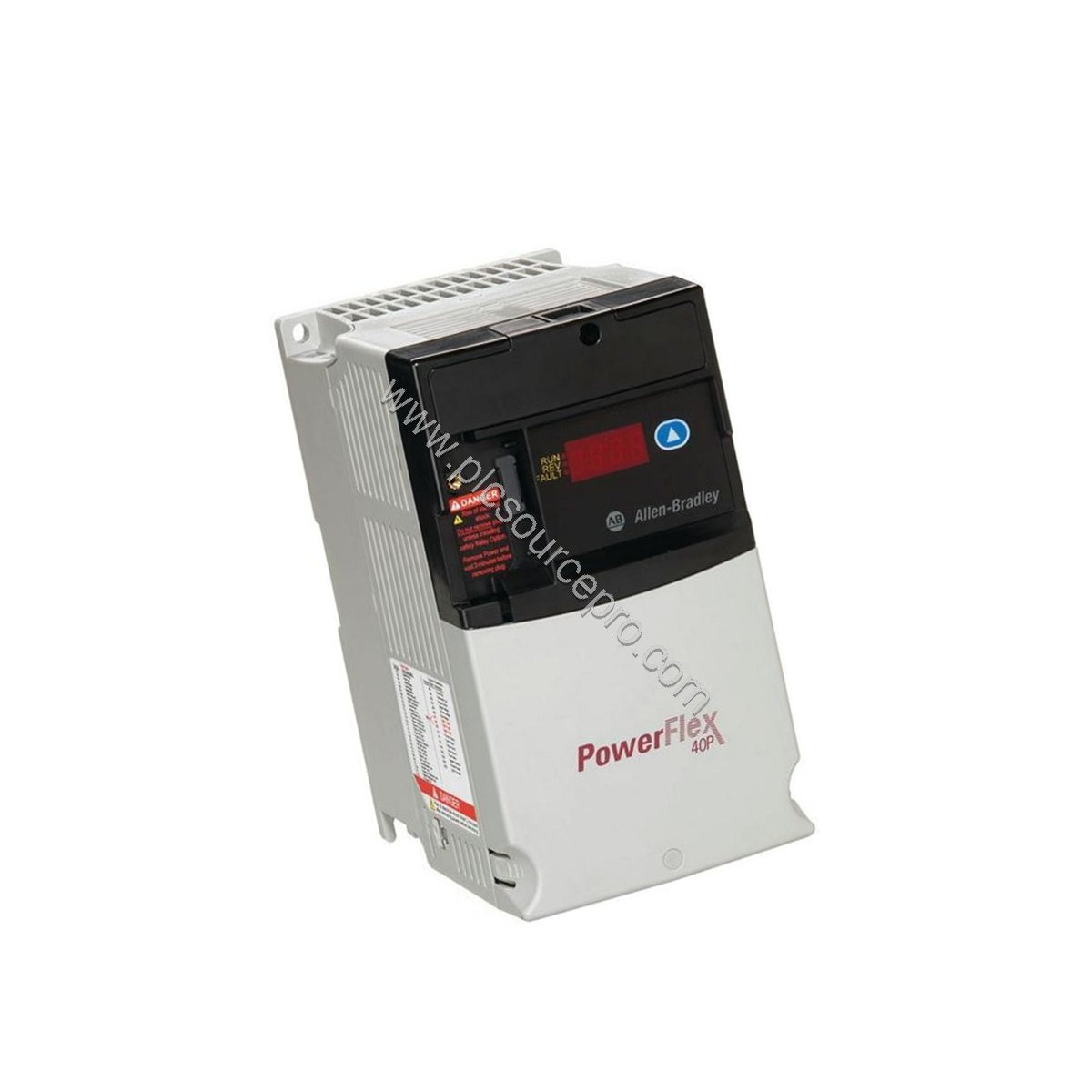

Product Overview: Allen-Bradley 22D-E019H204 PowerFlex 40P AC Drive
When industrial motor control demands precision and reliability, the Allen-Bradley 22D-E019H204 adjustable frequency drive delivers. This PowerFlex 40P series drive controls motor speed and torque with sensorless vector control, making it ideal for OEMs and end users seeking compact, easy-to-integrate solutions. The 22D-E019H204 operates on 600 Volts AC (3-phase) at 50-60 Hz, providing 15 Horsepower (11 kW) output with 19.0 Amps.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley 22D-E019H204 |
| Part Number |
22D-E019H204 |
| Product Line |
PowerFlex 40P |
| Output Amperage |
19.0 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type - Plate Mount (IP20) |
| Input Power |
600 Volts AC |
| Horsepower |
15 HP |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
Industry Applications
The 22D-E019H204 finds use in conveyor systems, pumps, fans, and other variable-torque applications where precise speed control reduces energy consumption. Its compact frame C size and zero-stacking capability (up to 40°C ambient) save valuable cabinet space, lowering total cost of ownership.
Installation and Setup Guidance
Mount the Allen-Bradley 22D-E019H204 via its DIN-rail or flange-mount options. The zero-stacking feature allows side-by-side mounting without derating at temperatures up to 40°C. The integral keypad and programming keys enable quick configuration. Ensure proper grounding and use shielded cables for reliable operation.
Maintenance and Reliability
The removable MOV and relay precharge controller enhance protection against surges and inrush currents. The LED status indicator provides real-time drive health information. Routine inspection of connections and cooling airflow extends service life.
Buying Guide
Before purchasing, verify your input power matches 600VAC 3-phase and that your motor requirements align with 15 HP (19A). For OEM integration, the open NEMA Type enclosure (IP20) suits indoor cabinets. PLC Source PRO offers this genuine Allen-Bradley 22D-E019H204 drive with fast shipping.
