Product Introduction

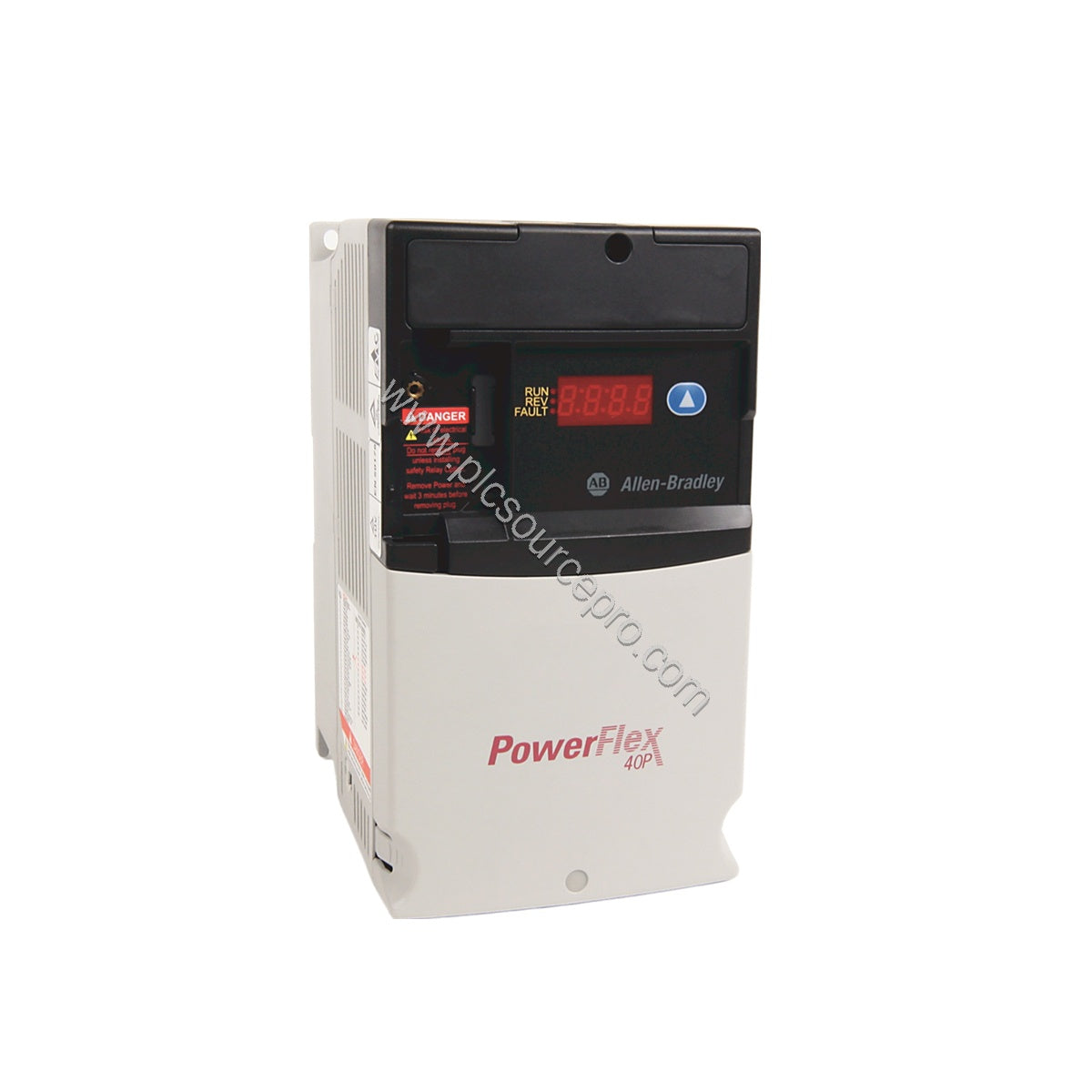

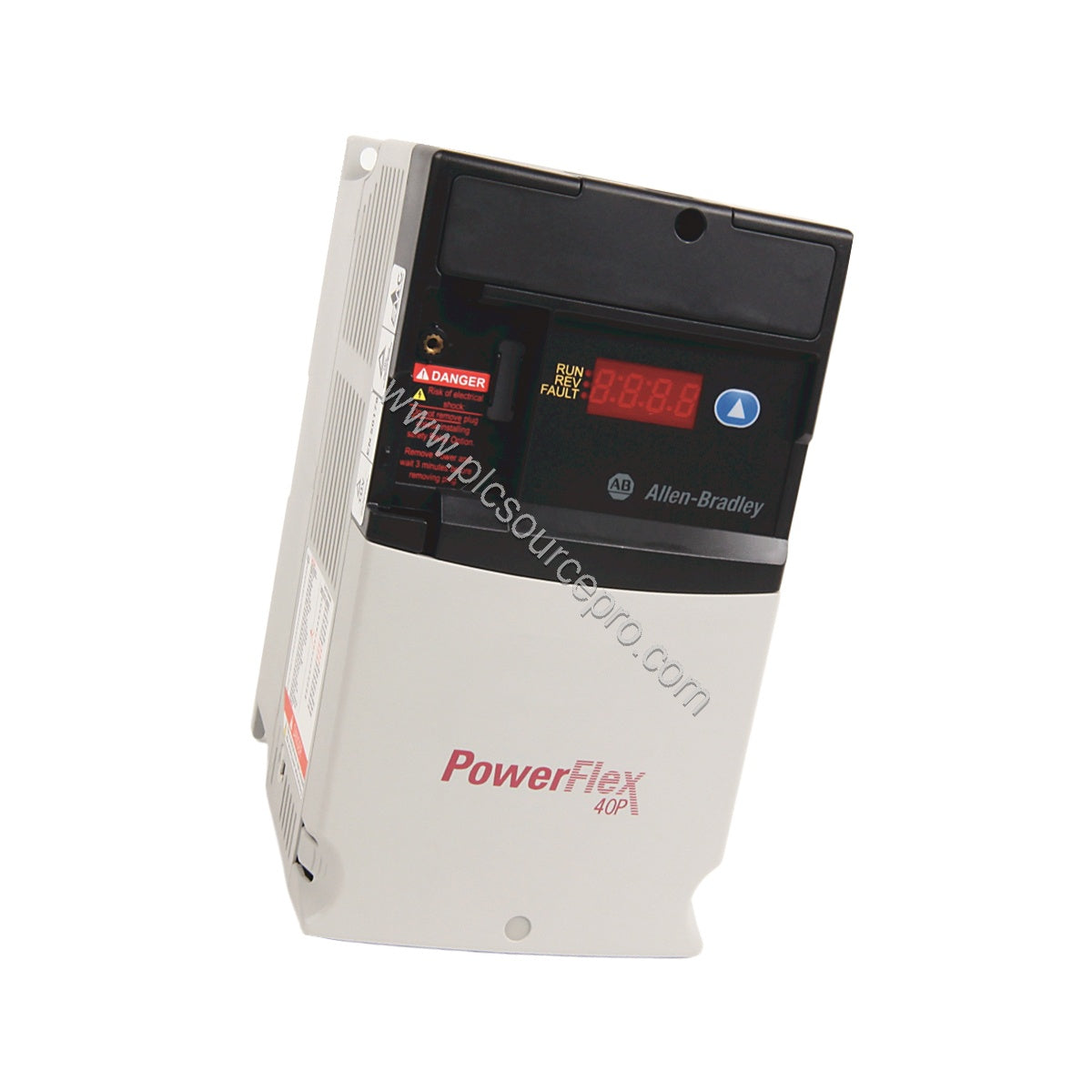

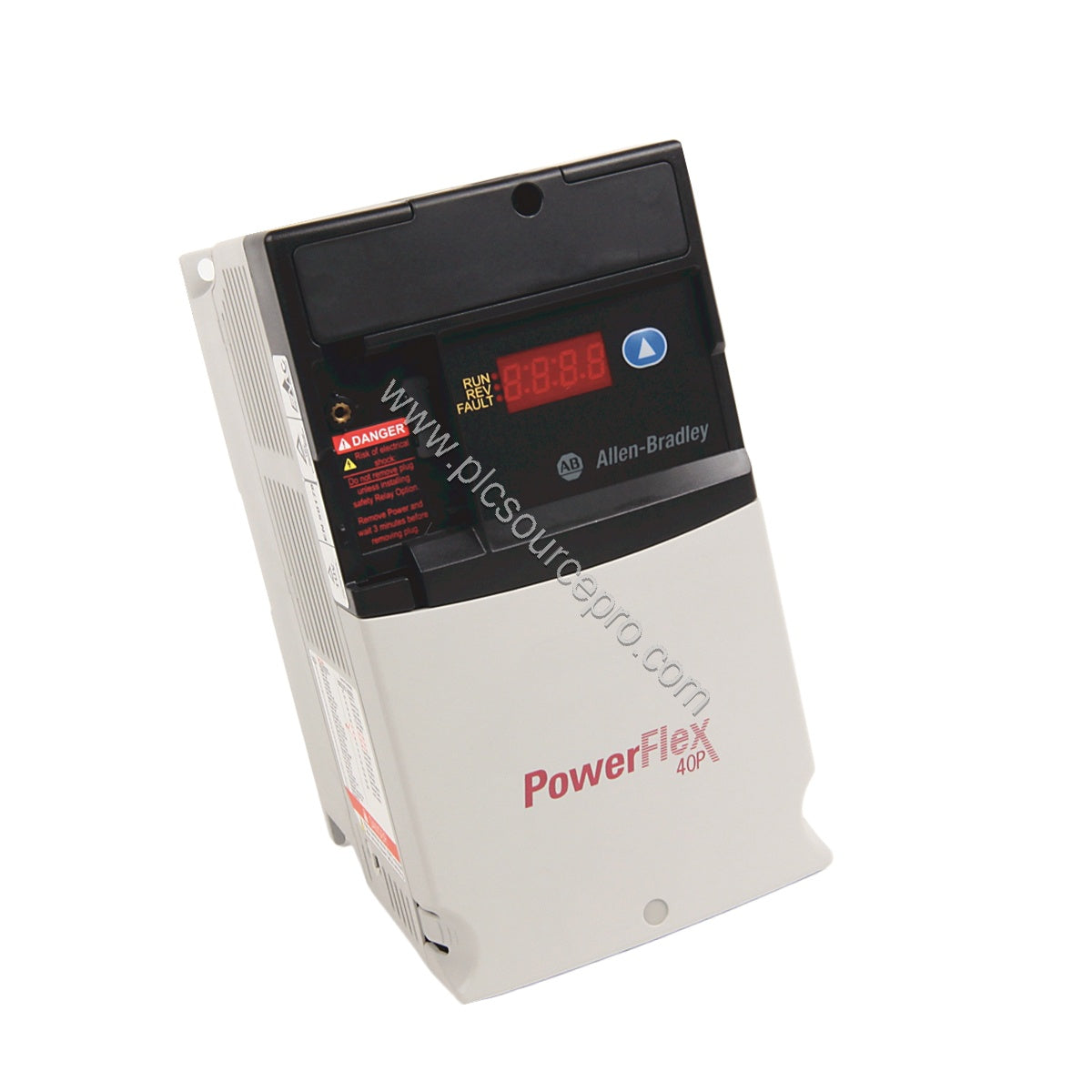

The Allen-Bradley 22D-D017H204 industrial automation module is an adjustable frequency drive from the PowerFlex 40P series. Designed for global OEM requirements, this drive delivers flexibility, space efficiency, and ease of use. It supports closed-loop control and includes a Category 3 Safe Torque-Off feature, enhancing operational safety. The 22D-D017H204 operates with a three-phase input voltage of 480 Volts AC, a frequency range of 50 to 60 Hertz, and provides 10 Horsepower of output power.
Technical Specifications Breakdown
Below are the critical specifications for the Allen-Bradley 22D-D017H204 drive, directly from the manufacturer's data:
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22D-D017H204 |
| Product Line |
PowerFlex 40P |
| Input Power |
480 Volts AC |
| Phase |
Three-Phase |
| Amperage |
17.0 A |
| Horsepower |
10 HP |
| Enclosure |
Open NEMA Type-Plate Mount (IP20) |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
The 22D-D017H204 includes sensorless vector control for excellent speed regulation and torque across the speed range. An autotune feature allows the drive to adapt to motor characteristics, simplifying setup.
Industry Applications
The Allen-Bradley 22D-D017H204 is ideal for speed and basic position control in applications such as conveyors, packaging machines, and spinning equipment. Its cost-effective design and closed-loop capability reduce downtime and improve process efficiency, delivering long-term return on investment. In smart conveyor systems, the drive maintains precise speed consistency, minimizing product jams and waste.
Compatibility & Integration
The 22D-D017H204 integrates seamlessly with Logix control platforms and supports multiple communication protocols. Integral communication cards include DeviceNet, EtherNet/IP, PROFIBUS, and ControlNet. A DSI wireless interface module provides wireless communication, and the integral RS485 port enables multi-drop network configurations. The drive is compatible with RTU Master devices supporting standard 03, 06, and 16 commands. A remote HMI with LCD, panel mounting, digital speed control, and CopyCat functionality (IP66) is also available.
Selection Guide & Purchasing Advice
When selecting the Allen-Bradley 22D-D017H204, verify that your application requires a 480V AC, 3-phase input and that the enclosure type (IP20 plate mount) suits your environment. For applications needing a built-in CE-compliant filter, consider an alternative model. PLC Source PRO offers this drive with full support and fast shipping, ensuring you receive genuine, factory-tested parts.
