Product Overview: Allen-Bradley 22D-B033H204 PowerFlex 40P AC Drive

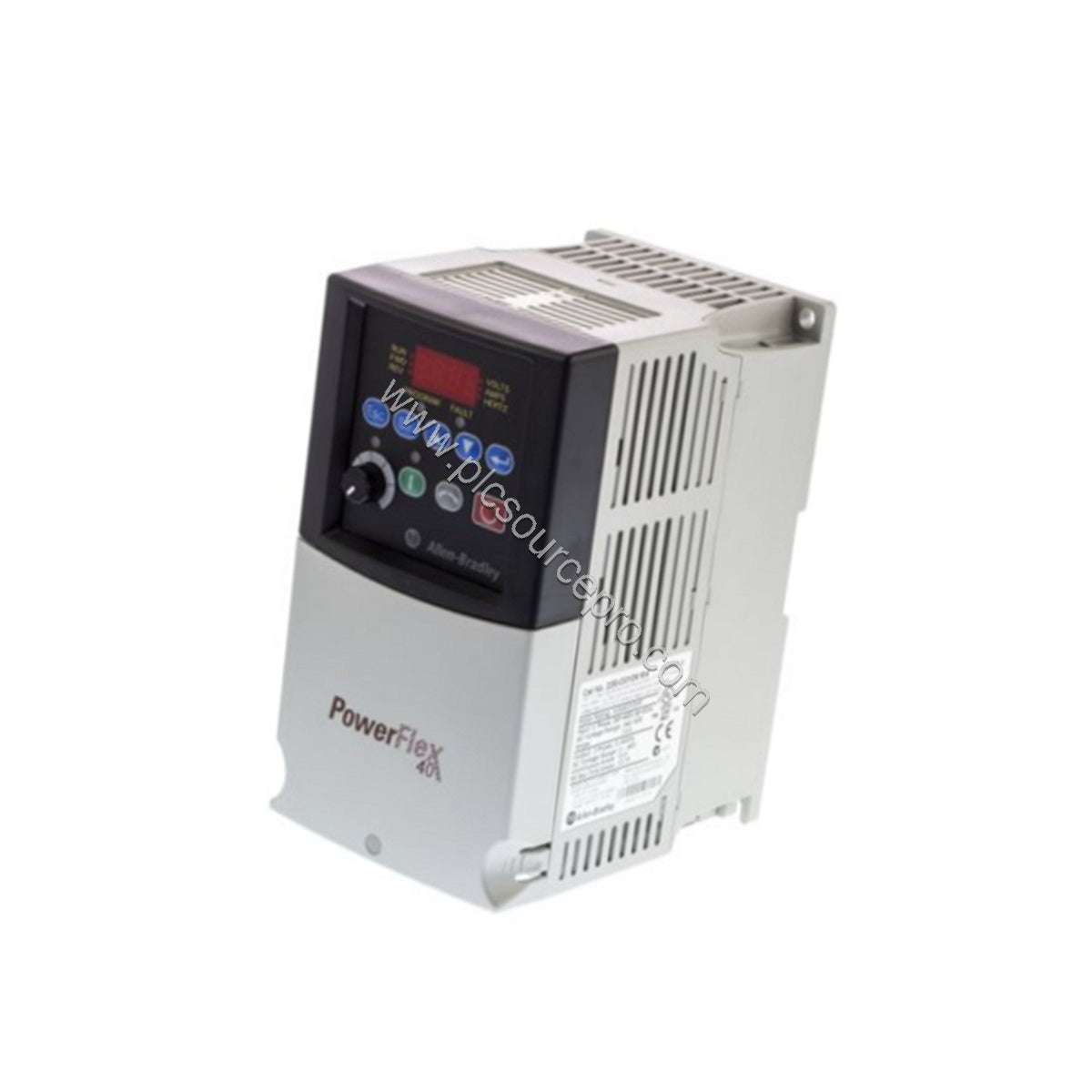

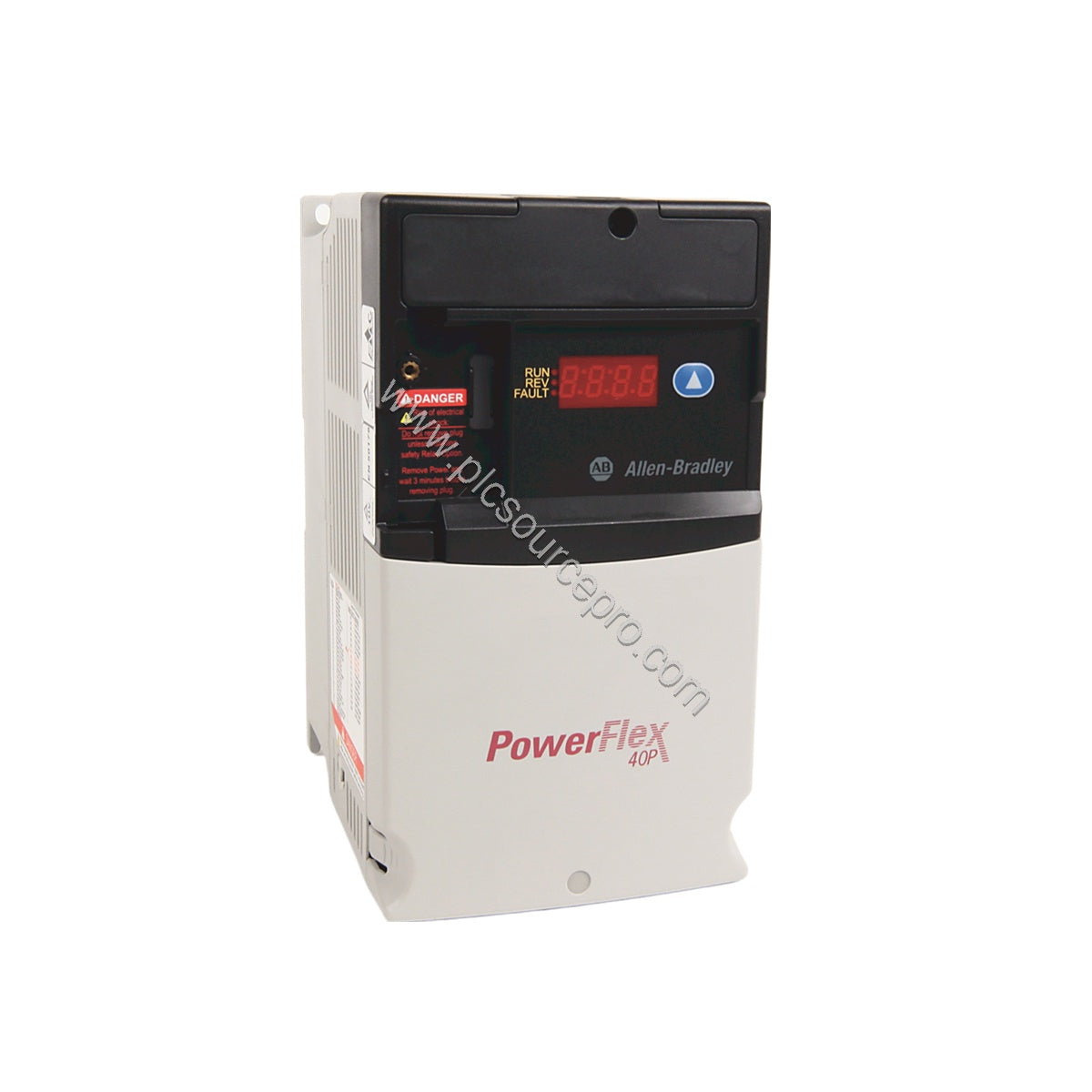

The Allen-Bradley 22D-B033H204 is a PowerFlex 40P series adjustable frequency drive designed for precise speed control in demanding industrial environments. As part of Rockwell Automation's trusted lineup, this drive delivers robust performance for applications requiring reliable operation under fluctuating loads. The 22D-B033H204 features a compact Size C frame and an IP20 (NEMA Type Open) enclosure, making it suitable for panel-mount installations where space is at a premium.
While detailed technical specifications are not listed here, the 22D-B033H204 is engineered to handle typical three-phase input power and is known for its flexibility and ease of use. For exact ratings and parameters, please contact PLC Source PRO directly.
Real-World Applications: Where the 22D-B033H204 Excels
The Allen-Bradley 22D-B033H204 is ideal for speed control in a variety of industrial machines. Common applications include:
-
Smart Conveyors & Diverters – The drive’s sensorless vector control provides consistent torque across the speed range, ensuring smooth material handling and reducing mechanical stress.
-
Packaging Machinery – With adjustable PWM frequency up to 16 kHz, the 22D-B033H204 operates quietly, which is critical in packaging lines where noise can disrupt workflow.
-
Textile Spinning & Drafting Machines – The drive’s enhanced inertia ride-through and ½ DC Bus operations help maintain output during brownouts, preventing costly yarn breaks and downtime.
By addressing common failure points such as inrush current and ground faults, the Allen-Bradley 22D-B033H204 minimizes unexpected stoppages, making it a reliable choice for continuous production environments.
Installation & Setup Guidance
When installing the Allen-Bradley 22D-B033H204, follow these best practices to ensure trouble-free operation:
-

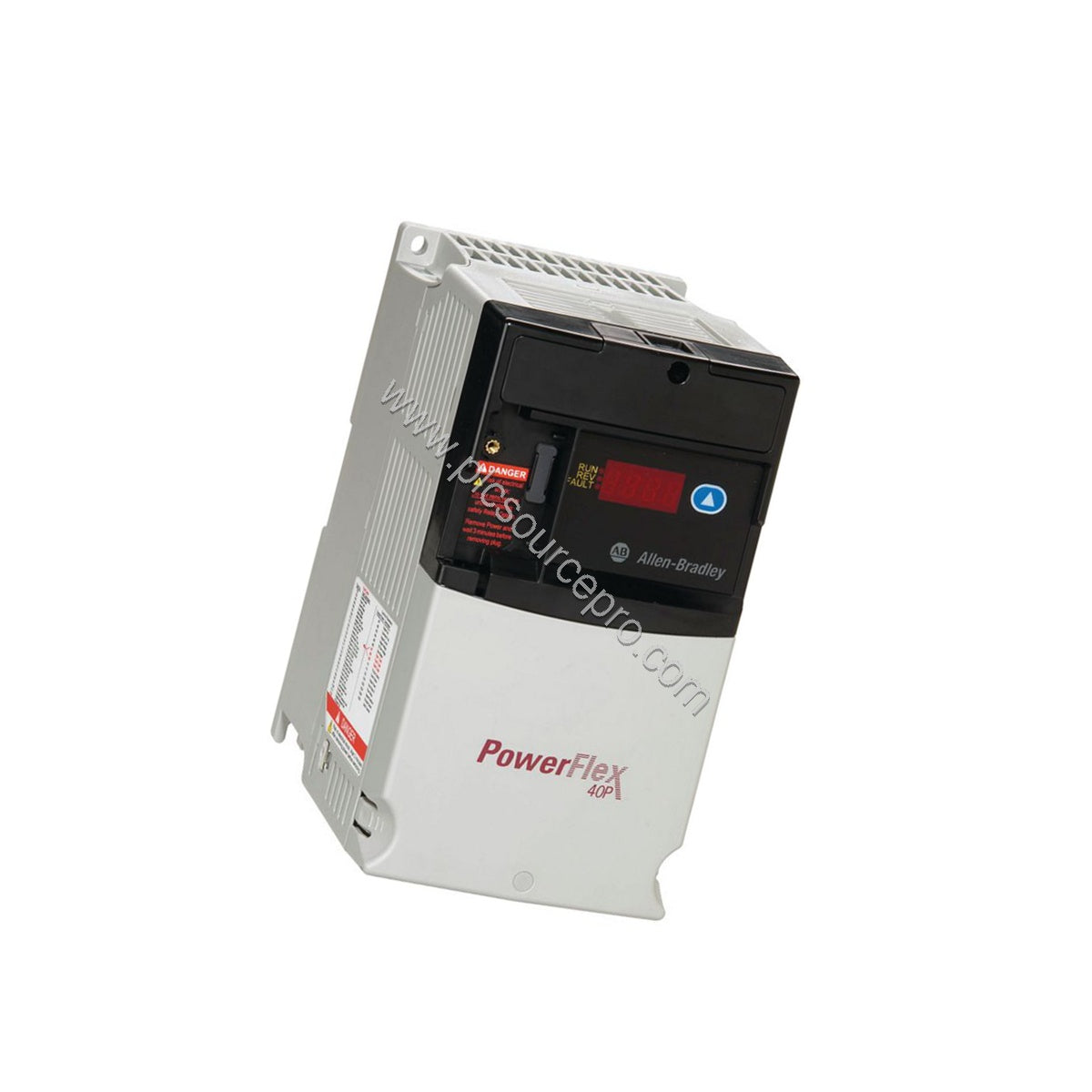

Mounting – Use the standard plate mount (IP20) enclosure in a clean, dry cabinet. For higher environmental protection, an optional IP30 (NEMA 1) conduit box can be added.
-
Wiring – Connect three-phase power to the input terminals as per the manufacturer’s wiring diagram. The drive includes a relay pre-charge circuit to limit inrush current, so ensure proper pre-charge sequencing.
-
Grounding – The removable MOV to ground allows safe operation on ungrounded distribution systems. Verify ground integrity before first startup.
-
Control Wiring – The DIP switch can be set for 24V DC sink or source control. Use twisted-pair shielded cable for RS485 communications to reduce noise.
Compatibility & Integration
The Allen-Bradley 22D-B033H204 is designed for seamless integration into existing control architectures:
-
Communications – Integral RS485 port supports multi-drop networks using Modbus RTU protocol. A serial converter module (SCM) provides connectivity to controllers with DF1 ports.
-
Programming – Use an external HMI or the resident DSI port with a PC programming tool (e.g., Rockwell Automation’s DriveTools SP).
-
Compatible Controllers – Works with any PLC or controller that supports Modbus RTU or DF1 master capability. For optimal performance, avoid using SCM if the controller is an RTU master.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 22D-B033H204, verify the following:
- Input power source matches the drive’s rated voltage (three-phase, 240VAC).
- Motor horsepower and full-load current (FLC) are within the drive’s capability (10 HP, 33A).
- Enclosure type (IP20) is acceptable for your environment; consider the optional conduit kit if higher protection is needed.
- Communications requirements – ensure your controller supports RS485 Modbus or DF1.
PLC Source PRO offers this unit as a genuine, new surplus or refurbished product. Since detailed specifications are not listed in this description, we recommend contacting our technical team at ubest101 for exact datasheets and to confirm compatibility with your application. Our knowledgeable staff can help you select the right accessories, such as brake resistors or communication modules.
