Product Overview

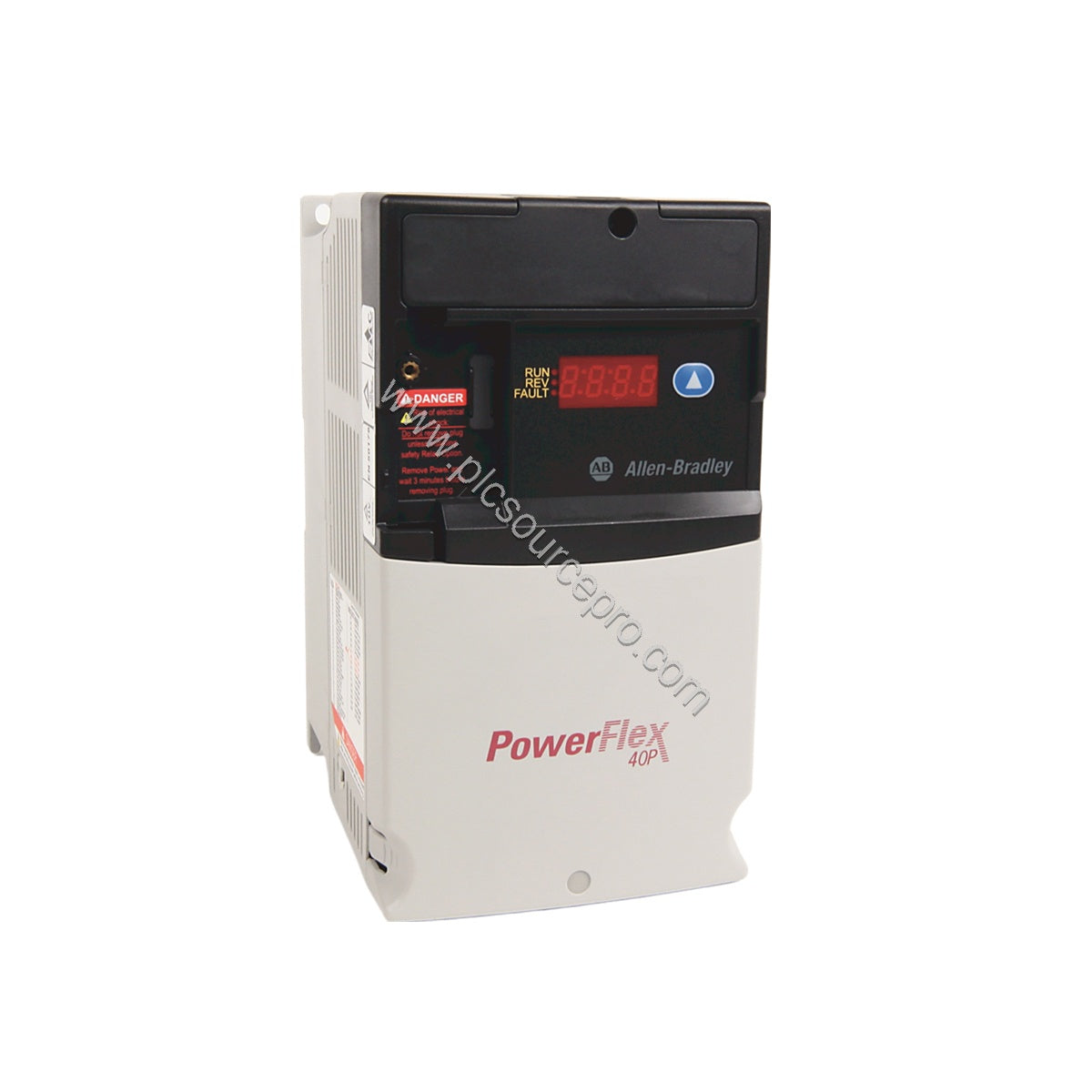

The Allen-Bradley 22D-B033F104 is an adjustable frequency drive from the PowerFlex 40P series, designed to deliver efficient motor control in demanding industrial environments. Operating on 240 Volts AC three-phase input, this standard-model drive provides 10 Horsepower of output power without a CE compliant filter. Its robust construction and advanced features make it a cost-effective solution for reducing energy consumption and minimizing downtime—key factors for long-term return on investment.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |
22D-B033F104 |
| Product Line |
PowerFlex 40P |
| Amperage |
33.0 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type - Flange Mount (IP20) |
| Input Power |
240 Volts AC |
| Horsepower |
10 Horsepower |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
C |
These specifications directly support reliable operation and easy integration into existing systems, ensuring consistent performance and lower total cost of ownership.
Industry Applications
In manufacturing lines, material handling systems, and pump or fan control, the Allen-Bradley 22D-B033F104 drive excels. For example, in a conveyor system, its 33.0 A current capacity and 10 HP output handle heavy loads while the ZeroStacking technology allows ambient temperatures up to 50°C without de-rating. This reduces the need for external cooling, saving energy and maintenance costs. In HVAC applications, the drive’s internal RS485 communications enable remote monitoring, cutting unplanned downtime.
Installation & Setup Guidance

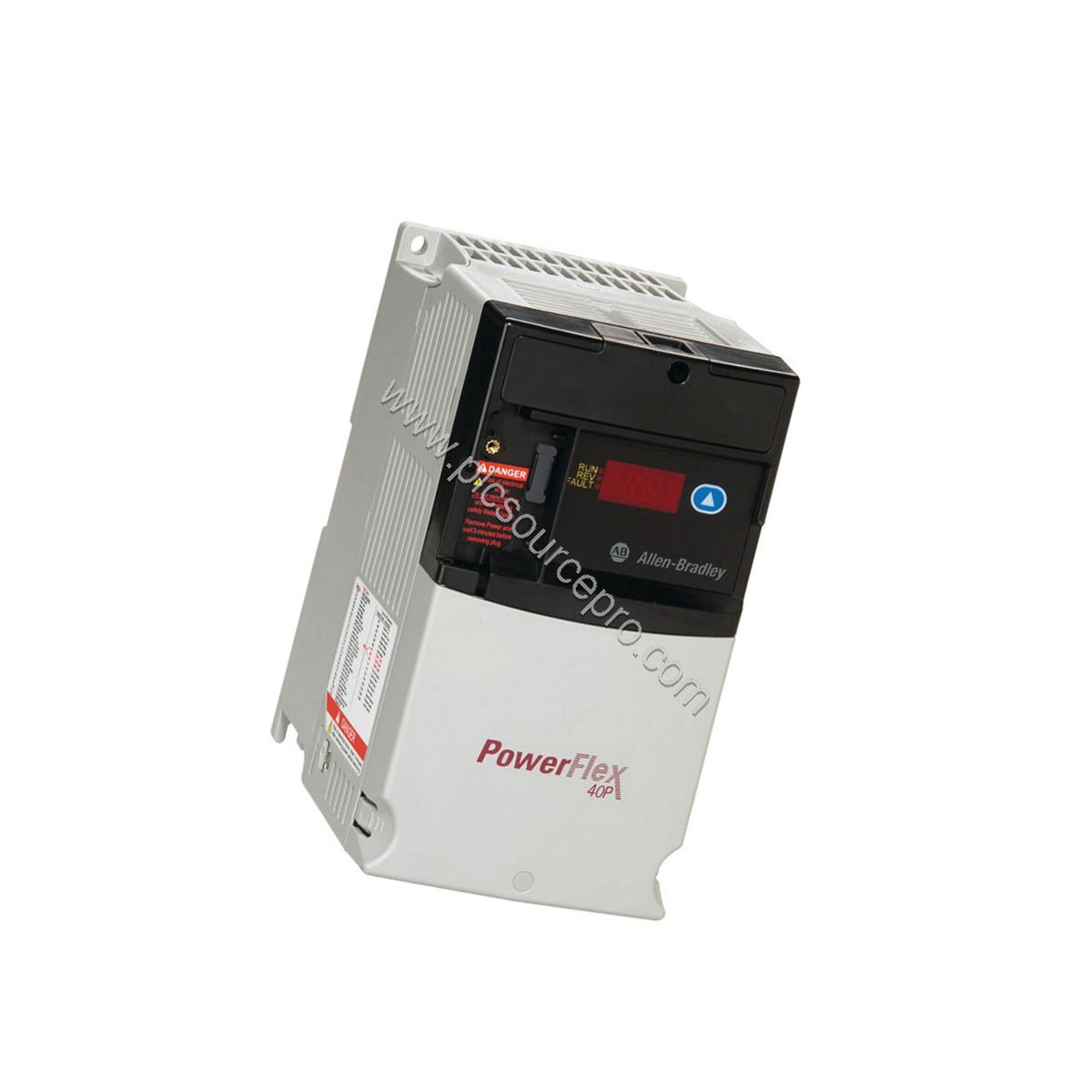

The Allen-Bradley 22D-B033F104 comes with a DIN rail mounting mechanism for straightforward installation. Ensure the enclosure (IP20) is placed in a clean, dust-protected area. The Frame Size C design offers excellent ventilation—avoid blocking airflow. Use the included StepLogic wizards via the built-in 4-digit display and 10 LEDs to configure basic, advanced, and enhanced parameter groups quickly. For ambient temperatures above 40°C, the ZeroStacking feature automatically adjusts to protect the drive.
Compatibility & Integration
This drive supports integral RS485 communications, allowing programming from a PC and operation in multidrop network configurations. It works seamlessly with Allen-Bradley controllers and other Rockwell Automation equipment. The NEMA Type 1 LCD keypad and NEMA Type 4x remote provide additional control flexibility for harsh environments. The Allen-Bradley 22D-B033F104 can distinguish parameters across Basic, Advanced, and Enhanced Program Groups, simplifying system integration.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 22D-B033F104, verify your system’s input voltage (240VAC 3-phase) and required horsepower (10 HP). Consider whether you need a drive with a CE compliant filter; this model is standard without one. For reliable supply and expert support, contact PLC Source PRO (formerly ubest101) to ensure genuine parts and fast delivery. This drive is an excellent choice for applications where long-term reliability and energy efficiency drive ROI.
