Product Overview

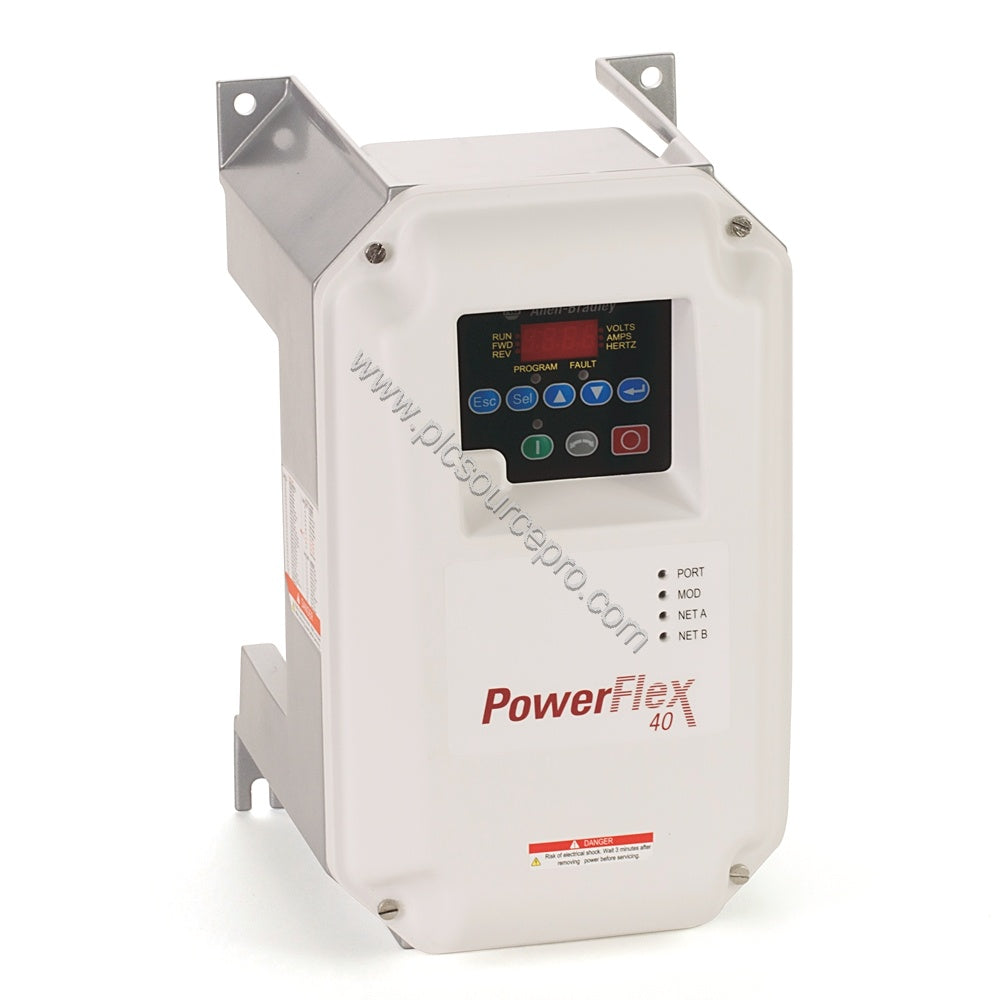

The Allen-Bradley 22B-V6P0N104 PowerFlex 40 AC Drive delivers precise motor speed control for fans, pumps, and machine tools. With 97.5% drive efficiency and Class 10 I2t overload protection, this unit reduces energy costs and extends equipment life. The compact IP20 panel-mount enclosure saves valuable cabinet space.
Technical Specifications
| Parameter |
Value |
| Voltage |
120AC Volts |
| Amperage |
6.0 A |
| Horsepower |
1.5 HP |
| Phase |
1 Phase |
| Enclosure |
Panel Mount - IP20, NEMA/UL Type Open |
| Communication |
RS-485 |
| Input Type |
Keypad |
| Input Voltage Range |
90-132V AC |
| Real Power Input |
3KVA |
| Efficiency |
97.5% |
| Overload Protection |
Class 10 (150% for 60s, 200% for 3s) |
| Short-Circuit Rating |
100,000A Symmetrical |
| Weight |
Approx. 1.4 kg |
| Dimensions |
80 x 185 x 136 mm |
Application Scenarios
In conveyor systems, the Allen-Bradley 22B-V6P0N104 provides smooth acceleration and deceleration, reducing mechanical stress. For HVAC fans, its high efficiency directly lowers electricity consumption—a quick return on investment. In pumping applications, the drive’s 200% hardware overcurrent protection prevents costly motor damage during sudden load changes.
Compatibility and Integration
The Allen-Bradley 22B-V6P0N104 integrates seamlessly via its built-in RS-485 port, enabling communication with PLCs and SCADA systems. It works with standard keypad control and accepts analog inputs for speed reference. The drive supports both sink and source digital inputs, configurable via a DIP switch.
Troubleshooting and Reliability
The Allen-Bradley 22B-V6P0N104 features a minimum control ride-through time of 0.5 seconds, preventing nuisance trips during voltage sags. Its I2t overload algorithm provides precise thermal protection, while the internal IGBT dynamic braking absorbs regenerative energy. For long-term reliability, operate within 14 to 122°F and 5-95% non-condensing humidity.
Selection and Purchasing Guide
Before purchasing the Allen-Bradley 22B-V6P0N104, verify your system voltage (120VAC single-phase) and required horsepower (1.5 HP). Confirm the enclosure type suits your environment—IP20 for clean indoor cabinets. For accessories or custom configurations, contact ubest101 for expert assistance and fast delivery.
